BMW E34 520i M50 Engine Oil Guide

Welcome to the essential guide for your BMW E34 520i, specifically those equipped with the revered M50 engine. It's fantastic that you've upgraded to a 1994 model with this powerplant; the M50 is known for its smooth performance and distinctive sound. Experiencing a rattle at higher revs, potentially from the cam area, is a common concern, and performing an oil and filter change is indeed a wise first step. Many owners find that fresh, correct oil can significantly improve engine noise and overall health. Let's delve into the specifics of what your M50 engine needs to keep it purring like a kitten.

Understanding the M50 Engine's Oil Requirements

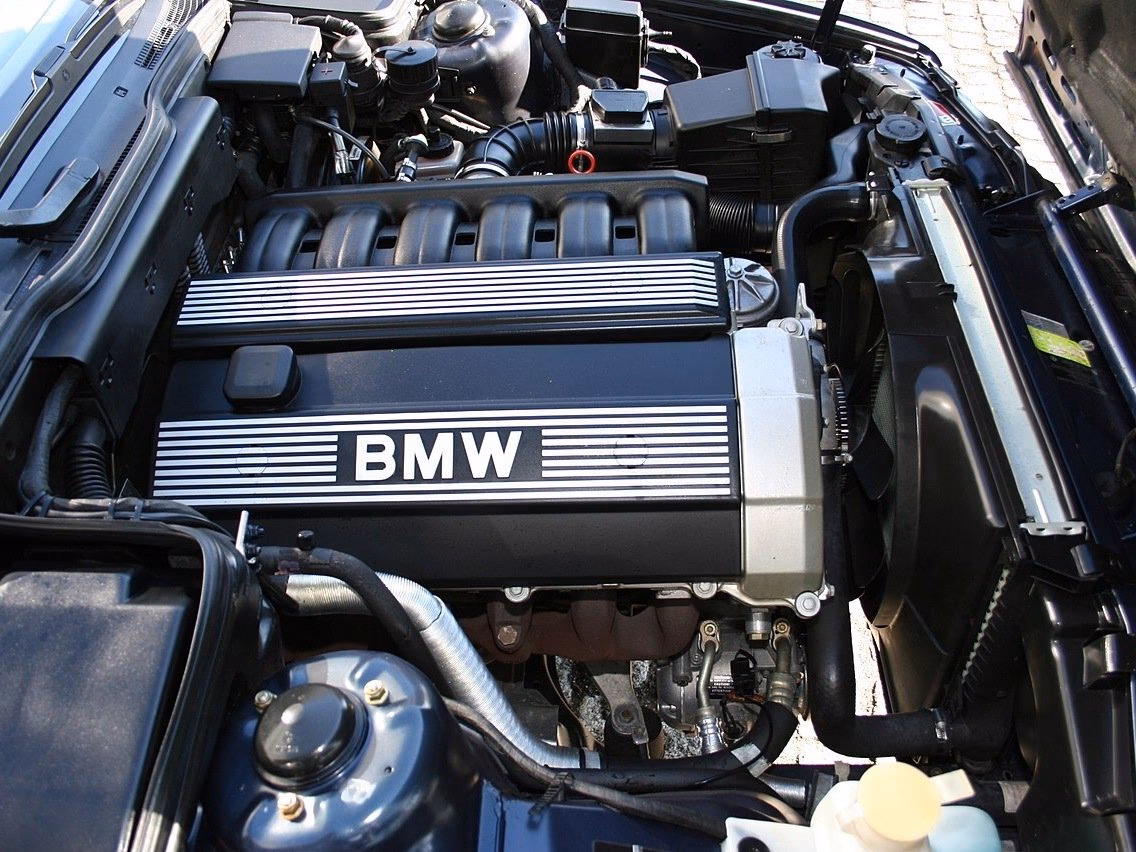

The BMW M50 engine, a descendant of the M20 and predecessor to the M52, is a robust inline-six powerhouse. For optimal performance and longevity, selecting the correct engine oil is paramount. BMW has always been particular about the fluids used in its vehicles, and the M50 is no exception. The key factors to consider are the oil viscosity and the oil specification.

Recommended Oil Viscosity

For the M50 engine, the most commonly recommended viscosity grades by BMW, suitable for a wide range of UK climates, are:

• 5W-30
• 5W-40

The '5W' indicates the oil's viscosity at cold temperatures (Winter), meaning it flows well when the engine is cold, ensuring rapid lubrication of critical components like the camshafts and VANOS (Variable Valve Timing) system, which can be sensitive to oil flow. The second number ('30' or '40') represents the viscosity at operating temperature. A 5W-40 oil will be slightly thicker at high temperatures compared to a 5W-30, which can offer a bit more protection in very hot conditions or for engines with higher mileage.

It's always best to consult your E34's owner's manual if you have it. However, if not, a high-quality synthetic 5W-40 is generally a safe and excellent choice for the M50, especially if you're experiencing minor noises that could be attributed to oil film strength.

Oil Specifications and Approvals

Beyond viscosity, BMW also specifies certain performance standards that engine oils must meet. For the M50, you'll typically want to look for oils that meet or exceed:

• API SJ or SL (or newer, like SN)
• ACEA A3/B3 or A3/B4

Many premium synthetic oils from reputable brands will clearly state these specifications on their packaging. Choosing a full synthetic oil is highly recommended for the M50 engine, as it provides superior protection, better thermal stability, and improved resistance to breakdown compared to conventional or semi-synthetic oils.

The Oil and Filter Change Process

Performing an oil and filter change on your E34 520i M50 is a rewarding DIY task. Let's break down the essentials:

Locating the Oil Filter

For the M50 engine, the oil filter is typically located at the front of the engine, towards the passenger side (left-hand drive markets) or driver's side (right-hand drive markets), mounted vertically or at a slight angle. It's a canister-style filter. You'll usually find it screwed into a housing. A good starting point for locating it is to look underneath the engine, towards the front, and follow the oil cooler lines if your car has them.

Tools and Supplies You'll Need:

• New oil filter (ensure it's the correct one for the M50 engine)
• New sump plug washer (highly recommended to prevent leaks)
• Engine oil (correct viscosity and specification, typically 5-6 litres)
• Oil filter wrench (strap wrench or cap wrench that fits your filter)
• Socket set and ratchet (for the sump plug, usually 17mm or 19mm)
• Drainage pan large enough to hold the old oil
• Funnel
• Gloves
• Rags or paper towels
• Wheel chocks
• Jack and axle stands (for safely lifting the car)

Step-by-Step Guide:

1. Warm Up the Engine: Run the engine for a few minutes to warm the oil. This makes it flow more easily. Don't let it get too hot to handle, though.
2. Safely Lift the Vehicle: Use a jack and secure axle stands under the designated jacking points. Ensure the car is stable before getting underneath.
3. Locate the Sump Plug: Find the oil drain plug at the lowest point of the oil sump.
4. Position the Drain Pan: Place the drainage pan directly underneath the sump plug.
5. Remove the Sump Plug: Using the correct socket, carefully loosen and remove the sump plug. Be prepared for the hot oil to drain out.
6. Let the Oil Drain: Allow the old oil to drain completely. This might take 10-15 minutes.
7. Replace the Sump Plug: Once drained, clean the sump plug and fit a new washer. Screw the plug back in by hand to avoid cross-threading, then tighten it with the wrench. Don't overtighten.
8. Locate and Remove the Oil Filter: Position the drain pan under the oil filter. Use your oil filter wrench to loosen and remove the old filter. Some oil will spill out.
9. Prepare the New Filter: Lightly lubricate the rubber gasket on the new oil filter with a bit of fresh engine oil. This helps it seal properly and makes future removal easier.
10. Install the New Filter: Screw the new filter on by hand until the gasket makes contact with the housing, then tighten it an additional 3/4 to a full turn by hand, as per the filter manufacturer's instructions. Do not use the wrench to tighten it unless specified.
11. Lower the Vehicle: Carefully lower the car off the axle stands.
12. Add New Oil: Open the oil filler cap on the top of the engine. Using a funnel, pour in the recommended amount of new engine oil (typically around 5-5.5 litres for the M50, but check your manual).
13. Check the Oil Level: Replace the oil filler cap. Start the engine and let it run for a minute or two. Check for any leaks around the sump plug and oil filter. Turn off the engine and wait a few minutes for the oil to settle. Check the oil level on the dipstick. Add more oil if necessary to reach the 'MAX' mark, but do not overfill.

Addressing the Rattle: What Else to Consider?

While a correct oil change is the best starting point, the rattle you're hearing at higher revs might be related to a few common M50 components:

VANOS System

The M50 engine features the VANOS system, which adjusts camshaft timing. Early versions of VANOS (on the M50) can sometimes develop issues, often related to the seals within the VANOS solenoid or the piston seals. A common symptom of failing VANOS seals is a rattling or knocking sound that is more pronounced at idle or upon acceleration, particularly when the engine is warm. Using the correct, clean oil is crucial for the VANOS system to operate correctly. If the noise persists after the oil change, a VANOS rebuild kit or a new solenoid might be necessary.

Camshaft Wear or Timing Chain

Although less common on well-maintained M50 engines, excessive wear on camshaft lobes or issues with the timing chain tensioner or guides could also produce rattling noises. These are more involved repairs that would require further diagnosis.

Exhaust System

Sometimes, what sounds like an engine rattle can be an issue with the exhaust system – a loose heat shield, a worn exhaust manifold gasket, or even a catalytic converter problem. It's worth checking the exhaust system for any obvious signs of looseness or damage.

Oil Pressure

Low oil pressure can also lead to increased mechanical noise. While an oil change should improve this if the oil was old or low, a faulty oil pressure sensor or a worn oil pump could be underlying causes.

Table: Oil Comparison

Here's a quick comparison of common oil types and their suitability for your M50:

Frequently Asked Questions (FAQs)

Q1: How often should I change the oil in my E34 520i M50?

A1: For a classic car like the E34, especially if it's a daily driver or driven spiritedly, changing the oil and filter every 5,000 to 7,500 miles or annually, whichever comes first, is a good practice. If you only do very low mileage, changing it annually is essential to prevent oil degradation.

Q2: Can I use a different viscosity oil, like 10W-40?

A2: While 10W-40 was common in older engines, the M50 benefits greatly from the superior flow characteristics of a 5W oil at startup. Using 10W-40 might provide adequate protection at operating temperature but could be less protective during cold starts, which is when most engine wear occurs. It's best to stick to the recommended 5W-30 or 5W-40.

Q3: My E34 520i has high mileage. Should I use a thicker oil?

A3: If your engine is consuming oil or has developed some wear, a 5W-40 is often a better choice than a 5W-30 as it offers a slightly stronger oil film. However, avoid going significantly thicker (e.g., 10W-50 or 15W-50) unless specifically recommended by a trusted BMW specialist for your engine's condition, as it can impede oil flow, especially to critical components like the VANOS.

Q4: What is the oil capacity for the M50 engine?

A4: The M50B20 (2.0 litre) and M50B25 (2.5 litre) engines typically take around 5.5 litres (5.8 US quarts) of oil with a filter change. Always check the dipstick after filling to ensure the level is correct.

Q5: Is the rattle definitely the VANOS?

A5: It's a strong possibility, as VANOS rattle is a well-documented M50 characteristic. However, it's not guaranteed. An oil change is the first logical step. If the noise persists, further investigation into the VANOS system, or other potential causes like the exhaust, would be necessary.

Conclusion

Keeping your BMW E34 520i with the M50 engine in top condition involves paying attention to its fluid requirements. By using a high-quality full synthetic 5W-40 engine oil and ensuring regular oil and filter changes, you're providing the best possible foundation for your engine's health. The rattle you're experiencing is a common point of concern for M50 owners, and while fresh oil often helps, be prepared to investigate further if the noise continues. Enjoy the drive in your classic Beemer!
