BMW M235i/M240i Diff Casing Guide

The BMW M235i and its successor, the M240i, are celebrated for their engaging driving dynamics and potent straight-six engines. At the heart of this performance lies the differential, a crucial component responsible for distributing power to the rear wheels. Understanding the specifics of the differential casing, particularly for these popular models, is vital for any owner keen on maintaining their vehicle's optimal performance and longevity. This guide delves into the common queries surrounding the BMW M235i and M240i differential casings, focusing on fluid changes, potential upgrades, and the unique design features.

Understanding the Differential Casing

The differential casing, often referred to as the differential housing or pumpkin, is the robust enclosure that protects the intricate gearing within the differential. It houses the ring gear, pinion gear, and spider gears, all working in concert to allow your wheels to rotate at different speeds when cornering. For the M235i and M240i, BMW typically employs a robust, cast aluminium or iron casing designed to withstand the considerable torque generated by their turbocharged engines. The specific design can vary slightly between generations, but the fundamental purpose remains the same: to provide a rigid and sealed environment for the differential's internal components.

Differential Fluid Changes: A Necessary Task

Regular differential fluid changes are paramount for the health of your car's drivetrain. The fluid lubricates the gears, dissipates heat, and prevents excessive wear. In many vehicles, a simple drain plug facilitates this process. However, as noted in the user's query, some BMW differentials, including those found in the M235i and M240i, lack a dedicated drain plug. This absence necessitates a different approach to fluid replacement.

The Sucking-Out Method

When a drain plug is absent, the standard procedure involves using a fluid extractor pump. As described by the user, a tube is inserted through the fill hole, and the old fluid is painstakingly pumped out. This method, while effective, can be time-consuming, requiring meticulous effort to remove as much of the old, degraded fluid as possible. Moving the tube around within the casing, as the user experienced, is a common technique to agitate and draw out residual fluid. This thoroughness is essential to ensure that the new fluid mixes effectively with any remaining old fluid, preventing contamination and ensuring optimal lubrication.

Why No Drain Plug?

The rationale behind BMW's decision to omit drain plugs on certain differential casings is often attributed to several factors. Firstly, it can be a design choice to maintain the structural integrity and sealing of the casing. Drilling and tapping a drain plug could potentially compromise the casing's strength or create leak paths. Secondly, it might be a measure to encourage or ensure that fluid changes are performed by trained professionals who have the correct equipment for fluid extraction. Regardless of the exact reason, it's a characteristic that owners need to be aware of when planning their maintenance.

Fluid Type and Capacity

Using the correct differential fluid is non-negotiable. BMW specifies particular fluid types, often a high-quality synthetic gear oil with specific friction modifiers, especially for models equipped with a limited-slip differential (LSD). The M235i and M240i, particularly those with the M Performance package or specific drivetrain options, are likely to feature an LSD. These units require specialized fluid to function correctly and prevent chatter or premature wear. Always consult your vehicle's owner's manual or a reputable BMW specialist for the precise fluid specifications and capacity. Typically, the capacity will be around 1 to 1.5 litres, but this can vary.

Common Differential Issues in M235i & M240i

While BMW differentials are generally robust, like any mechanical component, they can experience issues over time. Some common problems owners might encounter include:

• Fluid Leaks: Worn seals around the output shafts or the casing itself can lead to differential fluid leaks. This is often indicated by oil stains on the driveway or a low fluid level warning.
• Whining or Humming Noises: Unusual noises emanating from the rear of the car, especially when accelerating, decelerating, or turning, can indicate issues with the ring and pinion gears, or bearing wear within the differential.
• LSD Chatter: If your car is equipped with an LSD, a chattering or juddering sensation during low-speed turns can be a sign that the friction modifiers in the fluid are depleted or that the LSD clutches require service or specialized fluid.
• Overheating: Under strenuous driving conditions, especially on track days, the differential fluid can overheat, leading to reduced lubrication effectiveness and potential damage.

Upgrading Your Differential Casing

For enthusiasts seeking enhanced performance, particularly for track use or spirited driving, upgrading the differential casing and its internals is a popular modification. While the stock casing is durable, aftermarket options can offer:

• Improved Cooling: Some aftermarket casings feature integrated cooling fins or provisions for external coolers, helping to manage heat buildup during demanding use.
• Strengthened Construction: For significantly increased power outputs, stronger casings made from higher-grade materials might be considered.
• Enhanced LSD Units: While not strictly the casing itself, upgrading to a more aggressive aftermarket limited-slip differential (e.g., a mechanical clutch-type LSD) often involves specific casing considerations or compatibility checks. These units provide superior traction and control during spirited driving.

When considering an upgrade, it's crucial to ensure compatibility with your specific M235i or M240i model and to choose components that match your intended use. Consulting with reputable BMW tuning specialists is highly recommended.

Differential Casing Specifications (General Comparison)

While exact part numbers vary, here's a general idea of what to expect. Note that these are illustrative and may not be exhaustive.

Note: The G42 M240i platform introduced newer variants, and specifications can differ based on drivetrain (RWD vs. xDrive) and optional packages.

Frequently Asked Questions (FAQs)

Q1: How often should I change the differential fluid in my M235i/M240i?

A1: BMW typically recommends a differential fluid change every 60,000 miles (approximately 100,000 km) or as specified in your owner's manual. However, for spirited driving or track use, more frequent changes (e.g., every 30,000 miles or annually) are advisable.

Q2: Can I use a standard gear oil in my M235i/M240i differential?

A2: No, it is crucial to use the specific BMW-approved synthetic gear oil, especially if your car has a limited-slip differential. Using the wrong fluid can lead to performance issues, noise, and premature wear.

Q3: Is it difficult to change the differential fluid without a drain plug?

A3: It requires a fluid extractor pump and patience. While not overly complex, it demands care to ensure all old fluid is removed and the correct amount of new fluid is added. If you are uncomfortable with the process, it's best to have it done by a professional.

Q4: What are the benefits of an M Performance Limited-Slip Differential?

A4: An M Performance LSD significantly improves traction and stability, especially during hard acceleration and cornering. It helps to put power down more effectively, reducing wheelspin and enhancing the car's handling characteristics.

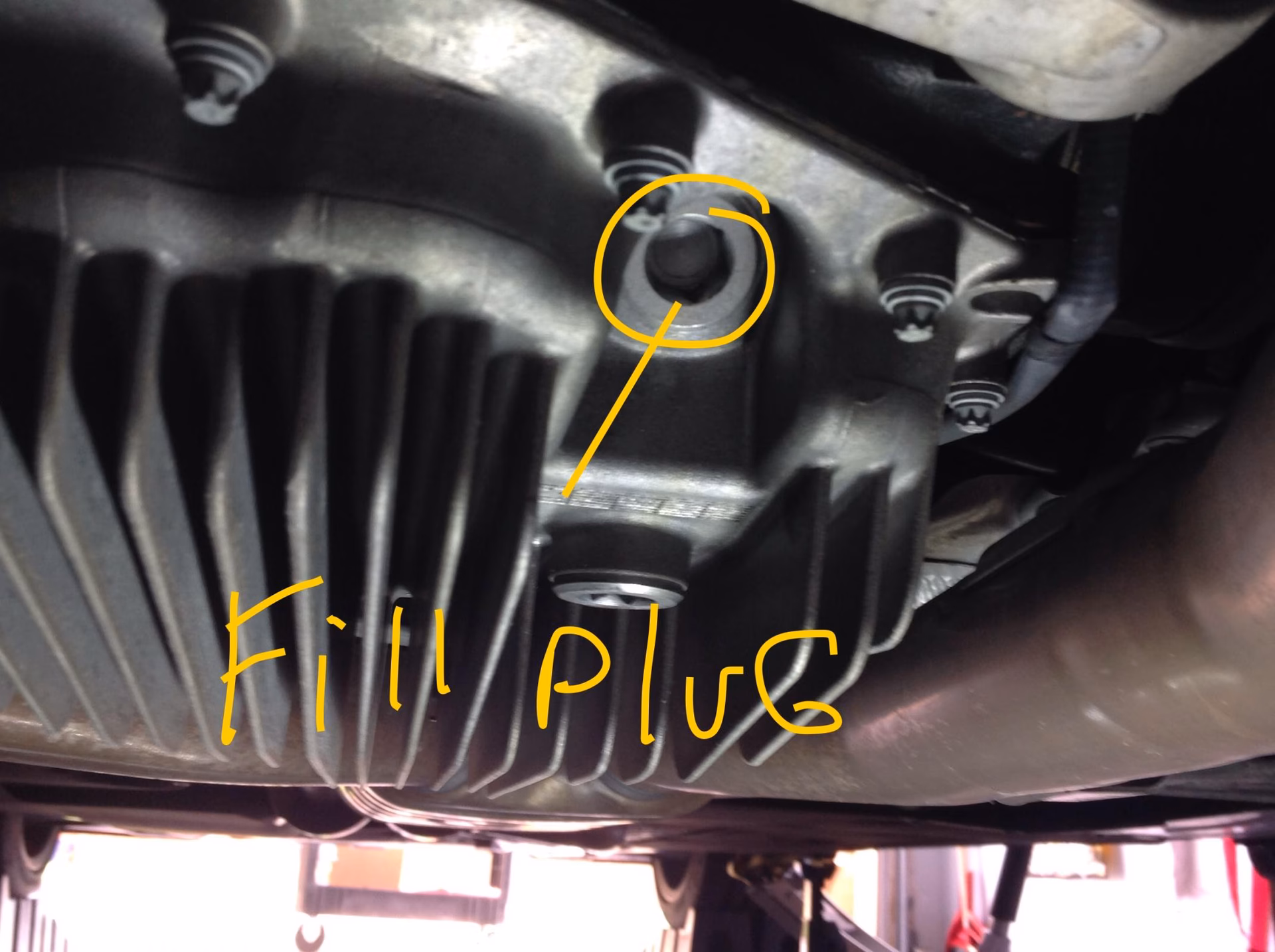

Q5: How can I check the fluid level in my differential?

A5: The fluid level is checked via the fill hole. With the car level, the fluid should be right up to the bottom of the fill hole. If it's below this, it needs topping up. Ensure the vehicle is cool before checking, or follow specific BMW procedures for checking fluid levels.

Conclusion

The differential casing of your BMW M235i or M240i is a vital component that requires diligent maintenance. Understanding the unique aspects of its fluid changes, common issues, and potential upgrade paths will empower you to keep your BMW driving experience at its exhilarating best. Always refer to official BMW documentation or consult with experienced technicians for specific maintenance procedures and fluid recommendations to ensure the longevity and peak performance of your cherished vehicle.
