Fan Clutch Repair Guide

A malfunctioning fan clutch can lead to a host of engine cooling problems, from overheating to reduced performance. Understanding how to identify and rectify these issues is crucial for any vehicle owner or mechanic. This article will delve into the common causes of fan clutch failure and provide a step-by-step guide on how to address them, ensuring your engine stays at its optimal operating temperature.

What is a Fan Clutch?

The fan clutch, often found on vehicles with belt-driven fans, is a viscous coupling that allows the engine's fan to engage and disengage. It's designed to control the fan speed based on engine temperature. When the engine is cold, the fan spins slower, saving fuel and reducing noise. As the engine warms up, the fan clutch allows the fan to spin faster, drawing more air through the radiator to dissipate heat effectively. This intelligent system plays a vital role in maintaining your engine's health and efficiency.

Common Fan Clutch Malfunctions

Several issues can cause a fan clutch to malfunction:

• Wear and Tear: Like any mechanical component, fan clutches are subject to wear over time. The internal seals can degrade, leading to a loss of the silicone fluid that facilitates the clutch's operation.
• Overheating: Prolonged exposure to high temperatures can damage the internal components of the fan clutch, causing it to fail prematurely.
• Contamination: Dirt, oil, or other contaminants can enter the clutch mechanism, interfering with its smooth operation.
• Electrical or Air Control Issues: In some vehicles, the fan clutch is electronically or pneumatically controlled. Faults in these control systems can prevent the clutch from engaging or disengaging correctly.

Symptoms of a Failing Fan Clutch

Recognising the signs of a failing fan clutch is key to preventing more serious engine damage. Watch out for these symptoms:

• Engine Overheating: This is the most significant indicator. If your temperature gauge consistently reads higher than normal, especially during idle or slow driving, your fan clutch might not be engaging properly.
• Excessive Fan Noise: A fan clutch that is constantly engaged will make a loud roaring noise, even when the engine is cold. This indicates it's not disengaging as it should.
• Poor Air Conditioning Performance: The fan plays a role in cooling the A/C condenser. A faulty fan clutch can lead to reduced cooling efficiency from your air conditioning system.
• Reduced Engine Power: When the fan is constantly engaged, it puts an unnecessary load on the engine, which can result in a noticeable decrease in power and fuel economy.

How to Fix a Malfunctioning Fan Clutch (Pneumatically Controlled)**

For vehicles with a pneumatically controlled fan clutch, such as those manufactured by Horton, the repair process often involves addressing the air supply and the clutch mechanism itself. Here’s a breakdown of the steps:

Step 1: Isolate the Fan Clutch

The first crucial step is to disconnect the air supply to the fan clutch. This prevents the clutch from engaging while you work on it. You should disconnect and plug the air line that feeds into the fan clutch. This ensures that no air pressure can activate the clutch mechanism.

Step 2: Align the Friction Disc and Sheave

Once the air line is secured, you need to align the internal components for proper engagement. Locate the two holes in the piston friction disc and carefully align these holes with the corresponding two holes in the sheave. This alignment is critical for the correct seating of the locking mechanism.

Step 3: Secure with Cap Screws

With the holes aligned, you will now install fasteners to secure the clutch in its correct position. Use two 5/16 NC X 1" grade 8 socket head cap screws. These are often referred to by a specific part number, such as Horton Part No. 994201. It is vital to use the correct grade of screw for durability and safety. Once the screws are in place, tighten them to a specific torque setting. For this type of application, the recommended torque is 25 ft. lbs. Overtightening or undertightening can lead to further damage or improper function.

Note: Always refer to your vehicle's specific service manual or the manufacturer's instructions for the most accurate procedures and part numbers, as variations can exist between makes and models. Figure 4 in the original documentation would visually illustrate the alignment and screw placement.

Troubleshooting Other Fan Clutch Types

While the above steps are specific to pneumatically controlled clutches, other types of fan clutches exist:

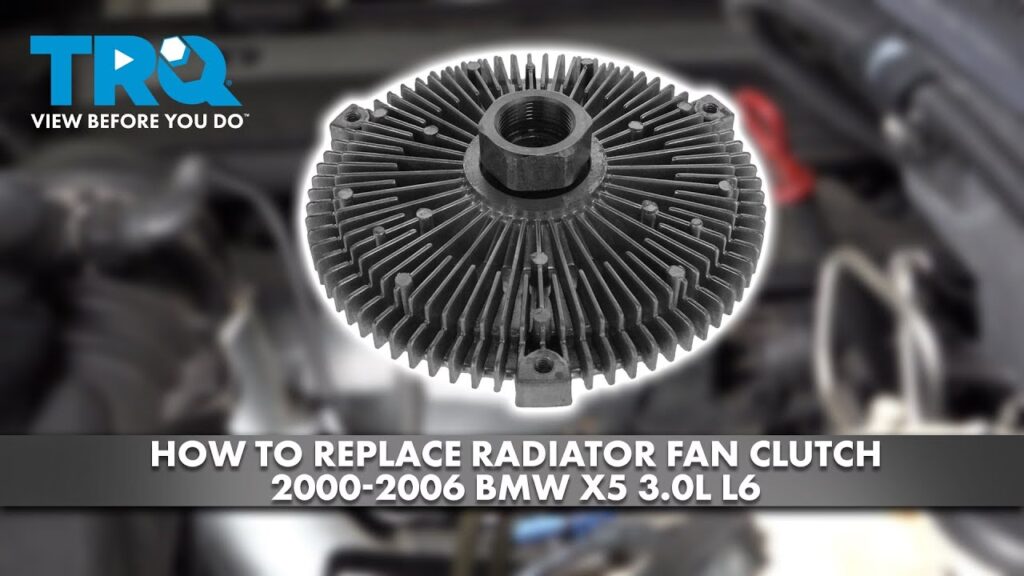

Viscous Fan Clutches

These are the most common type. They rely on a silicone-based fluid and a bimetallic spring. If a viscous fan clutch is failing, it typically means the internal fluid has leaked out or degraded. In most cases, a malfunctioning viscous fan clutch cannot be repaired; it must be replaced. Signs of failure include the fan not spinning fast enough when the engine is hot or spinning too fast all the time.

Electric Fan Clutches

Some modern vehicles use electric fans controlled by the vehicle's computer. If your vehicle has an electric cooling fan and you suspect a problem, the issue might lie with the fan motor, the relay, the fuse, or the temperature sensor that controls the fan. Diagnosis here would involve checking electrical components and sensor readings.

Preventative Maintenance for Fan Clutches

Regular checks and maintenance can extend the life of your fan clutch:

• Visual Inspections: Periodically check the fan clutch for signs of fluid leaks, damage to the housing, or loose mounting bolts.
• Listen for Unusual Noises: Pay attention to any changes in the sound of your engine bay, particularly any loud roaring from the fan.
• Monitor Engine Temperature: Keep an eye on your temperature gauge. Consistent overheating is a strong indicator of a cooling system issue, which could include the fan clutch.
• Check Belt Tension: Ensure the drive belt connected to the fan clutch is in good condition and properly tensioned. A worn or loose belt can affect fan speed.

When to Seek Professional Help

While some basic troubleshooting can be done by the vehicle owner, complex repairs or diagnosis of electrical control systems are best left to qualified mechanics. If you're unsure about any step or if the problem persists after attempting the repair, it's always advisable to consult a professional. They have the specialized tools and expertise to accurately diagnose and fix the issue, ensuring your vehicle's cooling system operates reliably.

Frequently Asked Questions

Q1: Can I drive my vehicle with a faulty fan clutch?
It is generally not recommended to drive for extended periods with a faulty fan clutch, especially if it's not engaging properly. This can lead to engine overheating, which can cause severe and costly damage.

Q2: How long does a fan clutch typically last?
The lifespan of a fan clutch can vary greatly depending on driving conditions, climate, and the quality of the component. However, they can typically last anywhere from 50,000 to 100,000 miles or more.

Q3: What is the difference between a fan clutch and an electric fan?
A fan clutch is a mechanical device that uses a fluid coupling to control the fan speed, often driven by the engine belt. An electric fan is powered by an electric motor and is controlled by the vehicle's electrical system, usually engaging only when needed, which can improve fuel efficiency.

Q4: Is it cheaper to repair or replace a fan clutch?
For most types of fan clutches, especially viscous ones, replacement is the only viable option. For pneumatically controlled clutches, repair might be possible if it's a minor issue with the air control or securing mechanism. However, if the internal components are damaged, replacement will be necessary. Always get a quote for both options.

Q5: What happens if the fan clutch is seized (always engaged)?
If the fan clutch is seized and always engaged, it will constantly spin the fan at engine speed. This can lead to increased engine noise, reduced engine power, poor fuel economy, and premature wear on the fan clutch and drive belt. While it will still provide cooling, the constant load can be detrimental.

In conclusion, maintaining a properly functioning fan clutch is a critical aspect of your vehicle's cooling system. By understanding the potential issues, recognising the symptoms, and following the correct repair procedures, you can ensure your engine remains cool and performs optimally. Regular checks and prompt attention to any problems will save you from more significant and expensive repairs down the line.
