BMW E60/E63 Brake Retrofit: F80 Upgrade Unpacked

For many BMW E60 and E63 owners, the desire for enhanced braking performance is a common and understandable quest. While these vehicles are renowned for their driving dynamics, the standard braking systems, especially on non-M models, can sometimes leave a little to be desired when pushed hard or during enthusiastic driving. This often leads enthusiasts down the path of upgrading, and one increasingly popular, albeit challenging, option is to retrofit the robust brake system from the F80 M3 or F82 M4. This guide will delve into the complexities, potential pitfalls, and rewarding outcomes of such a conversion, providing a comprehensive overview for those considering this significant enhancement.

Upgrading your braking system isn't just about aesthetics; it's fundamentally about safety and performance. A more powerful and fade-resistant brake setup provides greater confidence, especially during spirited driving, track days, or emergency stopping situations. The F80/F82 M brake system, known for its substantial calipers and larger rotors, offers a significant leap in thermal capacity and stopping force compared to the stock E60/E63 components. This translates to shorter stopping distances, improved pedal feel, and a much-reduced likelihood of brake fade under sustained heavy use.

Why Consider an F80/F82 Brake Retrofit for Your E60/E63?

The standard brake systems on the E60 5 Series and E63 6 Series, while adequate for daily driving, can quickly show their limitations when faced with higher speeds, repeated hard braking, or increased vehicle weight (e.g., with passengers and luggage). Owners often report a soft pedal, rapid fade, and even warping of rotors under demanding conditions. The F80/F82 M brake system, designed for a high-performance vehicle with significantly more power, offers:

• Superior Stopping Power: Larger calipers and rotors provide a greater swept area and more clamping force.
• Enhanced Fade Resistance: Increased thermal mass and better heat dissipation mean consistent performance even under extreme conditions.
• Improved Pedal Feel: Often, a firmer, more communicative brake pedal.
• Aesthetic Appeal: The larger, often brightly coloured calipers (e.g., blue, gold) look fantastic behind open-spoke wheels.

However, it's crucial to understand that this is not a simple bolt-on upgrade. Significant modifications and careful planning are required to ensure a successful and safe installation.

Navigating the Retrofit: Key Challenges and Specific Considerations

While the allure of F80 braking performance on your E60 or E63 is strong, the path to achieving it is fraught with specific technical challenges. Based on real-world experiences, several key areas demand particular attention:

Brake Servo Compatibility: A Significant Mismatch

One of the first hurdles you might encounter is the brake servo. Attempting to fit an F80 brake servo onto an E60 or E63 chassis will reveal that they are quite different. The mounting points, vacuum lines, and overall physical dimensions simply do not align. This means that you absolutely cannot directly swap the F80 servo. Instead, you must retain and utilise your existing E60/E63 brake servo. While this simplifies the process by avoiding a complex servo swap, it's a crucial point to remember to avoid wasted time and effort.

Brake Sensor Integration: Re-using E60/E63 Components

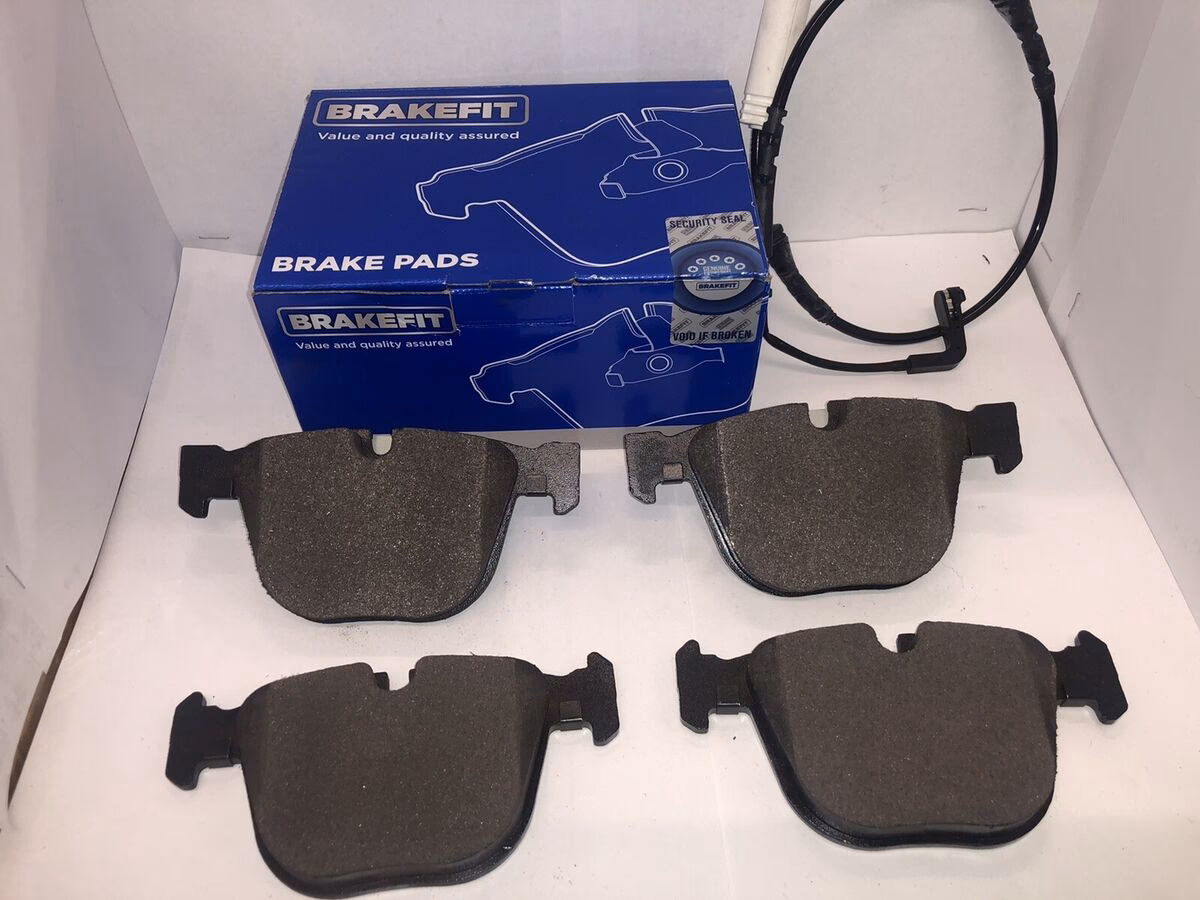

Brake wear sensors are vital for monitoring pad life and alerting the driver when replacement is due. When retrofitting F80 brakes, you might assume you'd use F80 sensors. However, this is not the case. The F80 brake sensors feature a different wire connector that is incompatible with the E60/E63 wiring harness. Therefore, you will still need to use your original E60/E63 brake sensors. This means carefully removing them from your old pads (if still intact and functional) or purchasing new E60/E63 specific sensors. Remember, you'll typically need one sensor for each front wheel and one for the passenger side rear on the E60/E63.

Dust Shields: A Custom Fabrication or Omission Challenge

Many retrofit kits for F80 brakes come with new dust shields, primarily designed for the F80 chassis. Unfortunately, these dust shields are almost certainly incompatible with the E60/E63's hub and suspension components. They are simply not designed to fit the E60/E63's unique geometry. This leaves you with a few options:

• Omission: Many enthusiasts choose to simply omit the dust shields altogether. While this is a common practice in performance applications to aid brake cooling, it does leave the brake components more exposed to road debris.
• Modification: With significant fabrication skills, it might be possible to modify the F80 dust shields or custom-fabricate new ones to fit the E60/E63. This is a complex task requiring precision.

Careful consideration should be given to the implications of not having dust shields, especially in climates with harsh winters or dusty roads.

Brake Line Lengths: A Critical Detail

Perhaps one of the most critical and often overlooked aspects of this retrofit is the correct length of the flexible brake lines, especially for the rear. The required length varies significantly between the E60 and E63 models, and even between specific variants like the M5 and M6. Aftermarket lines designed for the F80 will almost certainly be incorrect. For instance, lines that are 'barely long enough' for an M6 might be 'way too short' for an M5, potentially requiring an additional 30mm of length. This necessitates:

• Custom Brake Lines: It is highly recommended to source or have custom-made braided stainless steel brake lines specifically tailored to the required lengths for your exact E60 or E63 model. Measure twice, order once.
• Model-Specific Requirements: Be absolutely clear about your vehicle's model (e.g., E60 530i, E63 M6, E60 M5) when ordering or fabricating lines. A small discrepancy can lead to dangerous situations or frustrating re-orders.

Incorrectly sized brake lines can be incredibly dangerous, leading to kinking, stretching, or even catastrophic failure. Do not compromise on this aspect.

Mounting and Spacers: Precision is Key

Beyond the components mentioned, the F80 calipers will not directly bolt onto the E60/E63 hubs. You will require custom adapter brackets to correctly mount the F80 calipers to the E60/E63's steering knuckles and rear hubs. These brackets must be precision-engineered to ensure correct caliper alignment relative to the rotor. Furthermore, depending on the specific F80 caliper and E60/E63 wheel combination, you may also need wheel spacers to provide adequate clearance for the larger calipers. Always test fit your wheels after caliper installation to ensure no rubbing occurs.

The Installation Process: A General Overview

While a detailed step-by-step guide is beyond the scope of this article (and should always be supplemented by a professional workshop manual and experienced guidance), here's a general outline of the installation process:

1. Safety First: Elevate the car safely on sturdy jack stands on a level surface. Disconnect the battery.
2. Remove Old Components: Carefully remove your existing brake calipers, rotors, pads, and flexible brake lines.
3. Install New Rotors: Mount the F80 rotors onto the hubs. Ensure the hub surface is clean and free of rust.
4. Install Adapter Brackets: Bolt the custom adapter brackets onto the vehicle's mounting points.
5. Mount F80 Calipers: Attach the F80 calipers to the newly installed adapter brackets. Ensure all bolts are torqued to specification.
6. Connect Brake Lines: Install the custom-length braided brake lines, ensuring they have sufficient slack without being excessively long or prone to kinking.
7. Install Brake Sensors: Connect your E60/E63 brake wear sensors to the new pads and route them correctly.
8. Install Pads: Insert the F80 brake pads into the calipers.
9. Bleed the System: This is a critical step. Thoroughly bleed the entire brake system to remove all air. This often requires a pressure bleeder and potentially a diagnostic tool to cycle the ABS pump.
10. Check for Leaks: Double-check all connections for any signs of fluid leaks.
11. Wheel Clearance Check: Mount your wheels and rotate them by hand to ensure there is no contact between the caliper and the wheel spokes or barrel. Spacers may be required.
12. Bedding In: Once installed, a proper bedding-in procedure for the new pads and rotors is crucial for optimal performance and longevity. Follow the pad manufacturer's recommendations.

Expected Performance and Initial Feedback

Upon successful completion of the F80 brake retrofit, the change in your E60 or E63's braking performance should be immediately noticeable and profound. You can expect a much firmer, more responsive brake pedal, significantly improved stopping power, and a dramatic reduction in brake fade during aggressive driving. The initial feedback from those who have undertaken this conversion consistently points to a substantial upgrade in confidence and control. The car will feel more capable and secure, especially when shedding speed from high velocities. The transformation is not merely cosmetic; it fundamentally alters the vehicle's dynamic capabilities, bringing the braking performance in line with its formidable engine output.

Comparison: Stock E60/E63 vs. F80/F82 M Brakes

To put the upgrade into perspective, here's a general comparison:

Frequently Asked Questions (FAQs)

Is this a DIY job?

While some highly skilled DIY enthusiasts may attempt this, it is generally recommended for experienced mechanics or professional workshops. The complexities of custom brackets, brake line lengths, and proper bleeding procedures require specific tools, knowledge, and an understanding of critical safety aspects. Incorrect installation can lead to catastrophic brake failure.

What tools will I need?

Beyond standard automotive tools (sockets, spanners, torque wrench), you'll likely need a pressure bleeder, potentially a diagnostic tool for ABS bleeding, specialised tools for brake line flaring (if making custom lines), and possibly welding or fabrication equipment if customising dust shields or brackets.

Do I need coding after installing the brakes?

Typically, for a direct swap of brake components (calipers, rotors, pads), no specific coding is required. The ABS and DSC systems usually adapt to the new braking characteristics. However, if you're changing the master cylinder or making significant changes to hydraulic components beyond the calipers and lines, coding might be necessary to ensure optimal system operation.

Will this retrofit affect my insurance?

Yes, any significant modification to your vehicle, especially to safety-critical systems like brakes, should be declared to your insurance provider. Failure to do so could invalidate your policy in the event of a claim. Be prepared for a potential increase in your premium, though some insurers may view it as a safety upgrade.

Can I use my existing wheels with the new brakes?

Due to the significantly larger calipers and rotors of the F80 system, your existing E60/E63 wheels may not clear the new brake components. You might need wheels with a different offset, larger diameter, or specific wheel spacers to provide adequate clearance. Always test fit before driving.

What about the parking brake?

The F80 rear brakes generally integrate a drum-style parking brake within the rotor hat, similar to the E60/E63. However, ensuring compatibility with your existing parking brake mechanism and cables will be part of the rear brake installation process. Some minor adjustments or specific F80 parking brake shoes might be required.

Conclusion

The F80 M3/M4 brake retrofit on a BMW E60 or E63 is undeniably a challenging undertaking, fraught with specific technical hurdles concerning the brake servo, sensor compatibility, dust shields, and crucially, brake line lengths. It demands meticulous planning, precise execution, and a solid understanding of automotive mechanics. However, for those willing to invest the time, effort, and resources, the reward is a truly transformative improvement in braking performance. The enhanced stopping power, superior fade resistance, and confident pedal feel elevate the driving experience of the E60/E63 to a new level, making it a worthwhile endeavour for the dedicated enthusiast. Always prioritise safety, and if in doubt, consult with or commission a professional to ensure the job is done correctly and reliably.
