Understanding Swirl Flaps and Their Crucial Role

Many car owners, particularly those with diesel engines, will have encountered the term "swirl flaps." These seemingly small components play a vital, albeit often misunderstood, role in optimising engine performance and efficiency. While they are not a direct part of the Exhaust Gas Recirculation (EGR) system, their malfunction is frequently linked to EGR-related issues. Understanding how they work, why they fail, and what can be done about it is essential for maintaining your vehicle's health and avoiding costly repairs.

The primary function of swirl flaps is to improve the combustion process within the engine cylinders. They are strategically positioned within the intake manifold. As air enters the engine, these flaps, controlled by a vacuum actuator or electric motor, regulate the airflow into each cylinder. In essence, they control which of the two intake channels the air enters through. By closing one of these channels, the flaps create a swirling motion in the incoming air. This swirl is crucial for ensuring that the diesel fuel injected at the precise moment of maximum compression is evenly distributed throughout the combustion chamber. This thorough mixing, combined with the heat generated by compressed air, leads to a cleaner and more efficient burn, particularly at lower engine speeds (RPMs).

At higher RPMs, the demand for air increases significantly. In this scenario, the swirl flaps are designed to open fully. This allows for the maximum possible volume of air, and therefore oxygen, to enter the cylinders, supporting more powerful combustion. The effectiveness of this system is evident when considering the consequences of their failure. If the flaps are seized in the closed position on engines like the 1.9 CDTI, drivers may experience significant difficulty in reaching higher rev ranges, as the engine struggles to breathe. Conversely, if the flaps are stuck in the open position, the impact on performance is often less noticeable. This is because the engine can still draw in a good volume of air, and the subtle loss of low-end swirl might not be immediately apparent, sometimes allowing owners to drive for months before detecting an issue.

The EGR Connection: Why Problems Arise

The intimate, albeit indirect, relationship between swirl flaps and the EGR system is where most of the trouble begins. The EGR system's purpose is to reduce NOx emissions by recirculating a portion of the exhaust gases back into the intake manifold. These gases mix with the incoming fresh air, lowering combustion temperatures and thereby reducing the formation of nitrogen oxides. However, exhaust gases are not clean; they contain soot and particulate matter. Furthermore, modern diesel engines also feature a Positive Crankcase Ventilation (PCV) system, which recirculates oil vapours from the crankcase into the intake to be burned.

The problem arises when the oil vapours from the PCV system mix with the recirculated exhaust gases from the EGR. This combination creates a sticky, tar-like substance – a gunk that gradually cakes the inside of the intake manifold and, critically, around the swirl flaps and their operating mechanisms. Over time, this build-up can cause the swirl flaps to seize in position, either open or closed, leading to the performance issues described earlier.

Common Swirl Flap Failures and Symptoms

The most common failure mode for swirl flaps is the seizing of the plastic bushings or cups that hold them in place, or the wear of these components. This wear can lead to the connecting rod, which links all the flaps together and is actuated by a motor, detaching from the individual flaps. This detachment is often referred to as the "bar falling off."

Symptoms of failing swirl flaps can include:

• Engine Management Light (EML) illuminated: Modern ECUs monitor engine parameters closely, and deviations caused by faulty swirl flaps can trigger fault codes.
• Sluggish performance: Especially noticeable when trying to accelerate or maintain speed, particularly at higher RPMs if the flaps are stuck closed.
• Reduced power: The engine may feel generally less responsive and lack its usual vigour.
• Rough idling: In some cases, particularly if the flaps are not sealing correctly, the engine's idle quality can be affected.
• Visible damage: On some models, the external bar connecting the swirl flaps can be seen to have detached.

BMW's Take: A Precautionary Measure

It's interesting to note that manufacturers have recognised the inherent vulnerabilities of swirl flap designs. On certain BMW models, such as the E46 320d, the swirl flaps had a tendency to fail catastrophically. The bearings holding the flaps could fail, leading to the flaps themselves breaking free and entering the engine. This can cause severe damage, including destruction of valves, pistons, cylinder liners, and even the turbocharger if the debris travels that far. In response to this known issue, BMW themselves advised the removal of the swirl flaps and the blanking off of the mechanism that controlled them. This was a proactive measure to prevent potentially devastating engine damage.

Addressing Swirl Flap Issues: Repair vs. Removal

When faced with swirl flap problems, owners typically have two main options: repair or removal.

Repairing Swirl Flaps

Repairing swirl flaps usually involves replacing the worn plastic bushings or cups with more durable aftermarket alternatives. These kits, often made from brass, are available from specialist suppliers, primarily in Germany and the UK. The process can be a DIY job for the mechanically inclined, though it requires patience and precision.

The general procedure involves:

1. Accessing the Swirl Bar: This typically requires removing the engine cover and sometimes disconnecting components like glow plug leads for better access.
2. Removing the Swirl Bar: Using long-nosed pliers or a custom-made hook, the connecting bar is carefully extracted from the manifold. It's crucial to note the orientation of the bar, as it's often asymmetrical.

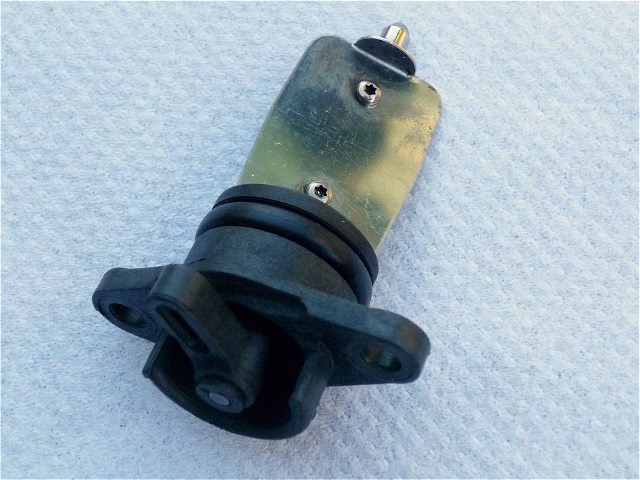

3. Replacing the Bushings/Cups: The old plastic cups are carefully removed (they are brittle and can be nipped off with side cutters, but eye protection is highly recommended). The new, more robust cups (often brass) are then fitted. Some kits require drilling out the holes in the bar slightly to accommodate the new studs.
4. Refitting the Swirl Bar: This is often the trickiest part, requiring careful manipulation to get the new cups to seat onto the flap spindles.
5. Cleaning: It's advisable to clean the area around the flap spindles, but care must be taken not to get excessive cleaning fluid into the manifold, which can cause issues with the bearings, as one owner discovered with a small bang and white smoke upon restarting.

While these repairs can be effective, it's important to note that they are often considered a temporary fix. The longevity of these repairs is not always guaranteed, but many owners report thousands of miles of trouble-free operation.

Removing Swirl Flaps (Blanking)

An alternative, and often considered a more permanent solution, is to remove the swirl flaps entirely and blank off the openings. This effectively leaves the flaps in the open position all the time. As mentioned, this typically has a minimal impact on performance, especially at higher RPMs. The main perceived drawback is a potential, though often unnoticeable, slight reduction in low-end torque and potentially a minor increase in exhaust smoke under certain conditions.

The process usually involves:

1. Removing the swirl bar as described above.
2. Blanking off the holes where the actuator arm would connect to the manifold, or in some cases, removing the actuator and blanking its port.
3. Some owners also choose to blank off the EGR system at the same time, which can further reduce the build-up of gunk.

It's important to be aware that removing the swirl flaps may affect the vehicle's emissions test (MOT in the UK). While the physical flaps are gone, the mechanism to control them might still be present. Some garages may flag this as a modification. However, if the flaps are simply left open, it's less likely to be an issue unless the ECU detects a fault.

EGR Valve Location and Maintenance

The EGR valve is typically located on the side or rear of the engine, often connected to the intake manifold and the exhaust system. On the Vauxhall Astra H 1.9 CDTI, it's often found at the back of the engine, under the injection pipes. Identifying its exact location might require consulting your vehicle's manual or online resources specific to your model.

Regular cleaning of the EGR valve is a common maintenance task. As carbon deposits build up, the valve can stick open, exacerbating swirl flap problems. Cleaning involves removing the valve and using a suitable cleaner (like brake cleaner or a dedicated EGR cleaner) to remove the accumulated soot and tar. Some owners opt to install a partial or full EGR blanking plate to prevent exhaust gases from entering the intake manifold. While a full EGR blank often requires an ECU remap to avoid triggering fault codes, a partial blank can sometimes be fitted without issue, although its effectiveness in preventing carbon build-up is debated.

Comparative Table: Swirl Flap Repair vs. Removal

Frequently Asked Questions (FAQs)

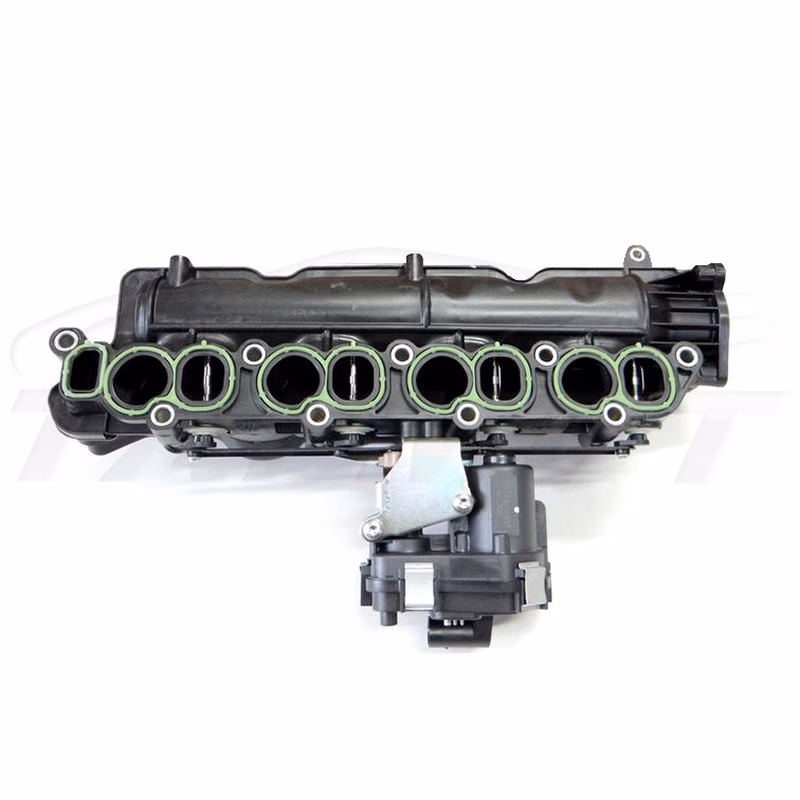

Q1: Are swirl flaps part of the EGR system?
No, swirl flaps are part of the engine's intake system, designed to create turbulence for better combustion. However, the EGR system contributes to the carbon build-up that causes swirl flaps to seize.

Q2: Where is the EGR valve located on an Astra H 1.9 CDTI?
On the Astra H 1.9 CDTI, the EGR valve is typically located at the rear of the engine, often found under the injection pipes.

Q3: Do Vauxhalls commonly have EGR valve problems?
Yes, many Vauxhall diesel engines, particularly those with the 1.9 CDTI engine, are known to suffer from EGR valve issues due to carbon build-up, which can lead to sticking valves and subsequent problems with other components like swirl flaps.

Q4: Can I remove the swirl flaps myself?
Yes, if you are comfortable with basic mechanical tasks, you can remove the swirl flaps. Kits are available for repair, or you can blank them off permanently. However, proceed with caution and ensure you understand the steps involved.

Q5: Will removing swirl flaps affect my car's MOT?
While removing the physical flaps themselves is unlikely to be picked up, any obvious tampering with the intake or EGR system could potentially be noted. If the flaps are simply left in the open position and the system appears otherwise intact, it's less likely to cause an issue during the emissions test.

Q6: What happens if my swirl flaps fail completely?
If the bearings fail, the swirl flaps can break free and enter the engine, causing severe internal damage to valves, pistons, and the turbocharger. This is a rare but potentially catastrophic failure mode.

In conclusion, while swirl flaps are not a direct component of the EGR system, their reliable operation is heavily influenced by the by-products of EGR recirculation. Understanding these interconnected systems and addressing issues promptly can save you from significant repair costs and ensure your vehicle continues to perform efficiently and reliably.
