Mastering Your Engine: Big Stuff Control

In the demanding world of high-performance automotive tuning and racing, precise control over your engine's vitals is not just an advantage; it's an absolute necessity. The Big Stuff system emerges as a leading solution, offering an advanced suite of engine management capabilities designed to push the boundaries of power, efficiency, and reliability. Whether you're building a bespoke performance machine or optimising a race-winning setup, Big Stuff provides the sophisticated control module you need to achieve your goals. This article will delve into the comprehensive features across its range, from its foundational offerings to the highly customisable Gen4 ECU, providing a clear understanding of how these systems can transform your vehicle's performance.

The Core of Performance: Big Stuff System Features

At its heart, every Big Stuff system is engineered with a robust set of features designed to offer unparalleled control over your engine's operation. These core functionalities ensure that regardless of your specific application, you have the tools to fine-tune your powertrain for optimal results.

Precision Fuel and Air Management

• Wide Band O2 Control: A fundamental component of modern engine management, all Big Stuff systems include Wide Band O2 Control. This allows for highly accurate air/fuel ratio monitoring, crucial for both performance and engine longevity. By precisely measuring oxygen levels in the exhaust, the system can make real-time adjustments to fuel delivery, ensuring your engine always operates at its most efficient and powerful state.
• Sequential Fuel Control: Big Stuff offers sequential fuel control across a vast range of engine configurations, supporting 4, 6, 8, 10, 12, and even 16 cylinders. This precise method of fuel delivery ensures that each injector fires at the optimal moment in its cylinder's cycle, leading to improved fuel atomisation, better throttle response, and enhanced power output.
• High-Capacity Injector Driving: The system is capable of driving up to 16 low impedance injectors, and crucially, it supports staged injection. This feature is invaluable for high-horsepower applications where a single set of injectors might not be sufficient, allowing for multiple injectors per cylinder or staged activation to meet extreme fuel demands.
• Individual Cylinder Fuel and Timing Control: Moving beyond basic engine management, Big Stuff provides individual cylinder fuel and timing control. This advanced capability allows tuners to compensate for slight variations between cylinders, ensuring each one is performing identically and at its peak. This level of granular control is vital for maximising power and preventing engine damage in highly stressed environments.
• Injector Phasing: Further refining fuel delivery, Big Stuff systems allow for precise injector phasing, enabling control over whether the injection event begins or ends at a specific crankshaft angle. This minute adjustment can yield significant benefits in terms of fuel atomisation, combustion efficiency, and ultimately, engine performance.
• Configurable Load and RPM Axis: To ensure that optimisation can occur precisely within your vehicle's operational range, Big Stuff systems feature configurable Load and RPM axis. This flexibility allows tuners to define specific areas of the engine's operating map for detailed tuning, ensuring peak performance exactly where it's needed most.
• Seamless Decel Fuel Cut-off: For improved fuel economy and reduced emissions during deceleration, the system incorporates seamless Decel Fuel Cut-off. This feature momentarily stops fuel delivery when the throttle is closed and the engine is under deceleration, reintroducing it smoothly as needed.

Advanced Ignition Management

The Big Stuff system boasts a software configurable ignition interface, eliminating the need for separate part numbers when adapting to various ignition types. This versatility means it can readily integrate with common factory and aftermarket ignition systems, including GM HEI, Ford TFI, LT1, V6 DIS, and IPU, providing a streamlined installation process.

Comprehensive Auxiliary Control

Beyond core engine functions, Big Stuff offers robust auxiliary control capabilities. This includes managing two fuel pumps, high and low-speed cooling fans, and even a 2 or 3-stage boost control system. Crucially, the boost control functionality can be cleverly repurposed for nitrous retards, offering additional versatility for specialist applications.

Integration and Display Options

For a truly integrated experience, Big Stuff systems are designed to communicate effortlessly with external display and data acquisition units. They can be used with the UDX Display to create a sleek, integrated powertrain and display system, providing real-time data at your fingertips. Alternatively, the system seamlessly ties into your existing Racepak V-Series Data Acquisition system, displaying all critical information on one screen via simple plug-and-play operation using the RacePak V-net protocol. For those seeking dedicated gauge displays, a Gauge Display for Big Stuff 3 Systems with a CAN Interface Upgrade is also available.

BigStuff3 Gen3 PRO SEFI: A Legacy of Control

Trusted and proven over many years in the performance community, the BigStuff3 GEN3 PRO SEFI system marked a significant milestone as the first programmable powertrain control module specifically designed for Sequential Electronic Fuel Injection (SEFI), Coil-on-Plug (COP) engines, and electronic controlled transmissions. This innovative approach set it apart from its competitors with a suite of unique features:

• Dual Wide Band Oxygen (WB02) Air/Fuel Ratio Control: Offering even finer resolution than standard systems, the Gen3 PRO SEFI features dual WB02 control, allowing for more precise air/fuel ratio monitoring and adjustment, especially beneficial for V-configuration engines or those with complex exhaust systems.
• Individual Cylinder & Spark Compensation: Building on the core Big Stuff features, the Gen3 PRO SEFI refines individual cylinder control to include specific spark compensation, ensuring each cylinder receives not only optimal fuel but also the perfect spark timing for maximum power and efficiency.
• Onboard Data Acquisition: A critical feature for tuning and diagnostics, the Gen3 PRO SEFI includes onboard data acquisition, allowing you to log vital engine parameters without the need for external devices.

Gen3 PRO SEFI Optional Modules:

The Gen3 PRO SEFI system further enhances its capabilities with several optional modules, tailored to specific performance needs:

• DAE (External Data Logging Option): For those requiring extensive logging capacity, DAE allows for the logging of vehicle parameters external to the Engine Management system, providing a comprehensive overview of your car's behaviour.
• DAI (Internal Data Logging Option): This option enhances the system's internal data logging capabilities, providing detailed insights into engine performance directly from the ECU.
• SR2 (Time-Based Driveshaft Speed Traction Control System): A crucial addition for drag racing and high-power applications, SR2 offers a time-based driveshaft speed traction control system to help manage power delivery and maximise grip.
• GM Trans (GM Electronic Transmission Controller): This option enables direct control of GM electronic transmissions such as the 4L80E, providing seamless integration and advanced shifting strategies for optimal performance.

All BigStuff3 Gen3 PRO SEFI systems come complete with the ECU and necessary wiring harnesses, providing a comprehensive package to get started.

BigStuff3 Gen4 ECU: The Epitome of Customisation

The BigStuff3 GEN4 ECU stands as the most versatile computer on the market, offering unprecedented levels of customisation. Unlike pre-configured systems, the Gen4 allows users to meticulously build their system by selecting specific options across ten distinct sections, ensuring the ECU perfectly matches their unique requirements.

Building Your Bespoke Gen4 System: The 10 Sections

The modular design of the Gen4 ECU empowers you to tailor every aspect of your engine management system. Here's a breakdown of the customisation process:

1. System Options: This initial section allows you to select the core functionalities and advanced features you want your system to include, laying the groundwork for your custom build.
2. Main Engine and Fuel Injector Harness: Based on your specific engine, ignition system, and fuel injectors, you choose the appropriate main engine and fuel injector harness. This ensures perfect compatibility and straightforward installation.
3. Secondary O2 Sensor Options: You have the choice to add another secondary O2 sensor for more detailed air/fuel ratio monitoring, include a spare sensor for contingencies, or opt for no additional O2 sensors if your setup doesn't require it.
4. Big Drive Expansion Modules: For those needing extra inputs for additional O2 sensors or Exhaust Gas Temperature (EGT) sensors, you can choose to add Big Drive Expansion Modules, expanding the system's data acquisition capabilities.
5. Sensors: This critical section allows you to select the necessary sensors for your Big Stuff system. While you can choose to take no options, it is strongly recommended to acquire at least air and water temperature sensors for basic engine operation and tuning.
6. Custom Wire Harnesses: Based on the options you selected in Section 1, you can then choose the custom wire harnesses that perfectly integrate these chosen features into your vehicle's electrical system.
7. Wireless Access Hardware: For modern convenience, you can choose to add wireless access hardware to your BigStuff GEN4 ECU, enabling wireless communication for tuning and diagnostics.
8. Range Map Sensor: You select the appropriate range map sensor that your system will utilise, ensuring accurate manifold pressure readings vital for fuel and ignition calculations.
9. Big Drive External Injector Driver Hardware: If your setup involves running high-amp, low-impedance injectors, this section allows you to add the necessary Big Drive External Injector Driver Hardware to safely and effectively control them.
10. Ignition Coils: Finally, if you are running a Coil-On-Plug (COP) ignition system, you choose the number of ignition coils required based on your engine size, ensuring proper spark delivery to each cylinder.

This comprehensive build process ensures that you only pay for the features you need, creating a highly efficient and cost-effective solution tailored to your exact specifications.

What's Included and What's Not: Important Considerations

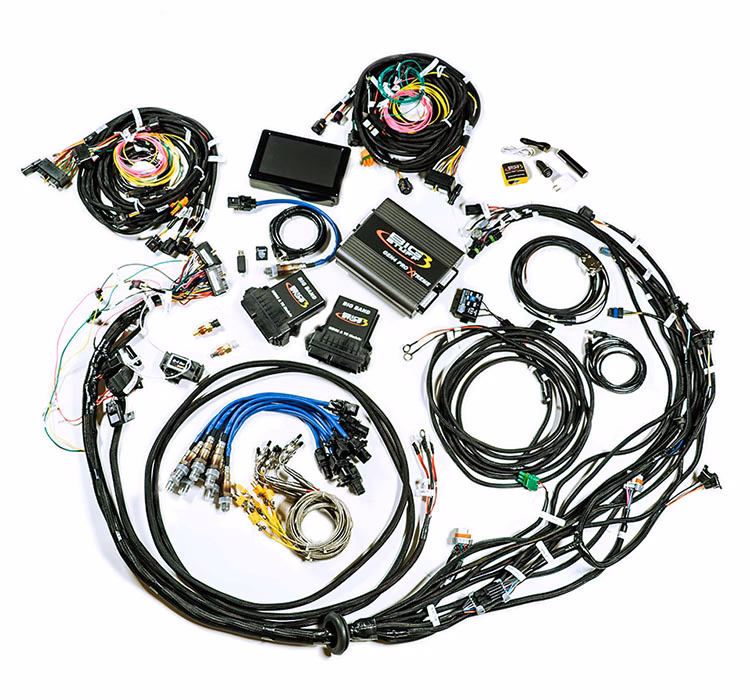

When investing in a Big Stuff system, it's crucial to understand precisely what components are included with your purchase and what you may need to acquire separately. All Big Stuff systems, whether general, Gen3, or Gen4, come standard with the ECU (Engine Control Unit), a 5-foot communication cable, the necessary software for tuning and configuration, and applicable wiring harnesses.

However, it is important to note that Big Stuff systems DO NOT include injectors or sensors. These critical components, vital for the engine's operation, are available separately from ASSC. This modular approach allows users to select injectors and sensors that are perfectly matched to their specific engine combination and performance goals, rather than being limited to a pre-packaged set.

The Importance of Base Calibration

A significant advantage of purchasing a Big Stuff system from ASSC is the inclusion of a base calibration specifically tailored for your engine combination. To ensure you receive the proper ECU configuration and calibration, it is essential to answer all questions accurately when processing your order. This initial calibration provides a solid starting point for your engine, significantly reducing the initial setup and tuning time, allowing you to get your vehicle running efficiently much sooner.

Feature Overview: Big Stuff Systems

To help illustrate the capabilities across the Big Stuff range, here's a comparative overview of key features:

Frequently Asked Questions About Big Stuff Systems

What is included when I purchase a Big Stuff system?

All Big Stuff systems typically include the ECU (Engine Control Unit), a 5-foot communication cable, the necessary software for configuration and tuning, and the applicable wiring harnesses required for installation.

Are injectors and sensors included with the Big Stuff system?

No, injectors and sensors are not included with the Big Stuff system. These components are sold separately by ASSC, allowing you to select the precise parts that best match your engine's specific requirements.

Is a base calibration provided with my Big Stuff system?

Yes, all Big Stuff systems sold by ASSC come with a base calibration tailored for your specific engine combination. It's crucial to provide accurate information during your order to ensure the correct ECU configuration and calibration are provided.

Can Big Stuff systems control my vehicle's transmission?

Yes, Big Stuff systems offer options for controlling electronic transmissions. Specifically, an optional GM Transmission Controller is available, which permits control of GM electronic transmissions like the 4L80E.

What is the primary difference between BigStuff3 Gen3 PRO SEFI and BigStuff3 Gen4 ECU?

The BigStuff3 Gen3 PRO SEFI is a proven, pre-configured 'powertrain' control module known for being the first of its kind for SEFI and COP engines with onboard data acquisition. The BigStuff3 Gen4 ECU, however, is designed for ultimate versatility and customisation, allowing users to build their system from the ground up by selecting options across ten distinct sections, tailoring it precisely to their needs.

Can I log data with these systems?

Yes, data acquisition is a key feature. The Gen3 PRO SEFI includes onboard data acquisition, with optional DAE (external logging) and DAI (internal logging). The Gen4 ECU supports external data acquisition via Big Drive Expansion Modules.

How many cylinders can Big Stuff systems support?

Big Stuff systems offer sequential fuel control for a wide range of engine configurations, supporting 4, 6, 8, 10, 12, and even 16 cylinders, making them suitable for diverse automotive applications.

Conclusion

The Big Stuff ecosystem represents the pinnacle of modern automotive engine management, offering a comprehensive suite of features designed to empower enthusiasts and professional tuners alike. From the precise control over fuel and ignition across multiple cylinders to advanced auxiliary management and seamless data acquisition, these systems provide the tools necessary to unlock your engine's full potential. Whether you opt for the proven capabilities of the Gen3 PRO SEFI or the unparalleled customisation of the Gen4 ECU, Big Stuff delivers the performance, reliability, and control demanded by today's high-performance vehicles. Invest in a Big Stuff system and take the definitive step towards mastering your engine's performance, ensuring every drive is optimised for power, efficiency, and exhilaration.
