Honda CBR Braking Systems: Discs & Calipers

When it comes to motorcycling, few components are as critical to your safety and riding enjoyment as the braking system. It's the unsung hero that allows you to confidently control your speed, navigate hazards, and bring your machine to a precise halt. For Honda CBR owners, understanding the nuances of your bike's braking components, from the discs that dissipate heat to the calipers that clamp down, is paramount. This article aims to shed light on the braking systems of two iconic Honda models: the CBR600F (1995-1998) and the CBR600RR, exploring their specific characteristics and offering insights into maintenance and optimal performance.

While the precise type of brake discs fitted as standard to the Honda CBR600F (1995-1998) isn't explicitly detailed in the information provided, we can infer they would have utilised common motorcycle brake disc designs prevalent during that era. Typically, these would be stainless steel discs, engineered for durability and effective heat dissipation. The focus for this model, based on the provided data, heavily leans towards the brake pads and their crucial role in the braking equation. Understanding the interplay between discs and pads is vital for any rider.

Understanding Brake Discs: The Foundation of Stopping Power

Brake discs, also known as rotors, are the circular metal plates attached to your wheel hubs. When you apply the brakes, the calipers squeeze the brake pads against these discs, creating friction that slows the wheel's rotation. The design and material of the brake disc significantly impact braking performance, heat management, and longevity.

Types of Motorcycle Brake Discs

Motorcycle brake discs generally come in a few primary configurations:

• Fixed Discs: These are rigidly bolted directly to the wheel hub. They are simpler and often lighter, but can be more prone to warping under extreme heat due to thermal expansion.
• Floating Discs: More common on performance motorcycles, floating discs are connected to the hub via 'bobbins' or 'floaters'. This design allows the disc to expand and contract freely with temperature changes, reducing the risk of warping and ensuring the brake pads make full, even contact across the disc surface. This also helps to prevent brake drag.
• Semi-Floating Discs: A hybrid design, offering some of the benefits of floating discs but with a more constrained movement.

Given the performance-oriented nature of the CBR600F, it's highly probable it would have featured floating or semi-floating discs on the front, providing superior braking feel and heat management compared to fixed designs. Rear discs are often fixed due to lower thermal loads.

Disc Materials and Design Features

Most motorcycle brake discs are made from high-grade stainless steel. This material offers a good balance of strength, heat resistance, and corrosion resistance. Beyond the basic material, disc designs incorporate features to improve performance:

• Drilled Discs: Holes drilled through the disc help to dissipate heat and vent gases (created by the friction of the pads) away from the disc surface, improving wet weather performance and reducing brake fade.
• Slotted Discs: Grooves cut into the disc surface serve a similar purpose to drilling, helping to clear gases and debris.
• Wave Discs: These discs feature an irregular, wavy outer edge, which can reduce unsprung weight and improve heat dissipation by increasing the surface area.

Regular inspection of your brake discs for signs of wear, such as scoring, discolouration, or warping, is crucial for maintaining effective braking.

Brake Pads for the Honda CBR600F (1995-1998)

While the disc type for the CBR600F (1995-1998) isn't specified, the provided information extensively details the compatible EBC brake pads. EBC is a reputable manufacturer, offering a range of compounds tailored for various riding styles and conditions. For the CBR600F models FS (1995), FT (1996), FV (1997), and FW (1998), the specific EBC fitments are FA226 for the front and FA174 for the rear. EBC provides two main compound options for these applications:

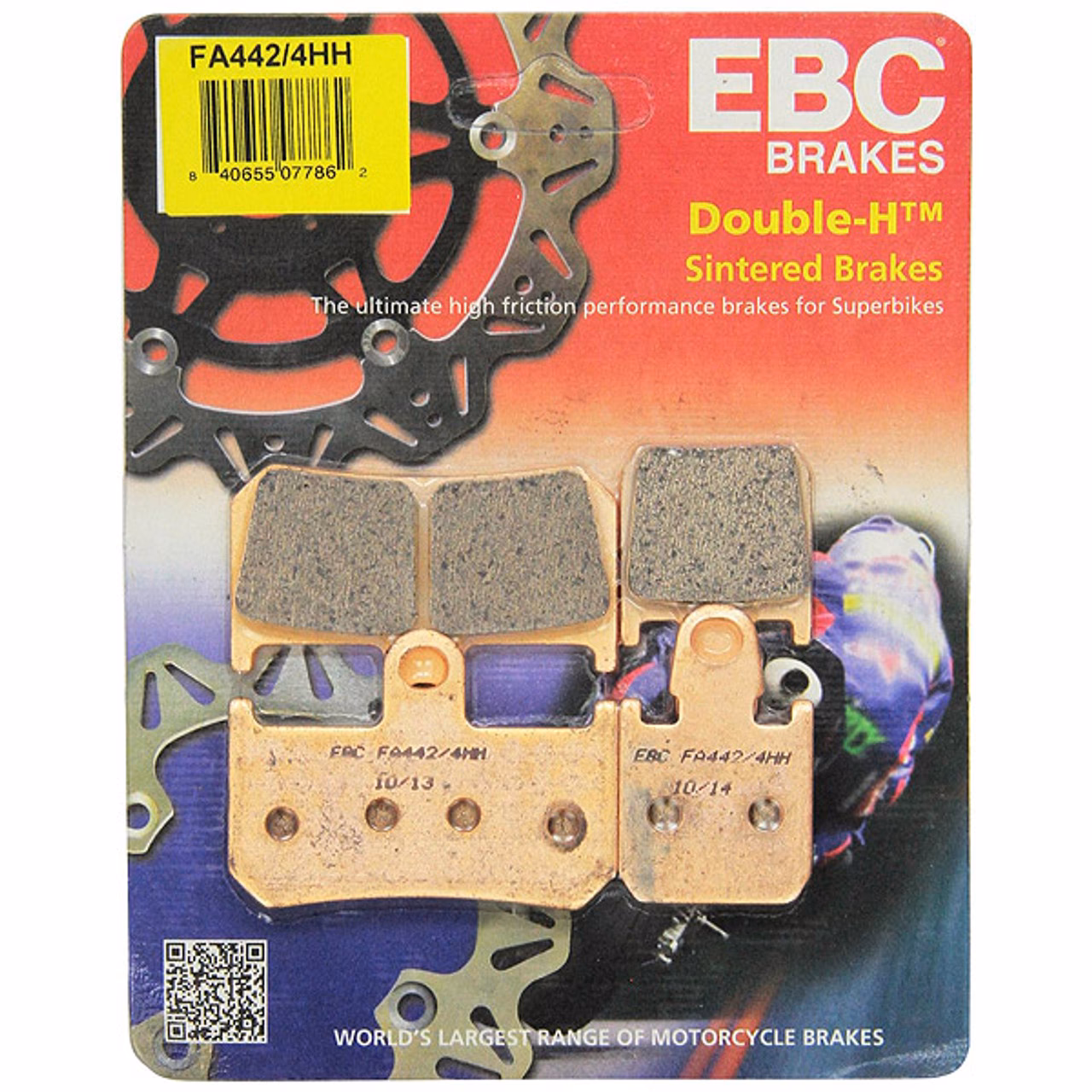

EBC Double-H Sintered (FA Series HH)

These pads are designed for maximum stopping power and durability, making them a popular choice for performance riders. Here's what makes them stand out:

• Highest Friction: They boast the highest friction 'Double-H' rating, ensuring exceptional stopping capability.
• Sintered Copper Alloy: Similar to original equipment pads, this material provides a long lifespan and consistent braking performance across all conditions – wet, dry, hot, or cold.
• Heat Management: Where necessary, unique stainless steel radiator plates are fitted to minimise heat transfer into the bike's hydraulic system, preventing brake fade.
• Vented Design: Some designs feature a unique double segment vented pattern, which helps keep the pads cooler, preventing drag, overheating, or fade.

Important Note: EBC advises against using Double-H pads on the rear alone. To avoid brake imbalance, they should only be fitted to the rear if they are also fitted to the front. This ensures consistent braking feel and performance across both axles.

EBC Kevlar (NAO Series / Non-Asbestos Organic)

The EBC Kevlar series, now rebranded as the NAO (Non-Asbestos Organic) series, is an excellent all-round replacement option, particularly favoured by riders who prefer the 'feel' of organic pads. Made in England, these pads continue to utilise the famous Dupont Kevlar fibre alongside other high-tech fibres.

• Value for Money: They offer superb all-round performance, making them a cost-effective choice for general road use.
• Organic Feel: Many riders appreciate the progressive and softer feel of organic pads, which can provide excellent feedback.
• Certified Quality: NAO series pads are fully TUV tested and KBA certified, conforming to the new ECE R90 brake regulations, ensuring they meet strict European safety standards. EBC was at the forefront of this technology, being among the first to offer Reg. 90 approved pads and packaging.
• Noise Reduction & Durability: Most EBC organic pads feature expansion grooves to reduce noise and prevent cracking. The aramid fibre compound, combined with non-ferrous particles, helps prevent surface 'scorching' under heavy load.

Here's a comparative overview of the two EBC pad compounds:

Brake Calipers: The Heart of the Hydraulic System

While the CBR600F uses conventional axial-mount calipers for its era, the Honda CBR600RR showcases more advanced caliper technology. Calipers are the components that house the brake pads and pistons. When you squeeze the brake lever, hydraulic fluid pushes the pistons, forcing the pads against the brake discs.

Honda CBR600RR Caliper Technology: Radial-Mounted Monoblock

The Honda CBR600RR (information not specified for particular years, but typically from 2003 onwards, incorporating advanced features) utilises radial-mounted monoblock front-brake calipers. This represents a significant advancement over traditional axial-mounted designs, offering superior performance characteristics:

• Radial Mounting: Unlike axial calipers which are bolted parallel to the disc's axis, radial calipers are bolted perpendicular to the disc, with the mounting bolts running radially from the wheel's centre. This design significantly increases the stiffness of the caliper and its mounting. Increased stiffness means less flex during hard braking, translating to a more direct and linear feel at the lever, with more predictable and powerful stopping. It also allows for easier pad changes and can accommodate larger discs.
• Monoblock Construction: A monoblock caliper is machined from a single piece of aluminium, rather than being cast in two halves and bolted together. This single-piece construction further enhances rigidity and reduces flex under extreme braking forces. The result is a more consistent and responsive brake feel, as all the force from the hydraulic system is translated directly to the pads without any energy lost to caliper distortion.
• Four Chromium-Plated Aluminium Pistons: Each caliper on the CBR600RR uses four pistons. Multiple pistons distribute the clamping force more evenly across the brake pads, leading to more effective and consistent braking. The chromium plating on the aluminium pistons ensures smooth, friction-free operation and provides excellent corrosion resistance, contributing to long-term reliability and consistent performance.

This combination of radial mounting and monoblock construction, coupled with multi-piston design, represents a high-performance braking setup, delivering exceptional control, feedback, and stopping power critical for a sportbike like the CBR600RR.

Brake System Maintenance: Ensuring Optimal Performance and Safety

Regardless of whether you ride a CBR600F or a CBR600RR, regular brake system maintenance is non-negotiable. It ensures your safety and preserves the performance characteristics engineered into your motorcycle.

Key Maintenance Practices:

• Regular Inspection: Periodically check brake pad thickness. If they are worn down to the wear indicators or below 2mm, they need replacing. Inspect discs for scoring, cracks, or excessive run-out (wobble).
• Brake Fluid Check and Change: Brake fluid is hygroscopic, meaning it absorbs moisture over time. Water in the fluid lowers its boiling point, leading to brake fade under heavy use, and can also cause internal corrosion in the brake lines and calipers. Check fluid level regularly and replace it according to your motorcycle's service schedule, typically every one to two years.
• Bleeding the Brakes: If your brake lever feels spongy, it likely indicates air in the hydraulic system. Bleeding removes this air, restoring a firm lever feel and full braking power.
• Caliper Cleaning: Dirt and grime can build up around the caliper pistons, affecting their smooth operation. Regular cleaning and careful lubrication of the piston seals (with appropriate brake grease) can prevent sticking and ensure even pad wear.
• Bedding-in New Pads and Discs: This critical process optimises the performance of new components. It involves a series of controlled braking applications (typically 10-20 progressively harder stops from moderate speeds, allowing for cooling in between) to transfer a thin, even layer of pad material onto the disc surface. This 'bedding-in' process ensures maximum friction and prevents glazing of the pads.

Frequently Asked Questions About Motorcycle Brakes

How often should I change my motorcycle brake pads?

The lifespan of brake pads varies greatly depending on riding style, conditions, and pad compound. Generally, they should be inspected at every service interval or every 5,000 miles (approximately 8,000 km). Replace them when they reach their wear limit, typically around 2mm of pad material remaining, or if you notice a significant drop in braking performance or unusual noises.

Can I mix and match different brake pad compounds or disc types?

It's strongly advised against mixing different pad compounds on the same axle (e.g., a Double-H on one side and an NAO on the other) due to potential braking imbalance. Similarly, for optimal performance and safety, it's best to use discs and pads that are designed to work together. While you can often use aftermarket pads with OEM discs (and vice-versa), always ensure compatibility and follow manufacturer recommendations.

What are the signs of worn brake discs?

Signs of worn brake discs include excessive scoring or grooves on the surface, discolouration (blue or dark spots indicating overheating), warping (which can cause a pulsating brake lever), or reaching the minimum thickness stamped on the disc. Any of these signs warrant immediate inspection and likely replacement.

Why is brake fluid important, and how often should it be changed?

Brake fluid transmits the force from your lever to the calipers. It's crucial because it's incompressible and has a high boiling point. Over time, it absorbs moisture, which lowers its boiling point and can lead to brake fade, especially during prolonged or hard braking. Most manufacturers recommend changing brake fluid every one to two years, regardless of mileage.

What does 'bedding in' new brake pads mean?

Bedding in, or 'burnishing,' is the process of gently using new brake pads and discs to allow the pad material to transfer evenly onto the disc surface. This creates an optimal friction layer, maximises stopping power, and prevents judder or noise. Skipping this step can lead to reduced performance and premature wear.

Why do some motorcycles use radial-mounted calipers?

Radial-mounted calipers offer superior rigidity compared to traditional axial-mounted calipers. This increased stiffness reduces caliper flex under heavy braking, leading to a more consistent, linear, and powerful brake feel. It allows more precise control and feedback to the rider.

What is a monoblock caliper, and why is it beneficial?

A monoblock caliper is machined from a single piece of material, unlike traditional calipers that are made from two halves bolted together. This single-piece construction significantly enhances rigidity, virtually eliminating any flex or distortion under braking pressure. The benefit is a more direct, firm, and responsive brake feel, ensuring maximum braking efficiency and rider confidence.

In conclusion, whether you're riding the classic Honda CBR600F or the more modern CBR600RR, understanding and maintaining your braking system is paramount. From selecting the right brake pads for your riding style to appreciating the advanced engineering of radial monoblock calipers, a well-maintained braking system is your ultimate ally on the road, ensuring every journey is as safe as it is exhilarating.
