Mastering Avid Elixir Brake Maintenance

Avid Elixir hydraulic disc brakes have long been a staple in the cycling world, renowned for their consistent stopping power and modulation. Whether you're a seasoned trail rider or a casual commuter, understanding the nuances of their maintenance is crucial for optimal performance and, more importantly, your safety. One of the most common maintenance tasks is replacing worn brake pads and ensuring the calipers are functioning correctly. Fortunately, the process for front and rear Avid Elixir brakes is remarkably similar, simplifying your workshop routine.

These brakes operate on a hydraulic principle, using fluid to transmit force from your lever to the caliper. Inside the caliper, two pistons push the brake pads against the rotor, creating friction to slow or stop your bike. Over time, these pads wear down, reducing braking efficiency and potentially damaging your rotors. Regular inspection and timely replacement are key to a reliable braking system.

Are Avid Elixir Brakes The Same? Understanding Their Uniformity

A common question among Avid Elixir owners is whether the front and rear brake systems differ significantly in terms of maintenance. The simple answer is: for most practical purposes, particularly pad replacement and basic caliper handling, they are virtually identical. Avid designed the Elixir series with a high degree of component commonality, meaning the calipers, pistons, and pad retention mechanisms are fundamentally the same whether they're mounted on your front fork or rear chainstay.

This uniformity is a significant advantage, as it means you don't need to learn separate procedures or stock different sets of tools for each end of your bike. The only real difference you'll encounter is the length of the hydraulic hose and the orientation of the caliper mounting, which doesn't affect the internal mechanics or the pad replacement process itself. So, once you've mastered the technique for one wheel, you've mastered it for both.

Essential Tools for the Job

Before you dive into replacing your brake pads or working with your calipers, ensure you have the right tools at hand. Having everything ready will make the process smoother and prevent frustration.

• Hex Keys (usually 4mm, 5mm, or Torx T25 for rotor bolts, depending on your setup)
• Flathead Screwdriver or a dedicated pad spreader tool (plastic tyre lever works well)
• Clean Rags or Paper Towels
• Rubbing Alcohol or Isopropyl Alcohol (for cleaning)
• Nitrile Gloves (to prevent oil transfer)
• Brake Pad Spreader (optional but highly recommended)
• Piston Press Tool (optional, but helpful for stubborn pistons)

Step-by-Step Guide: Replacing Avid Elixir Brake Pads

Replacing your Avid Elixir brake pads is a straightforward process, but it requires attention to detail, especially when resetting the pistons. Follow these steps carefully to ensure a perfect job.

1. Preparation and Wheel Removal

Firstly, secure your bike in a repair stand if possible. This provides stability and makes access easier. Shift your gears to the smallest cog to give maximum chain slack. Next, remove the wheel corresponding to the brake you're working on. For through-axle wheels, simply unthread the axle and pull the wheel out. For quick-release wheels, open the lever and remove the wheel.

2. Old Pad Removal

With the wheel out, you'll have a clear view of the brake caliper and the pads within. Avid Elixir pads are typically held in place by a small retaining pin or clip. Use a pair of needle-nose pliers or a small flathead screwdriver to carefully remove this pin or clip. Once the pin is out, the pads, often held together by a spring, can be pulled directly out from the top or bottom of the caliper. Note their orientation as you remove them; the new ones will go in the same way.

3. Resetting the Pistons: The Crucial Step

This is arguably the most critical part of the process. As your old pads wore down, the self-adjusting nature of the caliper caused the pistons to extend further out. With new, thicker pads, these pistons need to be pushed back fully into their bores to accommodate the extra thickness. If you don't do this, your new pads will rub against the rotor, or you won't be able to get the wheel back in.

The safest way to push the pistons back is with the old pads still partially in the caliper. This protects the ceramic or phenolic piston faces from damage. Use a plastic tyre lever, a dedicated pad spreader tool, or a large flathead screwdriver (with extreme caution to avoid scratching the pistons or caliper body). Place the tool between the old pads and gently but firmly lever them apart, pushing the pistons back into the caliper body. You'll see them retract.

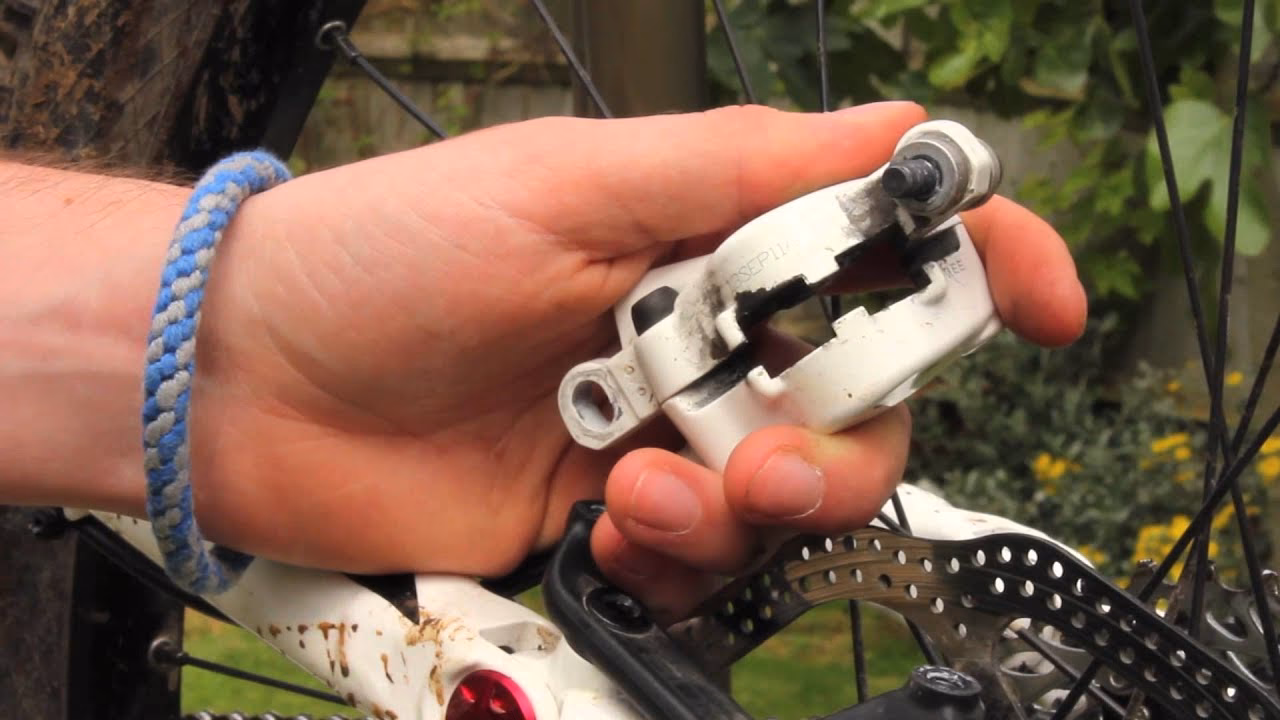

Sometimes, particularly with stubborn pistons, you may need to remove the caliper from the frame or fork to get more leverage. To do this, simply unbolt the two mounting bolts that secure the caliper. This allows you to hold the caliper more securely and apply even pressure to retract the pistons. Ensure the pistons are pushed all the way back, flush with the caliper body. You might see a small amount of brake fluid burp into the reservoir at the lever – this is normal as the fluid is displaced.

4. Cleaning and New Pad Installation

Before installing the new pads, take a moment to clean the inside of the caliper. Use a clean rag and some rubbing alcohol to wipe away any dust or grime. Avoid getting any oil, grease, or brake fluid on the piston faces or new pads, as this will contaminate them and ruin their braking performance. Always use nitrile gloves to prevent transferring oils from your skin.

Carefully insert the new brake pads, ensuring they are correctly oriented and that the spring (if applicable) is properly seated between them. Slide them into the caliper and reinsert the retaining pin or clip, securing it firmly. Give a gentle tug on the pads to ensure they are locked in place.

5. Wheel Reinstallation and Lever Pumping

Reinstall your wheel, ensuring the rotor slides cleanly between the new pads. If you had to unbolt the caliper, now is the time to reattach it. Loosely thread the mounting bolts back in, then squeeze your brake lever several times firmly. This will allow the pistons to self-adjust and bring the new pads into contact with the rotor. While holding the lever, tighten the caliper mounting bolts. This helps to ensure the caliper is centred over the rotor, preventing rubbing.

6. Bedding-in New Pads

New brake pads require a 'bedding-in' process to achieve their full braking potential and prevent squealing. This involves transferring a thin layer of pad material onto the rotor surface. Find a safe, open area where you can accelerate and brake repeatedly. Perform about 20-30 moderate stops from a rolling speed (e.g., 15-20 mph down to walking pace), avoiding full stops. Allow the brakes to cool between sets of stops. You'll notice the braking power gradually increase. This bedding-in process is crucial for optimal performance and longevity.

Deep Dive: Handling Avid Elixir Calipers

Beyond simple pad replacement, there are times when you might need to handle the Avid Elixir caliper more extensively. This could be for a thorough cleaning, troubleshooting a sticky piston, or during a full brake bleed.

When to Remove the Caliper

• Stubborn Pistons: As mentioned, if pistons refuse to retract fully, removing the caliper gives you better access and leverage.
• Brake Bleeding: During a full brake bleed, the caliper is often positioned to allow air bubbles to rise more easily out of the system.
• Thorough Cleaning: To remove stubborn dirt or grime from around the pistons or inside the caliper body.
• System Overhaul: If you're replacing the entire brake line or components.

Caliper Removal and Reinstallation Tips

Removing the caliper is straightforward: simply unbolt the two mounting bolts that secure it to your frame or fork. When reinstalling, the key is proper alignment. After loosely reattaching the caliper, pump the brake lever a few times to allow the pads to centre on the rotor. While holding the lever, tighten the mounting bolts. Some mechanics prefer to visually align the caliper, ensuring an even gap between the rotor and both pads. Either method works, but the lever-squeeze technique is generally more reliable for self-centring.

Cleaning the Calipers

Regular cleaning of your calipers helps prevent issues like sticky pistons. Use a clean rag and rubbing alcohol. Gently clean around the pistons, but avoid using harsh chemicals or anything that could damage the seals. The biggest enemy of brake performance is contamination. Never use lubricants, WD-40, or any oil-based products near your brake calipers, pads, or rotors. Even a tiny amount can severely degrade braking performance.

Advanced Considerations: When to Bleed Your Brakes

While pad replacement doesn't always necessitate a brake bleed, it's a related maintenance task you should be aware of. If your brake lever feels spongy after a pad change, or if the pistons seem excessively sticky even after cleaning and pushing them back, you might have air in your system, and a bleed would be required. Avid Elixir brakes are notorious for being a bit finicky to bleed, often requiring a specific bleed kit and a precise procedure. This is a more involved process than pad replacement and is typically performed if there's a loss of power or a spongy lever feel, rather than as routine maintenance with every pad change.

Comparative Table: Brake Pad Types

Avid Elixir brakes can use different types of brake pads, each with distinct characteristics. Choosing the right pad depends on your riding style and conditions.

Frequently Asked Questions (FAQs)

Q1: Why won't my Avid Elixir pistons retract fully?

A: This is a common issue. Ensure you've pushed them back evenly. If one side is stuck, try pushing the other piston out slightly (by gently pumping the lever a tiny bit while holding the stuck one in), then pushing both back together. Dirt around the piston seals can also cause sticking; a thorough cleaning with isopropyl alcohol might help. If they're severely stuck, a full brake bleed might be necessary to remove old, contaminated fluid or air bubbles.

Q2: How often should I change my Avid Elixir brake pads?

A: Pad wear varies greatly depending on riding style, terrain, and weather conditions. Regularly inspect your pads; if the pad material is less than 1mm thick (excluding the backing plate), it's time for new ones. Listen for grinding noises, which indicate the pads are completely worn and the backing plate is contacting the rotor.

Q3: Can I mix different types of brake pads in my Avid Elixir caliper?

A: It's generally not recommended. While physically possible, mixing pad types (e.g., organic on one side, metallic on the other) can lead to uneven braking performance, premature wear, and unpredictable feel. Stick to matching pairs for consistent and safe braking.

Q4: What is 'bedding-in' new brake pads, and why is it important?

A: Bedding-in is the process of gently heating up and cooling down new pads and rotors through a series of moderate stops. This transfers a thin, even layer of pad material onto the rotor surface, which is essential for optimal braking power, consistent feel, and to prevent squealing. Skipping this step can result in poor braking performance, excessive noise, and accelerated wear.

Q5: My brakes squeal after changing pads, what's wrong?

A: Squealing can be due to several reasons:

• Contamination: Oil or grease on the pads or rotor is the most common cause. Clean the rotor thoroughly with isopropyl alcohol and consider replacing contaminated pads.
• Improper Bedding-in: New pads not properly bedded in will often squeal.
• Caliper Alignment: A misaligned caliper can cause vibrations and noise.
• Worn Rotor: A heavily worn or warped rotor can also cause noise.
• Pad Type: Metallic pads are generally noisier, especially in wet conditions.

Q6: Do I need to bleed my brakes every time I change pads?

A: No, you do not need to bleed your brakes every time you change pads. Bleeding is typically only required if you introduce air into the system (e.g., by opening a bleed port or having a leak), if the brake fluid is old and contaminated, or if you experience a spongy lever feel after a pad change, indicating air might have been pushed into the system from the reservoir.

Understanding and performing routine maintenance on your Avid Elixir brakes will not only extend their lifespan but, more importantly, ensure your safety on every ride. The similarity between front and rear brake components simplifies the process, making it an accessible task for any home mechanic. By following these steps and paying attention to detail, you can keep your stopping power reliable and consistent, allowing you to ride with confidence.
