Audi A4 B8 Brake Pad Replacement Guide

The braking system is arguably the most crucial safety feature on any vehicle, and for an Audi A4 B8, maintaining its performance is paramount. Worn brake pads can lead to reduced stopping power, longer braking distances, and potential damage to other braking components like the rotors. While taking your Audi to a professional mechanic is always an option, replacing your brake pads can be a rewarding and cost-effective DIY task for those with a basic understanding of automotive mechanics. This guide will walk you through the process of replacing the brake pads on your Audi A4 B8, ensuring you can keep your car performing at its best.

Understanding Your Audi A4 B8's Braking System

Before diving into the replacement process, it's essential to understand the basic components of your Audi A4 B8's braking system. It operates on a hydraulic principle, where pressing the brake pedal forces brake fluid through lines to the brake calipers. The calipers, in turn, push the brake pads against the brake rotors (discs) mounted on the wheels. This friction is what slows and stops the vehicle. Your A4 B8 likely uses a disc brake system on both the front and rear wheels. The front brakes typically do most of the work due to weight transfer during deceleration, meaning front pads often wear out faster.

When to Replace Your Brake Pads

Several indicators will tell you it's time to replace your brake pads. The most common signs include:

• Squealing or Grinding Noises: Most brake pads have a small metal tab called a wear indicator. When the pad material wears down to a certain level, this tab contacts the rotor, producing a high-pitched squeal when the brakes are applied. A grinding noise usually indicates that the pad material has completely worn away, and the metal backing plate is grinding against the rotor – this is a serious issue and requires immediate attention to prevent rotor damage.
• Increased Stopping Distance: If you notice your car taking longer to stop than usual, it's a clear sign that your brake pads are worn.
• Brake Pedal Feels Soft or Spongy: While this can also indicate other issues like air in the brake lines or a failing master cylinder, worn pads can contribute to a less responsive pedal.
• Brake Warning Light: Many modern vehicles, including the Audi A4 B8, have electronic brake wear sensors. If a sensor detects that a pad is worn, a warning light will illuminate on your dashboard.
• Visual Inspection: You can often see the brake pads through the spokes of your wheels. If the pad material appears to be less than 1/8th of an inch (approximately 3mm) thick, it's time for a replacement.

Tools and Materials You'll Need

To successfully replace your Audi A4 B8 brake pads, you'll need the following tools and materials:

Essential Tools:

• Jack and Jack Stands: Never rely solely on a jack. Always use sturdy jack stands to support the vehicle.
• Lug Wrench: To remove the wheel nuts.
• Socket Set and Ratchet: You'll need various socket sizes, particularly for the caliper bolts. A 13mm or 15mm socket is commonly used for caliper bracket bolts on many Audi models, but it's wise to confirm for your specific B8 A4.
• C-Clamp or Brake Caliper Piston Compressor Tool: To retract the brake caliper piston.
• Torque Wrench: Crucial for tightening bolts to the manufacturer's specifications.
• Wire Brush: For cleaning rust and debris from the caliper bracket and mounting points.
• Brake Cleaner: To clean components.
• Gloves and Safety Glasses: To protect yourself from brake dust and fluid.
• Flathead Screwdriver or Pry Bar: For gently prying components.

Materials:

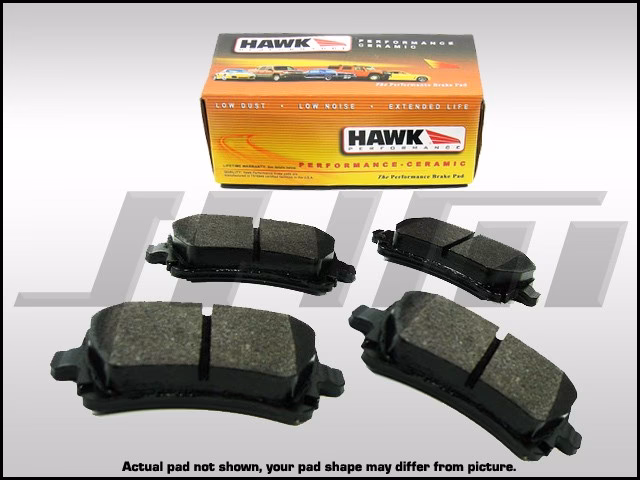

• New Brake Pads: Ensure you purchase the correct pads for your Audi A4 B8 (front or rear, and the specific model year).
• Brake Lubricant/Grease: High-temperature brake grease is essential for lubricating the caliper slide pins and pad backing plates.
• Optional: New Brake Rotors: If your rotors are worn, grooved, or below minimum thickness, it's best to replace them at the same time.
• Optional: Brake Fluid: If you need to bleed the brakes after the job, you'll need new brake fluid (DOT 4 is common for Audis).

Step-by-Step Brake Pad Replacement (Front)

Let's get started with the front brake pads. The process for the rear is similar but may involve additional steps like dealing with the parking brake mechanism.

1. Prepare the Vehicle

Park your Audi A4 B8 on a level surface. Engage the parking brake firmly if you are working on the rear brakes, or block the rear wheels securely if working on the front. Loosen the lug nuts on the wheel you'll be working on *before* jacking up the car. Typically, you'll want to do one side at a time to maintain stability and have a reference point.

2. Jack Up the Vehicle and Remove the Wheel

Using your jack, lift the appropriate corner of the car and place a jack stand securely under a strong frame point. Lower the car onto the jack stand. Now, fully remove the lug nuts and take off the wheel. You should now have clear access to the brake caliper and rotor.

3. Locate and Remove the Caliper Bolts

The brake caliper is usually held in place by two bolts, often referred to as caliper bracket bolts or guide bolts. These are typically located at the rear of the caliper. You may need to rotate the steering wheel slightly to gain better access. Use the appropriate socket and ratchet to remove these bolts. On some Audi models, one of the caliper bolts might have a plastic cap, or you might need to remove a small retaining clip before unscrewing the bolt. Once the bolts are out, you should be able to pivot the caliper upwards or remove it entirely. If you're removing the caliper, try to hang it from the suspension using a piece of wire or a bungee cord – never let the caliper hang by the brake hose, as this can damage the hose.

4. Remove the Old Brake Pads

With the caliper out of the way, the old brake pads should now be accessible. They are usually held in place by clips or simply sit in slots within the caliper bracket. You might need to use a flathead screwdriver or a pry bar to gently lever them out. Note the orientation of the old pads, especially if they have wear indicators, as the new ones will need to be installed in the same way. Also, observe any anti-squeal shims that might be present; these should be transferred to the new pads.

5. Compress the Caliper Piston

This is a crucial step. The new, thicker brake pads won't fit unless the caliper piston is pushed back into the caliper body. Use a C-clamp or a dedicated brake caliper piston compressor tool. Place an old brake pad against the piston to provide a flat surface for the tool. Slowly and steadily tighten the clamp or compressor until the piston is fully retracted. As you do this, you may notice the brake fluid level in the master cylinder reservoir rising. It's a good idea to check the reservoir and remove some fluid with a syringe if it looks like it might overflow. You might also want to place a rag under the reservoir cap to catch any spills.

6. Install the New Brake Pads

Clean the caliper bracket thoroughly with a wire brush to remove any rust or debris. Apply a thin layer of high-temperature brake lubricant to the areas where the brake pads will slide within the bracket and on the back of the new pads (where they contact the caliper piston and the caliper bracket). Do not get lubricant on the friction material of the pads or the rotor surface. Fit the new brake pads into the caliper bracket, ensuring they are seated correctly and any anti-squeal shims are in place. Make sure the wear indicator (if present) is on the correct side, usually the inner pad.

7. Reinstall the Caliper

Carefully lower the caliper back over the new brake pads and rotor. Ensure the brake hose is not twisted. Reinsert the caliper mounting bolts and tighten them securely. Use a torque wrench to tighten these bolts to the manufacturer's specified torque. This is critical for safety. For the Audi A4 B8, the caliper bracket bolts are typically torqued to around 30-35 Nm (22-26 lb-ft), and the caliper guide pins (if separate) might have different torque specifications. Always consult your vehicle's service manual for the exact figures.

8. Reinstall the Wheel and Lower the Vehicle

Put the wheel back on and hand-tighten the lug nuts. Lower the vehicle off the jack stands. Once the car is on the ground, use the lug wrench to tighten the lug nuts in a star pattern to ensure even pressure. Then, use the torque wrench to tighten them to the manufacturer's specified torque (typically around 140 Nm or 101 lb-ft for an A4 B8). Again, consult your manual for the exact spec.

9. Repeat for the Other Side

Repeat the entire process for the other side of the same axle. It's important to replace brake pads in pairs on the same axle to ensure even braking performance.

10. Bed-In the New Brake Pads

After replacing the pads, you need to 'bed them in'. This process helps the new pad material mate properly with the rotor surface, ensuring optimal performance and longevity. Pump the brake pedal several times until it feels firm. This will seat the caliper piston against the new pads. Then, find a safe, open area with no traffic. Perform several moderate stops from about 30-40 mph down to 10 mph without coming to a complete stop. Avoid hard braking during this initial period. After these moderate stops, perform a few harder stops from around 50-60 mph down to 15-20 mph, again without coming to a complete halt. Finally, drive for a few minutes without using the brakes to allow them to cool. Avoid parking immediately after heavy braking, as this can cause the new pads to glaze or warp the rotors.

Step-by-Step Brake Pad Replacement (Rear)

The process for the rear brakes on an Audi A4 B8 is very similar to the front, with one key difference: the electronic parking brake (EPB). Many Audi A4 B8 models have an EPB integrated into the rear caliper mechanism. This means you cannot simply compress the piston with a C-clamp. You'll need to retract the parking brake electronically using a diagnostic tool or a specialized tool that can put the EPB system into 'service mode'.

Important Note on Electronic Parking Brake (EPB):

If your Audi A4 B8 has an EPB, you MUST retract the calipers electronically before attempting to compress the piston. Failure to do so could damage the EPB motor or the caliper. Consult your owner's manual or a reputable service manual for instructions on how to put your specific EPB system into service mode, or seek professional assistance if you are unsure.

Once the EPB is in service mode, the process of removing the caliper, compressing the piston (which might require a screw-in type tool for some rear calipers), installing new pads, and reassembling is largely the same as the front. After reassembly, remember to take the car out of service mode and test the parking brake operation.

Important Considerations and Tips

• Brake Dust: Brake dust is a fine, abrasive powder. Always wear gloves and a mask, and clean up any dust thoroughly.
• Rotor Condition: Inspect your rotors for scoring, glazing, or uneven wear. If they show significant signs of wear, replace them. It's often recommended to replace rotors when replacing pads, especially if the rotors have significant mileage on them.
• Brake Fluid: Over time, brake fluid can absorb moisture, lowering its boiling point and reducing braking efficiency. If your brake fluid is old, consider flushing and replacing it.
• Torque Specifications: Never guess torque values. Always use a torque wrench and refer to your Audi A4 B8's service manual for the correct specifications.
• One Side at a Time: Working on one side of the axle at a time ensures you have a reference for how things were put together and helps maintain the car's stability.
• Cleanliness: Keep all components clean during the process. Contaminants can lead to premature wear or noise.

Troubleshooting Common Issues

Squealing after replacement: This can be due to improper bedding-in, lack of lubricant on the pad backing plates or caliper hardware, or a faulty anti-squeal shim. Ensure you've used the correct grease and followed the bedding-in procedure.

Brake pedal is soft: This typically indicates air in the brake lines. If you didn't open the system, it might be a residual issue from the piston retraction. You may need to bleed the brakes.

Frequently Asked Questions (FAQs)

Q: How often should I replace my brake pads?
A: This varies greatly depending on driving style and conditions. A general guideline is every 30,000 to 70,000 miles, but always rely on the warning signs mentioned earlier.

Q: Can I just replace the pads and not the rotors?
A: You can, as long as your rotors are in good condition – no significant scoring, warping, or below minimum thickness. However, new pads on worn rotors may not perform optimally and can wear the new pads down faster.

Q: Do I need to replace brake fluid?
A: It's good practice to check the condition of your brake fluid. If it's dark or has been in the car for several years, a flush and replacement is recommended.

Q: What if my Audi A4 B8 has an electronic parking brake?
A: You MUST put the EPB system into service mode using a diagnostic tool before retracting the caliper piston. Failure to do so can cause significant damage.

Replacing your brake pads on your Audi A4 B8 is a manageable task for the DIY enthusiast. By following these steps carefully, using the correct tools, and paying attention to detail, you can ensure your Audi continues to offer reliable and safe braking performance. If at any point you feel unsure or uncomfortable, it's always best to consult a qualified mechanic.
