Removing VCDS Rotors: A UK Mechanic's Guide

Changing brake rotors is a fundamental aspect of vehicle maintenance, but when you're dealing with modern vehicles equipped with electronic parking brakes (EPB) and systems like VCDS (VAG-COM Diagnostic System), the procedure takes on a critical new dimension. Gone are the days of simply unbolting components; now, bypassing vital electronic safeguards can lead to significant and costly damage. This guide will walk you through the correct, safe, and efficient method for removing rotors on vehicles that require VCDS intervention, ensuring you protect your vehicle's sophisticated systems and achieve a successful brake service.

Understanding the intricacies of your vehicle's electronic parking brake system, particularly how it integrates with diagnostic tools like VCDS, is paramount before you even pick up a spanner. Failing to properly disengage the electric parking brake motors can result in irreparable harm to the caliper, the motor itself, or even the vehicle's electronic control unit. This isn't just about convenience; it's about protecting your investment and ensuring your vehicle's braking system remains fully functional and safe.

The Critical Role of VCDS in Brake Service

Modern vehicles, particularly those within the Volkswagen Audi Group (VAG) family, often feature electronic parking brakes. Unlike traditional cable-operated systems, these EPBs use small electric motors directly attached to the rear brake calipers to engage and disengage the parking brake. When you attempt to remove a rear brake caliper or rotor without retracting these motors electronically, you are working against a powerful mechanism that is designed to hold the pads firmly against the disc. Applying force in this situation can bend caliper components, strip gears within the electric motor, or even damage the vehicle's wiring or control modules.

This is where a VCDS system becomes an indispensable tool. VCDS, or VAG-COM Diagnostic System, is a software and hardware package that allows users to perform professional-level diagnostics, coding, and adaptations on VAG vehicles. For brake service involving EPBs, VCDS provides a specific function to put the electronic parking brake into 'service mode' or 'maintenance mode'. This command tells the electric motors to retract fully, pulling the brake pads away from the rotor and allowing the caliper piston to be pushed back without resistance. It's a non-negotiable step; attempting to force the caliper or piston back without this electronic retraction will almost certainly damage the system.

Why Skipping VCDS is a Costly Mistake

Many DIY enthusiasts or even professional mechanics unfamiliar with EPB systems might try to use a C-clamp or a brake caliper press to force the piston back. While this works for traditional calipers, it is catastrophic for EPB calipers. The integrated electric motor contains delicate gearing and electronic components that are not designed to withstand external pressure. Forcing the piston can strip gears, crack the motor housing, or even short-circuit the motor's internal electronics. The repair cost for a damaged EPB caliper and motor assembly can easily run into hundreds of pounds, far exceeding the cost of a proper VCDS scan tool or a visit to a garage equipped with one.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and replacement parts. Having everything ready will streamline the process and prevent unnecessary delays.

Safety First

Always prioritise safety when working on your vehicle. Ensure the car is on a flat, stable surface, properly supported by jack stands, and the wheels are chocked. Disconnect the negative terminal of the battery if you are concerned about accidental power surges, though this is generally not required for VCDS operations on the EPB.

Step-by-Step VCDS Rotor Removal Process

Follow these steps carefully to ensure a smooth and damage-free rotor removal.

Step 1: Prepare the Vehicle and Access VCDS

1. Park the vehicle on a flat, level surface. Engage the parking brake (if it's still functional) and place wheel chocks on the wheels that will remain on the ground.
2. Loosen the lug nuts on the wheel you intend to remove while the vehicle is still on the ground.
3. Safely raise the vehicle using a jack and secure it with jack stands. Ensure the vehicle is stable before proceeding.
4. Remove the wheel completely.
5. Connect your VCDS interface cable to the vehicle's OBD-II port (usually located under the dashboard).
6. Turn the ignition on (do not start the engine).
7. Launch the VCDS software on your laptop.

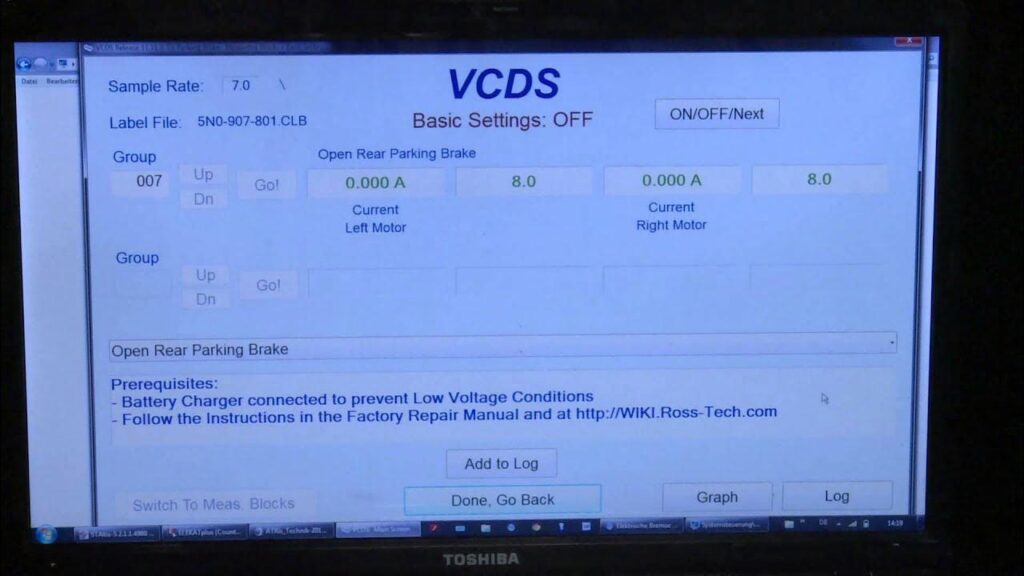

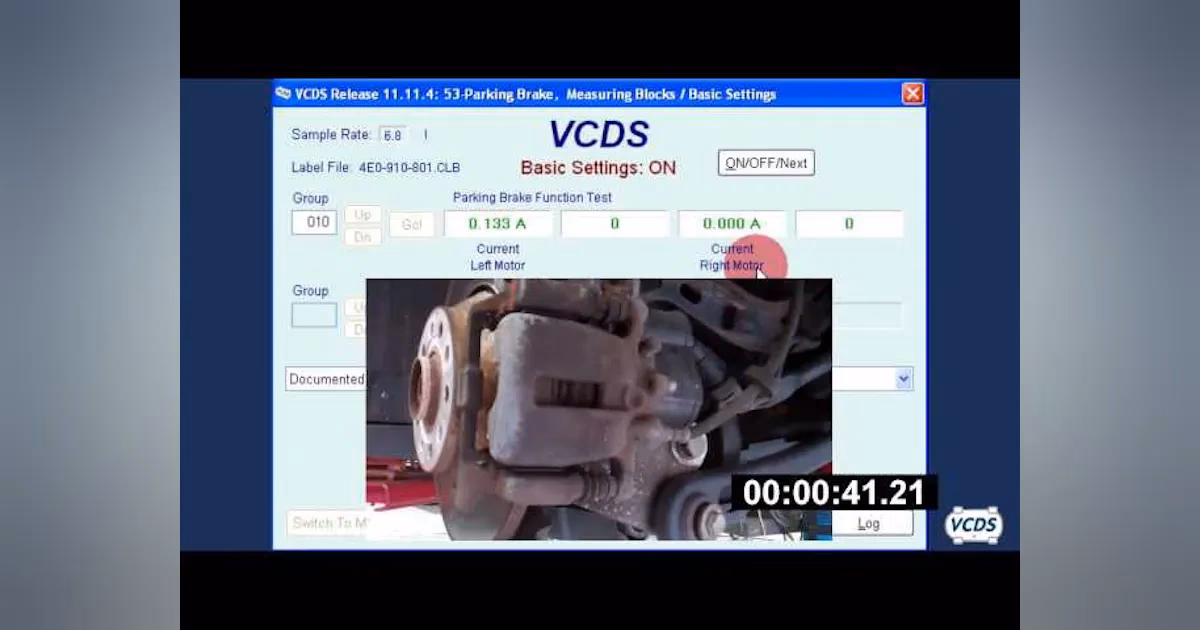

Step 2: Retract the Electronic Parking Brake Motors with VCDS

This is the most crucial step. The exact menu path might vary slightly depending on your VCDS software version and vehicle model, but the general procedure is as follows:

1. In VCDS, select 'Select Control Module'.
2. Choose '03 - ABS Brakes' (or '53 - Parking Brake' on some newer models).
3. Once connected, go to 'Basic Settings - 04'.
4. From the dropdown menu, find the option for 'Start lining change mode', 'Open parking brake for pad replacement', or similar wording (e.g., 'Group 007' or 'Group 006' on older systems).
5. Click 'Go!' or 'Activate'. You should hear the electric motors retracting. The parking brake warning light on the dashboard might flash or change.
6. Once the process is complete (VCDS will indicate this), click 'Stop' or 'Done'.
7. Exit the VCDS software and disconnect the cable. The motors are now retracted, and the caliper piston can be safely pushed back.

Step 3: Remove the Brake Caliper and Pads

1. Locate the caliper mounting bolts, typically on the back of the caliper. These are usually 13mm, 15mm, 17mm, or Torx/Hex bolts. You might need to remove plastic caps covering them.
2. Using a suitable wrench or socket, loosen and remove the two caliper mounting bolts.
3. Carefully slide the caliper off the rotor. Do not let the caliper hang by the brake hose, as this can damage the hose. Use a bungee cord or wire to suspend the caliper safely from the suspension component.
4. Remove the old brake pads from the caliper carrier (also known as the caliper bracket or mount). Note their orientation for reassembly.
5. Now, remove the caliper carrier (mount) itself. This is held by two larger bolts, usually 18mm or 21mm, which connect it to the steering knuckle or suspension upright. These bolts can be very tight and may require significant leverage.

Step 4: Remove the Rotor Retaining Screw and the Rotor

1. With the caliper and its mount removed, you'll see the rotor. Many rotors have a small Torx or Philips head screw that holds them to the hub. Remove this screw. This screw primarily helps to hold the rotor in place during assembly on the production line and when the wheel is off, but it's not load-bearing once the wheel is bolted on.
2. Now, the rotor should be free, but it's common for rotors to be seized onto the hub due to rust and corrosion, especially in the damp UK climate.
3. If the rotor is stuck, spray a generous amount of penetrating oil (like WD-40 or similar) around the hub centre and on the rotor face. Let it soak for a few minutes.
4. Using a large hammer or a sledgehammer, strike the rotor firmly between the wheel studs, on the flat surface. Rotate the rotor and strike it in several different spots. The goal is to break the rust bond between the rotor and the hub. Do not strike the rotor's braking surface if you intend to reuse it (though for rotor replacement, this isn't a concern). If it's particularly stubborn, you might need to strike it from the back.
5. The rotor should eventually break free and slide off the wheel studs.

Troubleshooting a Stubborn Rotor

Even with penetrating oil and a hammer, some rotors can be incredibly stubborn. Here are a few additional tips:

• Heat: A propane torch can be used to carefully heat the centre of the rotor around the hub. The expansion and contraction can help break the rust bond. Be extremely cautious and avoid heating the wheel bearings directly.
• Bolt Trick: Some rotors have threaded holes specifically designed for jacking bolts. If yours does, insert two bolts (often M8 or M10, check your vehicle's specific needs) into these holes and tighten them alternately. This will push the rotor off the hub.
• More Hammering: Sometimes, it just requires more forceful and strategic hammering. Ensure you are hitting the rotor squarely and not at an angle that might damage the hub.

Reassembly and Post-Procedure Checks

Once the old rotor is off, clean the hub surface thoroughly with a wire brush to remove any rust or debris. Apply a thin layer of anti-seize compound to the hub face to prevent future seizing. Install the new rotor, ensuring it sits flush against the hub. Reinstall the small retaining screw.

Install the caliper carrier (mount) and tighten its bolts to the manufacturer's torque specifications. Clean and lubricate the caliper slide pins with appropriate brake grease. Install the new brake pads, ensuring they are seated correctly. Carefully slide the caliper over the new pads and rotor, pushing the piston back if necessary (it should be retracted from the VCDS step). Reinstall the caliper mounting bolts and tighten them to torque specifications.

Reinstall the wheel and lower the vehicle. Once the vehicle is back on the ground, reconnect your VCDS system. You will now need to run the 'End lining change mode' or 'Close parking brake' function (often 'Group 007' or 'Group 006' again in basic settings). This will re-engage the EPB motors. After this, switch off the ignition, remove the VCDS cable, and then start the engine. Pump the brake pedal several times to seat the pads and build up pressure before driving. Test the parking brake functionality.

Frequently Asked Questions (FAQs)

Q: Can I remove the rotor without a VCDS system?

A: Absolutely not, if your vehicle is equipped with an electronic parking brake that requires VCDS for service mode. Attempting to do so will almost certainly damage the electric parking brake motor or caliper, leading to costly repairs. It is a mandatory step for these specific systems.

Q: What if I don't have VCDS? What are my options?

A: If you don't own a VCDS system, you have a few options: 1) Purchase a VCDS interface and software (a significant investment for a single job). 2) Use a generic OBD-II scan tool that specifically supports the EPB service mode function for your vehicle make and model. Not all generic tools have this capability. 3) Take your vehicle to a garage or mechanic who has the necessary VCDS equipment or equivalent diagnostic tools. They can perform the EPB retraction for you.

Q: How often should I replace my brake rotors?

A: The lifespan of brake rotors varies significantly based on driving style, vehicle type, and rotor material. Generally, rotors are inspected during every brake pad change. They should be replaced if they are below the minimum thickness specification (stamped on the rotor's edge), show signs of severe warping, deep grooves, or cracks. Many manufacturers recommend replacing rotors with every second pad change, or more frequently if wear dictates.

Q: Is it okay to reuse old brake pads with new rotors?

A: It is highly recommended to always replace brake pads when installing new rotors. Old pads will have worn to the shape of the old rotor's surface and may not mate perfectly with the new, flat rotor, leading to reduced braking performance and premature wear of the new rotor. It's a best practice to replace both components as a set.

Q: What is the importance of torque specifications?

A: Torque specifications are crucial for safety and proper function. Over-tightening bolts can strip threads or stretch bolts, leading to failure. Under-tightening can cause components to come loose, resulting in dangerous situations. Always use a torque wrench for caliper bolts, caliper carrier bolts, and wheel lug nuts to ensure they are tightened to the manufacturer's specified values.
