Astra H Oil & Filter Service: The Complete Guide

Ensuring your Vauxhall Astra H's engine oil is at the correct level and replaced regularly is paramount for its longevity and performance. Engine oil is the lifeblood of your vehicle, lubricating moving parts, preventing wear, and dissipating heat. Neglecting this vital fluid can lead to costly engine damage. This comprehensive guide will walk you through the correct procedure for checking your oil, performing an oil and filter change, and even tackling other essential maintenance tasks like air, cabin, and spark plug replacements, ensuring your Astra H remains in top condition.

How to Accurately Check Your Astra H Engine Oil Level

Checking your engine oil level correctly is a simple yet crucial task that should be done regularly, ideally once a month or before a long journey. Many engines, except for the 1.4 variants, are equipped with an oil level sensor that provides an early warning with an orange oil can symbol on the dashboard. A red oil can, however, means you must stop the engine immediately. Here’s the precise method for your Astra H:

1. Warm Up the Engine: Start your engine and allow it to reach its normal operating temperature. This ensures the oil has circulated throughout the engine.
2. Park on a Level Surface: Crucially, park your car on a perfectly level surface. An incline can give a false reading.
3. Wait for the Oil to Settle: Switch off the engine and wait for at least 5 minutes. This allows all the oil to drain back into the sump, ensuring an accurate reading.
4. Remove and Wipe the Dipstick: Locate the engine's dipstick, usually a yellow or orange loop or handle. Pull it out fully and wipe it clean with a lint-free cloth or paper towel.
5. Reinsert and Read: Fully reinsert the dipstick until it seats properly, then pull it out again. Observe the oil level between the 'min' and 'max' marks. New engine oil can be quite translucent, making it difficult to see, so hold it against a light background or angle it to catch the light.
6. Top Up if Necessary: If the oil level is below the 'min' mark, add small amounts of the correct specification oil (5W30, GM-LL-A-025 or GM-LL-B-025) through the filler cap, checking the dipstick frequently, until the level is between the 'min' and 'max' marks. Be careful not to overfill.

Why Regular Oil Changes Are Non-Negotiable

Over time, engine oil breaks down due to heat and contamination from combustion by-products. It loses its lubricating properties, becomes thicker, and can form sludge. Regular oil changes are vital to:

• Maintain optimal lubrication, reducing friction and wear on engine components.
• Keep the engine clean by suspending contaminants and preventing sludge build-up.
• Help cool the engine by dissipating heat.
• Ensure peak fuel efficiency and engine performance.

Engine Oil & Filter Change: A Step-by-Step Guide

Performing an oil and filter change on your Astra H is a rewarding DIY task that can save you money. Here's how to do it properly:

Required Tools and Parts:

• New engine oil (5W30 to GM-LL-A-025 or GM-LL-B-025 spec, usually 5 litres).
• New oil filter (ensure it's the correct one for your engine code).
• New sump plug and gasket (highly recommended, as old ones often get damaged).
• 24mm socket (for oil filter housing).
• T45 driver (for Torx type sump plug). Some sumps may have a standard bolt, requiring a different size socket.
• Torque wrench (essential for correct tightening).
• Suitable oil drain pan (at least 5-6 litres capacity).
• Funnel.
• Disposable gloves and rags.
• Axle stands and a jack (for safe lifting).
• Engine flush (optional, but recommended).

Optional: Engine Flush

Some mechanics have differing opinions on engine flush additives. While they can loosen carbon deposits and thin sludgy oil, there's a slight risk of dislodged deposits circulating. However, many find them beneficial for keeping the engine cleaner between changes. If you use one, always follow the product's instructions. Typically, you pour the entire bottle into the hot engine, run it at tickover for 10 minutes (or drive if specified), and then immediately proceed with the oil change. Never run the engine with only cleaner in it.

The Oil Change Process:

1. Prepare the Vehicle: With the engine warm (this helps the oil drain better), jack up the front of the car safely and support it on axle stands. Ensure it's stable.

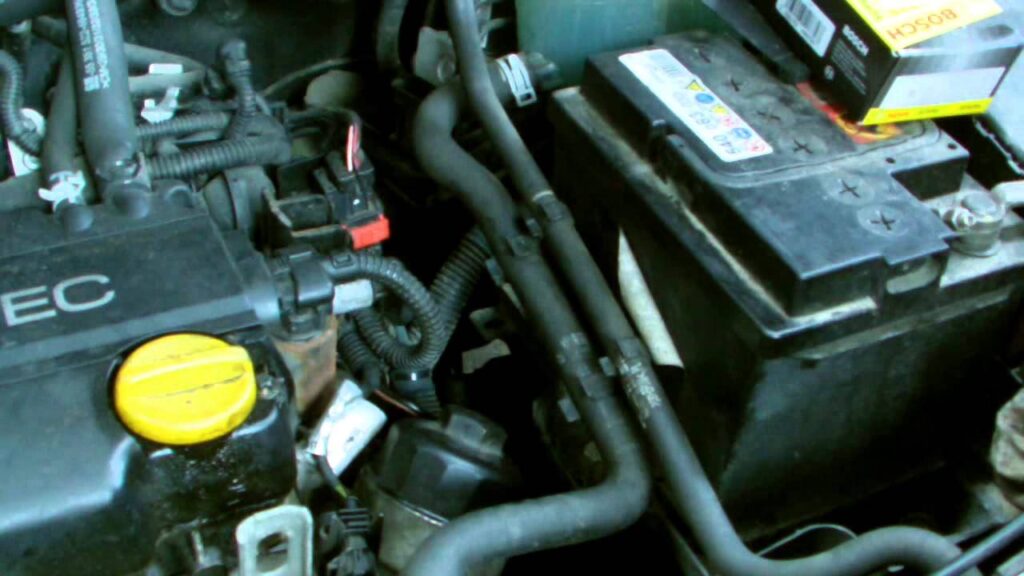

2. Locate the Sump and Filter: Position your drain pan underneath the engine. Identify the sump plug (often a Torx type, but some designs vary) and the plastic oil filter housing. The filter housing typically has a 24mm head. Note: on 1.9 diesel engines, you may need to cover the exhaust to prevent oil spillage.
3. Remove the Oil Filter First: Place a suitable receptacle below the oil filter housing. Using your 24mm socket, carefully unscrew the oil filter housing. Removing this first allows the oil to drain more fully from the engine.
4. Drain the Old Oil: Now, position the drain pan directly under the sump plug. Using the T45 driver (or appropriate socket), carefully remove the sump plug. Be cautious, as the oil will be hot. For 1.9 Diesel engines, the plug might not come all the way out; oil drains through holes in a hollow threaded part. Allow all the oil to drain completely.
5. Replace Gaskets and Filters:
   • Oil Filter: Clean the oil filter housing thoroughly and install the new gasket that comes with the new filter. Insert the new filter into the housing and hand-tighten it initially.
   • Sump Plug: If reusing your old sump plug, fit a new gasket. If you've purchased a new plug, it typically comes with the gasket already fitted.
6. Reinstall and Torque:
   • Sump Plug: Reinstall the sump plug. Using a torque wrench, tighten it to 14 Nm. This is crucial to prevent overtightening, which can damage the sump, or undertightening, which can cause leaks.
   • Oil Filter Housing: Reinstall the oil filter housing. Tighten it to 25 Nm with your torque wrench.
7. Refill with New Oil: Lower the car. Locate the oil filler cap on top of the engine. Using a funnel, slowly pour the new, correct specification oil into the engine. Refer to the oil capacities table below for your engine code. Pour slowly to avoid spilling.
8. Check Oil Level (Again!): As you fill, periodically check the oil level with the dipstick, following the steps outlined at the beginning of this article. Be careful not to overfill. Once the level is correct, refit the filler cap.
9. Start and Inspect: Start the engine and let it run for a few minutes. Check for any leaks around the sump plug and oil filter housing. Switch off the engine, wait 5 minutes, and re-check the oil level, topping up if necessary.

Other Essential Maintenance for Your Astra H

While you're undertaking the oil change, it's an ideal time to tackle other critical maintenance items to ensure your Astra H runs optimally and provides a comfortable driving experience.

Air Filter Change

A clean air filter is vital for engine performance and fuel economy, ensuring clean air reaches the combustion chambers. You'll need a T20 driver for this.

1. Remove the six screws securing the air filter cover.
2. Lift the top off and remove the old filter.
3. Vacuum any debris from the plenum chamber.
4. Install the new filter, ensuring it's seated correctly.
5. Replace the cover and secure the six screws.

Spark Plug Replacement

Replacing your spark plugs ensures efficient combustion and smooth engine running. You'll need a T20 driver, T40 Torx screws, and an M10 / 16mm AF spark plug socket.

1. Remove the DIS/coil pack cover by pulling it upwards from the right-hand side.
2. Disconnect the cable on the right-hand side of the DIS/coil pack by pressing down the clip and pushing it to the right.
3. Remove the two T40 Torx screws that secure the DIS/coil pack.
4. Pull the DIS/coil pack directly upwards, taking care not to rock it side to side, which could damage it.
5. Using your M10 / 16mm AF spark plug socket, carefully remove the old spark plugs.
6. Check the new spark plugs for any damage and ensure the metal washer is correctly in place.
7. Insert a new spark plug into your spark plug socket. To avoid cross-threading, rotate the socket anti-clockwise until you feel the start of the thread, then turn clockwise. It should go in easily. Any tightness indicates it's not seated properly.
8. Tighten the spark plug to 25 Nm with your torque wrench. This is not very tight, so be gentle if not using a torque wrench – just nip it up carefully. Over-tightening can damage the plug or engine threads.
9. Replace the DIS/coil pack, applying even pressure to avoid flexing or damage. Replace the two screws (Vauxhall manual states 45 Nm, but this is often too tight; use your judgment and tighten by hand gently).
10. Reconnect the cable to the right of the DIS, ensuring it clicks into place.
11. Replace the cover and start the engine to check for proper operation.

Cabin/Pollen Filter Change

A clean cabin filter ensures fresh, clean air inside your vehicle. You'll need a T20 driver and a 5.5mm hexagon socket for some screws.

1. Remove the four T20 screws securing the glovebox. The glovebox will then pull forwards away from the dash.
2. Gently pull on the black connector to disconnect the glovebox light.
3. The filter is located on the right-hand side of the fan and is secured with two screws (5.5mm hexagon head) and two clips. The back screw can be a bit tricky to access.
4. Once the screws are removed, gently press the fragile clips on each end of the cover to release them and pull the cover away from the ducting.
5. The old filter can then be removed, twisting it past the fan housing. You'll likely be surprised how dirty it is!
6. Install the new filter, paying close attention to the airflow direction markings on the filter (air flows from the fan towards the centre console).
7. Refit the glovebox, remembering to plug the glovebox light back in.

Astra H Parts Reference & Oil Capacities

Knowing the correct part numbers and fluid capacities for your Astra H is crucial. Your engine code can typically be found on the car pass, usually in the leather-bound wallet with your owner's guide and service book.

Engine Oil Capacities (Approximate):

Recommended Part Numbers (Vauxhall/GM):

Frequently Asked Questions (FAQs)

How often should I change my engine oil?

Vauxhall recommends specific service intervals, often every 12 months or 10,000-20,000 miles, whichever comes first. However, for optimum engine health, especially if you do a lot of short journeys or drive in demanding conditions, many enthusiasts opt for more frequent changes, perhaps every 6,000-8,000 miles.

What type of oil should I use for my Astra H?

You must use 5W30 fully synthetic oil that meets GM-LL-A-025 (for petrol engines) or GM-LL-B-025 (for diesel engines) specifications. Using the correct oil is crucial for your engine's performance and longevity.

Can I perform these maintenance tasks myself?

Yes, many of these tasks, including checking and changing oil and filters, are well within the capabilities of a competent DIY mechanic. Always ensure you have the correct tools, follow safety procedures (especially when jacking up the car), and refer to your car's owner's manual for specific details.

What happens if I overfill the engine oil?

Overfilling can be as damaging as underfilling. Excess oil can be whipped into a froth by the crankshaft, leading to aeration. This foamy oil doesn't lubricate effectively, causing increased wear, and can also lead to increased oil pressure, potentially damaging seals and gaskets, leading to leaks.

Where is the oil filter located on the Astra H?

The oil filter on the Astra H is typically located in a plastic housing with a 24mm head. Its exact position can vary depending on the engine type; some are accessible from the engine bay, while others require access from underneath the car. The designs were largely rationalised around 2007, but prior to that, different sizes were used depending on the specific engine.

Conclusion

Regular maintenance, particularly keeping on top of your engine oil and filter changes, is the cornerstone of a healthy and reliable Vauxhall Astra H. By following these guidelines, you'll not only extend the life of your vehicle but also ensure it runs as smoothly and efficiently as possible. Don't underestimate the power of proactive maintenance – it's the key to countless miles of trouble-free driving.
