Mastering Your Astra H ECU: Resetting & Remapping Guide

The Electronic Control Unit (ECU) serves as the sophisticated brain of your Vauxhall Astra H, meticulously managing a myriad of engine functions to ensure optimal performance, fuel efficiency, and emissions control. From regulating fuel injection and ignition timing to monitoring sensors, the ECU is central to your vehicle's operation. However, like any complex system, it can sometimes require attention, whether it's a necessary reset to resolve persistent issues, a reprogramming to synchronise with new components, or a performance remapping to unlock hidden power. This comprehensive guide delves into both crucial aspects of Astra H ECU management: the precise steps for resetting and reprogramming, and the exciting possibilities of a fast road performance remap.

Understanding the Heart of Your Astra H: The ECU

At its core, the ECU (Engine Control Unit) is a microcomputer that processes data from numerous sensors located throughout your Vauxhall Astra H. These sensors gather information on everything from engine speed and temperature to oxygen levels in the exhaust and throttle position. The ECU then uses this data to make real-time adjustments, ensuring the engine runs as efficiently and powerfully as possible. It's responsible for the intricate dance of combustion, making sure the air-fuel mixture is perfect, the spark fires at the precise moment, and emissions are kept in check. Given its vital role, any disruption or need for optimisation inevitably leads back to this central component.

When an ECU Reset or Reprogramming Becomes Essential

There are several scenarios where interacting with your Astra H's ECU becomes more than just an option; it's a necessity. An ECU reset, in its most basic form, involves clearing the learned parameters and fault codes stored within the unit, essentially giving it a 'fresh start'. Reprogramming, on the other hand, often involves flashing new software onto the ECU, or, as in the case of immobiliser issues, re-establishing critical communication links. You might need to perform these procedures if you are:

• Replacing a faulty ECU or other major engine components that communicate with it.
• Troubleshooting persistent engine management light (EML) issues or fault codes that refuse to clear through conventional methods.
• Experiencing immobiliser related problems, such as the engine failing to start despite the key being present, or the immobiliser light blinking continuously.
• Addressing performance anomalies that might stem from corrupted learned values within the ECU.

It's important to differentiate between a simple battery disconnect (which might clear some volatile memory) and a full ECU reset and reprogramming with a dedicated diagnostic tool, which addresses deeper system parameters and critical security features like the immobiliser.

Your Essential Tool: The OPCOM Diagnostic Interface

For Vauxhall Astra H owners looking to perform advanced diagnostic and programming tasks at home, the OPCOM diagnostic interface is an invaluable tool. Specifically, the OPCOM 2012 China clone firmware V1.59 with a PIC18F458 Chip is widely recognised for its compatibility and functionality across various Opel and Vauxhall models, including the Vectra-C, Astra-H, and Zafira-B. This device connects your vehicle's OBD-II port to a laptop, allowing you to access the ECU, read fault codes, view live data, and perform programming functions. While 'clone' versions are mentioned, ensuring you acquire a stable and reliable version is paramount to avoid potential issues during critical programming procedures.

Step-by-Step Guide: Resetting and Reprogramming Your Vauxhall Astra H ECU

This procedure focuses on resetting the Engine Control Module (ECM) and then reprogramming the immobiliser to ensure your car starts successfully. Always ensure your vehicle's battery is fully charged and your laptop has ample power before beginning to prevent interruptions.

Preparation is Key:

Before you begin, ensure your vehicle's ignition is off. Connect the OPCOM interface cable to your Vauxhall Astra H's OBD-II port, typically located under the dashboard near the steering column. Then, connect the other end of the cable to your laptop. Launch the OPCOM software on your computer.

Step 1: Establishing Connection and Vehicle Selection

Within the OPCOM software, you will need to select the correct vehicle and system. Navigate through the menus as follows:

1. Choose "2014" (referring to the software version, not necessarily the car's year).
2. Select "Astra-H" from the model list.
3. Proceed to "Engine".
4. Select your specific engine code. For example, if your vehicle has a 1.6-litre engine, you would choose "Z 16 XEP". This step is crucial as it ensures the software communicates correctly with your particular ECU variant.
5. Follow any on-screen tips and click "Next" to proceed.

Step 2: Initiating the ECU Reset

Once connected to the engine module:

1. Locate and choose the "Reset ECU" option within the software interface.
2. The software will then prompt you to enter your vehicle's security code. This code is unique to your car and is essential for performing security-related functions like ECU resets and immobiliser programming. Enter the code accurately and click "OK".
3. Allow the software to perform the reset. After a short wait, a message should appear stating, "Reset completed successfully". This indicates that the ECU's learned values have been cleared.

Step 3: Addressing the Immobiliser System

Immediately after the ECU reset, you will likely notice that your car's immobiliser light is blinking. This is normal and indicates that the ECU has lost its synchronisation with the immobiliser system due to the reset. You now need to reprogram the immobiliser to re-establish this vital link.

1. From the main menu of the OPCOM software, navigate to "Body".
2. Then, select "Programming".
3. Choose "Immobilizer Programming".

Step 4: Immobiliser Programming

Within the immobiliser programming section:

1. Click on "Security Code" and re-enter your vehicle's security code.
2. Next, click on "Program Immobilizer Function".
3. When prompted, select the "ECM" (Engine Control Module) option. This tells the system that you are programming the engine's ECU to work with the immobiliser.
4. Click "Do It" to execute the programming.

Step 5: Clearing Residual Fault Codes

Even after successfully programming the immobiliser, some residual fault codes might remain. It's good practice to clear these:

1. Return to the main menu of the OPCOM software.
2. Select "Fault Codes". The software will display any existing fault codes. You might specifically see a code like "P1614-50 Wrong Transponder Key" or similar immobiliser-related codes.
3. Click "Clear Fault Codes".

Step 6: Final Immobiliser Synchronisation

For the final step in clearing the immobiliser code and ensuring full synchronisation:

1. Remove the car key from the ignition barrel.
2. Plug the key back into the ignition.
3. At this point, you should observe that all fault codes are cleared, and crucially, your car's immobiliser light is off. This signifies that the ECU and immobiliser are now correctly synchronised and communicating.

Congratulations! Your OPCOM tool has successfully reset and reprogrammed your Vauxhall Astra H ECU and immobiliser. Your vehicle should now be ready to start and operate normally.

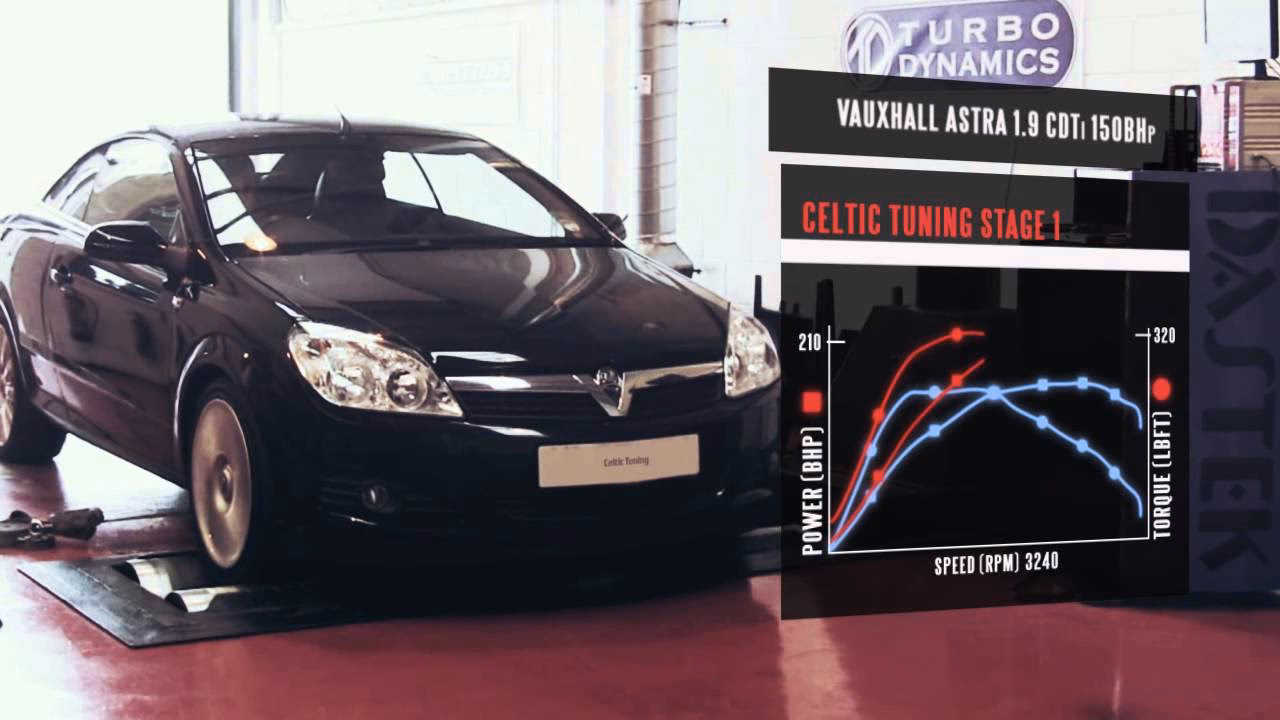

Unleashing Performance: The Fast Road ECU Remap for Astra H

Beyond troubleshooting and maintenance, the ECU offers exciting possibilities for enhancing your Vauxhall Astra H's driving dynamics. An ECU remap, often referred to as a 'fast road application', is not a reset but a sophisticated optimisation of the software within your engine's ECU. This process involves carefully re-calibrating parameters like fuel delivery, boost pressure (for turbocharged engines), ignition timing, and throttle response to extract more power and torque from the engine, without necessarily requiring physical modifications to the engine itself.

Why Consider a Remap for Your Astra H?

The primary motivations for remapping are increased power and torque, leading to a more engaging and responsive driving experience. For models like the Vauxhall Astra 1.7 CDTi 98 bhp, the gains can be quite significant, transforming the vehicle's character. Professional remapping services, like those developed by reputable tuners, utilise state-of-the-art equipment, including Dynocom 4WD rolling roads (dynamometers), to develop and test their software in-house. This ensures that the modifications are not only powerful but also maintain reliability by keeping fuelling, boost pressures, and exhaust gas temperatures within safe tolerances.

The Astra 1.7 CDTi 98 bhp Example: Stage 1 Remap

A 'Stage 1' ECU remap is typically the first step in performance tuning and is designed to work safely with a vehicle's standard components. The aim is to achieve a perfect balance between increased performance and day-to-day usability, making it an ideal choice for those seeking extra dynamism without the need for additional hardware upgrades or compromising long-term reliability. Let's look at the impressive gains for the Astra 1.7 CDTi 98 bhp model:

Performance Gains: Original vs. Stage 1 Remap (Astra 1.7 CDTi 98 bhp)

As the table illustrates, a Stage 1 remap can yield substantial increases in both power and torque. An additional 46 bhp and 48 lb/ft of torque will dramatically improve acceleration, overtaking ability, and overall responsiveness, making your Astra H feel significantly more lively and enjoyable on the road. This level of enhancement is achieved purely through software optimisation, highlighting the untapped potential within your vehicle's factory ECU settings.

Choosing Your Path: Reset vs. Remap

It's crucial to understand the distinct purposes of an ECU reset/reprogramming and an ECU remap. A reset or reprogramming is primarily a maintenance or repair procedure, essential for resolving specific faults, integrating new components, or restoring basic functionality. It returns the ECU to a known good state or re-establishes critical communication links. A remap, conversely, is a performance modification, designed to enhance the engine's output beyond its factory specifications. Both processes interact with the ECU, but their objectives are fundamentally different.

Important Considerations Before You Start

While performing ECU tasks yourself can be empowering, it's vital to be aware of the potential risks and responsibilities:

• DIY vs. Professional: Attempting ECU programming without adequate knowledge or reliable tools can lead to 'bricking' the ECU, rendering it inoperable and requiring costly replacement. If unsure, always consult a professional Vauxhall specialist.
• Warranty Implications: Any modification to your vehicle's ECU, including performance remapping, will almost certainly void your manufacturer's warranty. Even an ECU reset, if not performed correctly, could be scrutinised.
• Insurance Declaration: It is a legal requirement in the UK to declare any modifications that alter your vehicle's performance or specification to your insurance provider. Failure to do so could invalidate your policy in the event of a claim.
• Legality and Emissions: Ensure any remapping adheres to local emissions regulations. While Stage 1 remaps are generally designed to be compliant, always verify.
• Tool Quality: While 'China clone' tools are accessible, their reliability can vary. Investing in higher quality, more stable diagnostic equipment, or seeking professional assistance, can mitigate risks.

Frequently Asked Questions (FAQs)

Q: Why is my immobiliser light blinking after an ECU reset?

A: It indicates the immobiliser system has lost synchronisation with the ECU. The reset clears the ECU's learned data, including its link to the immobiliser. Following the reprogramming steps, particularly re-entering the security code and cycling the key, is crucial to re-establish this link and allow the engine to start.

Q: Can I reset my Astra H ECU without an OPCOM tool?

A: Basic 'soft resets' like disconnecting the battery for an extended period (e.g., 30 minutes or more) might clear some basic fault codes or adaptive learned parameters. However, they will not perform a full ECU reset or immobiliser reprogramming as comprehensively or effectively as a dedicated diagnostic tool like OPCOM. For proper immobiliser synchronisation and clearing specific, persistent codes, the OPCOM or similar professional diagnostic equipment is essential.

Q: Is a Stage 1 remap safe for my Vauxhall Astra H engine?

A: A professionally developed Stage 1 remap, thoroughly tested on rolling roads with rigorous monitoring of engine parameters, is generally considered safe. It's designed to operate within the engine's mechanical tolerances while using standard components. However, the overall health of your engine, its maintenance history, and your driving style can influence long-term reliability. Always choose a reputable tuner.

Q: Will remapping my Astra H affect its fuel economy?

A: It depends on your driving style. While remapping often optimises fuel delivery and efficiency under light load, potentially leading to slight improvements if driven conservatively, the primary purpose is increased power. If you frequently utilise the increased power and torque, fuel economy will likely decrease. Many drivers find that the enhanced low-end torque allows for less gear changing and smoother driving, which can sometimes offset the increased consumption from spirited driving.

Q: What is the security code and where do I find it?

A: The security code, often referred to as the CAR PASS, is a unique 4-digit numeric code specific to your vehicle's immobiliser system. It's vital for programming new keys, ECUs, and performing other security-related functions. This code is typically provided on a small card with the vehicle's original documentation from the factory. If you don't have it, a Vauxhall main dealer or a specialist equipped with advanced diagnostic tools can often retrieve it for you (sometimes for a fee).

Q: How long does an ECU reset and reprogram take?

A: The actual process of connecting, selecting options, and executing the reset and immobiliser reprogramming with OPCOM is relatively quick, usually taking around 10-15 minutes once you are familiar with the software. However, the overall time can be longer if you encounter unexpected issues, need to troubleshoot, or are performing the procedure for the first time.

Q: Do I need to inform my insurance company if I remap my car?

A: Absolutely. Any modification that alters the vehicle's performance, specification, or value, including an ECU remap, must be declared to your insurance provider. Failure to do so could result in your insurance policy being invalidated, potentially leading to significant financial consequences in the event of an accident or claim.

Conclusion

Understanding and being able to interact with your Vauxhall Astra H's ECU is a valuable skill for any owner. Whether you're troubleshooting an immobiliser issue with a precise reset and reprogramming using tools like OPCOM, or you're looking to unleash significant extra performance through a professional ECU remap, the possibilities are vast. Always approach these tasks with careful consideration, ensuring you have the right tools, knowledge, and awareness of the implications. By doing so, you can keep your Astra H running optimally, or even transform its driving experience, ensuring many more miles of enjoyable motoring.
