Swapping Your 50cc Engine for an AM6 Minarelli: A Comprehensive Guide

Embarking on an engine swap can seem daunting, but with the right guidance, it's a rewarding process for any enthusiast looking to boost their motorcycle's performance. This guide specifically focuses on replacing a standard 50cc engine with the popular and potent AM6 Minarelli unit. The AM6 Minarelli engine is renowned for its robustness and tuning potential, making it a favoured choice for those seeking an upgrade. Whether you're aiming for increased power for track days or simply want to revitalise an older machine, understanding the intricacies of this swap is crucial. We'll walk you through each step, ensuring a smooth and successful transition.

Preparation is Key: What You'll Need

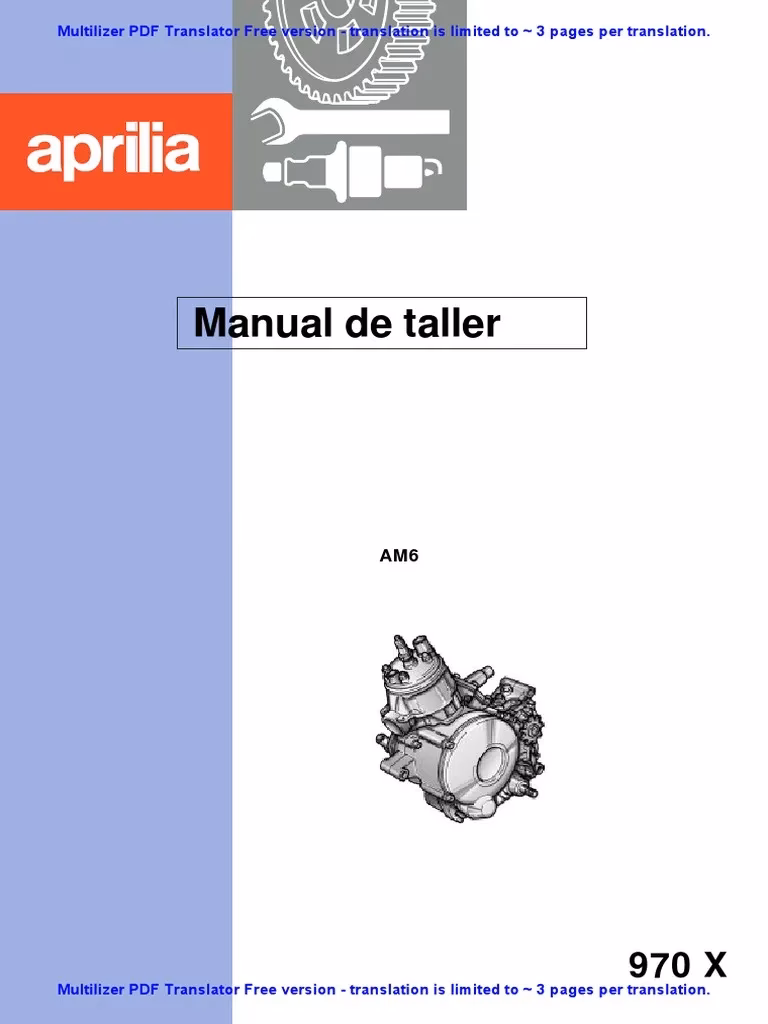

Before you begin dismantling your current setup, it's vital to have all the necessary tools and parts at hand. This will not only save you time but also prevent potential setbacks. You'll require a comprehensive set of metric sockets and spanners, screwdrivers, pliers, a torque wrench for critical fastenings, and potentially a mallet for stubborn pins. Don't forget protective gear like gloves and eye protection. For the AM6 Minarelli engine itself, ensure you have all the necessary mounting hardware, gaskets, and any adapter plates if your frame requires them. Having a workshop manual specific to your motorcycle model and the AM6 Minarelli engine can be an invaluable resource, offering detailed diagrams and torque specifications.

Step-by-Step Engine Removal

Removing the old engine is the first major hurdle. Follow these steps meticulously: 1. Remove the Saddle: This provides better access to the components underneath. 2. Remove Front Fairings: Carefully detach any fairings that obstruct access to the engine bay. 3. Remove the Fuel Tank: Typically secured by three screws, disconnect the fuel line below. It's advisable to drain the fuel first to avoid spillage. 4. Drain the Coolant: Locate the coolant drain screw (often near the water pump or radiator) and remove it. Opening the cooling cap on the radiator or expansion tank will help the coolant drain more efficiently. 5. Remove Exhaust System: Unhook the two exhaust springs that secure the exhaust to the cylinder, then carefully remove the entire exhaust unit. This is often a significant component that needs to be moved out of the way. 6. Remove Brake Pedal: Detach the brake pedal assembly. Pay close attention to any springs that might be under tension. 7. Remove the Kickstart Lever: This is usually a straightforward removal. 8. Access the Oil Pump: Remove the two screws securing the oil pump cover. 9. Disconnect Cables and Hoses: * Gas Cable: Disconnect the throttle cable from the carburetor. * Oil Pump Removal: Once the cover is off, you can typically remove the oil pump itself with its securing screws. * Coolant Hoses: Carefully detach all coolant hoses by loosening their clamps. There will be hoses connecting to the radiator and often one connected directly to the cylinder head. * Suppressor and Temperature Probe: Remove the spark plug suppressor and the temperature sensor from the cylinder head. 10. Gear Selector: Detach the gear selector linkage. 11. Chain Removal: To remove the drive chain, first remove the circlip securing the rear sprocket, then remove the sprocket itself. The chain can then be pulled free. 12. Carburetor Removal: Disconnect the fuel line and any supporting sleeve or boot from the carburetor. The carburetor can then be removed from the intake manifold. 13. Electrical Connections: * Neutral Sensor: Disconnect the wiring for the neutral indicator switch. It's good practice to temporarily replace the securing screw to avoid losing it. * Ignition: Disconnect the main ignition wiring harness, typically found near the saddle area. 14. Engine Mounts: * First Motor Support Pin: Remove the first engine mounting pin. This might require a bit of persuasion with a rubber mallet. * Second Motor Support Pin: Locate and remove the second, and any subsequent, engine mounting pins. Again, a mallet can be helpful here. Once all cables, hoses, and mounting pins are removed, you should be able to carefully manoeuvre the old engine out of the frame. It's often best to have assistance for this step due to the weight and awkwardness of the engine.

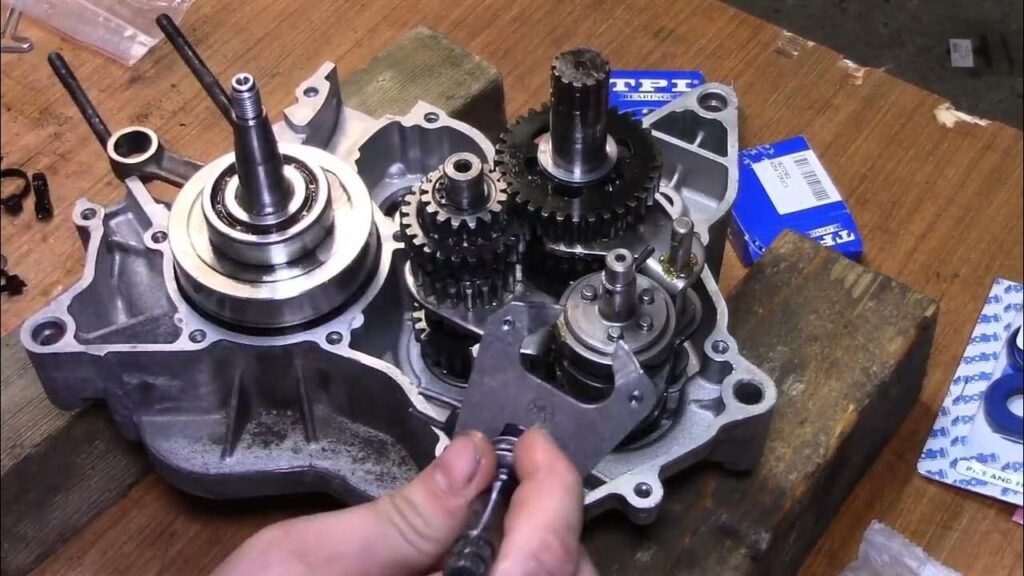

Installing the AM6 Minarelli Engine

With the old engine out, the process of installing the AM6 Minarelli begins. This is essentially the reverse of the removal process, but with careful attention to new connections and alignment: 1. Position the New Engine: Carefully lift and position the AM6 Minarelli engine into the motorcycle frame, aligning the mounting points. 2. Secure Engine Mounts: Insert and secure the engine mounting pins. Ensure they are fully seated. 3. Refit the Chain and Sprocket: Install the drive chain and secure the rear sprocket with its circlip. Ensure the chain has the correct tension – not too tight, not too loose. 4. Install Gear Selector: Reconnect the gear selector linkage. 5. Reconnect Electricals: * Neutral Sensor: Reconnect the neutral indicator switch wiring. * Ignition: Reconnect the main ignition wiring harness. 6. Carburetor Installation: Mount the carburetor onto the intake manifold, securing it with the appropriate sleeve and tightening the clamp. 7. Oil Pump and Cables: * Oil Pump: Install the oil pump with its securing screws. * Gas Cable: Connect the throttle cable to the carburetor. * Oil Pump Cover: Replace the oil pump cover and secure it with its two screws. 8. Kickstart Lever: Reinstall the kickstart lever. 9. Brake Pedal: Reinstall the brake pedal assembly. Ensure the spring is correctly positioned for proper operation. You might need to remove a rear section of the frame or bodywork to properly secure the brake pedal mechanism. 10. Coolant Hoses: Reconnect all coolant hoses, ensuring the clamps are tightened securely. This includes hoses to the radiator and the cylinder head. 11. Suppressor and Temperature Probe: Reinstall the spark plug suppressor and the temperature sensor. 12. Fill Coolant: Fill the cooling system with the correct type and amount of coolant. Bleed any air from the system according to your motorcycle's manual. 13. Refit Exhaust: Reattach the exhaust system, securing it with the two springs. 14. Replace Fuel Tank: Mount the fuel tank back onto the frame. Connect the fuel line. 15. Reconnect Fuel Lines: Attach the fuel tank hoses to the carburetor. 16. Final Assembly: Reinstall all fairings, the saddle, and any other removed bodywork.

Post-Installation Checks and First Start

Once the engine is physically installed and all connections are made, a thorough check is essential: * Fluid Levels: Double-check coolant and oil levels. * Electrical Connections: Ensure all electrical connectors are secure and correctly routed. * Cable Routing: Verify that throttle, clutch, and brake cables are routed correctly and not pinched. * Fuel System: Check for any fuel leaks. * Cooling System: Ensure the radiator cap is properly fitted. When ready, turn on the fuel, check the ignition is on, and attempt to start the engine. It might take a few kicks or a longer cranking period initially as the fuel system fills and the engine primes itself. Listen for any unusual noises and monitor for leaks. Once running, allow the engine to warm up gradually, checking for smooth idling and responsiveness.

Rieju Workshop Manuals and Two-Stroke Engines

For owners of Rieju motorcycles, having access to their specific workshop manuals is incredibly beneficial. These manuals provide detailed, manufacturer-specific information tailored to their range of two-stroke engines. They are designed for technicians and experienced DIYers, offering insights into the latest working practices and safety standards. If you're working on a Rieju, particularly one equipped with a two-stroke engine, a genuine workshop manual will be your most trusted companion, detailing specific procedures, tolerances, and troubleshooting advice.

Frequently Asked Questions

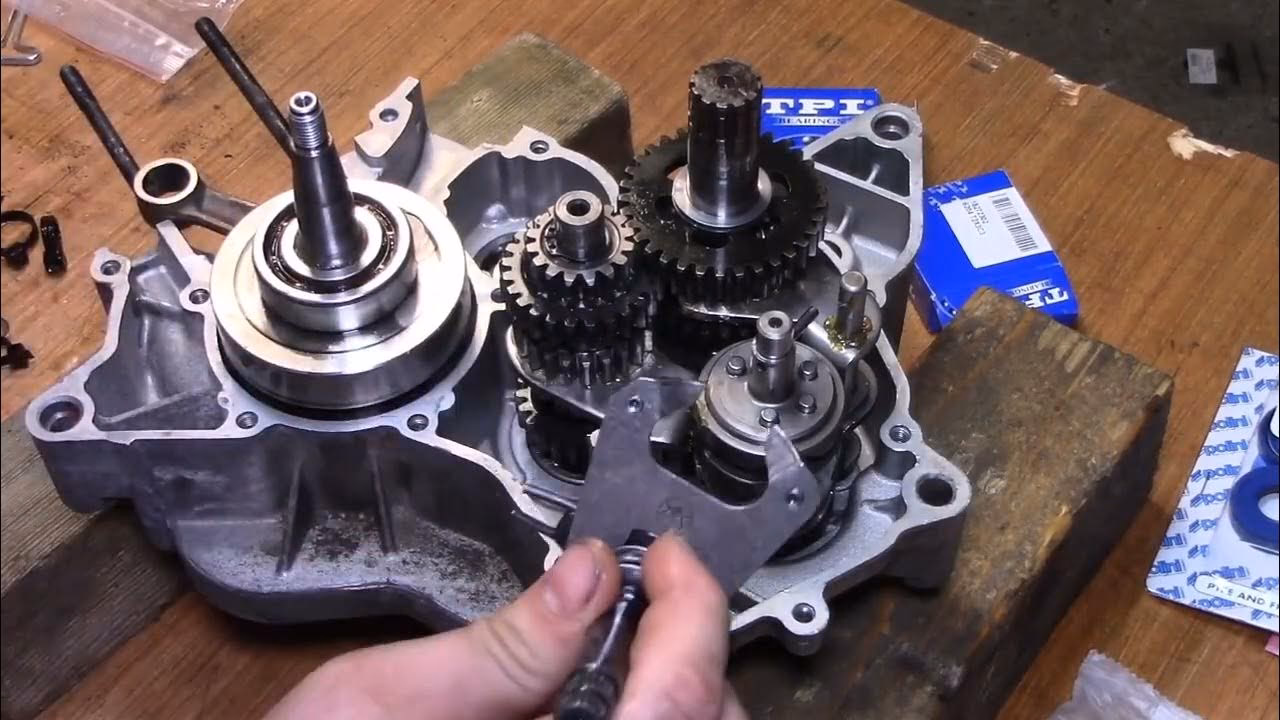

• Q: Is the AM6 Minarelli engine a direct bolt-in for all 50cc bikes?A: Not always. While it's a popular upgrade, frame mounting points and exhaust connections can vary between different 50cc motorcycle models. Modifications might be necessary.
• Q: Do I need to change my exhaust when swapping to an AM6 Minarelli?A: It's highly recommended. The AM6 engine has different exhaust port characteristics than a standard 50cc engine, and an exhaust designed for the AM6 will offer optimal performance. You'll also need to ensure the mounting points align.
• Q: Will my current carburetor work with the AM6 Minarelli?A: While some smaller carburetors might function, an AM6 engine typically performs best with a carburetor in the 17.5mm to 21mm range. You may need an adapter for the intake manifold.
• Q: What about the electricals? Will my existing wiring loom work?A: The core electrical components like the CDI and stator should be compatible if they are designed for the AM6. However, you'll need to ensure the wiring for sensors like the neutral switch matches your motorcycle's setup.
• Q: How much performance increase can I expect?A: This varies greatly depending on the specific AM6 configuration, any tuning modifications you make, and the quality of the installation. However, a well-executed swap can significantly increase power and torque compared to a standard 50cc engine.
