V-Brakes vs Cantilever: A Cyclist's Guide

The world of bicycle braking systems can often feel like a labyrinth, with various designs and technologies vying for supremacy. Among the most frequently discussed are cantilever brakes and their more modern counterpart, V-brakes. While both serve the fundamental purpose of slowing a bicycle, their mechanisms, performance characteristics, and compatibility can differ significantly. This article delves into the nuances of these two popular braking systems, aiming to shed light on their respective advantages and disadvantages, and to help cyclists make informed decisions about their braking setup.

Understanding Cantilever Brakes

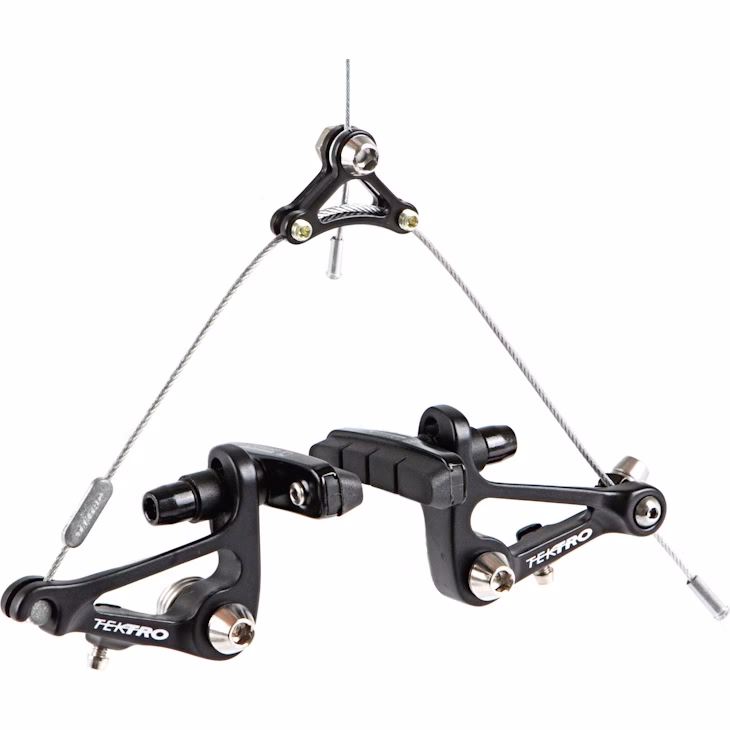

Cantilever brakes, often found on older touring bikes, cyclocross bikes, and some mountain bikes, are characterized by their two independently mounted arms that straddle the fork or frame. These arms are activated by a single cable that pulls upwards, causing the brake blocks to press against the wheel rim. The beauty of cantilever brakes lies in their simplicity and adaptability. They offer a wide range of tire clearance, making them ideal for bikes that need to accommodate mudguards or wider tyres. Furthermore, their open design makes them relatively easy to maintain and adjust.

However, cantilever brakes can be sensitive to the quality of their components and setup. The effectiveness of a cantilever brake system is heavily influenced by the cable quality, the condition of the straddle cable, and the alignment of the brake blocks. A poorly set up or worn cantilever system can feel spongy and lack stopping power. The braking force generated is also dependent on the leverage ratio, which can vary between different cantilever designs.

The Rise of V-Brakes

V-brakes, also known as direct-pull or linear-pull brakes, emerged as a significant evolution from cantilever systems. They feature a single cable that runs directly to one of the brake arms, while the other arm is connected to the first via a short connecting link. This direct-pull mechanism allows for a higher mechanical advantage (MA), meaning that less cable pull is required to generate more braking force. This translates to a firmer lever feel and generally stronger stopping power compared to many cantilever setups.

One of the key advantages of V-brakes is their inherent simplicity and robustness. The direct-pull design is less susceptible to the intricacies of straddle cable length and angle that can affect cantilever performance. This often makes them more forgiving of less-than-perfect cable quality and setup, leading to a more consistent and reliable braking experience. The brake arms themselves also tend to have more freely moving pivots, which can contribute to smoother operation.

V-Brakes vs. Cantilevers: A Comparative Look

The debate between V-brakes and cantilevers often centres on which system offers superior performance. As Brucey's post highlights, a common reason for people favouring V-brakes during conversions from cantis is the inherent simplicity of the mechanism and the fact that a conversion often involves replacing worn-out components with new ones. This includes new brake arms with smooth pivots, new cables, and new brake blocks. When these factors are considered, it's easy to see why V-brakes might appear superior.

However, it's crucial to differentiate between the brake system itself and the condition of its components. A well-maintained and properly set-up cantilever system can perform exceptionally well. The issue often lies in the fact that older cantilever setups may have seized pivots, frayed cables, or misaligned brake blocks, all of which significantly degrade braking performance. If these same maintenance standards were applied to cantilever brakes, their performance would likely be much closer to that of V-brakes.

Leverage Ratios and Compatibility

A significant factor influencing the performance of both brake types is their leverage ratio – the ratio of force applied at the lever to the force generated at the brake pads. Modern Shimano STI (and similar integrated brake/shifter levers) have, in recent years, adopted a brake leverage ratio that requires more cable pull and generates lower cable tension. This change has had a direct impact on the compatibility of brake systems with these levers.

Older cantilever brakes were often designed with a higher leverage ratio, meaning they worked well with the cable pull characteristics of older brake levers. However, with the shift to lower cable tension from modern STI levers, the range of cantilever brakes that perform acceptably well has narrowed. Cantilever brakes that do work with these newer levers can be more sensitive to setup adjustments to achieve optimal braking.

V-brakes, on the other hand, generally have a higher leverage ratio that is well-suited to the increased cable pull of modern STI levers. This compatibility is a key reason why V-brakes have become so popular for road and hybrid bikes equipped with these integrated shifters. The combination of a higher MA from the V-brakes and the lever design from the STIs results in a powerful and responsive braking system.

Downsides of V-Brakes

While V-brakes offer several advantages, they are not without their drawbacks. One notable issue can be their limited tire clearance, especially when compared to some cantilever designs. This can be a concern for riders who need to fit wider tyres or mudguards, particularly on bikes designed for all-weather riding or touring. The aesthetic of V-brakes can also be a point of contention for some cyclists, with their prominent arms being less visually discreet than some cantilever setups.

Furthermore, while V-brakes are generally considered simpler, achieving optimal performance still requires attention to detail. The alignment of the brake arms and the quality of the brake blocks are crucial. Using brake blocks that are not designed for V-brakes, or that are worn or incorrectly positioned, can lead to reduced braking effectiveness and potential damage to the wheel rim.

The Conversion Conundrum

As Brucey pointed out, the perceived superiority of V-brakes in conversions often stems from replacing a collection of suboptimal components with a fresh, well-matched set. This is a critical point. If you're converting from cantilevers to V-brakes, simply swapping the brake arms without addressing the cables, levers, and brake blocks is unlikely to yield the dramatic improvement you might expect. The entire system needs to be considered.

For a successful cantilever setup, focus on:

• High-quality cables and housing: Smooth, low-friction cables are essential for responsive braking.
• Well-maintained pivots: Ensure the brake arms pivot freely without seizing.
• Correct straddle cable length and angle: This affects the leverage ratio and brake feel.
• Appropriate brake blocks: Use blocks designed for your specific rim and brake type.
• Precise alignment: Ensure the brake blocks contact the rim squarely and at the correct height.

Similarly, for V-brakes:

• Compatible levers: Ensure your brake levers have a compatible pull ratio for V-brakes.
• Quality brake blocks: Modern V-brake blocks are designed for optimal performance.
• Proper arm alignment: The arms should be parallel to the rim when not engaged.

When to Choose Which?

The choice between V-brakes and cantilever brakes often depends on the intended use of the bicycle and the existing components:

• For modern road bikes or hybrids with integrated shifters (STI levers): V-brakes are generally the preferred choice due to their compatibility with the lever's pull ratio, offering strong and reliable stopping power.
• For cyclocross, touring, or older mountain bikes: Cantilever brakes can be an excellent option, especially if you prioritize tire clearance, mudguard compatibility, and a more traditional aesthetic. However, be prepared to invest time in proper setup and maintenance.
• For custom builds or specific needs: There are also various 'mini-V' or short-pull V-brakes available that can work with road levers, offering a middle ground for those seeking more power than traditional cantis but with compatibility for road brake levers.

Frequently Asked Questions

Q1: Can I use my old cantilever brake levers with V-brakes?

A1: Generally, no. Most older cantilever brake levers are designed for a shorter cable pull than V-brakes require. Using them with V-brakes will result in very weak braking. You typically need V-brake-specific levers or modern integrated levers that are compatible with V-brakes.

Q2: Are V-brakes always better than cantilevers?

A2: Not necessarily. While V-brakes often offer more power and a simpler mechanism, a well-maintained and properly set-up cantilever system can provide excellent braking. The perceived advantage of V-brakes in conversions often comes from replacing worn-out cantilever components with new, compatible parts.

Q3: What does 'leverage ratio' mean in relation to brakes?

A3: The leverage ratio describes how effectively the brake system converts the force you apply at the lever into braking force at the rim. A higher leverage ratio means more braking force for the same amount of effort, often resulting in a firmer lever feel.

Q4: My V-brakes feel spongy. What could be wrong?

A4: A spongy feel in V-brakes can be caused by several factors: old or contaminated brake cables and housing, air in the cable system (though less common than with hydraulic brakes), worn brake pads, or improperly adjusted brake arms. Ensuring all components are in good condition and correctly aligned is key.

Q5: Do I need special tools to adjust V-brakes or cantilevers?

A5: For basic adjustments, you'll typically need Allen keys (hex wrenches) and possibly a Phillips head screwdriver. For more precise adjustments, especially with cantilevers, a cable puller tool can be very helpful for tensioning the cable correctly.

Conclusion

The choice between V-brakes and cantilever brakes is not a simple matter of one being definitively superior to the other. Both systems have their strengths and weaknesses. V-brakes generally offer a more powerful and user-friendly braking experience, especially when paired with modern integrated shifters, due to their higher mechanical advantage and simpler design. Cantilever brakes, while potentially more finicky to set up perfectly, offer greater tire clearance and are often the preferred choice for specific cycling disciplines like cyclocross and touring, provided they are maintained to a high standard. Ultimately, understanding the interplay between your brake levers, brake calipers, cables, and brake blocks, and ensuring everything is in good working order, is the most crucial factor in achieving effective and safe braking on your bicycle.
