Unlocking Performance: The Alpha-N Tuning Principle

In the intricate world of automotive engine management, achieving optimal performance and drivability hinges on the precise calculation of air entering the engine. While many modern vehicles rely heavily on Manifold Absolute Pressure (MAP) sensors or Mass Air Flow (MAF) sensors, there's a lesser-known, yet incredibly effective, method that's gaining traction, particularly for naturally aspirated (N/A) applications where traditional sensor data can become unreliable: Alpha-N tuning. This system offers a compelling alternative, promising smoother transitions and enhanced responsiveness by fundamentally changing how the engine's air intake is measured.

What Exactly is Alpha-N Tuning?

At its core, Alpha-N is an engine management strategy that calculates engine load based primarily on two key parameters: throttle position (often referred to as 'alpha') and engine speed (RPM, or 'N'). Unlike systems that measure the actual mass or pressure of air entering the manifold, Alpha-N infers air volume by knowing how far the throttle body is open and how fast the engine is spinning. The Engine Control Unit (ECU) uses a pre-programmed map that correlates specific throttle angles at specific RPMs to a required fuel pulse width and ignition timing. This direct approach bypasses the need for a stable manifold pressure signal, making it particularly advantageous in scenarios where that signal might be erratic or difficult to interpret.

Think of it this way: instead of measuring the consequence of air entering (pressure/flow), Alpha-N measures the 'cause' of air entering (throttle opening and engine speed). This fundamental shift in strategy is what allows it to shine in specific engine configurations that often struggle with more conventional tuning methods.

The Persistent Problem with MAP Sensors in N/A Applications

While Manifold Absolute Pressure (MAP) sensors are undeniably effective in many applications, particularly boosted ones, they can present significant challenges in naturally aspirated engines. In forced induction setups, the manifold pressure is typically higher than atmospheric pressure, and the signal tends to be relatively stable and predictable across the RPM range. However, in N/A engines, especially those with performance modifications such as aggressive camshafts or Individual Throttle Bodies (ITBs), the MAP signal can become incredibly unstable and 'noisy'.

Aggressive camshafts, with their increased overlap, can cause significant pressure fluctuations within the intake manifold, even at idle or low RPMs. This 'reversion' – where exhaust gases can momentarily flow back into the intake during valve overlap – creates a highly turbulent environment, making it exceedingly difficult for a MAP sensor to provide a consistent and accurate reading of the actual air mass entering the cylinders. The ECU, relying on this erratic data, struggles to calculate the correct fuel and ignition, leading to rough idle, hesitation, poor throttle response, and general drivability issues. Similarly, ITBs, by their very nature, eliminate a common plenum, meaning each cylinder's intake runner experiences its own unique and often highly fluctuating pressure environment. There's no single, representative manifold pressure to measure, rendering a conventional MAP sensor largely ineffective for accurate fuel and ignition calculations. This is precisely where Alpha-N offers a robust solution, cutting through the noise to provide a more reliable basis for engine management.

How Alpha-N Eliminates MAP Sensor Woes

By relying on Throttle Position Sensor (TPS) data and engine RPM, Alpha-N completely sidesteps the erratic manifold pressure signals that plague certain N/A setups. Instead of trying to interpret a fluctuating vacuum, the ECU simply looks at how far open the throttle plate is and how fast the engine is turning. These two inputs are far more stable and predictable than manifold pressure in the aforementioned problematic scenarios.

When you press the accelerator pedal, the TPS sends a direct signal to the ECU indicating the throttle's precise angle. Combined with the engine speed, the ECU consults its pre-programmed Alpha-N map to determine the appropriate fuel and ignition values. This direct mapping ensures that the engine receives the correct amount of fuel and spark at any given throttle opening and RPM, regardless of any pressure fluctuations within the intake manifold. The result is a much smoother power delivery, crisp throttle response, and significantly improved drivability, especially at low RPMs and during transitions where MAP-based systems might stumble. It effectively 'ignores' the chaotic pressure environment, focusing instead on the driver's direct input and the engine's mechanical speed, leading to a far more predictable and tunable engine.

Key Components and Sensors for Alpha-N

While Alpha-N reduces reliance on the MAP sensor, it still requires other crucial inputs for precise engine operation. The primary sensors for an Alpha-N system include:

• Throttle Position Sensor (TPS): Absolutely vital, this sensor measures the exact angle of the throttle plate. Its accuracy directly impacts the system's ability to interpret driver input and determine engine load.
• Engine Speed Sensor (Crank/Cam Sensor): Provides the 'N' in Alpha-N, giving the ECU precise engine RPM data, which is essential for mapping fuel and ignition across the rev range.
• Intake Air Temperature (IAT) Sensor: Although Alpha-N doesn't measure air mass directly, air density changes with temperature. The IAT sensor allows the ECU to compensate for hotter or colder air, adjusting fuel delivery to maintain the correct air-fuel ratio.
• Engine Coolant Temperature (ECT) Sensor: Crucial for cold start enrichment, warm-up strategies, and overall engine protection.
• Barometric Pressure (BARO) Sensor: While not strictly mandatory for the core Alpha-N calculation, a BARO sensor allows the ECU to compensate for changes in altitude. As atmospheric pressure decreases at higher altitudes, less air enters the engine, and the BARO sensor enables the ECU to adjust fuel accordingly, preventing overly rich conditions.
• Oxygen (O2) Sensor / Wideband AFR Sensor: Essential for closed-loop feedback, allowing the ECU to make minor adjustments to fuel delivery to maintain the target air-fuel ratio. This is critical for both performance and emissions compliance.

The Alpha-N Map: A Two-Dimensional Symphony

The heart of an Alpha-N system lies within its fuel and ignition maps. Unlike Speed Density systems that typically use RPM vs. MAP, Alpha-N maps are often 2-dimensional (2D) or 3-dimensional (3D) tables where one axis represents engine RPM and the other represents throttle position (TPS). Each cell within this grid contains a specific value, typically a fuel pulse width duration or an ignition timing advance, that the ECU will apply when the engine operates at that particular RPM and throttle opening.

For example, if the engine is at 3,000 RPM and the throttle is 50% open, the ECU will look up the corresponding cell in the map to determine how long to keep the fuel injectors open and what ignition timing to use. This direct correlation makes the system highly responsive to driver input. More sophisticated Alpha-N systems might incorporate additional compensation tables for IAT, ECT, and BARO sensors to fine-tune the base map's values, ensuring accuracy across varying environmental conditions and engine temperatures. The art of Alpha-N tuning lies in meticulously populating these maps with precise values to achieve the desired performance and drivability characteristics across the entire operating range of the engine.

Advantages of Alpha-N Tuning

Implementing an Alpha-N strategy can bring several significant benefits, particularly for specific engine configurations:

• Superior Throttle Response: By directly mapping throttle position to fuel and ignition, Alpha-N provides an incredibly crisp and immediate response to driver input, as there's no lag associated with manifold pressure changes needing to be sensed and interpreted.

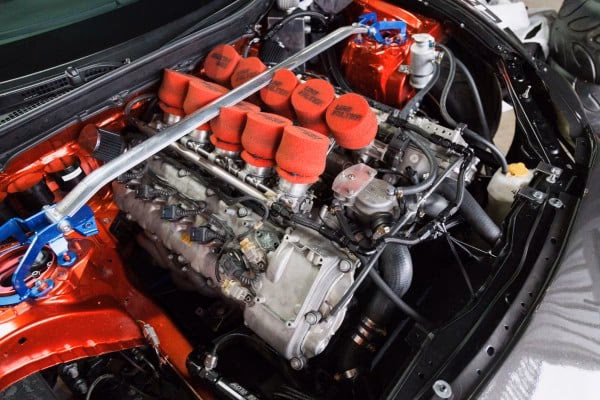

• Ideal for Individual Throttle Bodies (ITBs): Alpha-N is the go-to solution for engines equipped with ITBs. Since ITBs prevent a stable, common manifold pressure signal, Alpha-N bypasses this limitation entirely, allowing ITB-equipped engines to run smoothly and powerfully.
• Excellent for Aggressive Camshafts: Engines with high-overlap, aggressive camshafts often create turbulent and unstable manifold pressure signals. Alpha-N sidesteps this issue, providing stable fueling and ignition even with radical cam profiles, leading to better idle quality and low-RPM drivability.
• Simpler Sensor Setup (in some cases): While other sensors are still needed, the core principle eliminates reliance on a potentially problematic MAP sensor, simplifying the air measurement aspect.
• Predictable Fueling: Once properly tuned, the relationship between throttle position, RPM, and fuel/ignition is very predictable, leading to consistent performance.

Disadvantages and Considerations

Despite its advantages, Alpha-N is not a universal panacea and comes with its own set of challenges:

• Environmental Sensitivity: Without direct air mass measurement, Alpha-N is more sensitive to changes in air density caused by temperature or altitude. While IAT and BARO sensors help, the system's accuracy can be compromised if these compensations aren't meticulously calibrated.
• Less Fuel Efficient (Potentially): If not perfectly tuned, Alpha-N can be less fuel-efficient than MAF-based systems because it estimates air volume rather than measuring actual mass. Over-fuelling can occur if conditions change significantly from the tuning environment and compensations are inadequate.
• Complex Tuning: Alpha-N requires a highly skilled tuner. The entire RPM vs. TPS map must be precisely calibrated, often cell by cell, on a dyno and through extensive road testing. It's a more involved tuning process than some other methods.
• No Compensation for Engine Wear: Alpha-N doesn't inherently compensate for engine wear (e.g., reduced compression, valve lash changes) as it doesn't 'see' the actual air entering. This means a perfectly tuned map might become less accurate as the engine ages.
• Cold Start and Warm-up: These aspects can be more challenging to calibrate accurately without direct air mass measurement, often requiring more extensive enrichment tables.

Alpha-N vs. Speed Density vs. Mass Air Flow: A Comparison

To truly appreciate Alpha-N, it's helpful to see how it stacks up against the other prevalent engine management strategies:

Tuning Alpha-N Systems: A Craft, Not a Commodity

Tuning an Alpha-N system is not for the faint of heart or the inexperienced. It requires a deep understanding of engine dynamics and meticulous attention to detail. Unlike MAF-based systems where the sensor often provides a good baseline, Alpha-N demands that the tuner build the fuel and ignition maps almost from scratch, or at least heavily modify a base map, across the entire RPM and TPS range.

The process typically involves extensive dyno time, where the engine is run at various RPMs and throttle openings, and the air-fuel ratio (AFR) is monitored using a wideband sensor. The tuner then adjusts the fuel pulse width in each cell of the map until the target AFR is achieved. Ignition timing is similarly optimised. This is often followed by real-world road tuning to fine-tune drivability, cold start, and transient fuelling. Because Alpha-N infers air volume, any changes to engine characteristics (e.g., new intake, exhaust, or even significant wear) can necessitate a retune. It's a continuous process of refinement to ensure optimal performance and reliability.

When to Consider Alpha-N

Given its specific strengths and weaknesses, Alpha-N tuning is most effectively deployed in particular scenarios:

• Individual Throttle Bodies (ITBs): This is arguably the most common and compelling reason. ITBs inherently disrupt the manifold pressure signal, making Alpha-N the ideal, if not only, viable solution for precise engine control.
• Aggressive Camshafts: If your N/A engine has highly aggressive camshafts that cause severe MAP signal instability, leading to poor idle and drivability, Alpha-N can provide a stable and predictable alternative.
• Dedicated Race Cars: For competition vehicles where ultimate throttle response, power delivery, and the ability to run ITBs or radical cam profiles are paramount, Alpha-N offers a performance edge.
• When Other Methods Fail: If you've exhausted all options with MAP-based or even MAF-based tuning and still experience unresolvable drivability or performance issues in your N/A application, Alpha-N might be the last resort.

Frequently Asked Questions About Alpha-N

Is Alpha-N only for race cars?

While popular in motorsport due to its direct throttle response and suitability for ITBs, Alpha-N can also be used in street cars, particularly those with highly modified N/A engines that struggle with conventional tuning methods. However, its complexity often means it's not the first choice for a typical daily driver.

Can I convert my car to Alpha-N?

Converting to Alpha-N typically requires an aftermarket ECU that supports this strategy, along with the necessary sensors (TPS, IAT, ECT, O2/wideband). It also demands professional tuning. It's not a simple bolt-on modification and requires significant investment in hardware and expertise.

Does Alpha-N improve fuel economy?

Generally, Alpha-N is not chosen for its fuel economy benefits. While a well-tuned Alpha-N system can achieve reasonable fuel efficiency, it often lags behind MAF-based systems due to its inferred air measurement. The primary goal of Alpha-N is often performance and drivability in specific problematic setups.

Is Alpha-N better than MAF?

Neither system is inherently 'better'; they are suited to different applications. MAF systems excel at precise air mass measurement, leading to excellent fuel economy and emissions control in a wide range of stock and moderately modified engines. Alpha-N is superior where MAF or MAP signals are compromised, such as with ITBs or aggressive cams, prioritising throttle response and drivability in those specific scenarios.

What sensors are absolutely necessary for Alpha-N to function?

At a minimum, an Alpha-N system requires a functional Throttle Position Sensor (TPS) and an Engine Speed Sensor (RPM). However, for any practical application, an Intake Air Temperature (IAT) sensor and Engine Coolant Temperature (ECT) sensor are also crucial for accurate fuelling and engine protection. A wideband O2 sensor is also indispensable for tuning and closed-loop operation.

In conclusion, Alpha-N tuning represents a powerful and elegant solution for specific engine management challenges, particularly for naturally aspirated engines grappling with unstable MAP sensor signals. By shifting the paradigm from measuring manifold pressure to directly interpreting throttle position and engine speed, it unlocks unparalleled throttle response and drivability. While it demands meticulous tuning and careful consideration of its limitations, for those seeking to extract the ultimate performance and smoothness from highly modified N/A engines or those running Individual Throttle Bodies, Alpha-N stands as a proven and highly effective pathway to automotive excellence.
