Fabia Steering Column Removal Guide

The steering column is a crucial component of any vehicle, facilitating the transfer of driver input to the road wheels. While it's not a job many car owners undertake regularly, understanding the process of removing a steering column, specifically from a Skoda Fabia, can be invaluable for those looking to undertake more involved maintenance or repairs. This guide will walk you through the steps, highlighting key considerations and potential challenges. Remember, if you're not confident in your mechanical abilities, it's always best to seek professional assistance.

Why Remove a Steering Column?

Several reasons might necessitate the removal of a steering column. Common scenarios include:

• Steering Column Lock Issues: If the steering wheel lock is malfunctioning, preventing you from turning the key or releasing the steering wheel, the column might need to be accessed or replaced.
• Indicator/Wiper Stalk Problems: Faulty indicator or wiper stalks, often integrated into the steering column shroud or directly onto the column itself, may require partial or full column removal for replacement.
• Ignition Barrel Replacement: A worn or damaged ignition barrel might necessitate the removal of the steering column to gain access for its replacement.
• Airbag System Work: When working on the airbag system, particularly the driver's airbag, disconnecting the battery and potentially removing the steering wheel and column is a safety prerequisite.
• Steering Wheel Replacement: While often a simpler task, in some cases, a full steering column removal might be considered if there are associated issues or for better access.

Safety First: Essential Precautions

Before embarking on this task, adhering to strict safety protocols is paramount. The steering column is directly linked to the vehicle's steering and safety systems, including the airbag. Failure to follow these steps can result in serious injury or damage to the vehicle.

1. Disconnect the Battery

This is the absolute most important step. Locate the battery (usually under the bonnet or in the boot) and disconnect the negative terminal first, followed by the positive terminal. Ensure the terminals are secured away from the battery posts to prevent accidental reconnection. Wait at least 10-15 minutes for any residual charge in the airbag system to dissipate.

2. Secure the Vehicle

Ensure the vehicle is on a level surface and the parking brake is firmly applied. Chock the wheels to prevent any movement.

3. Airbag Safety

Never attempt to work on the steering column without first disconnecting the battery and allowing the system to discharge. Always handle airbag components with care and follow manufacturer-specific procedures.

Tools and Materials You'll Need

Having the right tools at hand will make the process smoother and safer. You'll likely need:

• Socket set with various metric sizes (including Torx bits)
• Spanners
• Screwdrivers (Phillips and flathead)
• Torque wrench (essential for reassembly)
• Trim removal tools (plastic pry tools to avoid damaging interior trim)
• Steering wheel puller (may be required for stubborn steering wheels)
• Electrical tape
• Pen and paper or a camera for noting the position of components

Step-by-Step Removal Process

The exact procedure can vary slightly depending on the specific Fabia model year, but the general principles remain consistent. This guide provides a general overview.

Step 1: Accessing the Steering Column

You'll typically need to remove the lower dashboard trim panels and the steering column shroud to gain access to the steering column itself.

Removing Lower Dashboard Trim:

Carefully use trim removal tools to pry away plastic clips securing the lower dashboard panels. These panels often surround the steering column and instrument cluster. Take note of any screws that might be hidden.

Removing the Steering Column Shroud:

The steering column shroud is usually a two-piece plastic casing that encases the column. Look for screws, often Torx head screws, that secure these pieces together. Once the screws are removed, gently separate the halves of the shroud. Be mindful of any wiring connectors for switches or lights that might be attached.

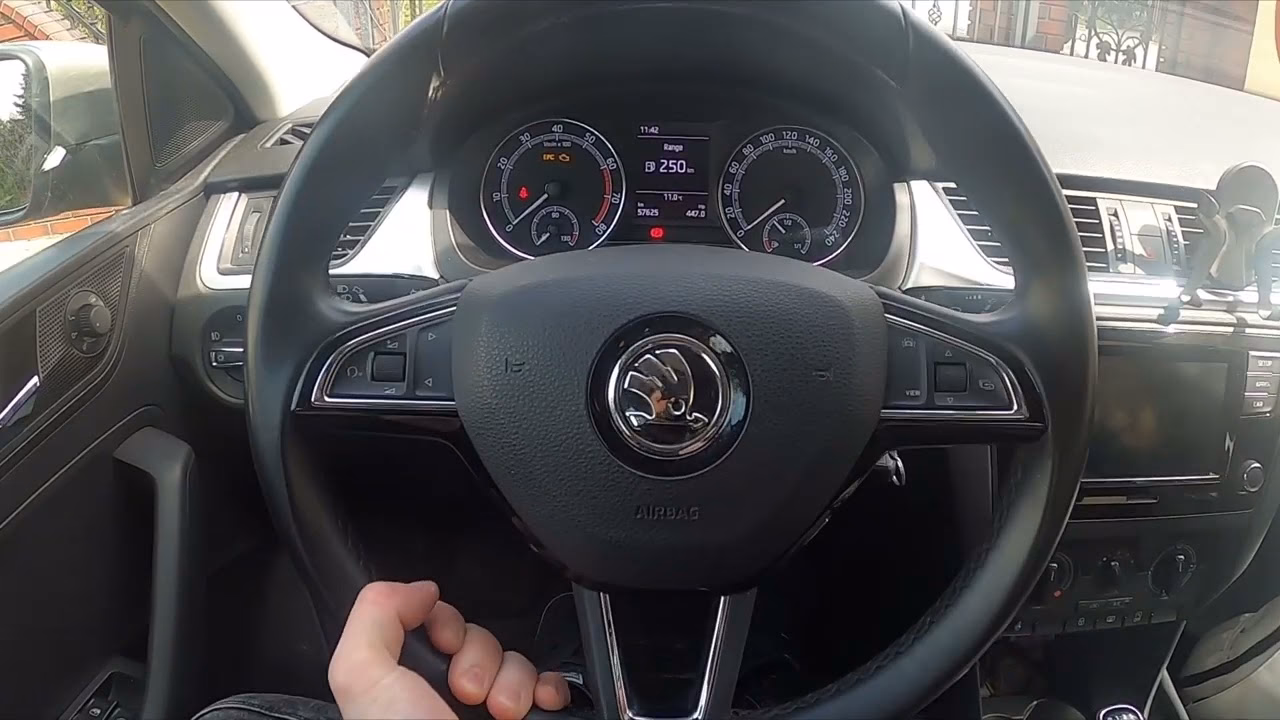

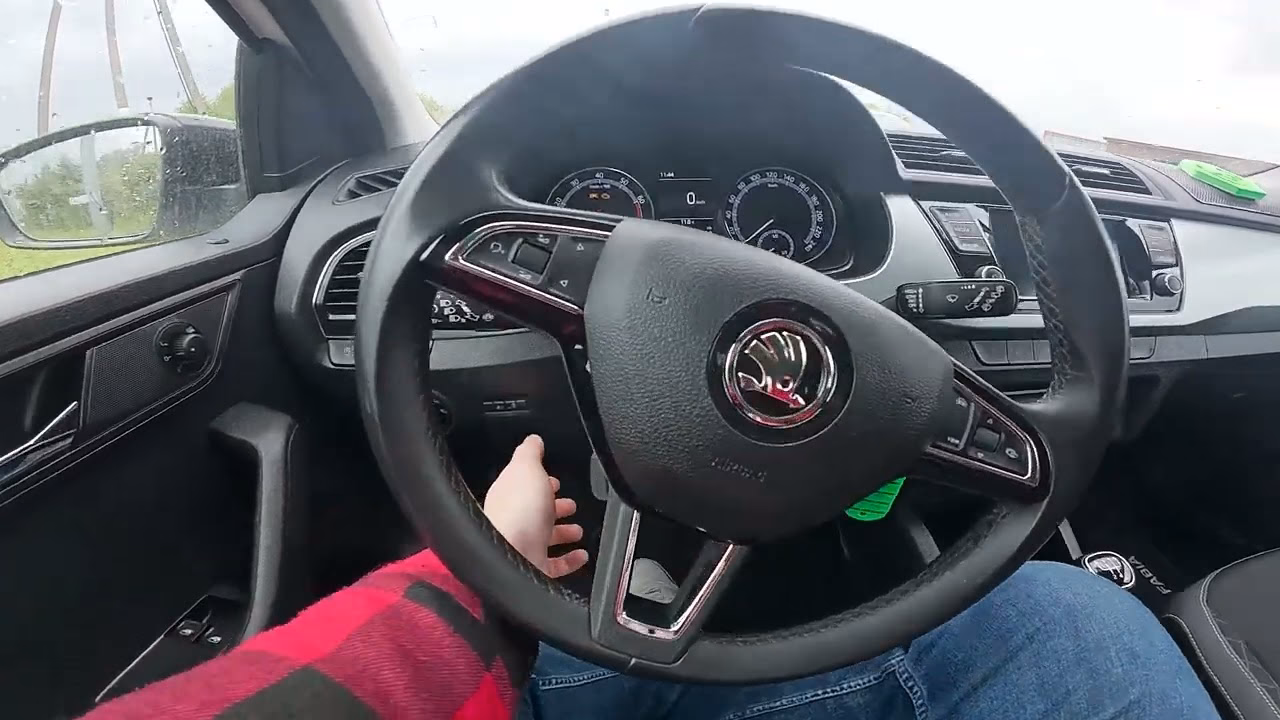

Step 2: Removing the Steering Wheel

This is a critical step, and it's essential to mark the position of the steering wheel relative to the steering column splines before removal.

Marking the Position:

Before loosening the steering wheel retaining nut, use a marker or chalk to make a precise mark on both the steering wheel and the steering column spline. This will help you reinstall the steering wheel in the correct orientation, ensuring the steering wheel is centred when the wheels are pointing straight ahead.

Removing the Steering Wheel Nut:

Locate the central nut securing the steering wheel to the steering column. This is often a large, strong nut. Use an appropriate socket and ratchet to loosen and remove it. Keep this nut safe, as it's a critical component.

Using a Steering Wheel Puller (If Necessary):

If the steering wheel doesn't come off easily after removing the nut, you may need a steering wheel puller. These tools thread into the steering wheel and apply even pressure to pull it off the splines. Follow the instructions provided with your specific steering wheel puller.

Step 3: Disconnecting Electrical Connectors

With the steering wheel removed, you'll see a number of electrical connectors attached to the steering column, including those for the airbag, horn, indicator stalks, and potentially other controls.

• Airbag Connector: These are usually brightly coloured and have locking tabs. Carefully release the locking tab and pull the connector straight out. Never force these connectors.
• Other Connectors: Disconnect all other visible electrical connectors. Make a note or take pictures of where each connector came from to ensure correct reconnection later.

Step 4: Detaching the Steering Column from the Vehicle

The steering column is typically attached to the vehicle's subframe or chassis via mounting brackets.

Mounting Bolts:

Identify the bolts that secure the steering column assembly. These are usually located at the base of the column, where it meets the steering rack or a universal joint. You may need to manoeuvre around other components, such as the brake pedal or dashboard structure, to access these bolts.

Universal Joint (UJ) or Coupler:

In many vehicles, the steering column connects to the steering rack via a universal joint (UJ) or a splined coupler. You may need to loosen or remove bolts securing this connection. Pay close attention to the orientation of the UJ before disconnecting it.

Removing the Column:

Once all electrical connectors are detached and mounting bolts are removed, the steering column should be free to be carefully manoeuvred out of the vehicle. You may need to tilt and twist it to clear the dashboard and other obstructions. It's often helpful to have an assistant for this part.

Reassembly Considerations

Reassembly is the reverse of the removal process. However, there are crucial points to remember:

1. Correct Alignment

When refitting the steering wheel, ensure it's aligned with the marks you made earlier. If the steering wheel is not centred, your steering wheel warning light may illuminate, or the self-centring mechanism of the steering might not function correctly.

2. Torque Settings

Crucially, the steering wheel retaining nut and any bolts securing the steering column assembly must be tightened to the manufacturer's specified torque settings. Use a torque wrench for this. Overtightening or undertightening can be dangerous.

3. Electrical Connections

Double-check that all electrical connectors are securely plugged in and their locking tabs are engaged. A loose connection can lead to malfunctioning components or warning lights.

4. Reconnecting the Battery

Reconnect the battery terminals in the reverse order: positive first, then negative. Ensure they are clean and securely tightened.

5. Testing

After reassembly, start the engine and test the steering wheel. Check that the horn, indicators, and any other steering wheel-mounted controls are working correctly. Slowly turn the steering wheel from lock to lock to ensure smooth operation. If any warning lights are illuminated on the dashboard, consult a diagnostic tool or a professional mechanic.

Common Issues and Troubleshooting

Here are some common problems encountered during steering column removal and how to address them:

Frequently Asked Questions (FAQs)

Q1: Is it safe to remove the steering column myself?

It can be safe if you follow all the precautions, especially disconnecting the battery and handling the airbag system with extreme care. However, it's a job best suited for those with some mechanical experience. If in doubt, always consult a professional.

Q2: How long does it typically take to remove a steering column?

For an experienced mechanic, it might take an hour or two. For a DIYer, it could take several hours, especially if encountering unexpected issues or for the first time.

Q3: Do I need a special tool to remove the steering wheel?

Often, the steering wheel can be removed by hand after the central nut is off. However, if it's stubborn, a steering wheel puller is a highly recommended tool to prevent damage.

Q4: What happens if I don't disconnect the battery?

If the battery is not disconnected, there is a significant risk of the airbag deploying unexpectedly, which can cause severe injury. You could also short-circuit sensitive electronic modules.

Q5: Can I drive the car without the steering column?

Absolutely not. The steering column is integral to the vehicle's ability to steer. Driving without it is impossible and extremely dangerous.

Removing a steering column from a Skoda Fabia, like any vehicle, requires patience, the right tools, and a meticulous approach to safety. By following this guide and taking all necessary precautions, you can successfully undertake this task. Always remember that your safety and the integrity of your vehicle's systems are the top priorities.
