Hydraulic Brake Pad Adjustment Explained

Mastering Your Hydraulic Disc Brakes: A Comprehensive Guide

Are your hydraulic disc brakes feeling a bit off? Perhaps the brake lever pulls too far before engaging, or there's an inconsistent feel between your front and rear brakes. These are common issues that can be frustrating and even compromise your safety on the bike. Fortunately, with a little knowledge and the right tools, you can restore your hydraulic disc brakes to their optimal performance. This guide will delve into the intricacies of hydraulic brake systems, from understanding the role of brake pad advancement tools to troubleshooting sticky pistons and ensuring your rotors are true.

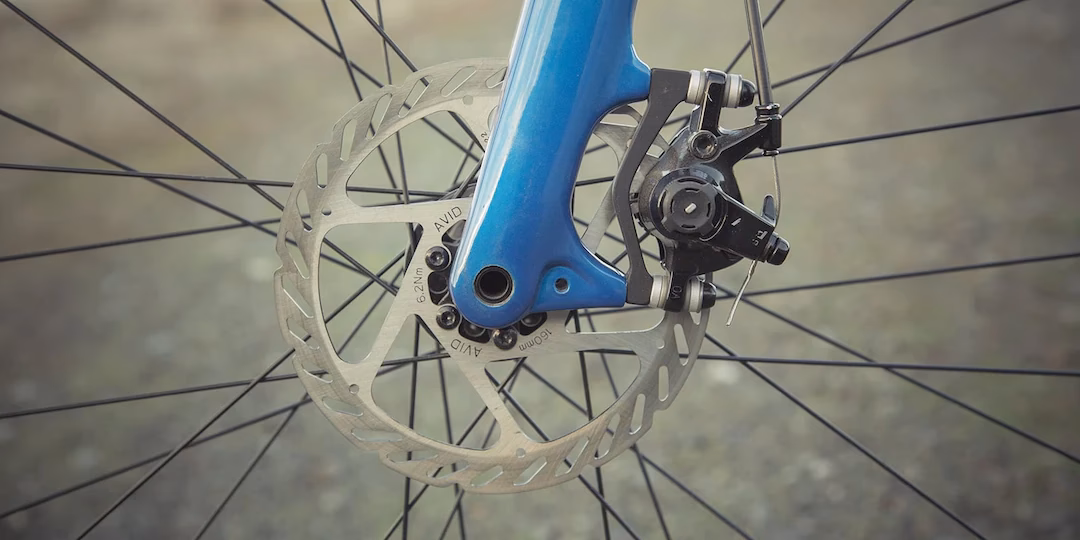

The Humble Hero: What is a Brake Pad Advancement Tool?

The Brake Pad Advancement Tool is a simple yet ingenious device designed to tackle a common limitation in bicycle hydraulic disc brakes: limited adjustability. Many riders experience a brake lever that feels too soft or has a long throw before the brakes actually bite. This can be due to the natural wear of brake pads, which increases the distance the pistons need to travel to make contact with the rotor. The Brake Pad Advancement Tool elegantly solves this by precisely pushing the brake pads closer to the rotor. This effectively reduces the lever travel, giving you a firmer, more responsive brake feel and restoring that crucial adjustability without the need for a messy brake bleed.

It's a game-changer for achieving that perfect lever feel every single time. The tool works by carefully advancing the brake pads towards the rotor, shortening the distance the lever needs to pull. For the best results, it's essential that your brake rotors are true and not warped. This tool is compatible with all brands of hydraulic bicycle brakes, making it a versatile addition to any cyclist's toolkit.

A typical set of a Brake Pad Advancement Tool might include:

• Rotor measure tool
• A selection of spacers (1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm) to fine-tune the pad position.

Setting Up for Success: The Foundation of Great Braking

Before diving into more advanced adjustments, it's crucial to ensure your brakes are set up correctly from the start. This involves proper caliper alignment, which ensures the disc rotor doesn't rub when the wheel is spinning and that the pads engage the disc squarely on both sides.

The process typically involves loosening the caliper mounting bolts (often a 5mm Allen bolt, T25 Torx, or sometimes a 4mm Allen bolt) and then using the brake lever to help align the caliper. A common method is to squeeze the brake lever firmly, holding it in place while you tighten the caliper bolts. While this gets you close, a more precise alignment can be achieved by visually inspecting the rotor for any rubbing and making small adjustments to the caliper position until the rubbing ceases. Spinning the wheel and observing from above the caliper is key to identifying any slight misalignments.

Reach for the Stars: Adjusting Lever Position and Bite Point

The ergonomics of your brake levers play a significant role in comfort and control. You can adjust the angle of the lever on the handlebar to achieve a comfortable wrist and finger position for your typical riding stance.

Furthermore, many brake levers offer reach adjustment. This feature, often a tool-free knob or a small screw, allows you to alter the distance between the lever and the handlebar. This is particularly useful for riders with smaller hands or those who prefer a different lever engagement point.

Beyond reach, some systems feature a bite-point adjuster, also known as travel adjustment. This mechanism alters the point at which the brake pads begin to engage the rotor. By pre-pressurising the brake fluid, it changes the lever's travel distance from its resting position to the point of initial contact. This allows for fine-tuning your brakes to your personal preference or to match the feel of your front and rear brakes. It's important to ensure that even with these adjustments, there's always sufficient space between the brake lever and the handlebar grip to prevent the lever from contacting the bar when fully applied.

True Your Rotors: Eliminating Wobble for Optimal Performance

Warped or bent disc brake rotors can lead to a host of problems, including constant rubbing noise, drag, and inconsistent braking. Even minor bends can cause pad knock-back, increasing the lever travel and reducing braking power. Keeping your rotors as straight as possible is paramount.

For minor bends, you might be able to gently massage the rotor back into true with your hands. However, for sharper bends, particularly those caused by impact, a dedicated disc brake rotor-straightening tool is invaluable. If you don't have one, an adjustable spanner can be used in a pinch, but be sure to clean it thoroughly to remove any grease before use.

The process involves spinning the wheel and listening or looking for where the rotor contacts the brake pads. Once the bent section is identified, wait for it to clear the caliper and then gently apply pressure with the straightening tool (or spanner) in the opposite direction of the bend. This is a patient process; it's often best to make small adjustments and repeatedly check for improvement by spinning the wheel. A cup of tea is highly recommended for this task!

Fix Sticky Pistons: Restoring Even Brake Application

A well-functioning hydraulic disc brake caliper relies on both pistons moving simultaneously and evenly. Sticky pistons, often caused by dirt, contamination, or worn seals, can disrupt this. When pistons don't move together, the brake pads won't contact the rotor squarely, leading to reduced braking performance and uneven wear.

A quick fix involves removing the wheel and gently squeezing the brake lever a few times. Be careful not to squeeze so hard that the pads touch each other, as this can make retracting the pistons difficult. Just enough to see the pads move slightly closer is sufficient. Then, use a disc brake pad spreader (or a tyre lever if you lack the specific tool) to gently push the pistons back into the caliper. Repeating this process can help free up slightly sticky pistons.

If the issue persists, you might need to take a more direct approach. Remove the wheel and the brake pads. Squeeze the lever gently until the pistons move out slightly. Apply a small amount of brake fluid to the exposed surface of the pistons where they meet the seals. Use a pad spreader to push the pistons back in. Crucially, clean off any excess brake fluid immediately with disc-brake cleaner and a clean cloth, as brake fluid can damage paint and other components.

Table 1: Common Hydraulic Brake Issues and Solutions

Prevent Contamination: Protecting Your Braking Surfaces

Contamination is the silent killer of brake performance. Lubricants, chain oil, or even residues from cleaning products can find their way onto your brake pads and rotors, drastically reducing their ability to grip. This often manifests as excessive squealing and a noticeable drop in braking power, even with a firm lever feel.

The best approach is prevention: be meticulous when lubricating your chain or cleaning your bike, ensuring no spray or drips land on your braking surfaces. If contamination is suspected, replace the brake pads and thoroughly clean the rotors with a dedicated disc-brake cleaner. Rinsing the rotors with water after cleaning is essential, as the cleaner merely moves contaminants around, it doesn't magically erase them.

For heavily contaminated pads, replacement is usually the best course of action. However, in a pinch, some riders attempt to decontaminate pads by heating them. This can be done cautiously with a gas hob or torch to burn off contaminants. Ensure you use heat-resistant gloves and take appropriate safety precautions. Baking in an oven is another method, though generally considered less effective.

Bleed Your Brakes: The Ultimate Solution for Spongy Levers

If your brake levers feel spongy, it's almost always a sign of air in the hydraulic system. While hydraulic fluid is incompressible, air is compressible. Air bubbles within the brake lines act like tiny springs, absorbing some of the lever's force before it's fully transmitted to the caliper. This results in that mushy, unresponsive lever feel.

Bleeding hydraulic disc brakes involves removing this air and replacing it with fresh, incompressible brake fluid. While the process can seem daunting, especially with different brands like SRAM and Shimano having their specific procedures, it's a manageable task for a competent home mechanic with the correct tools and knowledge. The goal is to create a sealed system filled solely with fluid, ensuring maximum hydraulic pressure is transferred directly to the pistons for a firm and powerful brake.

Frequently Asked Questions

Do all pistons in a hydraulic disc brake caliper move simultaneously?

Ideally, yes. In a perfectly functioning hydraulic disc brake, both pistons within the caliper should advance simultaneously and evenly when the brake lever is pulled. This ensures the brake pads engage the rotor squarely and apply braking force evenly. Issues like sticky pistons or uneven fluid pressure can cause one piston to move more than the other.

Does self-adjusting a brake pad make a difference?

Yes, the self-adjusting nature of hydraulic disc brake pads is fundamental to their operation. As brake pads wear down, the seals within the caliper pistons retract the pistons slightly less. This clever design ensures that the brake pads maintain a consistent, close proximity to the rotor, compensating for wear automatically. This self-adjustment mechanism is why you don't need to manually adjust the caliper position as your pads wear, and it contributes to the consistent lever feel and performance of hydraulic disc brakes.

The system works through the unique, slightly angled shape of the caliper piston seals. When the brake lever is applied, fluid pressure pushes the piston forward. As the pad wears, the seal flexes, allowing the piston to travel further until the pad contacts the rotor. When the lever is released, the seal's natural tendency to return to its original shape creates a slight vacuum, pulling the piston back just enough to clear the rotor. This automatic adjustment maintains optimal pad-to-rotor distance.

Conclusion

Maintaining your hydraulic disc brakes is key to safe and enjoyable cycling. By understanding tools like the Brake Pad Advancement Tool, mastering caliper alignment, and knowing how to address common issues like sticky pistons and rotor rub, you can ensure your brakes perform at their peak. Regular checks, proper maintenance, and the occasional bleed will keep your brakes sharp, responsive, and ready to stop you when you need it most.
