Bike Disc Brake Adjustment: A UK Guide

Disc brakes have revolutionised cycling, offering superior stopping power and consistent performance in all weather conditions. However, like any precision component, they require occasional adjustment to maintain their efficiency and ensure your safety on the road or trail. A well-adjusted disc brake system means no annoying rubbing, confident stopping, and a far more enjoyable riding experience. This guide will walk you through the process of adjusting both mechanical and hydraulic disc brakes, ensuring you can tackle common issues and keep your bike performing at its best.

Understanding Your Disc Brakes

Before diving into adjustments, it’s crucial to understand the two primary types of disc brakes found on bicycles:

Mechanical Disc Brakes

Mechanical disc brakes operate using a traditional brake cable, similar to rim brakes. When you pull the brake lever, the cable pulls an arm on the caliper, which in turn pushes one or both brake pads against the rotor. Many mechanical systems feature one moving pad and one static pad, meaning only one pad moves to pinch the rotor against the other. These are generally simpler to maintain and adjust, making them a popular choice for entry-level bikes and commuters.

Hydraulic Disc Brakes

Hydraulic disc brakes utilise a sealed system of fluid (mineral oil or DOT fluid) to transmit force from the lever to the caliper. When the lever is squeezed, a master cylinder pushes fluid through the brake hose to the caliper’s pistons. These pistons then push both brake pads simultaneously against the rotor. Hydraulic systems offer superior modulation, greater stopping power, and a more consistent feel, but can be slightly more complex to service if air enters the system.

Essential Tools for Adjustment

Having the right tools makes the job much easier and prevents damage to your components. For most disc brake adjustments, you'll typically need:

• Allen keys (usually 4mm, 5mm, and 6mm)
• T25 Torx wrench (for some rotor bolts and caliper mounts)
• Flathead screwdriver (for some pad adjusters or piston pushes)
• Clean rags or shop towels
• Isopropyl alcohol or specific disc brake cleaner
• A bright light source (headlamp or torch)
• Optional: A rotor truing fork (if your rotor is slightly bent)

Pre-Adjustment Checks

Before you start tweaking, perform these quick checks:

1. Wheel Alignment: Ensure your wheel is properly seated in the dropouts and quick-release or thru-axle is securely tightened. A crooked wheel can cause constant rotor rub.
2. Rotor Straightness: Spin the wheel and visually inspect the rotor for any noticeable wobbles. A slightly bent rotor will cause rubbing regardless of caliper adjustment. Minor bends can sometimes be carefully straightened with a rotor truing fork, but severe bends usually require replacement.
3. Pad Wear: Check the thickness of your brake pads. Most pads have wear indicators, and if they're worn down to the backing plate (or near it), they need replacing before adjustment will be effective.
4. Caliper Mounting Bolts: Ensure the bolts holding the caliper to the frame or fork are snug, but not overtightened. Loose bolts can lead to caliper movement and rubbing.

Adjusting Mechanical Disc Brakes

Mechanical disc brake adjustment often involves two key aspects: pad adjustment and caliper alignment.

1. Pad Adjustment (If Applicable)

Many mechanical disc brakes allow you to adjust the position of the static (inner) pad. This brings the inner pad closer to the rotor, reducing lever travel and optimising braking feel.

1. Locate the inner pad adjustment screw on the caliper (often an Allen key or flathead slot).
2. Turn the screw clockwise to move the pad closer to the rotor, or anti-clockwise to move it further away.
3. Adjust it so the inner pad is very close to the rotor, but not touching it when the brake is disengaged. You should be able to see a sliver of light between the pad and the rotor.

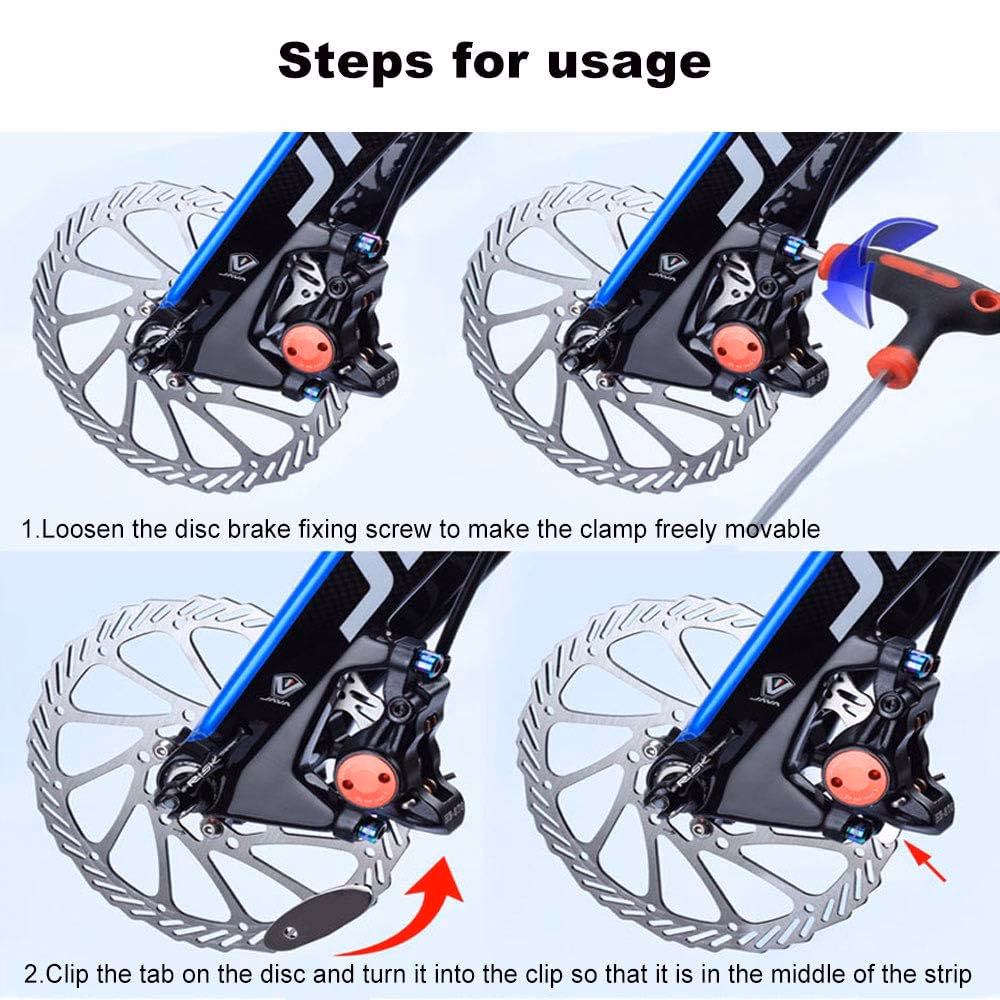

2. Caliper Alignment

This is the most common adjustment for both mechanical and hydraulic brakes to eliminate rotor rub.

1. Loosen the two bolts that secure the brake caliper to your frame or fork. These bolts should be loose enough for the caliper to move freely from side to side.
2. Spin the wheel to identify where the rotor is rubbing against the pads.
3. Gently squeeze the brake lever and hold it firmly. This should centre the caliper over the rotor.
4. While holding the lever, carefully tighten the two caliper mounting bolts. Alternate between the bolts, tightening each a little at a time to ensure even pressure and prevent the caliper from shifting.
5. Release the brake lever and spin the wheel. It should spin freely without any rubbing noise. If there's still rubbing, repeat the process. Sometimes a slight manual nudge of the caliper before tightening the bolts can help fine-tune the alignment.
6. For mechanical brakes, if the lever still feels too loose or too firm after alignment, you can use the barrel adjuster (usually located on the brake lever or along the cable housing) to fine-tune the cable tension. Turning it clockwise tightens the cable (firmer lever), anti-clockwise loosens it (looser lever).

Adjusting Hydraulic Disc Brakes

Hydraulic disc brakes generally require less frequent adjustment than mechanical ones, largely because the system automatically compensates for pad wear. The primary adjustment is caliper alignment.

1. Caliper Alignment

The process is identical to mechanical disc brakes:

1. Loosen the two bolts that secure the brake caliper to your frame or fork, allowing it to move.
2. Squeeze the brake lever firmly and hold it. The hydraulic pressure will naturally centre the caliper over the rotor.
3. While holding the lever, carefully tighten the two caliper mounting bolts, alternating between them to ensure even tightening.
4. Release the lever and spin the wheel. It should spin freely without rub. If rubbing persists, repeat the process.
5. If the pads are still rubbing after alignment, it might be due to sticky pistons. Gently push the pads back into the caliper using a plastic tyre lever or a clean, flat tool. Do not use metal directly on the pads or rotor. This resets the pistons and often resolves minor rub issues.

2. Pad Contact Point and Reach Adjustment (If Applicable)

Many hydraulic brake levers feature adjusters for 'reach' and 'contact point'.

• Reach Adjustment: This changes how far the lever sits from the handlebar, allowing you to customise it for hand size and preference. It's usually a small dial or Allen bolt on the lever body.
• Contact Point Adjustment: This changes how far the lever travels before the pads make contact with the rotor. It does not affect overall braking power but allows you to set when the brake 'bites'. Not all levers have this feature, and it's often a dial or small screw near the lever pivot. Adjust it to your preference, ensuring there's still enough lever travel for full braking power.

If your hydraulic brakes feel spongy or lack power despite correct alignment and pad wear, it's highly likely there's air in the system, and they will need to be bled. This is a more involved procedure that requires specific tools (a bleed kit) and is beyond the scope of a basic adjustment guide.

Common Disc Brake Problems & Troubleshooting

Even with proper adjustment, you might encounter some common issues:

Squealing or Noise

A common and annoying problem. Potential causes include:

• Contamination: Oil, grease, or cleaning products on the rotor or pads. Clean the rotor thoroughly with isopropyl alcohol or disc brake cleaner. If pads are contaminated, they often need replacing.
• Worn Pads: Pads worn down to the metal backing plate will create a horrible grinding noise. Replace them immediately.
• Loose Caliper or Rotor: Ensure all mounting bolts are tight.
• Glazing: Pads can become 'glazed' from light, prolonged braking, developing a shiny surface. You can sometimes lightly sand the pad surface with fine-grit sandpaper (e.g., 200 grit) to remove the glaze, then re-bed them in.
• Improper Bedding In: New pads need to be 'bedded in' to transfer a thin layer of pad material onto the rotor for optimal performance and noise reduction.

Rotor Rubbing Continuously

If your rotor is constantly rubbing, even after caliper alignment:

• Misaligned Caliper: Re-do the caliper alignment carefully.
• Bent Rotor: Inspect the rotor for wobbles. If bent, it needs truing or replacement.
• Sticky Pistons (Hydraulic): If one or both pistons aren't retracting fully, they'll cause rub. Try pushing them back into the caliper (as described above) and then carefully cleaning around the pistons with a cotton bud and brake fluid (for hydraulic systems only, check your brake's fluid type).
• Overfilled Hydraulic System: If too much fluid is in the system, the pads might not retract fully. This usually requires a partial bleed.

Spongy Lever (Hydraulic Brakes Only)

A spongy or mushy brake lever almost always indicates air in the hydraulic system. This requires bleeding the brakes. While not an adjustment, it's a common maintenance task for hydraulic systems.

Weak Braking Power

If your brakes feel weak despite proper adjustment:

• Worn Pads: Check pad thickness.
• Contamination: Clean rotor and inspect pads.
• Improper Bedding In: Ensure new pads have been properly bedded in.
• Air in System (Hydraulic): Bleed the brakes.
• Heat Fade: During prolonged, heavy braking, brakes can overheat, leading to temporary loss of power. Allow them to cool.

Maintenance Tips for Disc Brakes

Regular care will extend the life of your disc brakes and minimise the need for frequent adjustments:

• Keep Them Clean: Regularly clean your rotors with isopropyl alcohol or specific disc brake cleaner, especially after riding in wet or muddy conditions. Avoid getting lubricants or cleaning agents (like bike wash) on the rotors or pads.
• Check Pad Wear: Periodically inspect your brake pads for wear. Replace them before they wear down to the backing plate.
• Inspect Rotors: Look for signs of damage, deep scratches, or excessive wear (some rotors have minimum thickness indicators).
• Avoid Contamination: Be extremely careful when lubricating your chain or other bike parts not to spray anything onto your disc brakes.
• Listen to Your Brakes: Pay attention to any new noises. Squealing, grinding, or rubbing can be early indicators of a problem.
• Professional Servicing: Consider having your brakes professionally serviced periodically, especially hydraulic systems that may need bleeding or fluid replacement.

Mechanical vs. Hydraulic Disc Brakes: A Comparison

Here's a quick overview of the differences relevant to adjustment and performance:

Frequently Asked Questions (FAQs)

How often should I adjust my disc brakes?

There's no fixed schedule. Adjust them whenever you notice a change in performance, such as rubbing, squealing, or a spongy lever. For mechanical brakes, cable stretch in new cables might require an initial adjustment after a few rides. Generally, a quick check before each ride and a more thorough inspection every few weeks is a good habit.

Can I adjust disc brakes without special tools?

Basic adjustments (like caliper alignment) primarily require Allen keys, which are standard bike tools. Some specific pad adjustments might need a flathead screwdriver or Torx wrench. However, for tasks like bleeding hydraulic brakes or truing a bent rotor, specialist tools are necessary.

What causes disc brakes to squeal?

Squealing is most commonly caused by contamination (oil, grease, or cleaning products) on the rotor or pads, or by worn-out pads. It can also be due to a loose caliper, a bent rotor, or improper bedding in of new pads. Sometimes, riding in very wet conditions can cause temporary squealing.

When should I replace my brake pads?

You should replace your brake pads when the friction material wears down to approximately 0.5mm to 1mm thick, or if they are contaminated with oil or grease that cannot be cleaned off. Most pads have a wear indicator line. Riding with excessively worn pads can damage your rotor and significantly reduce braking performance and safety.

Is it normal for new pads to feel weak?

Yes, it's completely normal for new brake pads to feel less powerful initially. They need to be 'bedded in'. This process involves a series of moderate to firm stops that transfer a thin layer of pad material onto the rotor, optimising friction and power. Without proper bedding in, new pads will perform poorly and can be noisy.

Conclusion

Adjusting your bike's disc brakes might seem daunting at first, but with a clear understanding of the components and a systematic approach, it's a straightforward task. Regular adjustments and basic maintenance will ensure your brakes remain powerful, quiet, and reliable, enhancing your safety and enjoyment on every ride. Don't hesitate to tackle these adjustments yourself; you'll gain valuable knowledge and save on workshop fees. Happy cycling!
