Mastering MOT Type 1 Sub Base for Solid Foundations

When embarking on any construction project, be it a new driveway, a sturdy patio, or even a robust shed base, the foundation is, without doubt, the most critical element. It's the unsung hero that bears the weight, provides stability, and dictates the longevity of your entire endeavour. In the United Kingdom, one material consistently stands out as the gold standard for creating these essential underpinnings: MOT Type 1 Sub Base.

Often heard in construction circles, but perhaps not fully understood by everyone, MOT Type 1 Sub Base is far more than just a pile of crushed stone. It's a precisely engineered aggregate designed to meet stringent specifications, ensuring optimal performance for a wide array of applications. This comprehensive guide will delve into what makes MOT Type 1 so special, why it's indispensable, and how to effectively incorporate it into your projects.

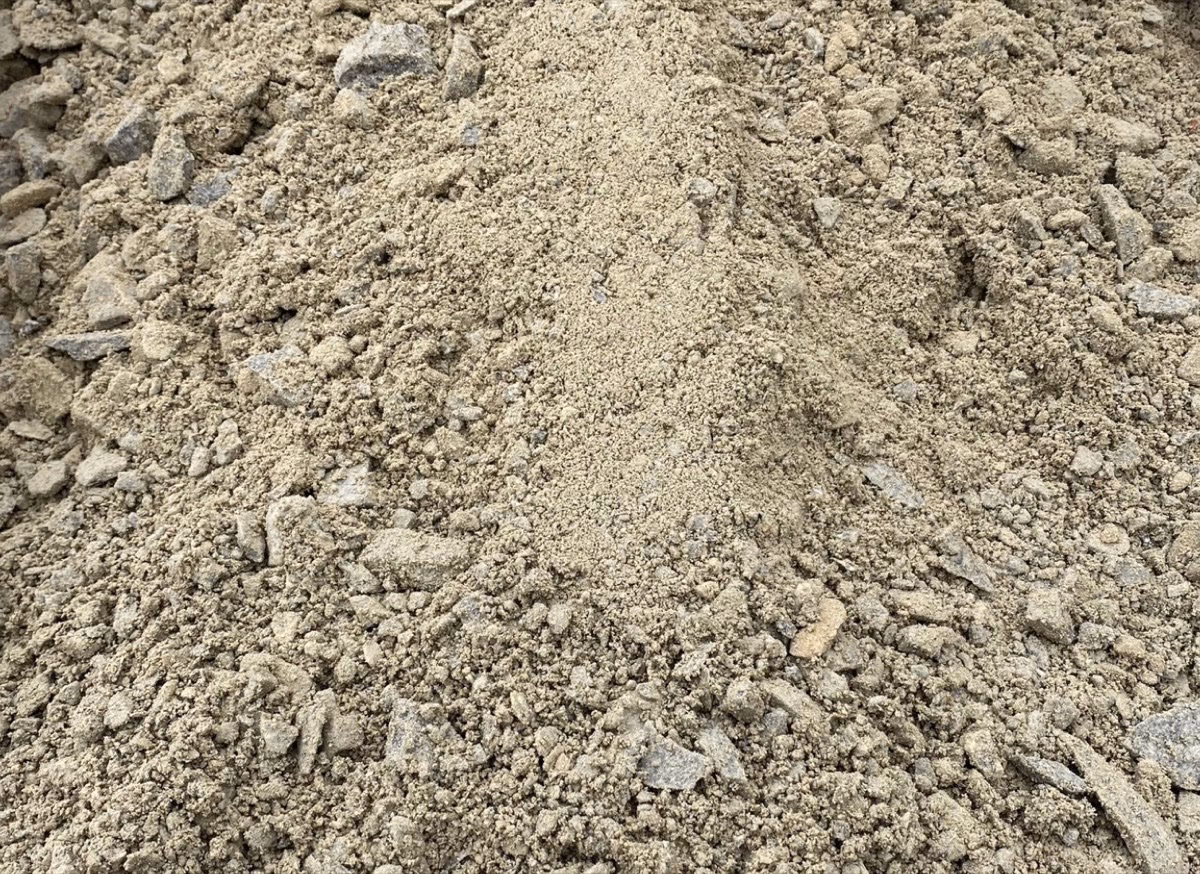

What Exactly is MOT Type 1 Sub Base?

At its core, MOT Type 1 Sub Base is a high-quality, crushed aggregate material. The name itself provides significant clues: 'MOT' refers to the Ministry of Transport, indicating that the material meets the exacting standards required for public highway construction. 'Type 1' designates a specific grading and composition, making it suitable for heavy-duty applications, while 'Sub Base' clearly defines its role as the foundational layer beneath the surface material.

The information provided states: "MOT Type 1 Sub base Clause 803 (previously known as MOT type 1) is a general limestone sub base graded to meet the requirements of Clause 803 - specification for highway works." This single sentence encapsulates its essence. It's not just any old crushed stone; it's a carefully selected and processed material that adheres to the strict criteria outlined in Clause 803 of the Specification for Highway Works. This specification is the bible for road construction in the UK, ensuring that materials used in public infrastructure meet rigorous quality and performance benchmarks.

Composition and Grading

Typically, MOT Type 1 is comprised of crushed granite, limestone, basalt, or other hard, durable aggregates. What sets it apart is its specific grading: it contains a mixture of particle sizes, ranging from 40mm down to fine dust. This 'well-graded' characteristic is crucial. The larger stones provide bulk and strength, while the smaller particles and fines fill the voids between them. When compacted, this creates an incredibly dense, stable, and interlocking layer that can effectively distribute heavy loads and resist movement.

Why is Clause 803 So Important for Your Project?

The adherence to Clause 803 is not just a bureaucratic formality; it's a guarantee of quality and performance. This specification ensures that the material:

• Meets Strict Quality Control: Every batch produced to Clause 803 standards undergoes testing to ensure its physical properties – such as strength, durability, and frost resistance – are up to par.
• Provides Consistent Performance: You can rely on MOT Type 1 to perform predictably, reducing the risk of subsidence, uneven surfaces, or structural failure in your finished project.
• Optimises Compaction: The specified grading ensures that the material can be compacted effectively, achieving the high density required for load-bearing applications. This is key to preventing future settlement.
• Guarantees Excellent Drainage: While dense, the specific grading allows for sufficient permeability, enabling water to drain through the sub base rather than collecting and causing issues like frost heave or waterlogging.

By choosing a material that meets Clause 803, you're investing in a foundation that has been proven to stand the test of time under the most demanding conditions, from bustling motorways to busy carparks.

The Core Benefits of Using MOT Type 1 Sub Base

The widespread use of MOT Type 1 in both public and private sector projects stems from its impressive array of benefits:

1. Exceptional Load-bearing Capacity: Thanks to its specific grading and ability to compact densely, MOT Type 1 excels at distributing weight evenly across a wider area. This prevents concentrated pressure points that could lead to cracking or sinking in the surface layer above. It's ideal for areas subjected to heavy vehicle traffic.
2. Superior Stability and Compaction: The interlocking nature of the varied particle sizes means that once compacted, MOT Type 1 forms an incredibly stable and rigid layer. This inherent stability prevents lateral movement and ensures your top surface remains flat and level for years to come. Proper compaction is paramount here.
3. Excellent Drainage Properties: Despite its density, the precise grading of MOT Type 1 allows water to percolate through, preventing water from pooling beneath your surface. This is vital in the UK's climate, protecting against frost heave (where water freezes, expands, and lifts the surface) and general water damage.
4. Versatility in Application: From major civil engineering projects to domestic garden improvements, MOT Type 1 is suitable for a vast range of uses, making it a go-to choice for professionals and DIY enthusiasts alike.
5. Durability and Longevity: A properly installed MOT Type 1 sub base provides a robust, long-lasting foundation that minimises the need for future repairs, saving time and money in the long run.
6. Cost-Effectiveness: While not the cheapest aggregate, its durability and performance mean it offers excellent value. Investing in a quality sub base upfront avoids costly remedial work later.

Common Applications of MOT Type 1 Sub Base

The versatility of MOT Type 1 makes it an indispensable material for countless construction scenarios:

• Driveways and Car Parks: This is perhaps its most common domestic application. A well-compacted MOT Type 1 layer is essential for creating a durable driveway that can withstand the weight and movement of vehicles without rutting or cracking.
• Patios and Paving: For garden patios, paths, and paved areas, MOT Type 1 provides a stable, free-draining base that prevents paving slabs from sinking or becoming uneven over time.
• Roads and Footpaths: As indicated by its 'MOT' designation and adherence to Clause 803, it's the standard material for the sub base layer in both minor and major road construction, ensuring safety and longevity.
• Shed Bases and Outbuildings: Providing a solid, level, and free-draining base for sheds, greenhouses, and other garden structures prevents subsidence and protects the structure from damp.
• Artificial Grass Installations: A thin, well-compacted layer of MOT Type 1, often topped with a finer aggregate, provides an ideal firm and level base for artificial turf, ensuring good drainage.
• Foundations for Walls: For retaining walls or garden walls, a trench filled and compacted with MOT Type 1 can provide a stable footing.

Working with MOT Type 1: A Practical Guide

Achieving the full benefits of MOT Type 1 relies heavily on correct installation. Here’s a basic guide:

1. Site Preparation

Begin by excavating the area to the required depth, ensuring the ground underneath is firm and level. Remove any topsoil, organic matter, or debris. For areas prone to poor drainage or where ground stability is a concern, consider laying a geotextile membrane (weed membrane or ground stabilisation fabric) at the bottom of the excavation. This prevents the sub base from mixing with the underlying soil and helps to spread the load.

2. Laying the Sub Base

Spread the MOT Type 1 evenly over the prepared area. It’s crucial to lay the material in layers, typically no more than 100-150mm (4-6 inches) thick at a time. Trying to compact a thicker layer in one go will result in poor compaction at the bottom, leading to future settlement.

3. Compaction

This is arguably the most critical step. Each layer of MOT Type 1 must be thoroughly compacted. For smaller areas, a hand tamper might suffice, but for anything substantial, a vibrating plate compactor (often called a 'wacker plate') is essential. Make multiple passes over the entire surface, ensuring even compaction. You should see the material visibly consolidate and become very firm. For larger areas or deeper sub bases, a roller might be required. The goal is to achieve maximum density and stability.

4. Achieving the Correct Depth

The required depth of your MOT Type 1 sub base will vary depending on the intended use and anticipated load. For pedestrian patios, 100-150mm (4-6 inches) is often sufficient. For driveways supporting cars, 150-200mm (6-8 inches) is a common recommendation, while for heavy vehicle traffic, depths of 300mm (12 inches) or more may be necessary. Always consult project specifications or seek professional advice for critical applications.

Comparative Look: Why MOT Type 1 Stands Out

While various aggregates are available, MOT Type 1's specific grading and adherence to Clause 803 give it a distinct advantage over general crushed stone or un-graded rubble. Understanding these differences is key to making the right material choice for your project.

This comparison clearly illustrates why MOT Type 1 is the preferred choice for projects where long-term stability, durability, and load-bearing performance are paramount. While general crushed stone might be cheaper per tonne, the potential for failure and the need for costly repairs often make it a false economy for critical applications.

Maintenance and Longevity

Once properly installed and compacted, an MOT Type 1 sub base requires virtually no maintenance. Its inherent stability and drainage properties mean it will continue to perform its function for many years, often outliving the surface layer laid upon it. The key to this longevity, as reiterated, lies in the initial installation process – thorough compaction and adherence to recommended depths are non-negotiable.

Frequently Asked Questions (FAQs)

Q: How deep should my MOT Type 1 sub base be?

A: This depends on the application. For pedestrian patios, 100-150mm (4-6 inches) is usually sufficient. For domestic driveways, 150-200mm (6-8 inches) is recommended. For areas with heavy vehicle traffic, 300mm (12 inches) or more might be necessary. Always consult local building regulations or professional advice for specific projects.

Q: Is MOT Type 1 permeable?

A: Yes, due to its well-graded nature, MOT Type 1 allows water to percolate through it, aiding drainage and preventing water buildup beneath your surface. However, it's not as highly permeable as a clean, single-sized aggregate (like pipe bedding stone), as the fines reduce the overall void space.

Q: Can I lay paving slabs directly onto MOT Type 1?

A: Generally, no. While MOT Type 1 provides an excellent stable base, its surface is too coarse and uneven for direct paving. It should typically be topped with a layer of sharp sand or a sand/cement screed (typically 25-50mm thick) which is then screeded level and compacted to create a perfect bedding layer for your paving.

Q: What equipment do I need to compact MOT Type 1?

A: For smaller areas, a hand tamper can be used, but for effective compaction, especially for driveways or larger patios, a vibrating plate compactor (often hired as a 'wacker plate') is essential. For very large areas or deep bases, a roller may be required.

Q: How much MOT Type 1 will I need?

A: To calculate your requirement, multiply the length (m) by the width (m) by the desired depth (m) to get the volume in cubic metres (m³). Then, multiply this volume by the density of MOT Type 1, which is typically around 2 tonnes per cubic metre. For example, a 10m x 5m area at 0.15m deep would require 10 x 5 x 0.15 = 7.5m³. At 2 tonnes/m³, you'd need approximately 15 tonnes. It's always wise to order a little extra (e.g., 5-10%) to account for compaction and wastage.

In conclusion, MOT Type 1 Sub Base is a foundational material that embodies reliability, strength, and adherence to rigorous standards. By understanding its properties and ensuring correct installation, you are not just laying a base; you are investing in the long-term integrity and durability of your construction project. Whether you're a professional builder or a keen DIYer, choosing Clause 803 compliant MOT Type 1 is the smart choice for a solid, lasting foundation.
