6R80 Transmission Fluid & Gasket Wisdom

Embarking on a transmission fluid service for your Ford vehicle can seem like a daunting task, especially when dealing with specific models like those equipped with the 6R80 transmission. This robust automatic gearbox, found in a variety of Ford models including the popular F-150, is known for its performance and longevity. However, like any complex mechanical component, it requires diligent maintenance to ensure optimal operation and prevent premature wear. This article delves into key aspects of servicing the 6R80, addressing common questions and providing practical insights based on real-world owner experiences.

Understanding the 6R80 Transmission

The 6R80 is a six-speed automatic transmission developed by Ford in collaboration with General Motors. It's a rear-wheel-drive transmission designed for a wide range of applications, from powerful trucks like the F-150 to performance sedans. Its design aims to provide a balance of fuel efficiency and towing capability, making it a versatile choice for many Ford owners. Knowing whether your Ford F150 is equipped with this transmission is the first step in understanding its specific maintenance needs. Generally, models from the mid-2000s onwards, particularly those with V8 engines, are likely candidates.

To Reuse or Not to Reuse: The Gasket Dilemma

One of the most frequently debated topics among DIY mechanics and seasoned technicians alike is the reusability of a transmission pan gasket. In the context of the 6R80, particularly in a 2015 model year, the question arises: can you safely reuse the existing gasket when performing a fluid drain and refill? The prevailing wisdom in the automotive repair industry strongly advises against reusing a transmission pan gasket.

Why the strong recommendation against reuse? Gaskets are designed to create a seal between two mating surfaces, the transmission pan and the transmission case. Over time, and especially after being compressed under the pressure of the transmission pan bolts, these gaskets can lose their elasticity and conformability. Even if a gasket appears to be in 'perfect condition' and is meticulously cleaned, its ability to create a reliable, leak-free seal may be compromised. The risk of a small, insidious leak developing after reassembly is significant. Such leaks can lead to a gradual loss of transmission fluid, which, if undetected, can cause severe damage to the transmission's internal components due to insufficient lubrication and cooling.

However, anecdotal evidence from some owners suggests that in specific, well-maintained situations, a gasket might be reused if it appears to be in pristine condition. One owner reported successfully reusing a 2015 6R80 transmission gasket after cleaning both the gasket and the pan with brake cleaner, noting that both components looked 'like new.' While this might work in some isolated instances, it's crucial to understand the inherent risks involved. The cost of a new transmission pan gasket is relatively low compared to the potential cost of repairing or replacing a transmission damaged by a fluid leak. Therefore, for peace of mind and to ensure a reliable seal, purchasing and installing a new gasket is almost always the recommended and safest course of action.

Transmission Fluid Change Intervals for the 6R80

Determining the correct service interval for your transmission fluid is vital for its health. Ford's official recommendation for the 6R80 transmission fluid change is often cited as being around every 150,000 miles. This is a considerable mileage, and it's understandable why many owners might question if this is frequent enough, especially under varied driving conditions.

Many owners, having gained valuable knowledge from online communities and forums, opt for a more conservative approach. A common recommendation circulating among owners is to change the transmission fluid much earlier, often around the 30,000 to 50,000-mile mark. This shorter interval is particularly prudent for vehicles that experience "severe" driving conditions. What constitutes severe driving? This typically includes frequent short trips where the engine and transmission don't reach optimal operating temperatures, towing, stop-and-go city driving, and driving in extreme temperatures (very hot or very cold).

One owner shared their experience of having their 6R80 fluid changed at an official Ford dealer at 36,000 miles, well ahead of the manufacturer's recommended interval. This proactive approach is often driven by the desire to prolong the transmission's life and maintain its smooth operation. It's also beneficial to be present during the service, as one owner mentioned. Being allowed to observe the process firsthand at a Ford dealership can provide valuable insights and reassurance that the job is being done correctly.

Factors Influencing Fluid Life:

• Driving Habits: Aggressive acceleration and braking can generate more heat and stress on the fluid.
• Towing and Load: Hauling heavy loads significantly increases transmission temperature and fluid degradation.
• Environmental Conditions: Extreme heat or cold can accelerate fluid breakdown.
• Stop-and-Go Traffic: Frequent shifting and idling generate heat without the cooling benefit of airflow.

Identifying the 6R60/6R80 in Your Ford F150

For owners of Ford F-150 trucks, confirming whether the vehicle is equipped with a 6R60 or the more common 6R80 transmission is straightforward. These transmissions share a very similar internal design and are often referred to interchangeably in terms of maintenance procedures. The fluid and filter change process, for instance, is virtually identical for both. The 6R60 is essentially an earlier iteration or a slightly de-rated version of the 6R80, primarily used in lighter-duty applications or specific model years.

The best way to confirm your F-150's transmission is to consult your vehicle's owner's manual. Alternatively, you can check the vehicle's VIN (Vehicle Identification Number) using online decoding tools or by contacting a Ford dealership. You can also often find identifying marks on the transmission casing itself, though this may require getting under the vehicle. However, for practical maintenance purposes, if your F-150 is from the period when these transmissions were common (roughly mid-2000s to mid-2010s, depending on the specific F-150 generation), it's highly probable it has either a 6R60 or a 6R80.

The Fluid and Filter Change Process: Tips and Tricks

Performing a transmission fluid and filter change on a 6R80 requires attention to detail. Here are some tips to ensure a successful service:

1. Gather Your Supplies: You'll need the correct type and quantity of Mercon LV transmission fluid (check your owner's manual for the exact specification), a new transmission filter and gasket set, a drain pan, wrenches, a socket set, a torque wrench, and rags. Consider a fluid transfer pump if your pan doesn't have a drain plug.
2. Warm Up the Transmission: Driving the vehicle for a few minutes will warm the transmission fluid, making it flow more easily and allowing more of the old fluid to be drained. Be cautious, as components can be hot.
3. Safely Lift the Vehicle: Use jack stands to securely support the vehicle. Never rely solely on a jack.
4. Locate the Transmission Pan: The pan is typically the lowest, largest metal component under the transmission.
5. Remove the Pan Bolts: Loosen the bolts systematically, working from one side to the other. Leave a couple of bolts on one side partially threaded to allow the pan to pivot downwards, draining the bulk of the fluid into your drain pan. This helps control the flow and minimises spillage.
6. Replace the Filter and Gasket: Once the fluid has drained, remove the remaining pan bolts. Carefully lower the pan. Remove the old filter (it might be clipped in) and the old gasket from the pan's sealing surface. Clean the pan thoroughly with a transmission-safe cleaner (like brake cleaner, as mentioned, but ensure it's safe for seals and metal). Clean the mating surface on the transmission case to remove any old gasket material.
7. Install the New Filter and Gasket: Fit the new filter into place. Apply a thin bead of RTV sealant (if recommended by the filter manufacturer or if the new gasket doesn't have adhesive backing) to the new gasket and attach it to the pan.
8. Reattach the Pan: Carefully lift the pan back into position and thread in the pan bolts by hand to avoid cross-threading. Tighten the bolts in a criss-cross pattern to the manufacturer's specified torque using a torque wrench. Overtightening can warp the pan or strip threads, while undertightening can lead to leaks.
9. Refill with New Fluid: Locate the transmission fluid fill plug (usually on the side of the transmission case). Using a funnel and the transfer pump if necessary, add the correct amount of new Mercon LV fluid. The amount will vary, but typically it's around 5-7 litres for a drain and refill. Refer to your owner's manual for the precise capacity.

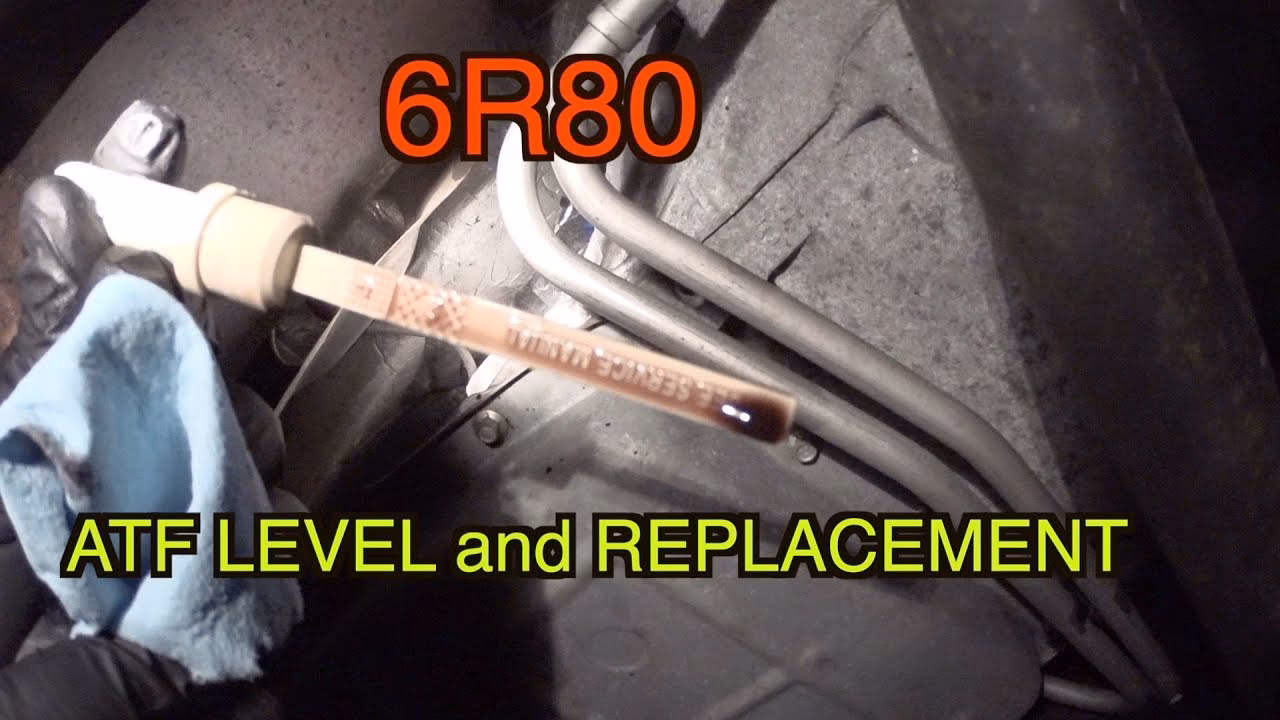

10. Check Fluid Level: Start the engine and cycle through the gears, pausing for a few seconds in each gear, while keeping your foot on the brake. This circulates the new fluid and fills the torque converter. With the engine running and the transmission in Park or Neutral (check manual), check the fluid level using the dipstick (if applicable) or by observing the fill plug. Add fluid as needed to reach the correct level.
11. Inspect for Leaks: After the service, carefully check around the pan and fill plug for any signs of leaks.

Frequently Asked Questions (FAQs)

Q1: How much transmission fluid does a 6R80 typically take for a drain and refill?
A1: For a standard drain and refill, the 6R80 typically requires around 5 to 7 litres (approximately 5.3 to 7.4 US quarts) of Mercon LV fluid. However, it's crucial to always consult your owner's manual for the exact capacity for your specific vehicle model and year.

Q2: What is the correct transmission fluid specification for the 6R80?
A2: The 6R80 transmission requires Ford's Mercon LV (Low Viscosity) automatic transmission fluid. Using any other fluid can lead to shifting problems and internal damage.

Q3: Can I just top up the transmission fluid instead of doing a full change?
A3: While topping up can address a low fluid level, it doesn't replace the degraded fluid that has lost its lubricating and cooling properties. A full drain and refill (or a flush, though drain and refill is often preferred by DIYers) is necessary to maintain the transmission's health.

Q4: My 6R80 is sometimes hesitant to shift. What could be the cause?
A4: Hesitant shifting can be caused by several factors, including low transmission fluid level, old or degraded fluid, a clogged filter, or internal transmission issues. Ensuring the fluid is at the correct level and has been recently changed with the correct fluid is the first step in diagnosing this problem.

Q5: Is it safe to use brake cleaner to clean the transmission pan and gasket?
A5: Brake cleaner can be effective for cleaning metal parts like the transmission pan. However, it's essential to ensure that it evaporates completely and does not leave any residue that could damage seals or gaskets. While one owner reported success, always use cleaners specifically designed for automotive gaskets if you are unsure, and ensure thorough drying.

In conclusion, while the temptation to reuse a seemingly good gasket might be present, the risks associated with a transmission fluid leak far outweigh the minor savings. Adhering to a sensible fluid change interval, using the correct fluid, and performing the service diligently will contribute significantly to the longevity and smooth operation of your 6R80 transmission, ensuring your Ford F-150 continues to serve you reliably for many miles to come.
