Your 6.7L Power Stroke Oil: The Full Guide

The 6.7L Power Stroke diesel engine is a true workhorse, powering countless Ford Super Duty trucks across the UK and beyond. Known for its impressive torque and durability, this engine relies heavily on the correct lubrication to ensure its longevity and peak performance. Choosing the right engine oil isn't just about picking a bottle off the shelf; it's about understanding specific Ford requirements, managing unique challenges like fuel dilution, and adhering to proper maintenance intervals. This comprehensive guide will delve into every aspect of engine oil for your 6.7L Power Stroke, ensuring you have all the knowledge to keep your powerful diesel running smoothly for years to come.

From the precise viscosity and specification to oil capacities and the critical issue of fuel dilution, we'll cover everything you need to know. We’ll also walk you through the oil change process and highlight essential parts, ensuring your maintenance routine is as effective as possible. Proper lubrication is the lifeblood of your engine, and getting it right can significantly impact your truck's reliability and resale value.

Applicable Models and Engines

This guide specifically pertains to the 6.7L Power Stroke diesel engine found in a range of Ford's robust utility vehicles. Understanding which models are equipped with this engine ensures you're applying the correct maintenance advice to your vehicle.

• 2011 - Current: Ford F-250, F-350, F-450, F-550 Super Duty
• 2021 - Present: Ford F-600 Super Duty
• 2015 - Present: Ford F-650, F-750 medium duty trucks

Engine Oil Capacity and Intervals

The oil capacity for your 6.7L Power Stroke varies depending on the model year and vehicle type. It's crucial to use the correct amount of oil to ensure adequate lubrication and cooling.

• 13.0 quarts (approx. 12.3 litres) with filter change: For 2011 - 2022 model F-250 - F-600
• 15.0 quarts (approx. 14.2 litres) with filter change: For 2023+ model F-250 - F-600
• 15.0 quarts (approx. 14.2 litres) with filter change: For 2015 - 2022 model F-650/F-750
• 17.0 quarts (approx. 16.1 litres) with filter change: For 2023+ model F-650/F-750

Regarding oil change intervals, all 6.7L Power Stroke equipped vehicles feature an intelligent oil life monitoring system. This system takes various driving conditions into consideration and will prompt the operator when an oil change is required.

• 2011 - 2022 model vehicles: Do not exceed 10,000 miles (approx. 16,000 km) between oil change intervals.
• 2023+ model vehicles: Do not exceed 15,000 miles (approx. 24,000 km) between oil change intervals.

However, despite Ford's stated maximum intervals, a significant concern known as fuel dilution in 6.7L Power Stroke engines warrants a more conservative approach. Due to this common issue, it is highly recommended that all 6.7L Power Stroke owners adhere to a maximum 5,000 mile (approx. 8,000 km) oil change interval unless an oil analysis regimen is adopted to monitor fuel dilution rates between changes. Under no circumstances should the maximum oil change interval be extended beyond what the oil life monitor or these recommendations suggest.

Understanding Fuel Dilution in 6.7L Power Stroke Engines

Fuel dilution is a widely common problem in many modern diesel engine platforms, and the 6.7L Power Stroke is no exception. This issue is primarily linked to vehicles equipped with an exhaust aftertreatment system, particularly the Diesel Particulate Filter (DPF).

The fundamental problem with the 6.7L Power Stroke is how its active DPF regeneration cycle operates. During this process, raw diesel fuel is sent through the combustion chambers on the passenger side bank of cylinders during the exhaust stroke. This method introduces fuel to the Diesel Oxidation Catalyst (DOC), where it is consumed to produce the extremely high exhaust temperatures necessary for DPF regeneration. However, this process inadvertently results in cylinder washing, allowing unburnt fuel to bypass the piston rings and enter the crankcase.

Risks of Fuel Dilution

The risks associated with fuel entering the crankcase are significant and detrimental to engine health. Fuel dilution thins the lubricating engine oil, breaking down its molecular composition and severely reducing its vital lubricating properties. This leads to increased wear on critical engine components, reduced oil film strength, and a higher risk of premature engine failure.

Fuel dilution is typically considered normal if it does not exceed 5% by volume between oil changes. Rates greater than 5% are considered abnormal, and anything exceeding 7% is often labelled severe. While some degree of fuel dilution is entirely normal in all diesel engines, what constitutes an excessive amount is often a subject of debate amongst experts.

Combating Fuel Dilution

While fuel dilution will inherently occur at higher rates during each active regeneration cycle, there are proactive steps you can take to minimise its impact and protect your engine:

• Avoid Prolonged Idling: Long periods of idling can increase the frequency and duration of regeneration cycles, leading to more fuel dilution.
• Complete Regeneration Cycles: Once a regeneration cycle initiates, ensure it is completed. Drive your vehicle until the regeneration process finishes; do not shut the engine down prematurely, as this can lead to incomplete burns and more fuel entering the oil.
• Planned Routes: Whenever possible, plan routes that avoid heavy stop-and-go traffic conditions, as these driving patterns also contribute to more frequent regeneration events.
• Use Engine Block Heater: Regularly use the engine block heater during cold winter months. This reduces engine warm-up times, which can lessen the need for regeneration cycles to occur during cold operation.

Another effective method of combating fuel dilution is to increase the engine oil capacity. There's a clear reason why Ford Motor Company added 2 quarts of oil capacity to the 2023 model year engines – a larger oil volume dilutes the fuel more effectively, reducing its percentage concentration. Aftermarket solutions, such as larger engine oil pans (e.g., Mag-Hytec F6.7, PPE 314052110) and bypass filtration systems (e.g., Amsoil single remote bypass, Amsoil dual remote bypass), offer excellent ways to add several extra quarts of oil capacity to your 6.7L Power Stroke.

To truly understand fuel dilution and how it specifically affects your engine, employing an oil analysis service is invaluable. This allows you to regularly test the fuel dilution level of your engine oil. Once you have a baseline of fuel dilution rates over a known mileage interval, you can intelligently modify your oil change intervals to consistently keep fuel dilution below the critical 5% threshold, ensuring optimal engine protection.

API Category & Ford Engine Oil Specifications

The engine oil requirements for the 6.7L Power Stroke can be somewhat confusing, so let's clarify the specifications.

When the 6.7L Power Stroke was introduced for the 2011 model year, Ford initially required an API CJ-4 engine oil. This is a low-ash formulation designed with performance characteristics that, among other things, provide protection against DPF clogging and minimise deposits in EGR coolers and valves.

In 2016, the American Petroleum Institute (API) introduced the API CK-4 specification, which was assumed to exceed the performance characteristics of the CJ-4 spec. However, in their own testing of CK-4 oil formulations, Ford Motor Company found that they did not always meet Ford's stringent wear protection criteria, and that CJ-4 formulations were often superior in this critical category. This led to Ford developing its own specific requirements.

Here's a breakdown of Ford's specific requirements over the years:

• 2011 Model Year: Ford required an engine oil that met WSS-M2C171-D specifications. This spec was used synonymously with API CJ-4 in owner's manuals.
• 2012 to 2016 Model Years: Ford required an engine oil that met WSS-M2C171-E specifications, again, used synonymously with API CJ-4 in owner's manuals.
• 2017 - Current Model Year: Ford has required an engine oil that meets WSS-M2C171-F1 specification. This spec is also used synonymously with API CJ-4 in the owner's manual, but it’s crucial to understand the distinction.

The key takeaway here is vital: Ford WSS-M2C171-F1 spec engine oils meet CK-4 standards, but CK-4 standards do not necessarily meet the Ford WSS specification. In summary, all 6.7L Power Stroke diesel owners should be using a motor oil that explicitly meets the Ford WSS-M2C171-F1 specification. This specification supersedes all previous Ford specs and will ensure maximum engine wear protection in addition to full exhaust aftertreatment system compatibility. We highly recommend Amsoil Max Duty Signature Series 5W-40 for all applications within its temperature range, as it meets Ford specifications and provides additional protection against fuel dilution and engine wear while offering superior cold flow characteristics.

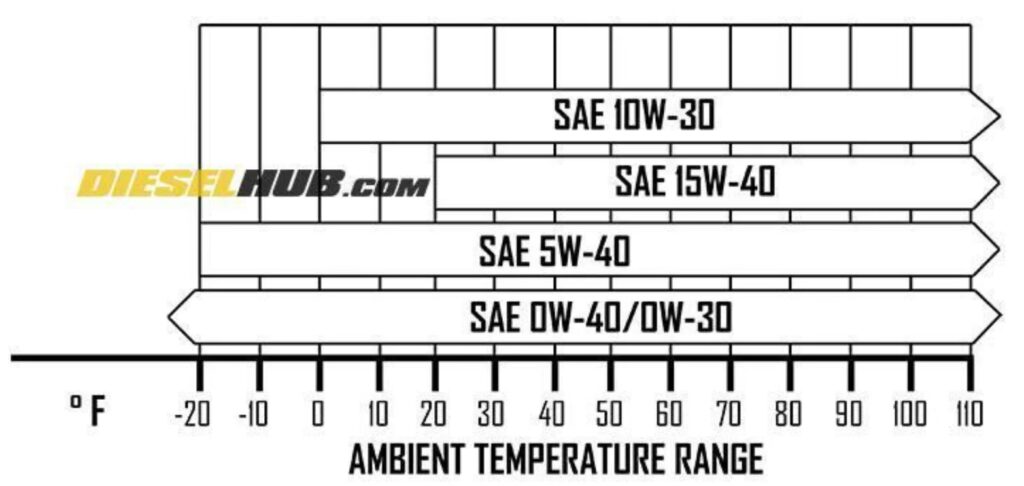

6.7 Power Stroke Engine Oil Viscosity Chart

Selecting the correct oil viscosity is paramount for engine protection based on the ambient temperatures your vehicle operates in. Refer to the chart below for appropriate viscosity grades and their specific remarks.

Severe/Heavy Duty Service Category Criteria

Most Ford Super Duty pickup trucks will, in fact, fall under the 'severe duty' service category due to their intended use and typical operating conditions. If your vehicle meets any of the following criteria, it is categorised as severe duty, and a 5W-40 full synthetic engine oil is recommended (provided ambient temperatures are greater than -20° F / -29° C):

• The engine is idled for more than 10 minutes within a 60-minute drive period, is operated at low speeds (under 25 mph / 40 km/h) for extended periods, or is frequently operated stationary.
• The vehicle makes short trips with frequent stops and/or the engine is frequently operated in a manner that prevents it from reaching full operating temperature.
• The vehicle is driven off-road or in dusty conditions.
• The vehicle is driven/operated in temperatures below -9° F (-23° C) or above 100° F (38° C).
• The vehicle performs light to medium towing exceeding 1,000 miles (approx. 1,600 km) between normal oil change intervals.
• The vehicle performs heavy trailer towing.
• The vehicle hauls cargo at or near its maximum payload capacity for extended periods of time.
• The engine is run on fuels other than Ultra-Low Sulphur Diesel (ULSD), including all biodiesel blends.

6.7 Power Stroke Motor Oil Recommendations

For Super Duty trucks equipped with the 6.7L Power Stroke V-8, we highly recommend Amsoil products due to their superior performance and ability to meet or exceed Ford's stringent specifications:

• Amsoil Max Duty Signature Series 5W-40 diesel oil: A premium full synthetic motor oil, ideal for severe duty service.
• Amsoil Max Duty Signature Series 10W-30 diesel oil: A premium full synthetic motor oil suitable for normal driving conditions.
• Amsoil Max Duty Signature Series 15W-40 diesel oil: Another premium full synthetic motor oil option.

Amsoil synthetic engine oils offer several key benefits for your 6.7L Power Stroke:

• Superior protection against fuel dilution and oil consumption.
• Exceptional resilience against thermal, mechanical, and chemical breakdown of engine oil.
• Improved oil flow and engine protection in sub-zero temperatures and during cold starts.
• All listed products meet Ford engineering specification WSS-M2C171-F1, ensuring complete compatibility and optimal performance.

6.7 Power Stroke Oil Change Parts List

Having the correct parts on hand is crucial for a smooth and effective oil change. Here's a list of essential components:

Motorcraft FL-2051S vs FL-2124S Oil Filters

Ford Motor Company began phasing out the Motorcraft FL-2051S oil filter for the updated FL-2124S oil filter during 2022, primarily in preparation for the 2023 variant of the 6.7L Power Stroke. While these oil filters are dimensionally similar, they are quite different internally, representing much more than a simple part number change. Ford has confirmed that the FL-2051S and FL-2124S oil filters are backward compatible, meaning either oil filter can be used on any 6.7L Power Stroke application.

Dimensionally, both oil filters are identical and feature silicone anti-drainback valves. Silicone is the preferred material for such devices as it tends to resist chemical and heat degradation better than common rubber and plastic materials, both of which can be found in less desirable filtration products.

The major difference between the obsolete FL-2051S and the new FL-2124S lies in the latter's synthetic filter media. Although both filter elements contain a total of 57 pleats, the FL-2124S filter element weighs 1.6 ounces (approx. 45 grams) more. While this may not seem significant, this equates to a 21% greater filter mass. Visually, the difference in filter media composition and density is quite obvious. Where the FL-2051S has thinner pleats and a pinkish-beige undertone, the FL-2124S is bright white, and its pleats are noticeably thicker and more robust.

The inlet ports on the two oil filters are also different. The FL-2051S has 8 round inlet ports, while the FL-2124S features 5 oval inlet ports. The gasket thicknesses and diameter are identical between the two oil filters, ensuring a proper seal. In summary, there's no reason to seek out what is left of the FL-2051S stock. The new FL-2124S is the superior engine oil filter and, moving forward, should be used on all 6.7L Power Strokes for optimal filtration and engine protection.

6.7 Power Stroke Ticking Noise After Oil Change

It is not uncommon for a 6.7L Power Stroke to produce a typewriter-like ticking noise following an oil change. Ford technical service bulletin (TSB) 10-19-2 specifically addresses this concern and assures owners that it is completely normal. In fact, it is not uncommon for this sound to come and go under various operating conditions. There's no reason to be alarmed if your engine begins producing this noise, even for extended periods of time, as it is a characteristic known to Ford.

How to Change the Engine Oil in a 6.7 Power Stroke

Changing the engine oil on your 6.7L Power Stroke is a manageable task for the competent DIY mechanic. Follow these steps carefully to ensure a proper oil change:

1. Prepare for Drainage: Locate the engine oil drain plug, typically near the bottom of the engine oil pan and pointing towards the rear of the vehicle. The lube oil filter is situated near the passenger side of the engine oil pan. Place a suitable container with a minimum 13-quart (approx. 12.3-litre) capacity beneath the engine oil pan to collect the used oil.
2. Drain the Old Oil: Using a 16 mm socket or box end wrench, remove the drain plug from the engine oil pan and allow the engine oil to drain completely. Note that 2011 model year engines had a plastic lower oil pan and a 1/4 turn style drain plug, which differs from later models.
3. Loosen Fill Cap for Ventilation: Locate the engine oil fill cap on top of the engine, towards the driver's side, near the dipstick and dipstick tube. Loosen the engine oil fill cap (it does not need to be fully removed, just loosened) to allow the crankcase to vent, facilitating a smoother and faster oil drain.
4. Remove Oil Filter: Rotate the engine oil filter counterclockwise to remove it. An oil filter wrench can be used if necessary to gain leverage.
5. Check and Clean Filter Adapter: Critically, verify that the old engine oil filter gasket did not stick to the oil filter adapter base. If it has separated from the filter and stuck to the base, it is imperative that this old gasket is removed before attempting to install the new oil filter. Clean the engine oil filter adapter base/flange thoroughly with a clean, lint-free cloth.
6. Inspect and Reinstall Drain Plug: Carefully examine the condition of the engine oil drain plug. Ensure that the threads are not damaged and that the o-ring seal is in good condition. If the seal appears flattened, ripped, or torn, replace the drain plug. Clean the drain plug with a lint-free cloth; do not use chemicals or solvents (e.g., brake cleaner) as they may compromise the o-ring seal. Reinstall the drain plug in the engine oil pan and torque it to 19 lb-ft (approx. 26 Nm). Clean the area around the drain plug thoroughly so any leaks can be easily detected.
7. Prepare and Install New Oil Filter: Pre-fill the new oil filter with clean engine oil (approximately 3/4 of a quart or 0.7 litres is usually sufficient to allow for handling without spilling). Lubricate the new filter's gasket with clean engine oil. Pre-filling helps prevent an entirely dry start, which can cause undesirable wear over time. Install the new oil filter, tightening it snugly to the oil filter adapter base. Clean any new or used engine oil that may have spilled around the filter.
8. Add New Engine Oil: Using a clean funnel, add the appropriate amount of new motor oil through the oil fill opening. Remember the specified capacity for your model year (13 or 15 quarts for F-250 to F-600, 15 or 17 quarts for F-650/F-750), minus what was added to the oil filter. When selecting oil, be mindful of the compatible ambient temperature ranges listed in the oil viscosity chart above. Reinstall the engine oil fill cap once the crankcase has been refilled. Check for any oil leaks at the oil drain plug immediately after filling.
9. Check Oil Level: Remove the engine oil level indicator (dipstick) from its tube, wipe it clean with a lint-free cloth, then reinsert it completely and remove again. Verify that the engine oil level is correct, typically between the 'min' and 'max' marks.
10. Start Engine and Final Checks: Start the engine and allow it to run for a few minutes. Check for any leaks at the oil drain plug and around the base of the oil filter. Shut off the engine and re-check the oil level after a few minutes to allow oil to drain back into the pan. Add more oil if necessary.
11. Reset Oil Life Monitor: Reset the engine oil life monitor through the instrument panel display. This process typically involves scrolling to "Truck Info", then "Maintenance Monitor", and finally "Oil Life" using the buttons on the steering wheel. Hold the "OK" button on the steering wheel to reset the monitor to 100%.
12. Consider Oil Analysis: Every oil change is an excellent opportunity to collect a sample for oil analysis. This service detects and reports important information such as the concentration of wear metals in the engine oil, total fuel dilution, and contaminants like engine coolant. We highly recommend the oil analysis services provided through Oil Analyzers Inc for prompt service and comprehensive reporting, especially given the prevalence of fuel dilution in these engines.

Frequently Asked Questions (FAQs)

Why is the oil capacity different for newer 6.7L Power Stroke models?

Ford increased the oil capacity for 2023+ models (from 13 to 15 quarts for F-250/F-600 and 15 to 17 quarts for F-650/F-750) primarily to help combat fuel dilution. A larger volume of oil means that any fuel that enters the crankcase during DPF regeneration cycles will be diluted to a lower percentage, thus reducing its impact on the oil's lubricating properties and extending the effective life of the oil.

Can I use any API CK-4 oil in my 6.7L Power Stroke?

No, not necessarily. While API CK-4 is a modern diesel oil specification, Ford's internal testing found that not all CK-4 formulations met their specific wear protection criteria. Therefore, it is crucial to use an engine oil that explicitly states it meets Ford specification WSS-M2C171-F1. This ensures the oil provides the necessary protection for your 6.7L Power Stroke engine and is compatible with its exhaust aftertreatment system.

What is the ticking noise I hear after an oil change? Is it normal?

Yes, it is entirely normal. A typewriter-like ticking noise after an oil change is a known characteristic of the 6.7L Power Stroke engine. Ford's Technical Service Bulletin (TSB) 10-19-2 specifically addresses this, confirming it's not a cause for concern. This sound can also come and go under various operating conditions.

How often should I change my oil? The manual says 10,000 or 15,000 miles.

While Ford's oil life monitor and manual suggest intervals of up to 10,000 miles (for 2011-2022 models) or 15,000 miles (for 2023+ models), it is highly recommended to change your oil and filter at a maximum of 5,000 miles (approx. 8,000 km) for the 6.7L Power Stroke. This shorter interval is advised due to the prevalent issue of fuel dilution, which can degrade the oil's effectiveness well before Ford's maximum mileage recommendations. Regular oil analysis can help you determine the optimal interval for your specific driving conditions if you wish to extend beyond 5,000 miles.

What is fuel dilution?

Fuel dilution occurs when raw diesel fuel enters the engine's crankcase and mixes with the lubricating oil. In the 6.7L Power Stroke, this primarily happens during DPF active regeneration cycles when unburnt fuel is injected into the exhaust stroke. This fuel can wash down cylinder walls and bypass piston rings, contaminating the engine oil. Fuel dilution thins the oil, reduces its lubricating properties, and can lead to increased engine wear if not managed properly.

By understanding these critical aspects of engine oil for your 6.7L Power Stroke, you can ensure your powerful Ford Super Duty continues to deliver reliable performance for many years and miles to come. Regular, informed maintenance is key to protecting your investment.
