Understanding the 5.7 Hemi Engine

The 5.7 Hemi engine is a name that resonates with automotive enthusiasts, renowned for its distinctive sound, robust performance, and enduring presence in a range of Chrysler, Dodge, and Jeep vehicles. Developed by Chrysler, this V8 powerhouse has become synonymous with American muscle and utility, finding its way into popular models such as the RAM 1500, 2500, 3500 pickup trucks, Dodge Charger, Challenger, and Jeep Grand Cherokee. Its design, characterised by hemispherical combustion chambers, is a key factor in its impressive output and efficiency. However, like any complex piece of machinery, the 5.7 Hemi is not immune to its own set of quirks and potential problems. Understanding these issues, along with proper maintenance, is crucial for any owner looking to maximise the longevity and performance of this legendary engine.

What is a 5.7 Hemi Engine?

The 5.7 Hemi is a 5.7-litre (345 cubic inch) V8 internal combustion engine produced by Chrysler. Its defining characteristic, and the source of its "Hemi" moniker, is the hemispherical shape of its combustion chambers. This design, first popularised in the 1950s and revived by Chrysler in the early 2000s, offers several advantages, including a more efficient burn and the ability to accommodate larger valves, leading to better airflow and power potential. The 5.7 Hemi is manufactured at Chrysler’s Saltillo Engine plant in Ramos Arizpe, Mexico, and is designed to meet or exceed Original Equipment Manufacturer (OEM) standards, often featuring transferable parts and labour warranties.

Key Features of the 5.7 Hemi Engine

The 5.7 Hemi boasts a suite of advanced features designed to enhance performance, efficiency, and durability:

• Hemispherical Combustion Chambers: This is the engine's namesake feature. The hemispherical shape promotes efficient combustion and allows for larger intake and exhaust valves, improving airflow.
• Dual Spark Plugs per Cylinder: Each cylinder is equipped with two spark plugs, which contributes to a shorter flame travel distance, leading to more complete combustion, reduced emissions, and improved performance.
• Higher Compression Ratio: Compared to traditional wedge-shaped combustion chambers, the Hemi design allows for a higher compression ratio, which generally translates to more power and better fuel efficiency.
• Active Intake Manifold: This system adjusts the length of the intake runners to optimise airflow and torque delivery across the engine's operating speed range.
• Variable Camshaft Timing (VCT): VCT technology adjusts the timing of the camshaft(s) to optimise engine performance and fuel economy under different driving conditions.
• Multi-Displacement System (MDS): This innovative system allows the engine to shut down cylinders (typically four out of eight) under light load conditions, such as cruising on the highway, to conserve fuel.
• Power Output: The 5.7 Hemi typically produces around 350-395 horsepower and 375-410 lb-ft of torque, depending on the specific application and model year. Many Hemi engines also achieve the benchmark of one horsepower per cubic inch.

Common 5.7 Hemi Engine Problems

While the 5.7 Hemi is a generally reliable engine, owners may encounter some common issues. Early diagnosis and proper maintenance are key to mitigating these:

1. Hemi Tick (Valve Train Noise)

   Perhaps the most widely discussed issue is the "Hemi tick." This ticking or tapping sound often originates from the valve train. Potential causes include:

   • Lifter Issues: Sticking or worn lifters can cause them to chatter against the camshaft, producing a ticking noise.
   • Valve Stem Clearance: Incorrect valve stem clearance, either too tight or too loose, can lead to ticking sounds.
   • Low Oil Pressure/Lubrication: Insufficient oil pressure or poor lubrication can prevent the hydraulic lifters from functioning correctly.
   • Camshaft Wear: Wear on the camshaft lobes can also contribute to valve train noise.
   • Exhaust Manifold Leaks: Sometimes, a ticking sound can be mistaken for an exhaust leak, particularly at the manifold.

   Addressing the Hemi tick often involves checking oil levels and quality, inspecting lifters and camshafts, and ensuring proper valve lash adjustments.



2. Dipstick Tube Sludge and Water in Oil Cap

   Some owners report finding a sludge-like substance in the dipstick tube and traces of water or a milky residue under the oil filler cap. This can be an indication of excessive condensation within the engine, especially in colder climates or if the vehicle is frequently used for short trips where the engine doesn't reach optimal operating temperature. In more severe cases, it could suggest a coolant leak into the oil system, possibly due to a blown head gasket or cracked cylinder head.

3. Multi-Displacement System (MDS) Issues

   The MDS system, while beneficial for fuel economy, can sometimes cause problems. When cylinders are deactivated, the remaining active cylinders operate under increased load. This can lead to:

   • Oil Consumption: Some engines with MDS can consume more oil when the system is active.
   • Fluttering Sounds: Incompatibility with aftermarket exhaust systems can sometimes cause a fluttering or droning sound when MDS engages or disengages.
   • MDS Failure: Like any complex system, the MDS solenoids or related components can fail, leading to check engine lights and performance issues.

   Regular oil changes and monitoring oil levels are crucial for MDS longevity. For those experiencing persistent issues or preferring a more consistent engine note, disabling the MDS through aftermarket programmers is a common modification.

4. Misfires and Rough Running

   Misfires can manifest as a rough idle, loss of power, or the engine stalling. Common causes for misfires in the 5.7 Hemi include:

   • Spark Plugs and Coils: Fouled, worn, or incorrectly gapped spark plugs, or faulty ignition coils, are frequent culprits.

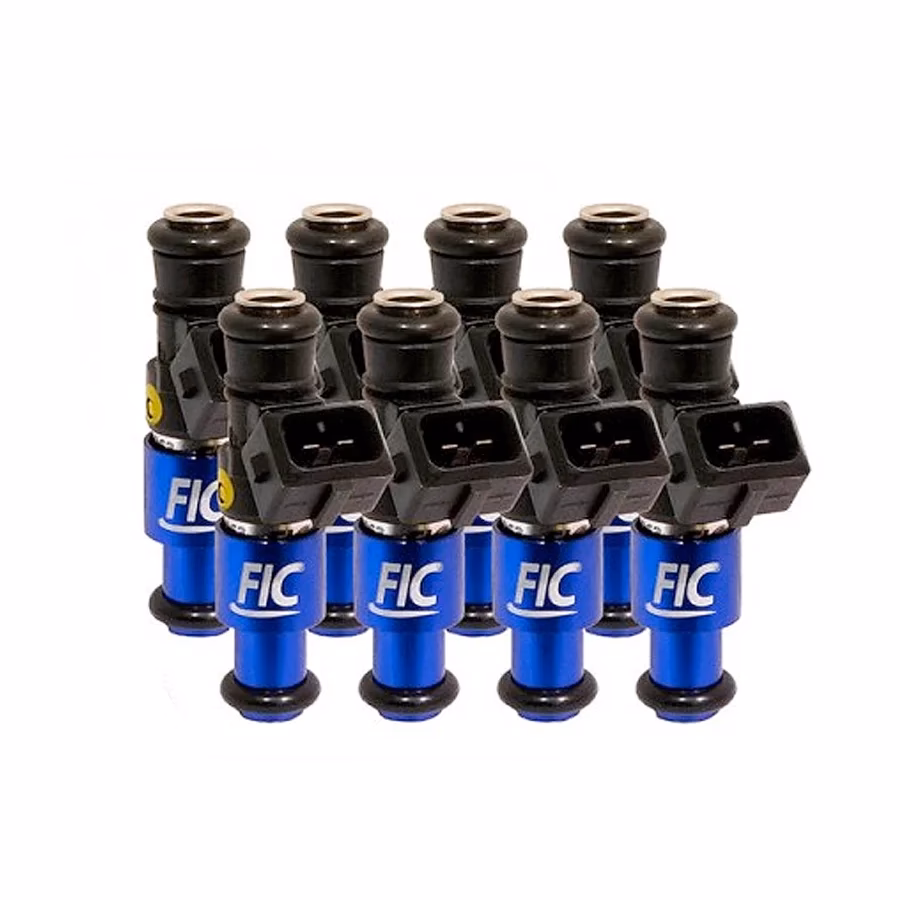

   • Fuel Injectors: Clogged or malfunctioning fuel injectors can lead to an improper fuel-air mixture.
   • Vacuum Leaks: Leaks in the intake manifold or vacuum hoses can disrupt the air-fuel ratio.
   • Sensor Issues: Faulty sensors (e.g., crankshaft position sensor, camshaft position sensor) can provide incorrect data to the engine control module (ECM).

   A thorough diagnostic scan and inspection of these components are necessary to pinpoint the cause of misfires.



5. Oil Consumption

   While some oil consumption is normal, excessive oil use can be a concern. Potential causes include worn piston rings, valve seals, or PCV (Positive Crankcase Ventilation) system issues. The MDS system can also contribute to increased oil consumption under certain circumstances.

6. Drop-in Valve Seats

   An issue observed in some earlier 5.7 Hemi models was the potential for drop-in valve seats to loosen or fall out, which would cause significant engine damage. Chrysler addressed this with design revisions and updated parts, making it less common in later models.



5.7 Hemi vs. 5.3 Vortec Comparison

When comparing the 5.7 Hemi to its GM counterpart, the 5.3 Vortec, several factors come into play:

While the 5.7 Hemi generally offers more raw power and a more engaging driving experience, the 5.3 Vortec is often lauded for its exceptional durability and longevity, with many owners reporting hundreds of thousands of miles with minimal issues. The Hemi’s advanced features like MDS can offer better fuel economy in certain situations, but also introduce potential complexities. The choice often comes down to prioritizing outright power and engagement (Hemi) versus proven long-term reliability and simpler mechanics (Vortec).

Maintenance Tips for the 5.7 Hemi

To keep your 5.7 Hemi running smoothly and prevent common issues, adhere to a strict maintenance schedule:

• Regular Oil Changes: Use the manufacturer-recommended oil viscosity and change the oil and filter at the specified intervals (typically every 5,000-7,500 miles, or as per your owner's manual). This is critical for proper lubrication, especially for the valve train and MDS components.
• Use Quality Fuel: While not as sensitive as some high-performance engines, using high-quality fuel can help prevent knocking and ensure optimal combustion.
• Inspect Spark Plugs: Replace spark plugs at the recommended intervals to ensure efficient ignition. Given the dual-plug design, ensure both plugs per cylinder are in good condition.
• Check Air Filters: Regularly inspect and replace the engine air filter and cabin air filter to maintain proper airflow and air quality.
• Monitor Fluid Levels: Keep an eye on all fluid levels, including coolant, brake fluid, and power steering fluid.
• Listen for Unusual Noises: Pay attention to any new sounds, such as ticking or knocking, and have them investigated promptly by a qualified mechanic.
• Address MDS Issues: If you experience problems with the MDS, consider consulting a specialist or a performance tuner for solutions, whether it's repair or disabling the system.
• Cooling System Maintenance: Ensure the cooling system is in good working order to prevent overheating, which can exacerbate many engine problems.

Frequently Asked Questions (FAQs)

1. What causes the ticking sound in a Hemi engine?

The most common cause is the valve train, particularly issues with hydraulic lifters not being properly lubricated or functioning. Other causes include incorrect valve lash, worn camshaft lobes, or even exhaust manifold leaks.

2. How reliable is the 5.7 Hemi engine?

The 5.7 Hemi is generally considered a reliable and powerful engine. While it has some known issues like the "Hemi tick" and potential MDS complexities, with proper maintenance, many owners achieve well over 200,000 miles. Its design is robust, and many of the earlier issues have been mitigated in later production runs.

3. What is the typical lifespan of a 5.7 Hemi?

With diligent maintenance, including regular oil changes with quality oil, the 5.7 Hemi can last for 200,000 to 300,000 miles or even more. Factors like driving habits and environmental conditions also play a role.

4. How much horsepower does the 5.7 Hemi produce?

Horsepower figures vary slightly by application and model year, but generally range from around 350 hp to 395 hp. Torque figures are typically in the 375 lb-ft to 410 lb-ft range.

5. Does the 5.7 Hemi use two spark plugs per cylinder?

Yes, the 5.7 Hemi V8 engine utilizes two spark plugs for each of its eight cylinders, for a total of sixteen spark plugs. This dual-plug setup enhances combustion efficiency.

6. Is the 5.7 Hemi a good engine for towing?

Yes, the 5.7 Hemi is an excellent engine for towing and hauling, particularly in RAM trucks. Its substantial torque output, especially at lower RPMs, provides the necessary grunt for pulling heavy loads.

Conclusion

The 5.7 Hemi engine remains a formidable and desirable powerplant, celebrated for its blend of power, distinctive character, and versatility. While common issues like the "Hemi tick" and MDS complexities exist, they are often manageable with diligent maintenance and timely attention. By understanding its features, potential pitfalls, and best practices for care, owners can ensure their 5.7 Hemi engine continues to deliver its signature performance for many years to come. Whether used for work or play, this iconic engine is a testament to American automotive engineering.
