Understanding Fuel Hose Diameter: The Unsung Hero of Your Engine
When it comes to the intricate workings of your vehicle's fuel system, many components demand our attention – the fuel pump, injectors, and filters often take centre stage. However, the humble fuel hose plays an equally vital, albeit often overlooked, role. Its diameter, in particular, is a critical specification that directly impacts fuel delivery efficiency, engine performance, and even safety. But what exactly is the diameter of a fuel hose, and why does it matter so much? This comprehensive guide will delve into the world of fuel hose sizing, exploring common dimensions, the materials that influence them, and the consequences of choosing the wrong size.
Why Fuel Hose Diameter Matters
The diameter of a fuel hose is essentially its internal bore size. This seemingly simple measurement dictates the volume of fuel that can flow through it per unit of time. Think of it like a pipe carrying water; a wider pipe allows more water to flow faster. In your car, a properly sized fuel hose ensures that the correct amount of fuel reaches the engine under the required pressure. Too small a diameter, and you risk restricting fuel flow, leading to a lean fuel mixture, hesitation, poor acceleration, and even engine damage. Too large a diameter, and while less common, it could potentially lead to issues with fuel pressure regulation or increased hose weight and cost without a tangible benefit.
Common Fuel Hose Diameters
Fuel hose diameters are typically measured in inches or millimetres. While there's a range of sizes used across different vehicles and applications, some common dimensions are:
| Application | Common Inner Diameter (Inches) | Common Inner Diameter (Millimetres) |
|---|---|---|
| Low-Pressure Fuel Lines (return lines, carburettor feed) | 3/16" to 5/16" | 4.76 mm to 7.94 mm |
| High-Pressure Fuel Injection Lines | 5/16" to 3/8" | 7.94 mm to 9.53 mm |
| Diesel Fuel Lines | 5/16" to 1/2" | 7.94 mm to 12.7 mm |
| Performance/Aftermarket Applications | 3/8" to 1/2" (or larger for boosted engines) | 9.53 mm to 12.7 mm (or larger) |
It's important to note that these are general guidelines. The exact diameter required for your vehicle will depend on factors such as engine size, fuel system type (carburettor vs. fuel injection), and manufacturer specifications. Always consult your vehicle's service manual or a reputable parts supplier for the precise diameter needed.
Factors Influencing Fuel Hose Diameter Choice
Several factors dictate the appropriate diameter for a fuel hose:
- Fuel Flow Rate: The primary consideration is the volume of fuel your engine requires. High-performance engines or those with larger displacements will naturally need hoses that can deliver more fuel, often necessitating a larger diameter.
- Fuel Pressure: Fuel injection systems operate at significantly higher pressures than carburettor systems. The hose must be able to withstand this pressure, and its diameter is factored into the system's overall pressure dynamics.
- Fuel Type: While less of a direct influence on diameter, different fuels (petrol/gasoline, diesel, E85) can have varying flow characteristics and compatibility requirements with hose materials, which in turn might influence the available hose sizes.
- Hose Material and Construction: The internal diameter is a key specification, but the hose's construction and the materials used are equally crucial for durability and resistance to fuel degradation. We'll explore this further below.
- Length of the Hose: Longer hoses can experience greater pressure drop due to friction. A slightly larger diameter might be considered for very long runs to mitigate this effect, although this is usually a secondary consideration.
Materials and Their Impact on Diameter and Performance
The material of a fuel hose is critical for its ability to handle various fuels and operating conditions. Different materials have different flexibilities and pressure ratings, which can indirectly influence the practical range of available diameters for a given application. Common materials include:
- Nitrile Rubber: A common and cost-effective option for many fuel applications, offering good resistance to petrol and oil.
- Nylon: Often used in high-pressure fuel injection lines due to its strength and resistance to fuel permeation.
- Fluoropolymer (e.g., PTFE/Teflon): Excellent chemical resistance and a very smooth inner surface, reducing restriction. Often used in high-performance and racing applications.

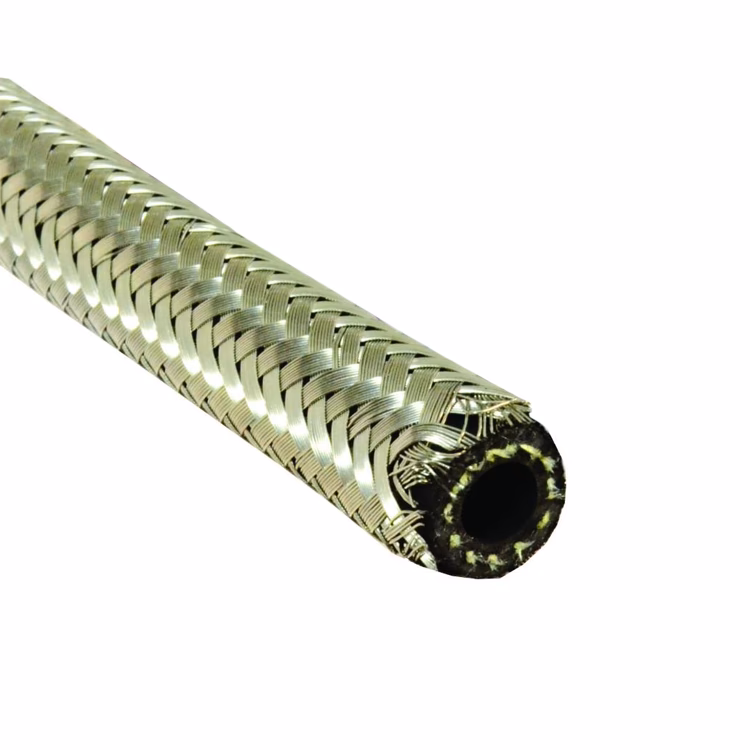

- Reinforced Rubber/Synthetic Rubbers: Many fuel hoses are constructed with multiple layers, including reinforcing braids (like polyester or aramid fibres) and barrier layers to prevent fuel permeation. The specific combination of materials affects the hose's overall durability and pressure rating.
When selecting a fuel hose, ensure it is rated for the specific fuel type you are using and the pressures involved. SAE (Society of Automotive Engineers) standards, such as SAE J30R9 or SAE J2044, are often used to classify fuel hoses and indicate their suitability for different automotive fuel systems. These standards will specify requirements for fuel resistance, temperature range, and pressure ratings, and will implicitly relate to the intended internal diameters for various applications.
The Consequences of Incorrect Fuel Hose Diameter
Using a fuel hose with the incorrect diameter can lead to a cascade of problems:
- Restricted Fuel Flow: A hose that's too narrow will act as a bottleneck, starving the engine of fuel. This can manifest as poor acceleration, engine sputtering, and reduced power, especially under load.
- Lean Fuel Mixture: Insufficient fuel reaching the combustion chamber can result in a lean air-fuel ratio. This can cause the engine to run hotter, potentially leading to detonation (pinging), damaged pistons, and exhaust valve failure.
- Fuel Pressure Issues: While less common with undersized hoses, an incorrectly sized hose could, in some complex systems, interfere with the precise fuel pressure regulation required for optimal engine operation.
- Reduced Fuel Pump Life: If the fuel pump has to work harder to push fuel through a restrictive hose, its lifespan can be significantly reduced.
- Increased Emissions: An improperly functioning fuel system due to incorrect hose diameter can lead to inefficient combustion and increased harmful emissions.
When to Replace Fuel Hoses
Fuel hoses, like all rubber components, degrade over time due to exposure to fuel, heat, and environmental factors. Signs that your fuel hoses need replacement include:
- Cracks or splitting in the hose material.
- Swelling or hardening of the hose.
- Leaking fuel around the hose fittings.
- A strong smell of petrol or diesel around the engine bay.
When replacing fuel hoses, it is crucial to use hoses specifically designed for automotive fuel systems and to match the original equipment (OE) specifications, including the correct inner diameter, pressure rating, and material compatibility. Using generic hose or incorrect sizing can compromise the safety and performance of your vehicle.
Frequently Asked Questions (FAQs)
Q1: How do I find out the correct fuel hose diameter for my car?
Consult your vehicle's owner's manual or a workshop manual. You can also provide your vehicle's make, model, and year to a reputable auto parts supplier, and they can help you find the correct part.
Q2: Can I use a slightly larger diameter fuel hose?
While sometimes a slightly larger diameter might seem harmless, it's generally best to stick to the OE specification. Incorrect sizing can affect fuel pressure and flow dynamics within the system, potentially leading to performance issues or damage.
Q3: Are all fuel hoses the same?
No, fuel hoses are designed for specific applications. They vary in material, pressure rating, and internal diameter to suit different fuel systems (e.g., carburettor vs. fuel injection) and fuel types.
Q4: What does SAE J30R9 mean on a fuel hose?
SAE J30R9 is a standard that specifies requirements for fuel injection hose. It indicates that the hose is designed to handle the higher pressures and specific fuel types found in fuel injection systems, and meets certain criteria for fuel resistance and durability.
Q5: Is it safe to use generic rubber hose for fuel lines?
No, it is not safe. Generic rubber hose is not designed to withstand the chemicals in modern fuels, which can cause it to degrade, swell, crack, and leak, posing a significant fire hazard.
Conclusion
The diameter of a fuel hose is a critical, yet often overlooked, specification that profoundly impacts your vehicle's engine performance, efficiency, and safety. Understanding the common sizes, the factors that determine the correct diameter, and the consequences of using the wrong size is essential for any car owner or mechanic. Always prioritise using hoses that meet or exceed OE specifications and are designed for automotive fuel systems to ensure your vehicle runs smoothly and reliably.
