F-Body Brake Upgrades: A Comprehensive Guide

While General Motors generously endowed the third-generation F-body with commendable aerodynamics and a remarkably effective (yet elegantly simple) suspension design, paving the way for virtually limitless horsepower potential, there was one area where these iconic vehicles began to show their age rather quickly: the brakes. Initially quite capable when the cars debuted in 1982, the braking systems soon became a significant bottleneck, a shortcoming that even persisted into the fourth-generation models. This guide aims to shed light on the original braking systems offered on the third-generation F-bodies, explore viable upgrade paths using both GM factory parts and, more importantly, high-quality aftermarket solutions.

Understanding Your Current F-Body Braking System

To truly appreciate the need for an upgrade, it's essential to understand what came fitted to your F-body from the factory. All third-generation F-bodies were equipped with front disc brakes as standard, though a significant number also featured disc brakes on the rear axle, as opposed to the more traditional drum brakes. The standard front disc size, excluding the rare 1LE package, was a modest 10.5 inches, utilising an iron caliper and hub assembly – a sturdy but heavy and somewhat rudimentary setup.

For vehicles optioned with rear disc brakes, the rotor size and brake pads were generally the same as the front, although the caliper design was subtly different. Cars fitted with rear drum brakes typically used a slightly smaller master cylinder compared to their rear disc-equipped counterparts. A notable improvement arrived in 1989 when GM introduced larger 12-inch rear rotors for high-performance models. These brakes represented the pinnacle of factory-installed rear braking for the third-generation F-bodies, featuring lightweight aluminium calipers. Crucially, these 12-inch rear systems can be adapted or entirely swapped onto older rears that originally came with 10.5-inch discs. However, for those with rear drum cars, a full rear axle swap is necessary, as drum rears lack the correct backing plate for a direct disc conversion.

The most coveted factory braking setup for the third-generation cars was undoubtedly the 1LE package, which also came standard on the legendary Turbo Trans Am. These models boasted 12-inch rear discs alongside equally impressive 12-inch front brakes, making them the best factory-available option. Unfortunately, with only a few hundred 1LE cars ever produced, finding one in a salvage yard is akin to finding a needle in a haystack, and purchasing the components directly from GM today would be prohibitively expensive. Another extremely rare factory option was the front Brembo brakes offered on the 1992 SLP Formula Firehawk, but with only 27 units ever built, this remains a pipe dream for most.

Upgrading with Genuine GM Factory Parts

For those committed to maintaining an all-GM setup, there are some factory upgrade paths, though they come with their own set of challenges. As mentioned, if your F-body currently has rear drums, a complete rear axle swap is the only GM-approved route to disc brakes. For those seeking the superior 1989 or later 12-inch rear rotor brakes, these parts can theoretically be sourced from GM, albeit at a considerable cost. Alternatively, locating a suitable rear axle from a donor vehicle is often a more economical approach. If you're simply looking to upgrade your existing rear, you can purchase the necessary brackets and components, ensuring compatibility with your axle type (9-bolt or 10-bolt).

Key GM Rear Brake Upgrade Components (12-inch Rotor):

For the front, since all third-generation F-bodies came with disc brakes, the only factory GM upgrade is to the highly desirable 1LE front brake system. This involves a more extensive list of parts, including specific caliper mount brackets, housings, anchor plates, brake hoses, a pad kit, and rotors. It's also believed that different front spindles may be required, though official part numbers for these are not readily available and would require direct verification with GM.

Key GM 1LE Front Brake Upgrade Components:

The primary hurdle with acquiring these GM parts, particularly for the front, is the exorbitant price. Often, you can purchase superior aftermarket components for significantly less money. Consequently, a more practical approach for GM-specific upgrades is to search for a complete rear axle assembly for sale or find a wrecked IROC or Trans Am that can serve as a donor vehicle for the desired components.

Exploring Aftermarket Braking Solutions

For serious performance enthusiasts, the aftermarket offers a wealth of options that often surpass factory capabilities in terms of performance, durability, and even value. While companies like JFZ and Wilwood offer front and rear upgrades, some of their offerings may be considered marginal for more aggressive street use or dedicated road race applications. However, for a truly transformative braking experience on your third-generation F-body, one name consistently stands out: Baer Brakes.

Baer Brakes, based in Phoenix, Arizona, has established itself as a premier source for high-performance braking systems. Many of their systems are designed as direct bolt-ons, simplifying the installation process, and they frequently incorporate robust GM components, often from the Corvette lineage, renowned for their performance. Baer offers a wide array of kits tailored not only for various F-body generations but also for other performance vehicles like Fords and Corvettes.

Key Considerations for Aftermarket Brakes:

• Cross-Drilling: This process involves drilling holes through the rotors. The primary purpose is to vent gases formed during braking, which can sometimes lead to a marginal improvement in initial bite. However, it's crucial to understand that cross-drilling inherently weakens the rotor and is known to contribute to crack formation, especially under repeated heavy braking. While cars that are driven infrequently or primarily for show might benefit aesthetically, true daily drivers or performance vehicles are generally better served by opting for non-drilled, solid-face rotors for maximum durability and resistance to cracking.
• Stainless Steel Brake Lines: Most high-quality aftermarket kits include or offer stainless steel braided brake lines. Unlike traditional rubber hoses that can expand under hydraulic pressure, stainless lines maintain consistent pressure, leading to a firmer, more responsive pedal feel and potentially increasing overall braking power due to reduced line flex. This is a significant upgrade for any performance vehicle.
• Larger Rotors: The principle here is simple: a larger rotor provides a greater leverage effect on braking power, much like a longer crowbar provides more leverage for prying. Additionally, a larger rotor offers a significantly increased surface area for the brake pad to make contact, leading to more efficient heat dissipation and improved fade resistance under sustained braking.

Baer Front Brake Kits for 3rd Gen F-Body:

Baer offers a comprehensive range of front brake kits, catering to various driving styles and performance needs. It's worth noting that all these kits generally require modified front spindles, which are typically included, though a core charge is usually levied and refunded upon return of your old spindles.

When comparing these aftermarket options, it becomes clear that there's little compelling reason to purchase 1LE parts directly from GM, which can retail for well over £1200. Baer offers superior performance and quality for a more competitive price.

Baer Rear Brake Kits for 3rd Gen F-Body:

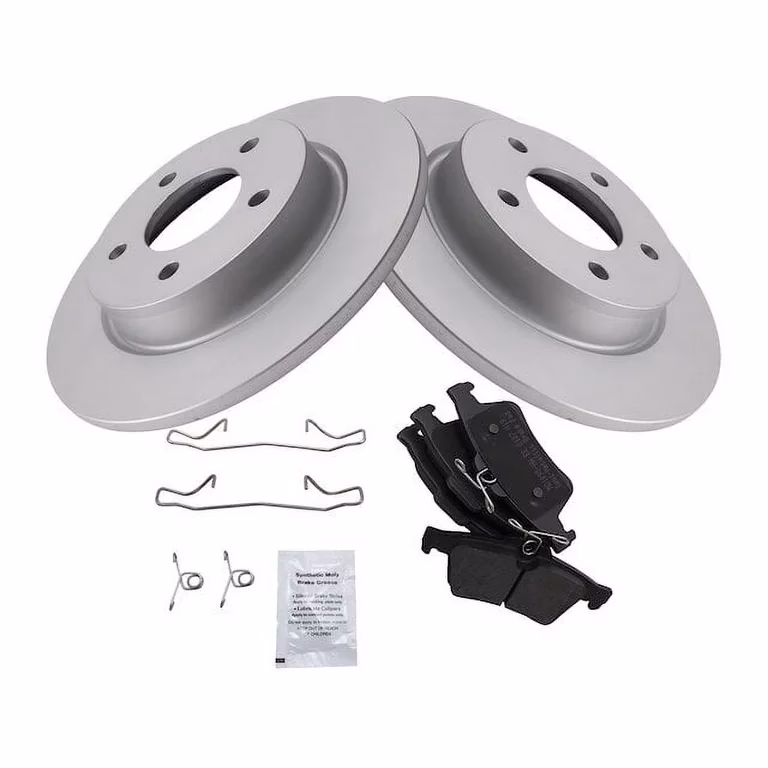

For those with the 12-inch rear brakes from the factory, you're already in a good position and may not need an immediate upgrade. However, for owners with 10.5-inch discs or, more commonly, rear drums, Baer offers excellent 12-inch rear kits, often priced at £550 or less. These kits are designed to significantly improve rear braking performance and balance the overall system.

Note: The number in the part code indicates axle type: '0' for Saginaw with drum, '1' for Saginaw with disc, and '2' for Borg Warner with disc. It may be possible to run some aftermarket 15-inch wheels with these rear kits, but it's always best to verify directly with Baer.

While a top-tier Baer kit (excluding the Alcon option) might cost around £1550, this investment pales in comparison to the cost of other performance upgrades like superchargers (which typically start at £2000) or high-performance transmissions (often exceeding £1300). Beyond the sheer stopping power, Baer's kits are also known to shed a significant amount of unsprung weight from your vehicle, often around 25 lbs, predominantly from the front end. This reduction in unsprung mass directly translates to improved handling performance, making your F-body feel more nimble and responsive. Baer claims their kits are genuine bolt-ons requiring no fabrication work, with an estimated installation time of approximately 4-6 hours for both front and rear systems. Due to their high volume of sales, Baer's prices are often even more competitive than those found in older catalogues, making them an even more attractive proposition.

Why Invest in Better Brakes?

The question isn't just about 'which' brakes, but 'why' you should upgrade them in the first place. The answer lies at the core of vehicle performance and, more importantly, safety. While horsepower figures often grab headlines, the ability to effectively control and stop that power is paramount. Here's why investing in superior brakes for your F-body is crucial:

• Enhanced Safety: This is the most critical reason. Better brakes provide shorter stopping distances, allowing you to react more effectively to unexpected hazards on the road. In an emergency, every metre counts.
• Improved Performance & Confidence: High-performance driving, whether on the track or spirited street driving, demands consistent and reliable braking. Stock F-body brakes are prone to 'fade' – a reduction in braking effectiveness due to excessive heat build-up under heavy use. Upgraded systems with larger rotors and multi-piston calipers dissipate heat more efficiently, maintaining consistent performance and instilling greater confidence behind the wheel.
• Superior Control: Upgraded brakes offer better modulation, meaning you have finer control over the braking force applied. This allows for more precise handling and stability, especially during hard braking or in challenging road conditions. The improved pedal feel from stainless steel lines further enhances this control.
• Matching Power with Stopping Power: Many F-body owners invest heavily in engine modifications to boost horsepower. It's illogical to have a car that can accelerate ferociously but struggles to slow down effectively. A balanced performance package includes commensurate braking capabilities.
• Durability and Longevity: Aftermarket performance brakes are built to withstand more extreme conditions than standard factory components. This often translates to longer pad and rotor life under spirited driving, reducing the frequency of maintenance.

Beyond the Brakes: System Considerations

While upgrading your brake rotors and calipers is a major step, it's vital to consider the entire braking system as a holistic unit. Neglecting other components can compromise the effectiveness of your new high-performance setup:

• Master Cylinder: Your master cylinder is the heart of your hydraulic braking system. If you're significantly increasing the size or number of pistons in your calipers, your stock master cylinder might not be able to displace enough fluid efficiently. Upgrading to a larger bore master cylinder can ensure proper hydraulic pressure and pedal feel.
• Brake Fluid: High-performance brake systems generate more heat. Standard DOT3 or DOT4 fluid might boil under extreme conditions, leading to a spongy pedal. Investing in a high-temperature DOT5.1 or racing-specific fluid is highly recommended for track or aggressive street use.
• Tyres: Even the most powerful brakes are useless without adequate grip. Ensure your tyres are in good condition and are rated for the performance level you expect. Performance tyres with a higher grip level will allow your upgraded brakes to perform to their full potential.
• Suspension: A well-tuned suspension system works in harmony with your brakes. During hard braking, weight transfers to the front. A compliant yet firm suspension will manage this weight transfer effectively, preventing excessive nose-dive and maintaining tyre contact with the road, optimising braking efficiency.

Installation and Ongoing Maintenance

While some aftermarket brake kits are designed for relatively straightforward bolt-on installation, it's important to approach the task with caution. If you're not experienced with automotive braking systems, it's always advisable to have a qualified mechanic perform the installation. Proper bleeding of the brake lines is absolutely critical to ensure there's no air in the system, which can lead to a dangerously soft pedal.

Once installed, ongoing maintenance is key. Regularly inspect brake pads for wear, rotors for cracks or warpage, and brake lines for any signs of damage or leaks. Periodically flush and replace your brake fluid according to the manufacturer's recommendations, especially if you engage in spirited driving or track days. This proactive approach will ensure your upgraded braking system continues to perform optimally and safely for years to come.

Frequently Asked Questions (FAQs)

Q1: Do I need to upgrade my master cylinder if I install larger brakes?

A1: It depends on the specific brake kit and your existing master cylinder. Larger calipers often require more fluid volume. While some kits might work with the stock master cylinder, upgrading to a larger bore unit is often recommended for optimal pedal feel and efficiency, especially with significant caliper and rotor upgrades.

Q2: Is cross-drilling worth it for a daily driven F-body?

A2: For a true daily driver, non-drilled rotors are generally recommended. While cross-drilling can offer a slight benefit in initial bite and gas venting, it weakens the rotor and increases the likelihood of cracking under normal street use. Solid-face rotors offer better durability and heat capacity for everyday driving.

Q3: Can I mix and match different brands of front and rear brake components?

A3: While technically possible, it's generally not recommended. Braking systems are designed to work as a balanced unit. Using a matched front and rear kit from a reputable manufacturer ensures proper brake bias and overall system harmony, leading to safer and more predictable braking performance.

Q4: How long does a performance brake kit installation typically take?

A4: For a skilled DIY enthusiast, a complete front and rear bolt-on kit might take 4-6 hours. However, this can vary significantly based on experience, tools available, and any unforeseen issues like rusted bolts. Professional installation might be quicker but will incur labour costs.

Q5: What's the biggest performance gain from upgrading my F-body's brakes?

A5: The most significant gain is dramatically improved stopping power and fade resistance. This translates to shorter stopping distances, more consistent performance under repeated heavy braking, and a much higher level of confidence and control during spirited driving or emergency situations.

Ultimately, upgrading the brakes on your third-generation F-body is one of the most impactful modifications you can make. It not only enhances safety but also unlocks the true performance potential of your classic muscle car, allowing you to drive with greater confidence and control.
