Taking on a Ford 302 Windsor Rebuild: An Amateur's Journey
This article chronicles the initial stages of a Ford 302 Windsor engine rebuild undertaken by two self-proclaimed "amateur" mechanics. Despite a passion for cars and project vehicles, neither individual had prior experience rebuilding an engine from scratch. The subject of their endeavour is a bare 1972 Ford 302 Windsor engine, acquired affordably from a local shop. Their objective is to transform this powerplant into a reliable and enjoyable unit, demonstrating that such a project is achievable for home mechanics with the right guidance and resources. The narrative delves into the realities and unexpected challenges that arise when tackling a rebuild with limited prior experience, highlighting the learning curve involved.
In today's digital age, information is readily accessible, but this abundance can also be a double-edged sword. The internet offers countless methods for achieving any given task, with many presenting themselves as definitive experts. For our amateur builders, this meant sifting through a vast sea of advice to formulate a coherent plan for their Ford 302 Windsor rebuild. The primary challenge was balancing a tight budget with the necessity of performing the job correctly. Early on, it became apparent that their seemingly "clean" 302 block wasn't the ideal starting point they had hoped for. The accompanying invoice suggested a cleaned and magnafluxed block, but a crucial detail emerged: it was already bored .030" over. This immediately necessitated the purchase of new pistons, effectively changing the engine's displacement to 306 cubic inches. This revelation led to the discovery of a fundamental difference in piston and wrist pin design. Accustomed to floating wrist pins, which allow for easier installation and securing with clips or Spirolocks, they encountered the 302's press-fit wrist pins. In this setup, the wrist pin is pressed into the piston, with the pin itself floating within the small-end bushing of the connecting rod. Further complicating matters, the connecting rods had been previously modified by a machine shop. The small-end bushings had been heated and pressed out, making it nearly impossible to accurately match each rod with its original cap. Consequently, their existing pistons were rendered scrap, and the rods were deemed questionable. The final blow came with the crankshaft, which exhibited wear on its journals, noticeable even to the touch. While polishing the crank with a shoelace was a potential DIY fix, it would still require further work and replacement of the entire rotating assembly. The question arose: to what end? Simply to have a Ford 306?
A Strategic Pivot: Embracing the 347 Stroker Kit

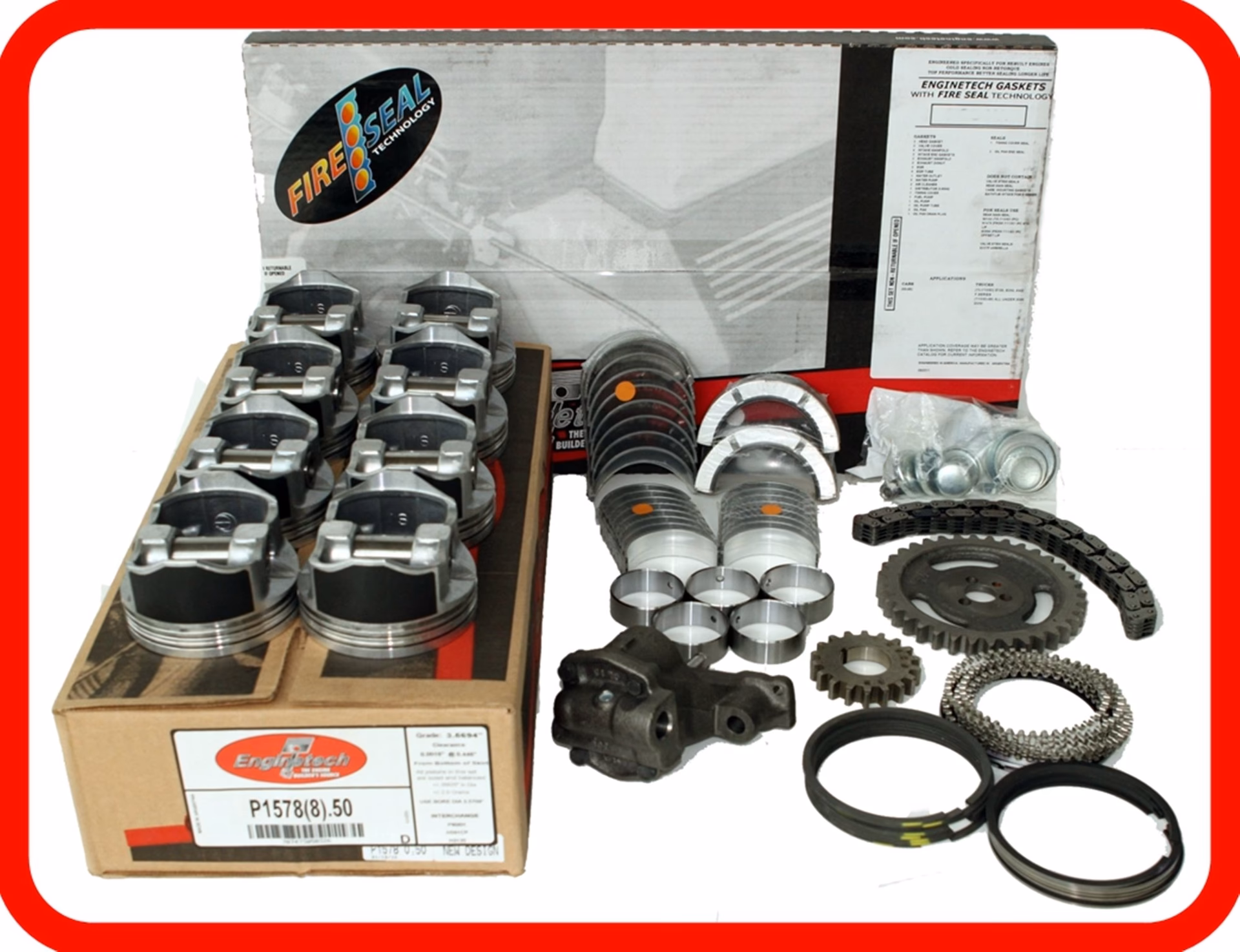

At this juncture, a new and more promising course of action presented itself, one that not only resolved the issues with their rotating assembly but also significantly boosted the power potential of their Windsor V8. This alternative was the adoption of a bargain-priced 347 cubic inch stroker kit. Initially hesitant to deviate from their original concept of a "super basic, dirt-cheap 302 rebuild," the builders were swayed by the compelling advantages of the stroker kit. The most affordable option they found, from Eagle Specialty Products (part number B16422LA030) on Summit Racing, priced at $984.99, offered a comprehensive package. This kit included .030" over hypereutectic aluminium pistons, rings, wrist pins, a cast steel crankshaft, flywheel, external balancer, and all necessary main and rod bearings. Crucially, this upgrade increased the engine's displacement to 347 ci by extending the stroke to 3.400 inches. It also featured the highly desirable floating piston design, eliminating the need for costly press-fitting services and reducing the risk of piston damage during installation. Considering they already needed to replace their pistons with .030" over units and strongly preferred a floating wrist pin assembly (which likely meant new connecting rods anyway), opting for a new, balanced stroker kit made logical sense. This approach promised a more exciting and powerful engine for the final outcome. It's important to note that the 347 stroker isn't for everyone; some enthusiasts express reservations about its rod ratio and the interference of the wrist pin with the oil control ring. However, for these particular builders, the kit aligned perfectly with their skill level, the condition of their existing components, their budget, and the desired performance of their powerplant. For an engine in good condition with a standard bore, a stroker kit might be an unnecessary expense unless increased displacement is a primary goal. Moving forward with the stroker conversion, a key modification required would be notching the bottom of the cylinder bores to provide clearance for the rod bolts on the stroker crankshaft. To fully capitalize on these upgraded components, the builders planned to invest more in their cylinder heads and camshaft than they would have for a standard 306 build, anticipating a significant increase in horsepower as a direct benefit.
Assessing the Block's Condition and Machine Work Requirements
Before delving into the stroker kit, it's essential to address the current state of the engine block and the necessary machine work. While it might have been tempting to simply assemble the engine with new parts, a quick hone, fresh gaskets, and bearings, this would have been a disservice to the reader and a compromise on quality. The builders recognised that their block was not yet ready for assembly and required a trip back to the machine shop. The cylinders had not undergone a final honing process, which is critical for achieving the precise piston-to-bore clearance specified for the chosen pistons. Furthermore, the block needed to be decked (resurfaced to ensure flatness), have its cam bearings installed (a task requiring specialised tools), and undergo a line bore operation. The latter is crucial because the history of the main caps and their alignment was unknown. Their immediate next step was to verify the exact bore size of the cylinders. This information is vital for the machine shop to perform the final hone to the required 4.030 inches. Once this was confirmed, they could order their Summit stroker kit. Following that, they planned to mock up the crankshaft, pistons, and rods to accurately mark the areas of the block that would require clearancing to accommodate the stroker components. Any other necessary block modifications would be completed at this stage before sending the 302 back to the machine shop. The machine shop would then perform decking, line honing, final boring, and cleaning, with the new cam bearings being installed last. This sequence ensures that the block and all its internal oil passages are clean and prepared for final assembly. This detailed process led the builders to question whether their initial "cheap DIY engine rebuild" had strayed from its original premise. However, they concluded that many enthusiasts would likely follow a similar path. They anticipated a robust 347 stroker engine capable of producing approximately 375-400 horsepower and believed that by meticulously addressing these preparatory steps, they were maximising the engine's longevity and reliability. While the budget had to be increased, the outcome was far from a common 302; it was poised to be a 6,000 rpm capable 347 stroker!
Key Considerations for Your Windsor Rebuild:
- Piston Type: Understand the difference between floating and press-fit wrist pins and their implications for assembly and cost.
- Machine Shop Work: Don't underestimate the necessity of professional machining for tasks like honing, decking, and line boring, especially with older or previously modified blocks.
- Stroker Kits: While an added expense, stroker kits can offer a significant performance upgrade and simplify the rebuild process with matched components and floating wrist pins.
- Clearancing: Be prepared to modify the engine block to accommodate the longer stroke and larger components of a stroker kit.
- Budgeting: Factor in the cost of essential machine work and potentially upgraded components when planning your rebuild.
Frequently Asked Questions:
Q1: Can I really rebuild a Ford 302 Windsor as a beginner?A1: Yes, with thorough research, patience, and potentially seeking guidance from experienced individuals or resources, a beginner can successfully rebuild a Ford 302 Windsor. This project highlights that even with initial inexperience, a well-planned approach can lead to a successful outcome. Q2: What are the benefits of a stroker kit for a 302 Windsor?A2: A stroker kit increases engine displacement (e.g., from 302 to 347 ci), which generally leads to more torque and horsepower. Kits often include matched components like pistons, crankshafts, and connecting rods, and frequently feature floating wrist pins for easier assembly. Q3: Is it always necessary to send a block to a machine shop for a rebuild?A3: For optimal results and engine longevity, professional machine work is highly recommended. Tasks like ensuring the block is square, cylinders are correctly honed, and bearing surfaces are true often require specialised tools and expertise. Q4: What is the difference between floating and press-fit wrist pins?A4: Floating wrist pins are not permanently fixed to the piston and can often be installed by hand, secured with clips. Press-fit wrist pins are pressed into the piston, requiring specific tools and procedures for installation and removal. Floating pins are generally preferred for ease of assembly and maintenance.
