Gearbox Oil Change: The Essential DIY Guide

When it comes to vehicle maintenance, engine oil changes are a given for most car owners. However, the same cannot always be said for gearbox oil. Many manufacturers famously claim their gearboxes are 'sealed for life', implying the oil never needs changing. This widespread belief, unfortunately, often leads to premature gearbox failure and costly repairs down the line. In the UK, just like anywhere else, understanding the true lifespan of gearbox oil and the benefits of regular replacement can save you a significant amount of hassle and expense. This guide will delve into why changing your gearbox oil is vital, how often it should be done, and provide a detailed, step-by-step DIY procedure, particularly useful for Peugeot and Citroën BE4/5 gearboxes, though the principles apply broadly to many manual transmissions.

Why Your Gearbox Oil Needs Changing (Despite What They Say)

The notion of a 'sealed for life' gearbox is a convenient marketing slogan, but it starkly contradicts the realities of mechanical wear and tear. A gearbox, like any other mechanical component with moving parts, generates wear debris. Synchromesh rings, for instance, are designed to wear slightly over time, and this microscopic metal debris contaminates the oil. Unlike engine oil, which is regularly filtered, gearbox oil often has limited filtration, relying on a magnet (usually on the drain plug or within the casing) to capture metallic particles. However, not all debris is magnetic, and over time, the abrasive particles can reduce the oil's lubricating properties and even damage delicate seals and bearings.

Furthermore, gearboxes are not truly hermetically sealed. They typically have a ventilation point at the top to allow for pressure equalisation as the oil heats and cools. This vent, while necessary, can allow moisture to enter the system, especially in humid climates or during extreme temperature fluctuations. Water ingress can lead to corrosion and significantly degrade the oil's performance, leading to accelerated wear. Perhaps the biggest threat, however, is leakage. Even a few drops of oil lost per day over several years can deplete the limited volume of oil in a gearbox. Leakage often occurs along drive axle seals or where the gearbox half-shells meet. With only a few litres of oil in total, even minor leaks can quickly lead to critically low levels, causing excessive friction, overheating, and ultimately, catastrophic failure. This is why regular checks of your gearbox oil level – perhaps at every engine oil change – are absolutely crucial, regardless of manufacturer claims.

How Often Should Gearbox Oil Be Changed?

While manufacturers might advise never changing it, seasoned mechanics and automotive enthusiasts strongly recommend otherwise. For most manual gearboxes, an oil change every 60,000 to 100,000 kilometres (approximately 37,000 to 62,000 miles) is a sensible preventative measure. This interval ensures that fresh, uncontaminated oil is lubricating the gears and bearings, protecting against wear and maintaining optimal performance.

Choosing the Right Gearbox Oil

The type of oil you use is just as important as the frequency of changing it. Always refer to your car's owner's manual for the manufacturer's advised oil grade (e.g., GL-4, GL-5, SAE 75W-80, 75W-90). However, beyond the grade, opting for a known brand full-synthetic gearbox oil is generally recommended. Synthetic oils offer superior thermal stability, better lubrication at extreme temperatures, and a longer service life compared to conventional mineral oils.

It's vital to avoid 'friction reducing' oil types or aftermarket additives. Products containing substances like PTFE (as found in some popular engine oil additives like Slick50, which has faced lawsuits over its claims) can be particularly detrimental to gearboxes. While they might seem to reduce friction, PTFE particles do not settle and instead remain suspended in the oil. This prevents the gearbox's internal magnet from trapping metallic wear debris, allowing it to continuously circulate and cause further damage. A worn gearbox cannot be 'fixed' by an additive; it simply requires a professional overhaul or replacement.

Gearbox Oil Change Recommendations

Step-by-Step Guide: Changing Your Gearbox Oil

Changing your gearbox oil is a straightforward task that can be accomplished with basic tools and a bit of patience. This guide is tailored for Peugeot and Citroën vehicles with BE4/5 gearboxes but can be adapted for many other models.

Tools and Materials You'll Need:

• Catch-tank (at least 2 litres capacity)
• 19mm socket wrench
• 8mm square drain plug key (or 21mm socket, depending on plug type)
• New gasket rings for both filler and drain plugs (crucial!)
• Approximately 2 litres of new, recommended gearbox oil (preferably full-synthetic), ideally in bottles with a retractable extension pipe.
• Hydraulic jack and axle stands (two pairs if possible)
• Wheel bolt wrench (brace)
• Cleaning cloths/rags
• Optional: Torque wrench for wheel bolts.

Preparation and Gaining Access:

1. Warm Up the Oil: Take your car for a short drive (10-15 minutes) to bring the gearbox oil temperature up to around 60-70 degrees Celsius. Warm oil is less viscous and will drain much faster and more completely.
2. Loosen Wheel Bolts: While the car is still on the ground, slightly loosen the front left wheel bolts by one turn. This makes removal easier once the car is jacked up.
3. Jack Up the Car: Safely jack up the front of the car. For BE4/5 gearboxes, jacking at the sway-bar clamp is often effective.
4. Secure with Axle Stands: Crucially, never work under a car supported only by a jack. Place sturdy axle stands under the vehicle's official jacking points on both sides. Preferably, place a piece of wood or rubber between the stand and the car to prevent damage. Remove the jack once the car is securely on stands.
5. Remove LHS Wheel: Fully remove the left-hand side front wheel.
6. Remove Sump Guard/Noise Cover (If Fitted): If your car has a plastic 'sump guard' (also known as a noise cover or undertray), you will need to remove it. This typically involves quarter-turning 8 bolts, unclipping the guard from the front transverse beam, and sliding it away.
7. Remove Front Inner Wheel Guard: This step provides better access. Look for two mushroom-shaped, two-piece clips near the shock absorber. Pull out the centrepiece to release them. A third mounting point is usually under the bumper corner, and a fourth at the corner of the front spoiler. Carefully remove the front half of the inner wing, being mindful of your car's paintwork.
8. Remove Sump Guard's LHS Lining: If applicable, you may also need to remove a small lining fixed with two M6 bolts to gain full access.

Pre-Drain Inspection:

While you have access under the car, take a moment to inspect the rubber bush of the torque/reaction arm. This component helps control engine movement. If the rubber is torn, it will need replacing. This repair often requires removing the right drive axle, which means you'd have to drain and refill the gearbox oil *again* later. It's far more efficient to address this now, if necessary, before proceeding with the oil change.

Draining the Old Oil:

1. Locate Filler/Level Hole: The filler/level plug is usually situated just in front of the left drive axle. It's the upper plug you'll be dealing with.
2. Position Catch-Tank: Place your catch-tank directly beneath the gearbox's drain plug. Gearbox oil can splash, especially if it's windy, so ensure the tank is large enough (at least 2 litres) and positioned to catch all the oil. Raising the tank slightly can help prevent spillage.
3. Remove Filler/Level Plug: Clean the area around the filler plug. Using a 19mm socket, carefully remove this plug, along with its alloy gasket. Removing the filler plug first ensures that you can refill the gearbox after draining – you don't want to drain the oil only to find you can't put new oil in!
4. Locate Drain Plug: The gearbox's drain plug is typically at the very bottom of the differential housing's half-shell.
5. Remove Drain Plug and Drain Oil: Clean the area around the drain plug. Use an 8mm square key or a 21mm socket (depending on the plug type) to remove the drain plug. Be extremely careful not to scald your fingers, as the oil will be hot. Allow a good amount of time for the oil to drain completely – this could take 15-30 minutes. The longer you let it drain, the more old, contaminated oil will be removed.

Refilling with New Oil:

1. Refit Drain Plug: Once the old oil has fully drained, clean the drain plug and fit a brand new gasket ring. It's critical to use a new gasket to prevent leaks. Tighten the plug to 'hand-tight plus 1/8th turn'. Do not overtighten, as this can strip the threads or damage the casing.
2. Prepare New Oil: If it's a very cold day, stand your two 1-litre bottles of new gearbox oil in hot water for a while. Warm oil flows much faster and makes refilling easier.

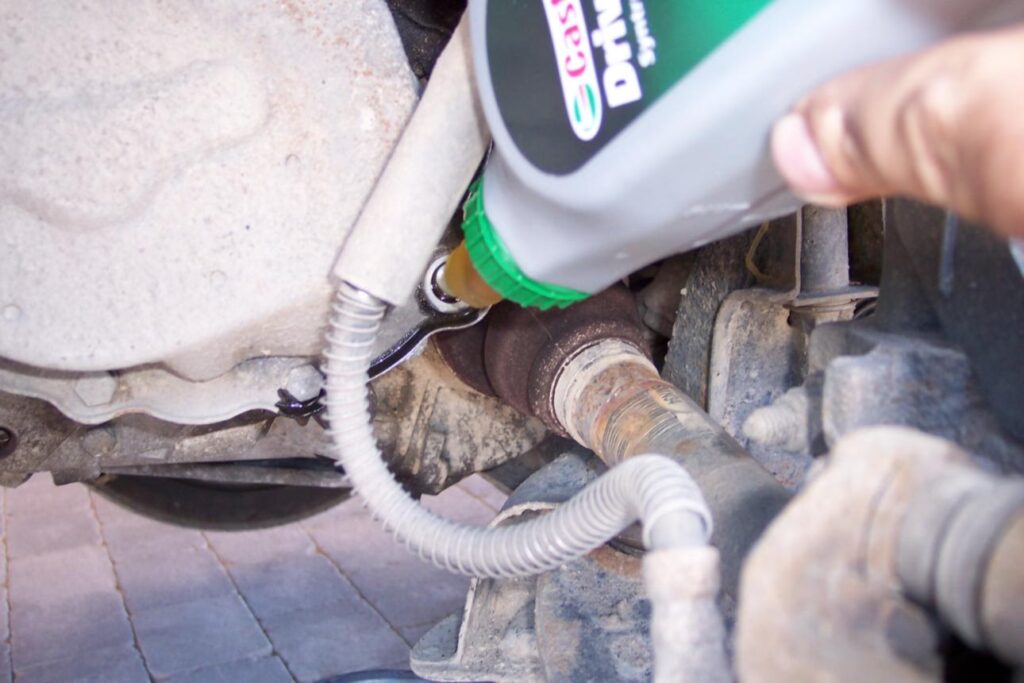

3. Fill the Gearbox: Insert the retractable extension pipe from the first bottle into the filler hole. Squeeze the bottle until it's empty, allowing the oil to flow into the gearbox. Repeat with the second bottle, but keep approximately 100cc (0.1 litres) in the second bottle initially.
4. Achieve Correct Oil Level: The correct oil level for a BE4/5 gearbox is typically around 1.9 litres. Continue to slowly squeeze the remaining oil from the second bottle into the filler hole. The correct level is indicated when excess oil begins to gently overflow from the filler hole. This indicates the gearbox is filled to its proper capacity.
5. Refit Filler Plug: Once the oil starts to overflow, clean the filler plug and fit a brand new gasket ring. Refit the plug and tighten it to 'hand-tight plus 1/8th turn', similar to the drain plug.

Reassembly and Final Checks:

1. Reassemble Components: Reinstall the front half of the inner wing, followed by the sump guard's LHS lining (if removed), and then the main sump guard/noise cover.
2. Refit Wheel: Reattach the front left wheel.
3. Lower Car: Carefully lower the car from the axle stands using your jack.
4. Tighten Wheel Bolts: Once the car is on the ground, fully tighten the wheel bolts to the manufacturer's specified torque, usually around 110Nm (Newton-metres).
5. Check for Leaks: After a few drives, check under the car for any signs of leakage around the drain and filler plugs. A new gasket should prevent this, but it's always wise to double-check.

Frequently Asked Questions About Gearbox Oil

Q: Why do manufacturers claim 'sealed for life' if it's not true?

A: This claim is largely for marketing purposes, to reduce perceived maintenance costs and make the vehicle seem more 'hassle-free' during its warranty period. It also reduces the manufacturer's long-term servicing obligations. However, it ignores the reality of wear and contamination that occurs over the vehicle's actual lifespan, leading to potential premature failure for the unsuspecting owner.

Q: Can I use any gearbox oil?

A: Absolutely not. Always adhere to the specific oil grade (e.g., GL-4, GL-5, 75W-80) recommended in your car's owner's manual. Using the wrong type can lead to poor lubrication, increased wear, and even damage to synchromesh components. While adhering to the grade, choosing a high-quality full-synthetic oil from a reputable brand is highly recommended for superior protection and longevity.

Q: What about 'miracle' additives or friction reducers like Slick50?

A: As discussed, these should generally be avoided for gearboxes. Many contain PTFE or similar compounds that can keep wear debris suspended in the oil, preventing it from being captured by the gearbox's magnet. This effectively turns the oil into an abrasive slurry, accelerating wear rather than reducing it. A worn gearbox needs mechanical repair or overhaul, not a chemical patch.

Q: How much gearbox oil do I need?

A: For Peugeot/Citroën BE4/5 gearboxes, the capacity is typically around 1.9 litres. Always check your specific vehicle's manual for the exact capacity. It's better to have a little extra on hand than to run short during the refill process.

Q: What are the signs of low or bad gearbox oil?

A: Common signs include difficulty shifting gears (especially when cold), a 'crunchy' feeling when engaging gears, unusual noises (whining, grinding) coming from the gearbox, or visible oil leakage under the car. If you experience any of these, check your gearbox oil level and condition immediately.

Q: Is it really worth doing myself, or should I just go to a dealer?

A: While a dealer can perform the service (typically costing around €100 or AU$160), changing gearbox oil is a relatively simple DIY task for those comfortable working on their car. The satisfaction of doing it yourself, the cost savings, and the knowledge that it's done correctly with your chosen oil are all significant benefits. It's perfectly manageable with basic tools and this guide.

Conclusion

Ignoring your gearbox oil is a false economy. The 'sealed for life' myth perpetuated by some manufacturers puts your vehicle at risk of costly repairs. Regular gearbox oil changes, ideally every 60,000 to 100,000 kilometres, using the correct grade of full-synthetic oil, will significantly extend the life of your transmission, maintain smooth gear changes, and prevent issues like excessive wear and leakage. While it might seem like an extra maintenance step, it's a small investment of time and money that offers substantial long-term benefits for your vehicle's health and your peace of mind on the road.
