Toyota 1ZZ Engine: Power, Tuning & Reliability

The Toyota 1ZZ engine is a popular choice for many car owners, celebrated for its blend of efficiency, reliability, and a solid foundation for performance enhancement. This four-cylinder, 1.8-litre powerhouse, part of Toyota's esteemed ZZ engine family, has graced numerous models from the late 1990s through to the early 2010s. Whether you're looking to understand its stock performance or delve into the world of tuning, this guide will provide an in-depth look at what makes the 1ZZ engine a favourite among enthusiasts.

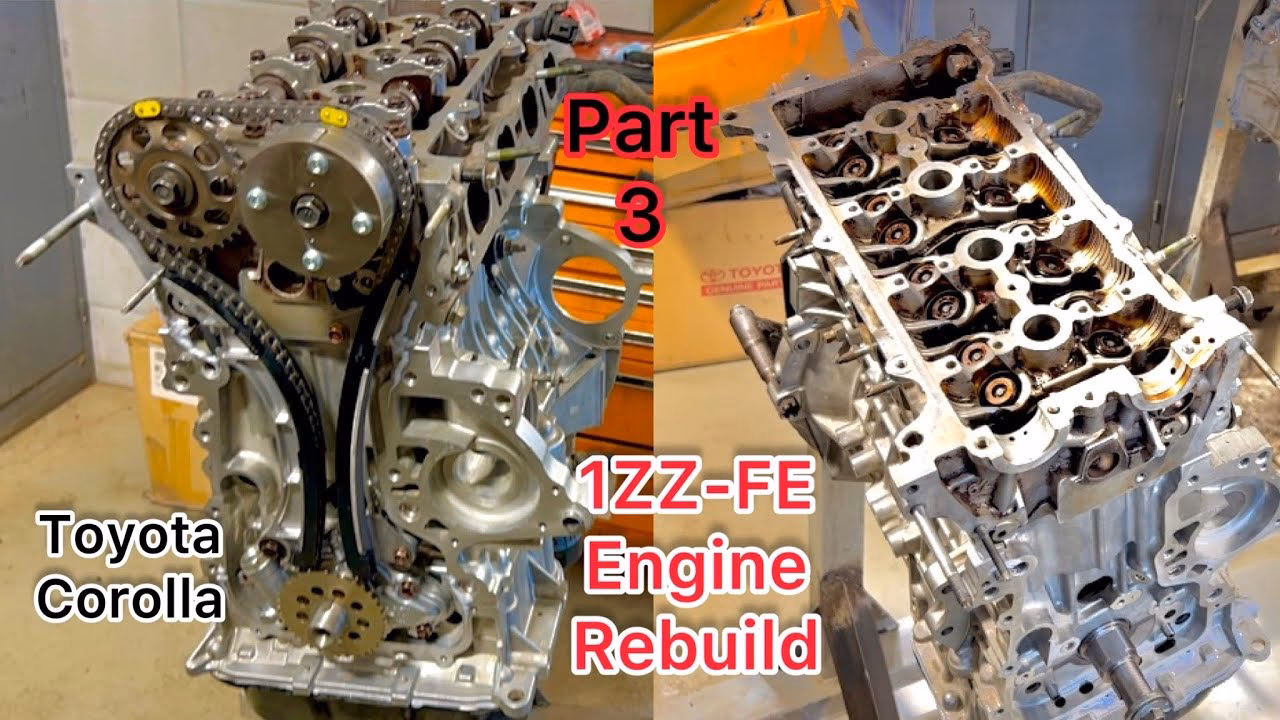

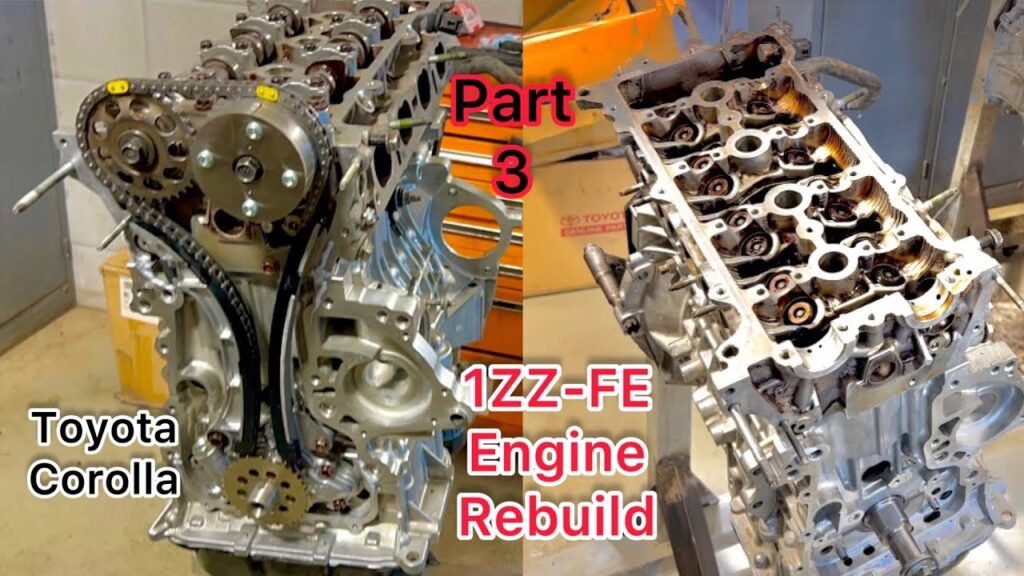

Understanding the 1ZZ Engine: Key Specifications

At its core, the 1ZZ engine is a testament to Toyota's engineering prowess. Its specifications lay the groundwork for its reputation:

• Configuration: A 1.8-litre (1794cc) inline-four cylinder engine.
• Valvetrain: Features a DOHC (Dual Overhead Camshaft) setup.
• VVT-i Technology: Many iterations incorporate Toyota's Variable Valve Timing with Intelligence (VVT-i). This advanced system optimises valve timing for improved performance across the rev range, enhanced fuel economy, and reduced emissions.
• Fuel Delivery: Utilises Multi-Point Fuel Injection (MPFi).

Power Output: What to Expect

The power output of the 1ZZ engine can vary slightly depending on the specific model and the presence of VVT-i. Generally, stock 1ZZ engines produce between 120 to 140 horsepower. The 1ZZ-FE variant typically sits in the 120-130 bhp range with around 122-126 lb-ft of torque. The more advanced 1ZZ-FED, featuring larger intake valves and refined VVT-i, can push this up to 140 bhp at 6,400 rpm and 127 lb-ft of torque at 4,400 rpm. These figures make it a capable engine for everyday driving, offering a smooth and predictable power delivery.

Applications of the 1ZZ Engine

The versatility of the 1ZZ engine saw it fitted into a wide array of Toyota vehicles and even some models from other manufacturers. Its efficiency and reliability made it a go-to for compact and economy cars:

• Toyota Corolla (various trims and markets, including CE, LE, S, VE, Fielder, Runx, Altis)
• Toyota Celica GT
• Toyota Matrix
• Toyota RAV4
• Toyota Avensis
• Toyota Corolla Verso
• Toyota MR2 Spyder
• Chevrolet Prizm
• Pontiac Vibe
• Lotus Elise (in some configurations)

This broad application highlights the engine's adaptability and Toyota's confidence in its design.

Tuning the Toyota 1ZZ: Unleashing More Power

The 1ZZ engine is not just reliable; it's also a fantastic platform for performance tuning. Enthusiasts have found that with carefully selected aftermarket parts and expert tuning, significant gains in power and driving enjoyment can be achieved. The goal of tuning any engine is to improve its breathing, combustion, and exhaust efficiency. For the 1ZZ, this involves several key areas:

1. Camshaft Upgrades

Altering the camshaft profile is one of the most impactful ways to change an engine's power delivery. Fast road camshafts can significantly increase horsepower throughout the RPM range, though they might slightly reduce low-end torque in favour of a stronger top end. Motorsport or race cams offer even greater top-end power but can lead to rougher idling and a noticeable drop in low-end performance, making them less ideal for daily drivers. It’s crucial to match the camshaft duration and lift to your driving style and intended use.

2. ECU Remapping and Fueling

An ECU (Engine Control Unit) remap, or engine tuning, is essential to unlock the full potential of any modifications. It optimises fuel delivery and ignition timing based on the new airflow and combustion characteristics. For naturally aspirated (NA) 1ZZ engines, a remap can yield around a 15% power increase, while turbocharged versions can see gains of up to 30%. If the factory ECU is locked, an aftermarket ECU or a piggyback system might be necessary. Ensuring you have adequate fuel supply is also critical; this means upgrading fuel injectors and potentially the fuel pump to match the increased air and fuel mixture. A general rule of thumb is to increase injector flow rate by 20% over stock to account for wear and provide headroom.

3. Intake and Exhaust Systems

While intake and exhaust modifications alone rarely add significant power on a stock engine, they are crucial for supporting other performance upgrades by reducing restrictions. A performance air filter or a full induction kit can improve airflow. Similarly, a sports exhaust manifold and a less restrictive exhaust system can help the engine exhale more efficiently. When upgrading exhausts, focus on quality materials and optimal diameter (often between 1.5 to 2.5 inches) rather than simply the largest bore, as too large an exhaust can actually reduce flow velocity and power. High-flow catalytic converters are also a good option for improving exhaust flow while remaining road legal.

4. Cylinder Head Work

Porting and polishing the cylinder head, along with fitting larger valves, can dramatically improve airflow into and out of the combustion chambers. This reduces turbulence and restrictions, allowing the engine to breathe more freely and ultimately produce more power. This is often considered a Stage 3 modification and pairs well with more aggressive camshafts and forced induction.

5. Forced Induction (Turbocharging/Supercharging)

Forced induction is the most effective way to significantly increase an engine's power output. Adding a turbocharger or supercharger forces more air into the cylinders, allowing for more fuel to be injected and burned, resulting in substantial power gains. However, this is also one of the most complex and costly upgrades. It requires careful consideration of the engine's internal strength, potentially necessitating upgrades to pistons, conrods, and the crankshaft. Smaller turbochargers spool up quickly, providing immediate boost, while larger units offer more top-end power but can suffer from lag. Modern advancements like variable vane turbos and twin-scroll designs help mitigate lag and improve efficiency.

Tuning Stages for the 1ZZ Engine

To provide a clearer roadmap for tuning, modifications are often categorised into stages:

• Stage 1: Typically includes a fast road camshaft, panel air filters, ECU remapping, a sports exhaust manifold, and a smoothed airbox.
• Stage 2: Builds upon Stage 1 with upgrades like high-flow fuel injectors, a ported and polished cylinder head, an induction kit, a sports catalyst, and a performance exhaust system, along with fuel pump upgrades.
• Stage 3: Encompasses more extreme modifications such as twin-charging conversions, competition camshafts, engine balancing and blueprinting, significant internal engine upgrades (like bigger valves and head porting), adding or upgrading forced induction, and custom piston/crankshaft upgrades to alter the compression ratio.

Fueling Requirements for Increased Power

When increasing performance, ensuring adequate fuel delivery is paramount. The table below illustrates typical injector flow rates required for different power targets on a 4-cylinder engine, assuming 58 PSI of fuel pressure.

Injector Flow Rate vs. Power Output (4-Cylinder Engines)

It is important to select injectors with a flow rate that provides an 80% duty cycle at your target power, allowing for injector wear and a safety margin.

Weak Spots, Issues, and Maintenance

While the 1ZZ engine is renowned for its reliability, like any engine, it has potential weak spots and requires diligent maintenance, especially when modified:

• Carbon Buildup: Carbon deposits can accumulate on the valves and in the combustion chamber, particularly on direct injection engines, though it can affect all engines. This can lead to reduced performance and flat spots. Regular use of quality fuel and occasional engine cleaning additives can help mitigate this.
• ECU Circuit Board Cracks: Some owners have reported issues with the ECU circuit board developing cracks, leading to non-starts, stalling, or transmission problems. This is a known, albeit less common, issue.
• Oil Changes: Regular oil changes with high-quality oil are vital, especially for tuned engines. Oil breaks down under stress and heat, and clean oil is crucial for lubrication, cooling, and the longevity of internal components.
• Tuning Issues: Flat spots or glitches after modifications are usually not a fault of the engine's design but rather an issue with the tuning itself. Proper diagnosis and adjustment are key.

Conclusion

The Toyota 1ZZ engine is a robust and capable powerplant that offers a rewarding experience both in stock form and when modified. Its inherent reliability, coupled with the availability of a wide range of performance parts, makes it an excellent choice for enthusiasts looking to enhance their vehicle's performance. By understanding its specifications, potential power gains, and essential maintenance, you can ensure your 1ZZ engine continues to deliver spirited performance for years to come.
