Gearbox Oil: UK Guide to Choosing the Right One

When it comes to vehicle maintenance, engine oil often takes centre stage, but the unsung hero quietly working behind the scenes is your gearbox oil. This vital fluid is far more than just a lubricant; it’s the lifeblood of your transmission, ensuring smooth gear changes, reducing wear, and protecting intricate components from the immense stresses of daily driving. Choosing the correct gearbox oil is absolutely paramount, and getting it wrong can lead to costly repairs and a significantly shortened lifespan for one of your vehicle's most expensive components.

Think of your gearbox as a complex mechanical dance, with gears, bearings, and synchronisers moving in perfect harmony. Gearbox oil provides the necessary lubrication to prevent metal-on-metal contact, dissipating heat generated by friction, and even cleaning internal components by carrying away contaminants. In certain transmissions, it also acts as a hydraulic fluid, transmitting power and enabling precise clutch engagement. Given its multifaceted role, it's clear why understanding the nuances of gearbox oil selection is crucial for any vehicle owner in the UK.

Why Gearbox Oil is So Important for Your Vehicle

The transmission is a marvel of engineering, converting engine power into usable torque for your wheels. Within its casing, numerous gears mesh, bearings rotate, and synchronisers work tirelessly to allow for seamless gear changes. Without the correct lubrication, these components would quickly grind themselves into oblivion. Here’s a breakdown of the critical functions gearbox oil performs:

• Lubrication: This is its primary role. The oil creates a thin film between moving parts, reducing friction and preventing direct metal-to-metal contact. This minimises wear and tear, extending the life of gears, bearings, and shafts.
• Cooling: Friction generates heat. Gearbox oil absorbs and dissipates this heat, preventing components from overheating and deforming, which can lead to premature failure.
• Cleaning: As the oil circulates, it picks up microscopic metal particles and other contaminants, preventing them from accumulating and causing abrasive wear. These impurities are then typically filtered out or settle in the sump.
• Corrosion Protection: Gearbox oil contains additives that protect internal components from rust and corrosion, especially important in environments where moisture might be present.
• Friction Modification: Particularly in automatic transmissions, the oil plays a critical role in managing friction for clutches and bands, ensuring smooth engagement and disengagement. In manual transmissions, it must allow for just enough friction for synchronisers to work effectively without causing excessive wear.

Using the wrong oil, or oil that has degraded, compromises all these functions, leading to increased friction, excessive heat, accelerated wear, and ultimately, transmission failure.

Understanding Different Gearbox Types and Their Fluid Needs

Before you can even begin to think about oil specifications, it’s essential to identify the type of transmission your vehicle has, as each demands a very specific kind of fluid:

Manual Transmissions (MT)

Manual gearboxes, often found in older and some modern cars, require Manual Transmission Fluid (MTF). These fluids are designed to lubricate gears and bearings while also allowing synchroniser rings to work effectively. Their primary concern is often extreme pressure (EP) protection for hypoid gears.

Automatic Transmissions (AT)

Automatic gearboxes are far more complex, incorporating torque converters, planetary gear sets, and clutch packs. They use Automatic Transmission Fluid (ATF), which serves not only as a lubricant but also as a hydraulic fluid for shifting gears, cooling, and transmitting power. ATFs are highly specialised and vary significantly between manufacturers.

Continuously Variable Transmissions (CVT)

CVTs use a belt or chain running between two variable-diameter pulleys to provide an infinite number of gear ratios. These transmissions require a unique fluid known as CVTF (Continuously Variable Transmission Fluid). CVTF has very specific friction characteristics to prevent slippage of the belt or chain, which would lead to catastrophic failure.

Dual-Clutch Transmissions (DCT / DSG)

Found in many modern performance and efficiency-focused vehicles, DCTs use two separate clutches for odd and even gears. Some are 'wet' (clutches run in oil) and some are 'dry'. Wet-clutch DCTs require highly specialised DCTF (Dual-Clutch Transmission Fluid) or DSG Fluid (for Volkswagen Group vehicles). These fluids need specific friction properties for the clutches and excellent shear stability.

Key Specifications to Consider for Gearbox Oil

Once you know your gearbox type, you need to delve into the specific oil requirements. This is where attention to detail is paramount.

1. The Owner's Manual: Your Definitive Guide

This cannot be stressed enough: your Owner's Manual is the single most important document when choosing any fluid for your vehicle. It will explicitly state the exact type of gearbox oil required, including viscosity grades, API classifications, and crucial OEM Specifications. Do not guess, and do not rely on generic advice from forums or friends. Vehicle manufacturers spend millions on research and development to determine the precise fluid formulations for their transmissions.

2. Viscosity Grade (SAE)

Just like engine oil, gearbox oils have a viscosity rating, typically expressed as an SAE (Society of Automotive Engineers) grade, such as 75W-90, 80W-90, or 75W. The 'W' stands for 'winter' and indicates the oil's flow characteristics at cold temperatures, while the second number represents its viscosity at operating temperature. A multi-grade oil (e.g., 75W-90) performs well across a range of temperatures, offering good cold-start protection and stable lubrication when hot. Always match the recommended SAE viscosity for your specific gearbox.

3. API Service Classification (for Manual Transmission Fluids)

For MTFs, the American Petroleum Institute (API) provides service classifications, primarily GL-1 through GL-5. These classifications indicate the level of extreme pressure (EP) additives present in the oil:

• GL-1: For light service, no EP additives. Rarely seen today.
• GL-4: Contains a moderate amount of EP additives. Suitable for manual gearboxes with brass or bronze synchroniser rings, as higher EP additives can corrode these 'yellow metals'.
• GL-5: Contains a high level of EP additives, designed for hypoid gears operating under severe conditions (e.g., in differentials). While offering superior EP protection, GL-5 oils can be too aggressive for transmissions designed for GL-4, potentially damaging synchronisers due to their sulphur-phosphorus additives reacting with softer metals.
• GL-6: Obsolete.

It is crucial to use the correct API classification. Using a GL-5 where a GL-4 is specified can lead to stiff shifting, premature wear of synchronisers, and eventually, transmission failure.

4. OEM Specifications (Absolutely Critical for Automatic, CVT, and DCT Fluids)

This is arguably the most important factor for automatic, CVT, and DCT fluids. Vehicle manufacturers develop their own proprietary fluid specifications, often with unique additive packages and friction modifiers. Examples include:

• GM: Dexron (e.g., Dexron VI)
• Ford: Mercon (e.g., Mercon LV)
• Chrysler: ATF+4
• Toyota: Type T-IV, WS (World Standard)
• Honda: Z1, DW-1
• Nissan: Matic-D, J, K, S
• ZF: LifeguardFluid (e.g., LifeguardFluid 6, 8)

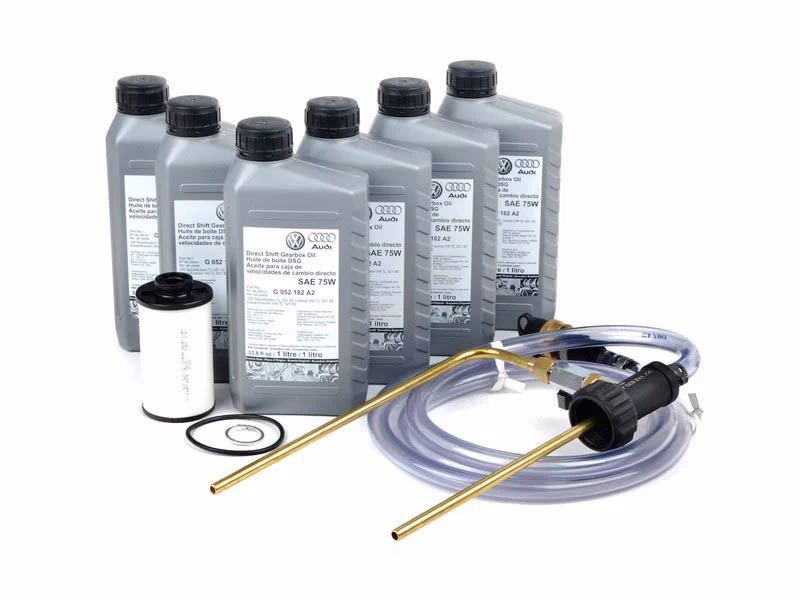

• VW/Audi: G 052 182 A2 (DSG), G 052 529 A2 (CVT)

These OEM Specifications are not interchangeable. A fluid meeting Dexron VI cannot be used in a transmission requiring Mercon LV, even if both are 'automatic transmission fluids'. The precise friction characteristics, viscosity stability, and additive packages are tailored to the specific transmission's design, materials, and operating parameters. Using a fluid that does not meet the exact OEM specification will almost certainly lead to poor shifting, shuddering, overheating, accelerated wear, and ultimately, costly transmission damage or even catastrophic failure.

5. Synthetic vs. Conventional

Gearbox oils, like engine oils, come in conventional (mineral), semi-synthetic, and full synthetic formulations. Synthetic oils generally offer superior performance characteristics:

• Better Temperature Stability: They perform well in extreme hot and cold conditions.
• Improved Shear Stability: They maintain their viscosity better under high stress.
• Longer Service Life: They resist oxidation and breakdown for longer periods.
• Enhanced Protection: Often provide better wear protection.

While synthetics often come at a higher price point, their benefits can justify the cost, particularly for modern, complex transmissions or vehicles operating under severe conditions (e.g., heavy towing, performance driving). However, always ensure that any synthetic oil you choose still meets all the specific OEM and API requirements for your vehicle.

Consequences of Using the Wrong Gearbox Oil

The risks associated with using incorrect gearbox oil are substantial and can lead to significant financial outlay:

• Poor Shifting: You might experience stiff, notchy, or delayed gear changes in a manual, or harsh shifts, slipping, or hesitation in an automatic.
• Increased Noise: Whining, grinding, or clunking sounds from the gearbox are clear indicators of improper lubrication or excessive wear.
• Overheating: Incorrect oil may not dissipate heat effectively, leading to overheating of transmission components and fluid breakdown.
• Premature Wear: Gears, bearings, and synchronisers will wear out much faster due to insufficient lubrication or corrosive additives.
• Seal Degradation: Certain oil formulations can react negatively with transmission seals, causing them to harden, shrink, or swell, leading to fluid leaks.
• Complete Transmission Failure: In severe cases, particularly with automatic, CVT, or DCT transmissions, the wrong fluid can quickly lead to irreversible internal damage, necessitating a complete transmission rebuild or replacement, which can easily cost thousands of pounds.

When to Check and Change Your Gearbox Oil

Unlike engine oil, gearbox oil generally has much longer service intervals. Some manufacturers even claim their transmissions are 'sealed for life', implying the fluid never needs changing. However, this often refers to the expected life of the first owner or the vehicle's warranty period. Many independent mechanics and transmission specialists in the UK recommend proactive fluid changes, especially for automatic transmissions, typically between 60,000 to 100,000 miles, or more frequently if you do a lot of stop-start driving, heavy towing, or performance driving. For manual transmissions, intervals can be even longer, but checking the fluid level and condition periodically is still wise.

Always consult your owner's manual for the manufacturer's recommended service schedule. If you notice any signs of gearbox trouble (difficulty shifting, strange noises, leaks), get it inspected by a qualified professional immediately.

Comparative Guide: Key Gearbox Fluid Types

Frequently Asked Questions About Gearbox Oil

Q: Can I mix different brands of gearbox oil if they meet the same specification?

A: While oils from different brands might technically meet the same OEM or API specification, it is generally not recommended to mix them. Different manufacturers use proprietary additive packages, and mixing them could potentially lead to unforeseen chemical reactions, reduced performance, or even the formation of deposits. For top-ups, it's best to use the exact same brand and type if possible. If you are performing a full fluid change, stick to a single, reputable brand that meets all the required specifications.

Q: How often should I check my gearbox oil level?

A: The frequency of checking depends on your vehicle. Many modern cars, particularly those with automatic transmissions, do not have a dipstick for checking gearbox fluid. The level is often checked by a professional during servicing via a specific fill plug. If your manual gearbox has a dipstick, consult your owner's manual for the recommended checking procedure and interval. If you suspect a leak, or experience any unusual shifting behaviour or noises, it's wise to have the level and condition checked by a qualified mechanic immediately.

Q: What are the signs of low or incorrect gearbox oil?

A: Key indicators include difficulty shifting gears (notchy or stiff in manuals, delayed or harsh in automatics), unusual noises such as whining, grinding, or clunking coming from the transmission, a burning smell (indicating overheating), or visible fluid leaks under your vehicle. For automatics, you might also notice delayed engagement into drive or reverse, or the car struggling to move when cold. Any of these signs warrant immediate investigation.

Q: Is synthetic gearbox oil always better than conventional?

A: Synthetics generally offer superior performance, especially in extreme temperatures (both hot and cold), better shear stability, and a longer service life due to their resistance to oxidation and thermal breakdown. They can provide enhanced protection and potentially contribute to smoother operation. However, 'better' is conditional: a synthetic oil that does NOT meet your vehicle's exact OEM specifications is worse than a conventional oil that does. Always prioritise meeting the correct specification first, then consider synthetic for its added benefits if available and compatible.

Q: My gearbox is 'sealed for life.' Does that mean I never need to change the oil?

A: The term 'sealed for life' is often misleading. It typically means the fluid is expected to last for the projected lifespan of the vehicle's first owner, or for the duration of its warranty period, which might be 100,000 to 120,000 miles. However, gearbox oil, especially in automatics, degrades over time and with use. Many transmission specialists strongly recommend changing the fluid, even in 'sealed for life' units, particularly if you plan to keep the vehicle for an extended period, or if it operates under severe conditions like heavy traffic, towing, or performance driving. Regular fluid changes are cheap insurance against expensive transmission repairs.

Conclusion

Choosing the correct gearbox oil is a critical aspect of vehicle maintenance that should never be overlooked. The subtle differences between fluid types and specifications can have profound impacts on your transmission's performance and longevity. Always refer to your Owner's Manual as the ultimate authority, adhere strictly to OEM specifications, and understand the implications of API classifications and viscosity grades. Investing a little time and effort in selecting the right fluid now can save you significant expense and frustration down the line, ensuring your vehicle's gearbox continues to operate smoothly and reliably for many years to come.
