Unravelling the Mystery of Clock Suspension Springs

For anyone who appreciates the intricate mechanics of a traditional clock, the suspension spring is a component that often goes unnoticed, yet its role is absolutely paramount. This delicate strip of metal, often thinner than a human hair, is the unsung hero that allows the pendulum to swing freely and consistently, directly influencing the accuracy and very operation of your cherished timepiece. Without the correct suspension spring, even the most exquisitely crafted clock movement would be rendered useless, unable to keep time with any reliability.

Understanding the function and types of these springs is crucial for anyone involved in clock maintenance, repair, or simply for owners who wish to appreciate the engineering marvel that sits in their living room. Unlike many other mechanical components, the suspension spring is not subject to significant wear and tear from friction, but rather from repeated flexing and, crucially, external forces or improper handling. Its precise dimensions and material properties are meticulously calibrated to work in harmony with the pendulum's weight and length, forming the heart of the clock's timekeeping mechanism.

What Exactly is a Clock Suspension Spring?

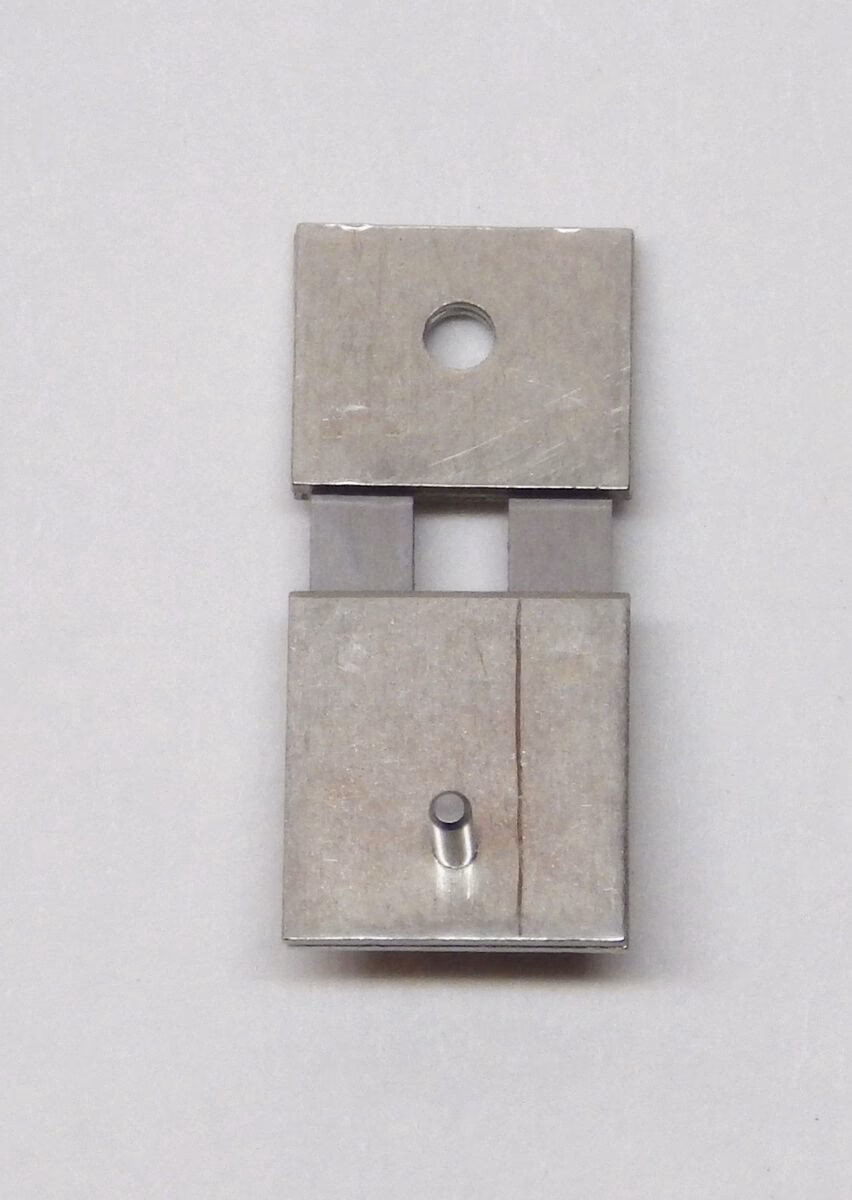

At its core, a clock suspension spring is a thin, flexible strip of spring steel, or sometimes a specialised alloy, from which the pendulum of a mechanical clock is suspended. It is typically clamped at both ends: one end is affixed to the clock's movement, and the other end holds the pendulum rod. Its primary function is to allow the pendulum to swing with minimal friction and maximum regularity. The spring's flexibility ensures that the pendulum can oscillate freely, while its inherent stiffness provides the necessary restoring force to keep the pendulum swinging in a consistent arc. This seemingly simple component is critical because any deviation in its properties – such as stiffness, length, or material – will directly impact the pendulum's period of oscillation, and thus the clock's accuracy.

The design of the spring is such that it allows the pendulum to swing in a single plane, preventing any unwanted lateral movement that could introduce errors. The material choice is also vital; it must be resistant to fatigue from constant flexing, maintain its elastic properties over a wide range of temperatures, and be non-magnetic to avoid interference with the clock's escapement mechanism. A well-chosen and correctly installed suspension spring is the foundation upon which accurate timekeeping is built.

The Common Types of Suspension Springs

When it comes to replacing a clock suspension spring, you'll quickly discover that there are various types available, though one style tends to dominate the market due to its widespread applicability and reliability. By and large, suspension spring A is the most common style of suspension spring found in a vast array of mechanical clocks. It's often considered the default choice because its design is versatile enough to accommodate a wide range of clock sizes and movements. If you're unsure about what type of spring your clock needs, and you have the old one for comparison, chances are it will bear a strong resemblance to a 'Type A' spring.

Within the 'Type A' category, there are further distinctions, primarily based on size and strength, to cater to different clock dimensions and pendulum weights:

• Suspension Spring A1: As a general rule of thumb, smaller mantle clocks, often referred to as mantel clocks in the UK, typically utilise suspension A1. These clocks have lighter pendulums and more compact movements, requiring a spring that is proportionally smaller and less robust. Using a larger or stiffer spring in a mantle clock could impede the pendulum's natural swing, leading to erratic timekeeping or even causing the clock to stop altogether.
• Suspension Spring A2: This size is commonly found in wall clocks and smaller grandmother units. These clocks feature larger and heavier pendulums than their mantle counterparts, necessitating a slightly longer and stronger spring to support the increased weight and allow for a wider, more stable arc of swing. The A2 spring provides the necessary support and flexibility without being overly stiff, which could otherwise put undue stress on the delicate escapement mechanism.

It's important to recognise that while these are the most common distinctions, there can be subtle variations even within these categories. The key is always to match the replacement spring as closely as possible to the original in terms of length, width, and thickness, as these dimensions are critical for the clock's proper function.

Identifying the Correct Suspension Spring for Your Clock

The golden rule for identifying the correct suspension spring is simple: if the old suspension spring looks similar to the replacement, then it's very likely the right one. However, 'similar' can be subjective, and precision is paramount in clock repair. Here's a more detailed approach to ensure you get the right fit:

• Visual Comparison: Place the old spring next to the new one. Pay close attention to the overall length, the width of the spring blade itself, and the size and shape of the loops or mounting holes at each end. Even a slight difference can impact performance.
• Measure Precisely: If possible, use a digital caliper to measure the exact dimensions of the old spring. Key measurements include:
  • Overall Length: From the tip of one end to the tip of the other.
  • Blade Length: The length of the flexible part of the spring, excluding the end blocks.
  • Blade Width: The width of the thin metal strip.
  • Blade Thickness: This is often the most critical and hardest to measure without specialist tools, but it dictates the spring's stiffness. Even a tiny difference can have a significant effect.
  • Block Dimensions: The size and shape of the brass or metal blocks at each end of the spring where it attaches to the movement and pendulum rod.
• Consider the Clock Type: As mentioned, small mantle clocks typically take A1, while wall clocks and smaller grandmother units will take A2. This general rule of thumb can guide your initial selection. For larger grandfather clocks, there might be specific, more robust suspension springs, though they still often follow the 'A' type design principles.
• What if the Old Spring is Missing or Damaged Beyond Recognition? This is a common predicament. In such cases, you'll need to rely on the clock's movement type and the pendulum's characteristics. Consult clock repair manuals, online forums, or, ideally, a professional clockmaker. They often have charts or experience that can help deduce the correct spring based on the clock's make, model, and the weight/length of its pendulum. Sometimes, the size of the slot in the suspension block (the part of the movement where the spring attaches) can give clues to the required spring width.

Remember, the suspension spring is a precision component. It's not a generic part where 'close enough' will suffice. An incorrectly sized or tensioned spring will lead to inaccurate timekeeping, and in some cases, could even damage the clock's escapement over time due to undue stress.

The Critical Importance of the Correct Spring

The seemingly insignificant suspension spring holds the key to your clock's accuracy and longevity. Its precise dimensions are fundamental to the rhythmic beat that defines a clock's operation. Here's why getting it right is so crucial:

• Timekeeping Accuracy: The most immediate impact of an incorrect spring is on the clock's accuracy. If the spring is too stiff, it will cause the pendulum to swing faster, making the clock run fast. Conversely, if it's too weak or too long, the pendulum will swing slower, causing the clock to lose time. Clocks are designed to be regulated within very fine tolerances, and the suspension spring is a core part of this delicate balance.
• Stress on the Movement: An ill-fitting spring can place undue stress on the clock's delicate escapement mechanism. If the spring is too stiff, it can overload the escape wheel and pallets, leading to premature wear on these critical components. If it's too flimsy, it might not adequately support the pendulum, causing instability and inconsistent impulses from the escapement. This can significantly shorten the lifespan of the entire clock movement.
• Pendulum Stability: The spring ensures the pendulum swings in a consistent, straight arc. An incorrect spring might allow the pendulum to wobble or swing eccentrically, leading to inconsistent timekeeping and potential damage as the pendulum bob could strike other parts of the clock case or movement.
• Longevity of the Clock: By ensuring the clock runs efficiently and without undue stress, the correct suspension spring contributes directly to the overall longevity of the timepiece. It's a small investment that protects a much larger and more valuable asset.

General Installation Tips and Precautions

Replacing a suspension spring is a delicate operation that requires patience and a gentle touch. Here are some general tips:

• Cleanliness is Key: Ensure your hands are clean, and work on a clean, well-lit surface. Fingerprints and dirt can leave residues that might affect the spring's performance or cause corrosion over time.
• Handle with Care: Suspension springs are incredibly thin and can be easily bent, kinked, or broken. Always handle them by the end blocks, avoiding touching the flexible blade itself. Use fine-tipped tweezers if necessary.
• Observe the Original: Before removing the old spring, carefully observe how it is installed. Note which end attaches to the movement's suspension post and which end holds the pendulum rod.
• Secure Attachment: Ensure both ends of the new spring are securely seated in their respective clamps or slots. Any looseness can lead to inaccurate timekeeping or the spring dislodging.
• Avoid Twisting: Make sure the spring blade is perfectly flat and untwisted once installed. A twisted spring will introduce errors into the pendulum's swing.
• Don't Force It: If the spring doesn't seem to fit, do not force it. Re-check your measurements and ensure you have the correct type. Forcing it will almost certainly damage the spring or the clock movement.

Troubleshooting Common Issues Related to Suspension Springs

Many common clock problems can be traced back to the suspension spring. Here are a few scenarios and how they relate:

• Clock Stopping: If your clock suddenly stops, especially after being moved or bumped, first check the suspension spring. It might have become dislodged from its clamps, or, in rare cases, it might have broken. A kinked or bent spring can also prevent the pendulum from swinging freely.
• Inaccurate Timekeeping (Fast/Slow): As discussed, this is the most common symptom of an incorrect or faulty suspension spring. If the clock suddenly starts running significantly fast or slow, and regulation attempts (adjusting the pendulum bob) don't resolve the issue, the spring's integrity or suitability might be compromised.
• Pendulum Not Swinging: If the pendulum is correctly hung but doesn't swing when given a gentle push, the suspension spring might be binding, kinked, or completely broken.
• Audible Clicking or Grinding: While less common for the spring itself, if the spring is bent or installed incorrectly, it might cause the pendulum rod to rub against other parts of the movement or case, leading to unusual noises.

Comparative Table: Common Suspension Spring Types

Here's a quick reference for the most common 'Type A' suspension springs and their typical applications:

Frequently Asked Questions (FAQs)

Can I use a different size suspension spring if I can't find the exact match?

It is strongly advised against using a different size suspension spring. The dimensions (length, width, thickness) and material properties are precisely engineered for your specific clock's pendulum and movement. Using an incorrect spring will inevitably lead to inaccurate timekeeping, put undue stress on the clock's escapement, and could potentially cause long-term damage. Always strive for an exact match.

How often should I replace my clock's suspension spring?

A suspension spring does not typically require routine replacement unless it is damaged or broken. Unlike other parts that wear from friction, the spring is designed for millions of flex cycles. However, improper handling, accidental bending, or sudden impacts can damage it. If your clock is experiencing persistent timekeeping issues despite regulation, or if the spring appears visibly bent or kinked, then replacement is necessary.

What causes a suspension spring to break?

The most common causes for a suspension spring to break are improper handling during transport (especially if the pendulum is not secured), accidental bending or kinking during maintenance, or fatigue over many decades of continuous operation (though this is less common than accidental damage). Sudden impacts or dropping the clock can also cause the spring to snap.

How do I know if my suspension spring is faulty or needs replacing?

The primary indicators are the clock stopping intermittently, running consistently fast or slow despite attempts at regulation, or if you can visually see that the spring is bent, kinked, or has a visible crack. If the pendulum appears to be swinging unevenly or binding, the spring could also be the culprit.

Is replacing a suspension spring a DIY job, or should I hire a professional?

For individuals with a steady hand, good eyesight, and some mechanical aptitude, replacing a suspension spring can be a DIY job, especially if the old spring is intact and provides a clear guide. However, given the delicate nature of the component and its critical role in the clock's accuracy, if you are at all unsure, or if the old spring is missing/severely damaged, it is highly recommended to consult a professional clockmaker. They have the experience, tools, and access to a wider range of springs to ensure the job is done correctly.

In conclusion, the clock suspension spring, though small and often overlooked, is a marvel of engineering that underpins the very essence of accurate mechanical timekeeping. Understanding its types, how to identify the correct one, and its critical importance will not only aid in the maintenance of your treasured timepiece but also deepen your appreciation for the intricate world of horology. Always handle this component with the utmost care, and remember that a precisely matched suspension spring is the secret to a clock that ticks reliably for generations to come.
