Gearbox Oil Change: Your SEAT Leon (1M1) Guide

Maintaining your SEAT Leon Hatchback (1M1) is paramount for its longevity and performance, and often, the gearbox can be an overlooked component. The manual gearbox relies on clean, high-quality oil to lubricate its intricate moving parts, ensuring smooth gear changes and preventing excessive wear. Over time, this oil degrades, becomes contaminated with metallic particles, and loses its lubricating properties, leading to stiff shifts, increased friction, and potential damage. Replacing your gearbox oil at the recommended intervals is a straightforward yet crucial maintenance task that can significantly extend the life of your transmission and keep your Leon driving as it should.

This guide will walk you through the process of changing the manual gearbox oil on your SEAT Leon Hatchback (1M1), covering everything from preparation to post-replacement checks. While the general principles apply, remember that specific designs might have slight variations, so always consult your vehicle's service manual for exact torque specifications and fluid capacities.

Understanding the Importance of Gearbox Oil

Think of gearbox oil as the lifeblood of your transmission. Its primary functions include lubricating gears, bearings, and synchronisers, dissipating heat, and carrying away debris. Without proper lubrication, metal-on-metal contact would quickly lead to overheating, grinding, and eventual failure. Signs that your gearbox oil might need attention include:

• Difficulty engaging gears, especially when cold.
• Grinding noises during shifts.
• A general 'notchy' or stiff feeling in the gear lever.
• Unusual noises coming from the transmission while driving.

Even if you don't experience these symptoms, preventative maintenance is key. Regular replacement ensures your gearbox operates at peak efficiency, providing that characteristic smooth driving experience you expect from your SEAT Leon.

Recommended Replacement Interval

For the SEAT Leon Hatchback (1M1) range, the recommended replacement interval for transmission fluid is approximately 30,000 km. This applies to various models within the 1M1 series, including but not limited to the SEAT Leon Hatchback (1M1) 1.8 20V T 4, SEAT Leon Hatchback (1M1) 2.8 Cupra 4, SEAT Leon Hatchback (1M1) 1.9 TDI Syncro, and SEAT Leon Hatchback (1M1) 1.9 TDI. While 30,000 km is a general guideline, driving conditions such as frequent stop-and-go traffic, towing, or performance driving might necessitate more frequent changes. Always refer to your vehicle's owner's manual or a certified SEAT service schedule for the most accurate information specific to your engine and transmission code.

Tools and Materials Required

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.

Step-by-Step Guide to Gearbox Oil Replacement

1. Preparation and Vehicle Levelling

Safety is paramount when working under any vehicle. Start by parking your SEAT Leon on a flat, solid surface. Engage the handbrake and place wheel chocks behind the rear wheels (if lifting the front) or in front of the front wheels (if lifting the rear). For best results, it's advisable to warm up the gearbox oil slightly by driving the car for 10-15 minutes. Warmer oil flows more easily, ensuring a more complete drain.

Next, you need to lift the car. You can use a hydraulic jack and securely support the vehicle on robust jack stands, ensuring it's stable. Alternatively, if you have access to an inspection pit or a vehicle lift, these provide excellent access and safety. A critical point to remember is that the vehicle must be on an even keel. If the vehicle is at an angle, the drain plug must be at the lowest point to allow for complete drainage. An uneven vehicle can lead to incomplete drainage or inaccurate refilling, impacting gearbox precision and longevity.

2. Locating and Opening the Fill Plug First

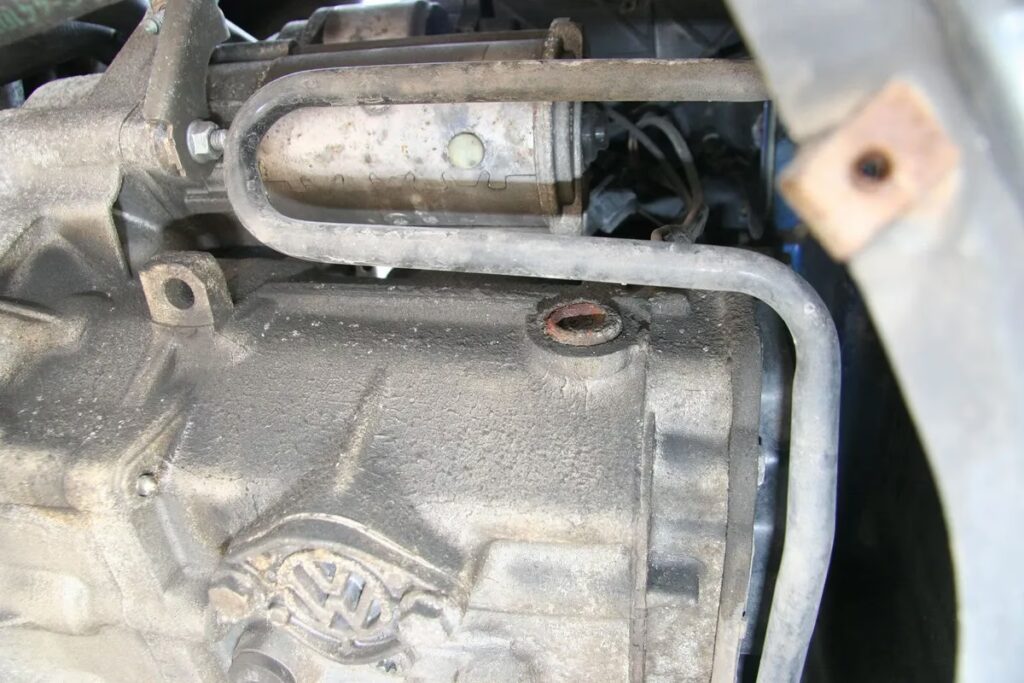

Before you even think about draining the old oil, locate and loosen the fill plug. This is a crucial step. If you drain the oil first and then discover you can't open the fill plug (which can be seized), you'll be left with a car that cannot be moved. The fill plug is typically located on the side of the gearbox, higher up than the drain plug. It usually requires a large Allen key or a specific square drive. Once loosened, you can proceed to the next step.

3. Draining the Old Gearbox Oil

Place your drain pan directly underneath the gearbox drain plug. The drain plug is usually located at the lowest point of the gearbox casing. Carefully loosen and remove the drain plug. The old oil will likely be dark and thick, so be prepared for it to flow out quickly. Allow sufficient time for all the old oil to drain completely. This can take anywhere from 15 to 30 minutes, especially if the oil is cold. While the oil is draining, inspect the drain plug and its washer. Many drain plugs have a magnetic tip designed to capture metallic particles; clean off any debris you find. It's often recommended to replace the washer or seal on the drain plug to ensure a leak-free seal upon reinstallation.

4. Reinstalling the Drain Plug

Once the oil has fully drained, clean the area around the drain plug opening. Reinstall the drain plug with a new washer (if applicable). Tighten the drain plug to the manufacturer's specified torque using your torque wrench. Overtightening can strip threads, while undertightening can lead to leaks. This is where consulting your SEAT Leon's service manual for the exact torque specification is invaluable.

5. Refilling with New Gearbox Oil

Now, it's time to add the fresh gearbox oil. This is where a funnel with a long, flexible hose or a fluid pump comes in handy, as access to the fill hole can be tight. Ensure you are using the correct type and viscosity of gearbox oil for your SEAT Leon 1M1, as specified in your owner's manual. Using the wrong type can lead to poor lubrication and premature wear. Slowly pump or pour the new oil into the fill hole until it starts to trickle out of the fill hole. This indicates that the gearbox is full. The fill plug is typically positioned so that when oil starts to come out, the gearbox is at its correct level.

6. Reinstalling the Fill Plug and Final Checks

Once the oil begins to trickle out, quickly reinstall the fill plug. Again, tighten it to the manufacturer's specified torque. Clean up any spilled oil with rags. Lower your SEAT Leon safely off the jack stands or lift. Perform a visual inspection underneath the car to check for any leaks around both the drain and fill plugs. Start the engine and cycle through all the gears a few times while stationary to help circulate the new oil. Finally, take your SEAT Leon for a short test drive to ensure everything feels smooth and normal. Listen for any unusual noises and check for leaks again after the drive.

Important Considerations and Tips

• Oil Type: The single most important factor is using the correct type of manual gearbox oil. SEAT Leon (1M1) models typically require a specific GL (Gear Lubricant) rating and viscosity. Always verify this in your owner's manual.
• Disposal: Never pour used oil down the drain. Collect the old oil in a sealed container and take it to an authorised recycling centre or garage that accepts used automotive fluids.
• Cleanliness: Maintain meticulous cleanliness throughout the process to prevent contaminants from entering the gearbox.
• Safety First: Always prioritise safety. Never work under a car supported only by a jack. Use sturdy jack stands and wheel chocks.
• Model Variations: As mentioned, steps may slightly vary depending on the car design. Some models might have a level check plug separate from the fill plug, or different plug types. Always cross-reference with your specific model's service manual.

Common Questions About Gearbox Oil Replacement

Q: What kind of gearbox oil does my SEAT Leon (1M1) manual transmission need?

A: The specific type and viscosity (e.g., 75W-90, 75W-80) and API GL rating (e.g., GL-4 or GL-5) are crucial. This information is always found in your SEAT Leon's owner's manual. Using the wrong oil can cause shifting problems and premature wear.

Q: How often should I change my manual gearbox oil?

A: For the SEAT Leon Hatchback (1M1), the recommended interval is typically around 30,000 km. However, if you experience harsh driving conditions (heavy loads, frequent short trips, extreme temperatures), consider changing it more frequently.

Q: Can I replace manual gearbox oil myself, or do I need a mechanic?

A: For a mechanically inclined individual with the right tools and a commitment to safety, replacing manual gearbox oil is a manageable DIY task. If you're unsure or uncomfortable working under a car, it's always best to consult a professional mechanic.

Q: What are the signs of low or bad gearbox oil?

A: Common signs include difficulty shifting gears (especially when cold), grinding noises when shifting, a 'notchy' feeling in the gear lever, or whining/humming noises from the transmission while driving. Leaks around the gearbox casing are also a clear indicator of a potential low oil level.

Q: Is automatic transmission fluid replacement similar to manual gearbox oil?

A: No, the procedures, fluid types, and intervals for automatic transmissions are significantly different and often much more complex. This guide specifically pertains to manual gearbox oil replacement for the SEAT Leon (1M1).

By following this guide and adhering to the recommended maintenance schedule, you'll ensure your SEAT Leon Hatchback (1M1)'s manual gearbox remains in excellent condition, providing reliable and smooth performance for many more miles to come. This proactive approach saves you money in the long run by preventing costly repairs and enhancing your driving experience.
