VW Golf Mk6 Brake Disc Replacement Guide

Your Volkswagen Golf Mk6, a popular and reliable hatchback, relies heavily on a robust and responsive braking system. Over time, like all wear-and-tear components, the brake discs and pads will degrade, impacting stopping power and safety. This guide will walk you through the process of replacing the brake discs on your Golf Mk6, a task that, while requiring some mechanical aptitude, can be a rewarding DIY project. It's crucial to replace brake discs in complete sets for each axle, regardless of their current condition, to ensure even braking and optimal performance. This procedure is identical for both discs on the same axle, and it's always recommended to replace the brake pads simultaneously with the discs. All work should be carried out with the engine stopped for safety.

When to Replace Your Brake Discs

Several indicators suggest it's time for new brake discs:

• Squealing or Grinding Noises: High-pitched squeals or a metallic grinding sound when braking are classic signs of worn pads or discs.
• Reduced Braking Performance: If you notice your car taking longer to stop or requiring more pressure on the brake pedal, your discs and pads may be worn.
• Vibration or Pulsation: A shuddering sensation through the steering wheel or brake pedal during braking often indicates warped brake discs.
• Visual Inspection: Look for deep grooves, scoring, or a significant lip on the outer edge of the discs. A minimum thickness is usually stamped on the disc hub; if they are close to or below this, replacement is necessary.

Tools and Materials You'll Need

Before you begin, gather the following essential tools and parts:

Parts:

• New brake discs (for both front and rear axles, if replacing all)
• New brake pads (for both front and rear axles)
• Brake cleaner
• High-temperature brake lubricant/grease
• Wire brush
• New brake pad retaining clips (often supplied with new pads)

Tools:

• Jack and jack stands
• Wheel brace or torque wrench with appropriate socket
• Socket set and wrenches (metric sizes, typically 13mm, 15mm, 17mm, 19mm)
• C-clamp or brake caliper piston compressor tool
• Torque wrench (essential for reassembly)
• Flathead screwdriver
• Hammer
• Safety glasses
• Gloves
• Wheel chocks

Step-by-Step Guide: Front Brake Disc Replacement

The process for the front axle is detailed below. Remember, the procedure is mirrored for the other side.

1. Preparation and Safety

1. Park your Golf Mk6 on a level surface and engage the handbrake firmly. Place wheel chocks behind the rear wheels for extra security.
2. Loosen the wheel nuts on the wheel you'll be working on (usually the front passenger side first) by about half a turn. Do not remove them completely yet.
3. Using your jack, lift the front of the car at the designated jacking point. Consult your owner's manual for precise locations.
4. Place a sturdy jack stand under a strong point of the chassis or subframe to support the vehicle. Lower the car gently onto the jack stand. Ensure the vehicle is stable before proceeding.
5. Remove the wheel nuts completely and take off the wheel.

2. Accessing the Brake Caliper

1. Locate the brake caliper assembly that sits over the brake disc.
2. You'll need to remove the caliper to access the brake disc. The caliper is typically held in place by two bolts, often referred to as caliper slider pins or guide bolts. These are usually located on the back of the caliper.
3. Use the appropriate socket (often 13mm or 15mm) to loosen and remove these two bolts. You might need to hold the caliper bracket with another wrench to prevent it from turning.
4. Once the bolts are removed, you should be able to gently pivot the caliper upwards or remove it entirely. If it's stuck, a light tap with a rubber mallet might help. Never let the caliper hang by the brake hose; use a piece of wire or bungee cord to suspend it safely from the suspension.

3. Removing the Old Brake Pads

1. With the caliper out of the way, you'll see the old brake pads seated in the caliper bracket.
2. The pads are usually held in place by retaining clips or pins. These can often be pulled out with pliers or a flathead screwdriver. Some systems use a small split pin that needs to be driven out.
3. Carefully remove the old brake pads from the caliper bracket. Note their orientation.

4. Compressing the Caliper Piston

The new, thicker brake pads will require the caliper piston to be pushed back into the caliper body to make space.

1. Place an old brake pad against the piston.
2. Using a C-clamp or a dedicated brake caliper piston compressor tool, slowly and steadily push the piston back into the caliper housing until it is flush. Be careful not to force it too quickly, as this can damage the piston seal. Keep an eye on the brake fluid reservoir under the bonnet; it may rise as you compress the piston. If it looks like it will overflow, remove some fluid using a turkey baster or syringe (dispose of it responsibly).

5. Removing the Old Brake Disc

1. The brake disc is usually held onto the wheel hub by a small retaining screw (often a Torx or Phillips head screw). This screw can be quite tight.
2. Use a screwdriver and a hammer to tap the screw and break it loose, or use an impact driver if available. If it's stripped, you may need to drill it out.
3. Once the retaining screw is removed, the old brake disc should slide off the hub. It might be a tight fit. You may need to give it a few firm taps with a hammer on the back side to free it. Sometimes, a few turns of a wheel bolt into the hub can act as a puller.
4. Clean the wheel hub surface thoroughly with a wire brush to remove any rust or debris. This is crucial for the new disc to sit flush.

6. Installing the New Brake Disc

1. Place the new brake disc onto the wheel hub. Ensure it sits flush and that the bolt holes align correctly.
2. If your new disc has a retaining screw hole, reinsert the retaining screw and tighten it securely, but avoid over-tightening.

7. Reassembling the Brake System

1. Clean the caliper bracket and the areas where the brake pads sit with brake cleaner and a wire brush. Remove any rust or old grease.
2. Lubricate the caliper slider pins with a small amount of high-temperature brake grease. Ensure the rubber boots around the pins are not damaged.
3. Install the new brake pads into the caliper bracket. Make sure they are seated correctly and use the new retaining clips if provided.
4. Pivot the caliper back over the new pads and disc. Ensure the brake hose is not twisted.
5. Reinstall the caliper slider pin bolts and tighten them to the manufacturer's specified torque. This is critical for safety. Consult your Golf Mk6 service manual for exact torque figures.

8. Final Steps

1. Reinstall the wheel and hand-tighten the wheel nuts.
2. Carefully lift the car off the jack stand and lower it fully.
3. Using a torque wrench, tighten the wheel nuts in a star pattern to the manufacturer's specified torque.
4. Repeat the entire process for the other front wheel.

Step-by-Step Guide: Rear Brake Disc Replacement

The rear brake disc replacement on a VW Golf Mk6 is very similar to the front, with a few key differences, most notably the presence of the handbrake mechanism.

1. Preparation and Safety

Follow the same preparation steps as for the front brakes: park on a level surface, engage the handbrake (though for rear disc replacement, you might need to release it slightly to allow the caliper to be removed, depending on the exact setup), chock the wheels, loosen wheel nuts, jack up the car, and support it with a jack stand. Remove the wheel.

2. Accessing the Rear Caliper and Handbrake Mechanism

The rear calipers often incorporate the handbrake mechanism. This means that when compressing the piston, you may need a special tool that can also rotate the piston as it is pushed in, rather than just pushing it straight.

1. Locate the caliper slider pin bolts on the rear caliper.
2. Remove these bolts.
3. Depending on the specific rear caliper design, you might be able to pivot the caliper up. However, for rear discs, it's common to have to remove the caliper entirely.
4. Important: If your Golf Mk6 has an electronic parking brake (EPB), you MUST put the system into service mode before attempting to retract the pistons. This is usually done via diagnostic tools or specific button sequences. Failure to do so can damage the EPB motor. For conventional handbrakes, the caliper may need to be unbolted from its mounting bracket as well.
5. Once the caliper is free, suspend it safely as you did with the front brakes.

3. Removing Old Rear Brake Pads and Disc

1. Remove the old brake pads, noting their orientation and any shims or wear indicators.
2. The retaining screw for the rear disc might be present, similar to the front. Remove it.
3. The rear brake disc might also house the handbrake shoes inside it. If so, you'll need to remove the caliper and possibly the caliper bracket to gain access to the disc. Sometimes, you may need to rotate the disc to align access holes for the retaining screw or to release the handbrake mechanism.
4. Use a hammer to tap the disc loose if it's seized.
5. Clean the hub surface thoroughly.

4. Installing New Rear Brake Disc and Pads

1. Install the new rear brake disc onto the hub.
2. If your car has an EPB, ensure the caliper pistons are retracted correctly using the appropriate tool or diagnostic procedure. For conventional handbrakes, use the piston winding tool (if required) to retract the piston, turning it clockwise while applying gentle pressure.
3. Lubricate the caliper slider pins and the pad contact points on the bracket.

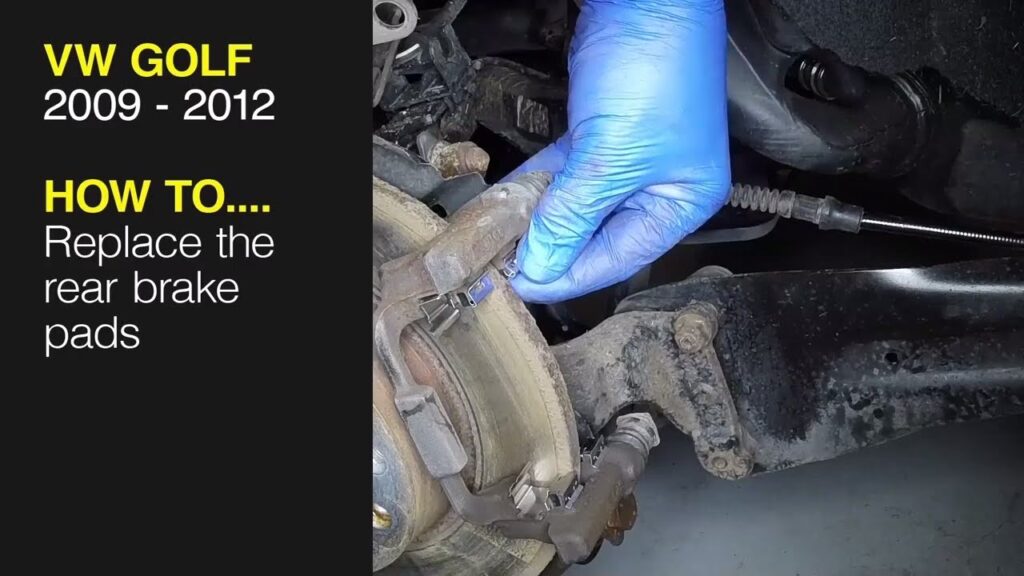

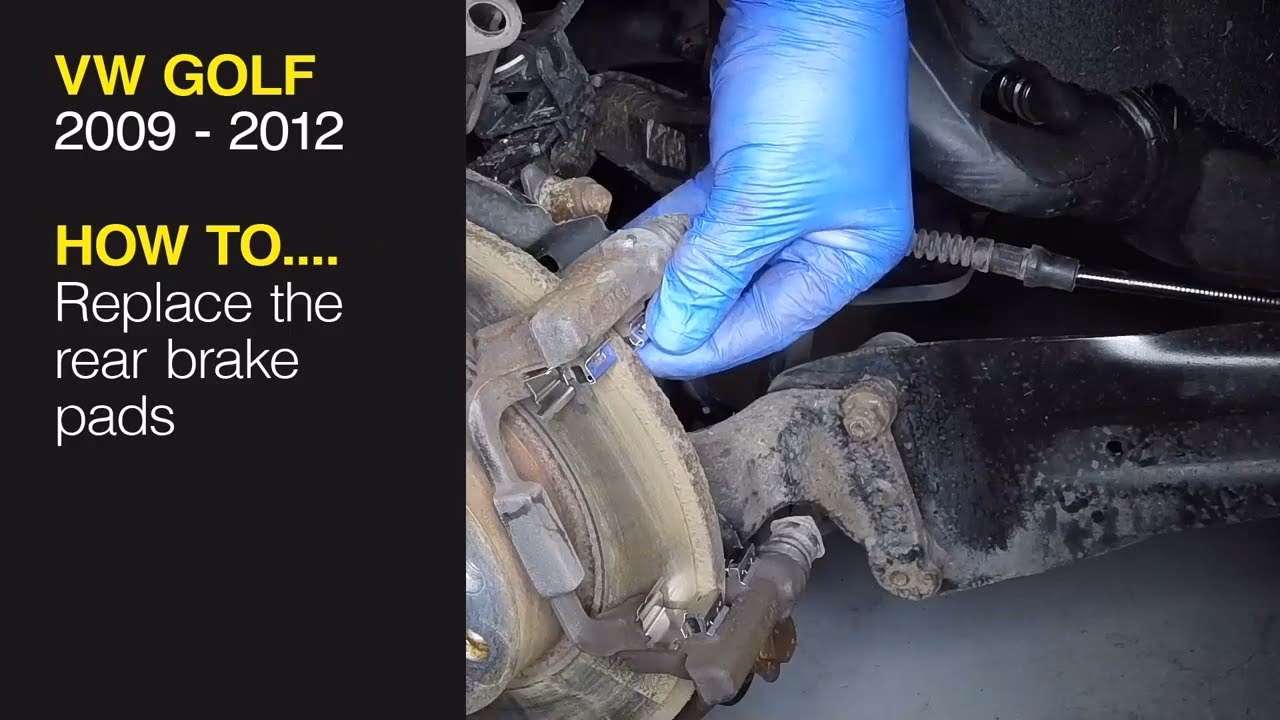

4. Install the new rear brake pads.
5. Reassemble the caliper, ensuring it sits correctly over the new pads.
6. Reinstall and torque the caliper mounting bolts and slider pin bolts to the manufacturer's specifications.

5. Final Steps for Rear Brakes

1. Reinstall the wheel and tighten the nuts hand-tight.
2. Lower the car and torque the wheel nuts to the correct specification in a star pattern.
3. Repeat for the other rear wheel.

Post-Replacement Procedure: Bedding-In New Brakes

After replacing your brake discs and pads, it's essential to 'bed them in' properly. This process helps the new pads and discs to mate correctly, ensuring optimal performance and longevity.

1. Initial Gentle Braking: For the first few miles, avoid harsh braking. Gentle stops from low speeds are ideal.
2. Moderate Braking Cycles: Find a safe, open road. Accelerate to around 30-40 mph and brake moderately (not to a complete stop) for about 5-10 seconds. Release the brake and allow the car to cool down for a minute or two. Repeat this process 5-10 times.
3. Avoid Prolonged Braking: Do not hold the brake pedal down after coming to a stop during the bedding-in process, as this can cause uneven heat distribution and warping.
4. Cool Down: After the series of moderate stops, drive for a few minutes without braking to allow the brakes to cool down completely.

Proper bedding-in is crucial for preventing brake judder and ensuring the best possible stopping power. Be gentle for the first 200-300 miles.

Important Considerations and Tips

• Torque Settings: Always use a torque wrench for reassembly. Incorrectly torqued bolts can lead to serious safety issues.
• Brake Fluid: Check your brake fluid level after the job. If it's low, top it up with the correct type of fluid specified in your owner's manual. Never mix different types of brake fluid.
• One Side at a Time: If you're unsure, it's often best to replace one side at a time, using the other side as a reference.
• Brake Hose: Inspect the brake hoses for any signs of cracking, perishing, or damage. If any damage is found, they must be replaced.
• OEM vs. Aftermarket: While OEM parts are generally recommended, high-quality aftermarket parts can also be a good option. Research reputable brands.
• Electronic Parking Brake (EPB): If your Golf Mk6 is equipped with an EPB, ensure you use the correct procedure (often requiring a diagnostic tool) to retract the rear caliper pistons. This is a critical safety step.

Frequently Asked Questions (FAQs)

Q1: How long does it take to replace brake discs on a VW Golf Mk6?

For an experienced DIYer, it can take around 1-2 hours per axle. For a novice, it might take longer, perhaps 2-3 hours per axle, especially if encountering stubborn bolts or parts.

Q2: Do I need to replace brake pads when changing discs?

Yes, it is highly recommended. New discs have a fresh surface, and old pads may not bed in properly, leading to reduced performance and potentially premature wear on the new discs.

Q3: Can I just replace one brake disc?

No, brake discs should always be replaced in pairs on the same axle to ensure even braking and prevent the car from pulling to one side under braking.

Q4: What torque should I use for the wheel nuts and caliper bolts?

Torque specifications vary slightly. For wheel nuts on a Golf Mk6, it's typically around 120-140 Nm. Caliper bolt torque is also specific. Always consult your vehicle's service manual for the exact figures for your model year.

Q5: What happens if I don't bed in my new brakes?

Failure to bed in new brakes properly can result in reduced braking performance, increased stopping distances, brake judder (vibration), and premature wear on the new components.

Replacing your brake discs is a vital maintenance task that directly impacts your safety. By following these steps carefully and using the correct tools, you can successfully overhaul the braking system of your VW Golf Mk6 and ensure it performs at its best.
