Unleashing the Gixxer: Suzuki GSX-R600 Engines

The Suzuki GSX-R600 has long been a formidable contender in the highly competitive middleweight supersport class, earning a reputation for blistering performance and sharp handling. At the core of this revered machine lies its meticulously engineered engine, a testament to Suzuki’s relentless pursuit of power and precision. For enthusiasts and prospective owners alike, understanding the nuances of the GSX-R600's powerplant is crucial to appreciating its enduring appeal. This article delves into the evolution of the Gixxer 600's engine, with a particular focus on the significant advancements seen in the early 2000s, offering a comprehensive guide to what makes these bikes tick.

From its inception, the Suzuki GSX-R600 has been synonymous with high-revving performance. Initially conceived as a smaller sibling to the more established GSX-R750, the 600cc variant quickly carved out its own niche, offering an accessible yet thrilling entry into the world of supersport motorcycling. Each generation brought with it a raft of technological improvements, continually pushing the boundaries of what a 599cc engine could achieve.

The Genesis: Early GSX-R600 Engines (1992-1993)

The very first iteration of the Suzuki GSX-R600 arrived on the scene in 1992, equipped with a water-cooled 599 cc inline-4 engine. This inaugural model shared its body specifications with the 1992 GSX-R750, essentially offering a smaller, more manageable engine package within a proven chassis. It was carried over into the 1993 model year without significant changes. Interestingly for UK enthusiasts, this particular model was not officially imported into the United Kingdom, making it a rare sight on British roads.

Following these initial years, the GSX-R600 took a brief hiatus, with no models produced between 1994 and 1996. This pause allowed Suzuki to regroup and prepare for a significant overhaul that would redefine the middleweight supersport landscape.

The SRAD Era: Redesigned Power (1997-2000)

The return of the GSX-R600 in 1997 marked a pivotal moment with a comprehensive redesign. This era saw the introduction of Suzuki's innovative Ram Air Direct (SRAD) system, which became a hallmark of the GSX-R series. SRAD was designed to force cool, dense air directly into the airbox at higher speeds, effectively boosting engine performance. This generation, often referred to as the SRAD Gixxers, carried through to the 2000 model year, solidifying the bike's reputation for aggressive styling and track-focused performance.

The Fuel-Injected Revolution: The K1-K3 Generation (2001-2003)

Perhaps one of the most significant leaps forward for the GSX-R600 came in 2001 with the introduction of an all-new fuel injection system. This marked a departure from the carburettor-fed predecessors, offering crisper throttle response, improved fuel efficiency, and more consistent power delivery across the rev range. The 2001 K1 model, followed by the K2 and K3 in subsequent years, drew heavily from the design and engineering of the successful 2000 GSX-R750Y, aiming to be the sharpest and quickest middleweight on both road and track.

The engine of the K1-K3 models was a marvel of compact engineering. It was narrower and shorter than the previous SRAD unit, yet it delivered more power and saved a substantial nine kilograms in overall weight compared to its predecessor. The motor's architecture borrowed significantly from the 750, featuring a 16-valve, DOHC, inline-four configuration with a right-side cam chain and lightweight hollow camshafts. Suzuki also incorporated its Twin Swirl Combustion Chamber (TSCC) cylinder head design, optimising combustion efficiency.

Many components, however, were unique to the 600, including the crank, rods, pistons, clutch assembly, and a cassette-type gearbox for easy removal. Suzuki ingeniously reworked the engine's internal dimensions, opting for a wider bore and shorter stroke (67 x 42.5mm compared to the previous 65.5 x 44.5mm). This change was specifically aimed at reducing mechanical losses at high rpm and allowing for higher revs, ultimately generating greater peak power.

The cylinder block was cast as a one-piece unit, and the bores were plated with a race-developed nickel-phosphorus-silicon-carbide coating known as Suzuki Composite Electrochemical Material (SCEM). This advanced coating further reduced friction and improved the engine's reliability and durability, particularly under high-stress conditions.

The cylinder head received a complete overhaul, incorporating larger valves positioned at narrower angles to increase airflow while simultaneously reducing the overall size of the head. Compression was also increased from 12.0:1 to 12.2:1, contributing to the power boost. Slimmer valve stems and shaved conrods, along with smaller diameter big end and main bearings, all contributed to weight savings and improved performance.

The most significant technical advancement was the adoption of fuel injection. Suzuki dubbed the 600's system 'Suzuki Dual Throttle Valve' (SDTV). This system featured twin throttle valves in each injector, designed to mimic the smooth low-to-high throttle response of traditional CV carburettors while retaining the precision benefits of high-rpm fuel delivery. Combined with the updated SRAD forced induction system, the K1-K3 models could potter cleanly around town at part throttle yet deliver explosive, strong drive when the rider demanded it.

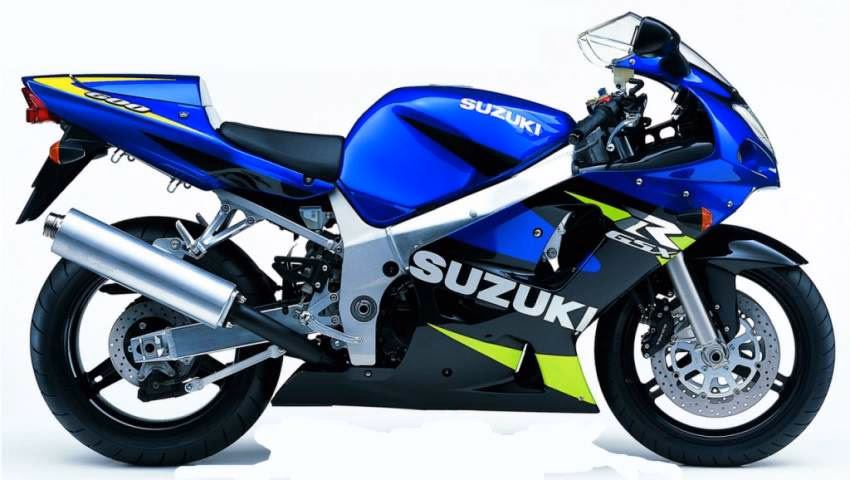

Power and Performance of the 2001 GSX-R600 (K1)

The 2001 GSX-R600 (K1) boasted a claimed power figure of 115 bhp at 13,000 rpm. This put it right at the sharp end of the fiercely competitive Supersport class, directly challenging rivals such as Yamaha’s YZF-R6 (120bhp), Kawasaki’s ZX-6R (111bhp), and Honda’s CBR600F-S (108bhp). While its power delivery was described as peaky, it was strong, easily accessible, and delivered the thrilling high-revving excitement expected from a machine bearing the GSX-R badge.

In terms of handling and chassis, the K1 GSX-R600's chassis was also more compact than its predecessor, 2kg lighter, and boasted a 10% better torsional rigidity-to-weight ratio. Stability was improved with a slightly longer wheelbase (1400mm) thanks to a 20mm longer swingarm. While the suspension, featuring conventional 45mm forks, was fully adjustable and an improvement over the old model, it was noted to lack the finesse of the 750's upside-down front end. Nevertheless, the lighter three-spoke wheels contributed to accurate and sure-footed handling, making turn-in and cornering remarkably easy.

2001-2003 Suzuki GSX-R600 K1-K3 Values and Specifications

For those looking to acquire a K1-K3 Gixxer today, understanding its market value and key specifications is important:

• Price Range (approx. used): £1650 - £3000 (condition dependent)
• Claimed Power: 115 bhp at 13,000 rpm
• Weight: 163 kg (dry)
• Engine Type: 599 cc, 16v, DOHC, Inline-Four, Liquid-cooled, Fuel-Injected
• Bore x Stroke: 67 x 42.5mm
• Compression Ratio: 12.2:1
• Wheelbase: 1400mm
• Colours (2001): Blue/White, Yellow/Black, Blue/Black, Movistar replica
• Colours (2002): Red/Black, Blue/White, Blue/Silver
• Colours (2003): Blue/White, Black/Silver, Alstare replica (limited edition)

Continued Evolution: Later GSX-R600 Generations

The GSX-R600's development didn't stop with the K1-K3. Suzuki continued to refine the model, introducing further enhancements:

• 2004-2005: This generation saw a total redesign of the fairings and fuel tank. Significant technical upgrades included inverted forks with radial-mounted brakes, titanium valves, and a more advanced 32-bit ECU, further honing the engine's performance and control.
• 2006-2007: Suzuki unveiled an all-new GSX-R600. While the bore and stroke remained the same, the engine itself was completely new, designed for even greater efficiency and power. Key introductions included an underslung exhaust system and a slipper clutch, which aids in smoother downshifts and prevents rear wheel hop under aggressive braking.
• 2008-2010: This period brought new subframe, bodywork, and fuel tank designs. A notable technological addition was the Suzuki Drive Mode Selector (S-DMS), allowing riders to choose between different engine power delivery maps to suit riding conditions or personal preference.
• 2011-Present: The most recent significant overhaul saw the GSX-R600 become approximately 9 kg lighter overall. It adopted premium components such as Showa Big Piston Forks (BPF) and Brembo monobloc radial front brake calipers, significantly enhancing braking and front-end feel. The frame and swingarm were redesigned for lighter weight, and the wheelbase was shortened by 15 mm for improved agility. Engine refinements included new cams, lighter pistons, higher compression, and pentagonal ventilation holes on the cylinder block, specifically designed to increase mid-range torque.

Maintenance and What to Look For in a Used GSX-R600

While GSX-R600 engines are generally robust, proper maintenance is key to their longevity. When considering a used model, especially the K1-K3 generation, there are several areas to inspect:

• Service History: Regular servicing is paramount. Suzuki recommends fresh oil yearly or every 3,500 miles, and a new filter every 7,000 miles. However, replacing the filter with every oil change and reducing the oil schedule to every 3,000 miles is often better practice, especially if the bike is ridden hard or used for track days. Valve clearance inspection and adjustment are recommended every 14,500 miles.
• Cam Chain Tensioner: A common issue on older models. If the automatic cam chain tensioner is failing, you'll hear a slapping noise as the chain struggles to maintain optimum tension. This is a relatively easy fix, often resolved by fitting an aftermarket manual tensioner.
• Gearbox: While less problematic than on the more powerful 750s and 1000s, second gear can be a weak point on bikes subjected to excessive wheelies or harsh shifts. Worn engagement dogs can cause the bike to jump out of gear, particularly under load. Bent selector forks can also prevent proper gear selection. Always test all ratios under hard acceleration during a test ride.
• Fuelling: If an aftermarket exhaust has been fitted without proper fuelling adjustment (via a power commander or ECU reflash), the engine may not perform optimally and could suffer from poor low-end or mid-range drive.
• Finish: GSX-R600s can show their age quickly if not meticulously cared for. The thin paint scratches easily, and metal finishes on the frame, swingarm, fork legs, and footrest hangers can pit. Wheel paint is also prone to chipping. Opt for a well-maintained, original example rather than one needing extensive cosmetic work.

Comparative Table: 2001 Supersport Rivals

To truly appreciate the 2001 Suzuki GSX-R600, it's insightful to compare its specifications with its direct competitors from the same year:

As the table illustrates, the 2001 GSX-R600 was highly competitive, offering a compelling blend of power and light weight that positioned it as a top choice in its class.

Frequently Asked Questions (FAQs)

What kind of engine does a Suzuki GSX-R600 have?

The Suzuki GSX-R600 primarily features a liquid-cooled 599 cc inline-four engine. Over its various generations, this engine has seen significant evolution, incorporating technologies like Suzuki Ram Air Direct (SRAD), advanced fuel injection systems, and lightweight internal components to maximise performance and efficiency.

How much power does a 2001 Suzuki GSX-R600 have?

The 2001 Suzuki GSX-R600 (K1 model) has a claimed power output of 115 bhp at 13,000 rpm. This was a highly competitive figure for its class at the time, offering thrilling high-revving performance.

What is SRAD on a Suzuki GSX-R600?

SRAD stands for Suzuki Ram Air Direct. It's a system designed to force cool, dense air into the airbox at higher speeds, effectively increasing the engine's power output by providing a more efficient air supply for combustion. It was introduced on the GSX-R600 in 1997.

What is SDTV on a Suzuki GSX-R600?

SDTV stands for Suzuki Dual Throttle Valve. This fuel injection system, introduced on the 2001 GSX-R600, uses twin throttle valves in each injector. One valve is controlled by the rider's throttle input, while the second is controlled by the ECU, aiming to provide a smooth, carburettor-like throttle response at lower RPMs while maintaining precise fuel delivery at high RPMs.

Are older GSX-R600s reliable?

Generally, older GSX-R600 engines are considered reliable if they have been well-maintained. However, like any high-performance machine, they require diligent servicing. Common issues to look out for in older models include cam chain tensioner wear and potential gearbox issues (particularly second gear) if the bike has been ridden very hard or abused.

Conclusion

The Suzuki GSX-R600's engine is a masterpiece of compact power and engineering evolution. From its early liquid-cooled days to the revolutionary fuel-injected K1-K3 models and subsequent refinements, each iteration has pushed the boundaries of middleweight supersport performance. The 2001 K1-K3 generation, with its ground-breaking fuel injection and significant weight savings, stands out as a particularly pure and exhilarating riding experience, offering raw, high-revving excitement without the electronic interventions of modern machines.

For those seeking an accessible yet potent track or road weapon, a well-maintained GSX-R600 offers exceptional value and an addictive ride. Understanding its engine's lineage and key characteristics is vital for both appreciating its capabilities and ensuring its continued performance. The Gixxer 600 remains a testament to Suzuki’s commitment to delivering thrilling, high-performance motorcycles that continue to captivate riders worldwide.
