Replacing Your Car's Brake Caliper: A DIY Guide

Your vehicle's braking system is arguably its most crucial safety feature. When you press the brake pedal, it's the calipers that clamp down on the brake discs, bringing your car to a halt. Over time, these vital components can wear out, seize, or leak, compromising your stopping power and potentially putting you at risk. Replacing a brake caliper might seem like a daunting task, but with the right tools, a methodical approach, and a strong emphasis on safety, it's a job many home mechanics can tackle. This guide will walk you through the process, ensuring you have the knowledge to restore your vehicle's braking performance.

Understanding Your Brake Caliper

A brake caliper is a component of the disc brake system, which is found on most modern vehicles. It houses the brake pads and pistons. When hydraulic pressure from the master cylinder is applied (by pressing the brake pedal), the pistons push the brake pads against the spinning brake disc (rotor), creating friction that slows and stops the wheel. There are generally two types of calipers: floating calipers and fixed calipers. Floating calipers move relative to the disc and typically have one or two pistons on the inboard side, while fixed calipers are rigidly mounted and have pistons on both sides of the disc. Regardless of the type, their function remains the same: to convert hydraulic pressure into mechanical force to stop your vehicle.

When to Consider a Caliper Replacement

Recognising the signs of a failing brake caliper is paramount for your safety and to prevent further damage to your braking system. Here are some common indicators that your caliper might need replacing:

• Pulling to one side: If your car consistently pulls to the left or right when you apply the brakes, it could indicate that one caliper is seizing or not engaging properly, causing uneven braking force.
• Reduced braking performance: A noticeable decrease in your car's ability to stop, or a spongy brake pedal, can be a sign of a caliper issue, particularly if there's an internal leak.
• Brake fluid leaks: Visible puddles of brake fluid near your wheels, or a continuously dropping brake fluid level in the reservoir, often point to a leaking caliper seal.
• Uneven brake pad wear: If one brake pad on a wheel is significantly more worn than the other, or one side of the car's pads are more worn than the other side, it suggests a caliper isn't releasing properly or is constantly dragging.
• Burning smell: A hot, acrid smell, especially after driving, can indicate a caliper is sticking, causing constant friction and overheating.
• Grinding or squealing noises: While often associated with worn brake pads, unusual noises could also stem from a caliper problem, especially if the pads are not moving freely within the caliper.
• Wheel heat: After a drive, touch the wheel hubs (carefully!) – if one feels significantly hotter than the others, it's a strong sign of a sticking caliper.

Ignoring these signs can lead to premature wear of other brake components, dangerous driving conditions, and potentially costly repairs down the line.

Essential Tools and Materials

Before you begin, gather all the necessary tools and parts. Being prepared will make the job smoother and safer.

• New brake caliper (ensure it's the correct one for your specific vehicle's make, model, and year)
• New brake pads (it's always recommended to replace pads when changing calipers)
• Brake fluid (check your car's manual for the correct DOT rating)
• Jack and jack stands
• Wheel chocks
• Socket set and ratchet (including appropriate sizes for lug nuts, caliper bolts, and banjo bolt)
• Wrench set (for brake lines)
• Torque wrench
• Brake line wrench (flare nut wrench) - highly recommended to prevent stripping the brake line nut
• Brake bleeder kit or a friend to help with bleeding
• Drain pan for old brake fluid
• Wire brush or sandpaper (for cleaning mounting surfaces)
• Brake cleaner spray
• Copper grease or high-temperature lubricant (for caliper slides/pins, if applicable)
• Gloves and safety glasses
• Shop rags or old towels
• C-clamp or brake piston compressor (if reusing old pads to compress piston, but not needed for new caliper with new pads usually)
• Brake hose clamp (optional, but helpful to minimise fluid loss)

Prioritising Safety

Working on your vehicle's braking system requires utmost caution. Your life and the lives of others depend on properly functioning brakes. Always adhere to these safety precautions:

• Work on a flat, level surface.
• Engage the parking brake and place wheel chocks behind the wheels that will remain on the ground.
• Use jack stands to support the vehicle after lifting it with a jack. Never rely solely on a jack.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, to protect against brake dust, fluids, and sharp edges.
• Allow the vehicle to cool down before working on the brakes, as components can be extremely hot.
• Brake fluid is corrosive. Avoid contact with skin and paintwork. Clean up any spills immediately.
• If you are unsure at any point, consult a professional mechanic.

Step-by-Step Caliper Replacement Guide

1. Preparation

Park your car on a level surface. Engage the parking brake. If working on the front wheels, chock the rear wheels. If working on the rear, chock the front. Slightly loosen the lug nuts on the wheel you'll be working on while the car is still on the ground. This prevents the wheel from spinning when you try to loosen them later.

2. Lift and Secure the Vehicle

Using your jack, lift the vehicle until the wheel is off the ground. Place the jack stands securely under the vehicle's frame or designated jack points. Slowly lower the car onto the jack stands, ensuring it is stable. Remove the jack.

3. Remove the Wheel

Fully remove the lug nuts and carefully take off the wheel, setting it aside in a safe place.

4. Access the Caliper

You'll now have a clear view of the brake caliper. Locate the brake line that connects to the caliper. There will be a banjo bolt holding it in place. Before disconnecting, place your drain pan underneath to catch any brake fluid that will spill. It's also advisable to have your new caliper ready to minimise the time the system is open to air.

5. Disconnect the Brake Line

Using a suitable wrench (a flare nut wrench is best for the brake line nut itself to prevent rounding), carefully loosen and remove the banjo bolt or brake line fitting from the caliper. Be prepared for fluid to drip out. If you have a brake hose clamp, you can use it on the flexible rubber brake hose to minimise fluid loss, but be cautious not to overtighten and damage the hose.

6. Remove the Caliper Bolts

The caliper is typically held in place by two large bolts, often on the back side. Use your socket and ratchet to loosen and remove these bolts. Once removed, the caliper should be free. You may need to wiggle it a bit to get it off the brake disc.

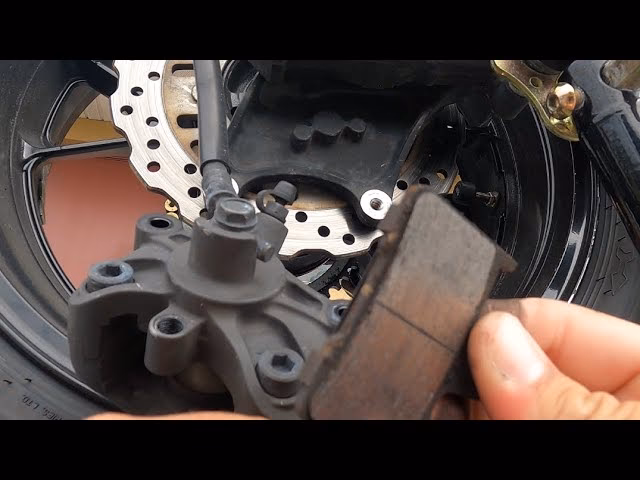

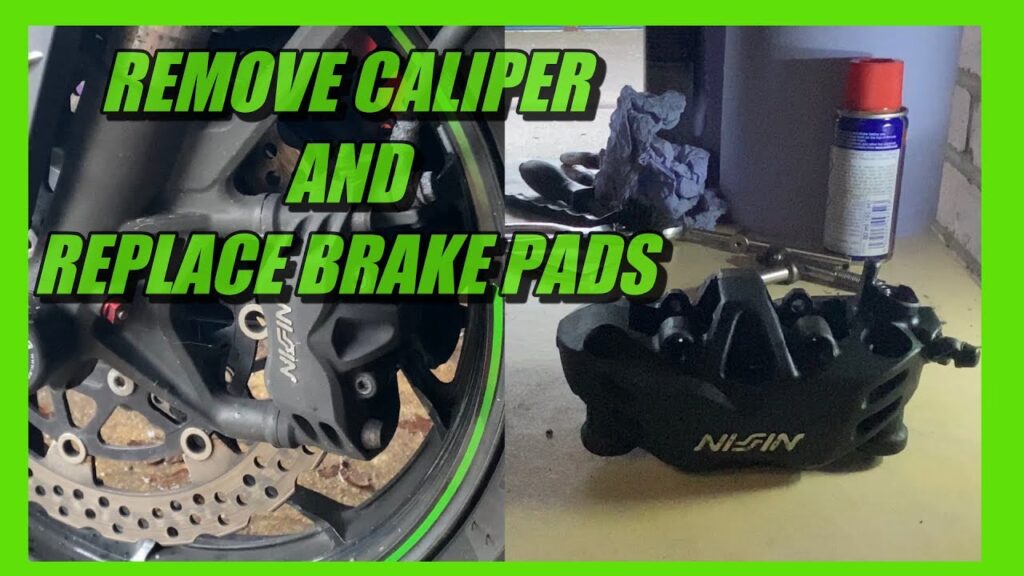

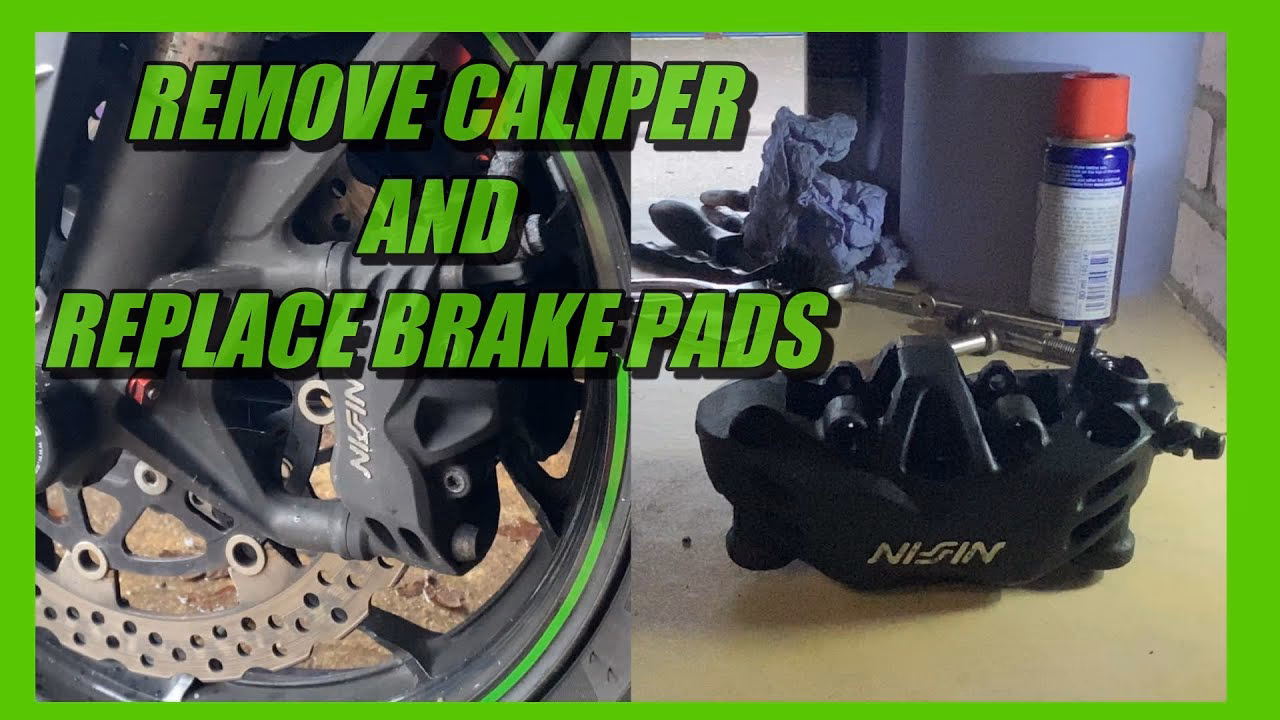

7. Remove the Old Caliper

Carefully remove the old caliper from the vehicle. If it's still attached to the brake line, ensure you've fully disconnected it. Do not let the caliper hang by the brake line, as this can damage the hose.

8. Install the New Caliper

Before installing the new caliper, ensure any mounting brackets or hardware are clean. If your new caliper came with new mounting brackets, use them. Apply a small amount of copper grease or high-temperature lubricant to the caliper slide pins (if applicable) where they slide into the caliper bracket. Position the new caliper over the brake disc. Ensure the brake pads are correctly seated within the caliper or caliper bracket (if they are separate). Insert the two caliper mounting bolts and hand-tighten them. Then, use your torque wrench to tighten them to the manufacturer's specified torque settings. These specifications are crucial for safety and proper function.

9. Reconnect the Brake Line

Carefully connect the brake line to the new caliper, ensuring the copper washers (if supplied) are on either side of the banjo fitting. Hand-tighten the banjo bolt, then use your wrench to tighten it to the specified torque. Be careful not to overtighten, as this can strip the threads or damage the banjo bolt/caliper. Make sure the brake line is not twisted or kinked.

Bleeding Your Brakes: A Critical Step

This is arguably the most critical part of the entire process. Any air introduced into the brake lines during the caliper replacement must be removed. Air in the brake lines will result in a spongy brake pedal and severely compromised braking performance. You will need a brake bleeder kit or a second person to help you with this.

Manual Bleeding Process:

1. Ensure the brake fluid reservoir under the bonnet is full. Keep an eye on the level throughout the bleeding process and top it up as needed to prevent air from re-entering the system.
2. Locate the bleeder nipple on the new caliper. It's usually a small, hexagonal bolt with a hole in the centre.
3. Attach a clear hose to the bleeder nipple and place the other end into a container partially filled with clean brake fluid (this helps you see air bubbles and prevents air from being sucked back in).
4. Have your helper sit in the car. Tell them to press the brake pedal down firmly and hold it.
5. While they are holding the pedal down, quickly open the bleeder nipple about a quarter to half a turn. You will see brake fluid and potentially air bubbles flow into the container.
6. Before the pedal reaches the floor, tell your helper to keep the pedal down. Close the bleeder nipple tightly.
7. Once the nipple is closed, tell your helper to release the brake pedal.
8. Repeat this process (press, hold, open, close, release) until no more air bubbles are visible in the fluid flowing into the container. The fluid should appear clean and free of bubbles.
9. Once satisfied, ensure the bleeder nipple is tightened securely (but do not overtighten).
10. Top up the brake fluid reservoir to the MAX line.

It's generally recommended to bleed all four brakes starting from the wheel furthest from the master cylinder (usually the rear passenger side in a right-hand drive UK car), then rear driver's side, front passenger side, and finally front driver's side. However, if you only opened the system at one caliper and were quick, you might get away with just bleeding that caliper. For safety, a full system bleed is always the safest bet.

Important Tips for Success

• Cleanliness: Keep everything as clean as possible. Brake fluid is easily contaminated.
• Torque Specifications: Always use a torque wrench for caliper bolts and banjo bolts. Over or under-tightening can lead to serious safety issues. Refer to your vehicle's service manual for exact figures.
• Brake Fluid Type: Use only the type of brake fluid specified by your vehicle manufacturer (e.g., DOT 3, DOT 4, DOT 5.1). Mixing incompatible fluids can cause severe damage to your braking system.
• Bedding In: After replacing calipers and pads, it's essential to 'bed in' the new components. This involves a series of moderate stops from varying speeds to properly mate the pads to the discs and prevent glazing. Consult the pad manufacturer's instructions for the specific bedding-in procedure.
• Check for Leaks: After bleeding and before your first drive, pump the brake pedal several times to build pressure. Inspect all connections for any signs of leaks.

Troubleshooting Common Issues

• Spongy Pedal After Bleeding: This almost certainly means there's still air in the system. Re-bleed the brakes thoroughly, ensuring the reservoir never runs dry.
• Brake Fluid Leaks: Double-check all connections, especially the banjo bolt and bleeder nipple. Ensure they are tightened to specification and that any sealing washers are correctly seated.
• Caliper Still Sticking/Dragging: If the new caliper seems to be sticking, ensure the slide pins (if present) are clean, lubricated, and moving freely. Check that the brake hose isn't internally collapsed, preventing fluid return.

Brake Fluid Types Compared

Understanding the different types of brake fluid is important for proper maintenance and safety. Using the wrong type can damage your braking system.

Always refer to your vehicle's owner's manual to determine the correct brake fluid type for your car. Never mix DOT 5 (silicone-based) with any other DOT fluid type.

Frequently Asked Questions

How long does a brake caliper last?

Brake calipers can last a very long time, often the life of the vehicle, but this varies greatly depending on driving conditions, maintenance, and climate. They can seize due to corrosion, dirt, or worn seals. Typically, they might need replacement after 10-15 years, or sooner if issues arise.

Can I change just one caliper?

While technically possible, it's generally recommended to replace calipers in pairs on the same axle (e.g., both front calipers or both rear calipers). This ensures even braking performance across the axle, preventing uneven wear and potential pulling issues. If one caliper has failed due to age or corrosion, it's likely the other one isn't far behind.

Do I need to bleed all brakes after changing one caliper?

It's always recommended to perform a full system bleed starting from the wheel furthest from the master cylinder after opening any part of the brake hydraulic system. This ensures all air is removed from the entire system, not just the affected corner. However, if you were very quick and careful when swapping the caliper, you might get away with just bleeding that single caliper, but for maximum safety, a full bleed is best.

What happens if I don't bleed the brakes properly?

If air remains in the brake lines, your brake pedal will feel spongy or soft, and your braking performance will be significantly reduced. In severe cases, you might lose braking ability entirely. Air in the system compresses, unlike brake fluid, meaning the hydraulic pressure isn't effectively transferred to the caliper pistons.

Is it hard to change a brake caliper?

Changing a brake caliper is a moderately difficult DIY task. It requires specific tools, attention to detail, and a good understanding of safety procedures, especially regarding bleeding the brakes. If you're comfortable with basic car maintenance and follow instructions carefully, it's achievable. If you're hesitant, it's always best to consult a professional mechanic.

Conclusion

Replacing a brake caliper is a significant maintenance task that directly impacts your vehicle's safety. By following these detailed steps and prioritising safety at every turn, you can successfully perform this repair and restore your car's critical stopping power. Remember, proper bleeding of the brake system is paramount, and using the correct torque specifications is non-negotiable. Regular inspection of your braking system will help you identify issues early, ensuring your car remains safe and reliable on the road.
