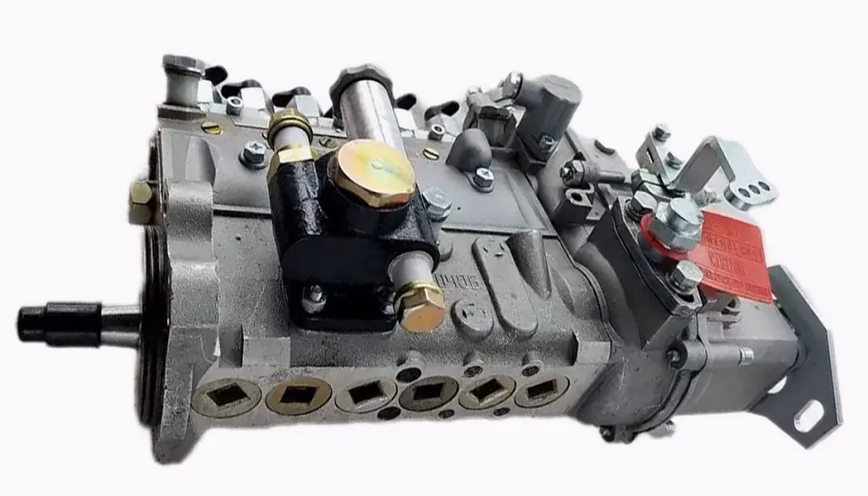

Is Your Zexel Injection Pump Failing?

The Zexel injection pump is a highly sophisticated and crucial component in many diesel engines, responsible for precisely delivering fuel to the combustion chambers at the right time and in the correct quantity. Its intricate design, however, means that over time, internal components can suffer from wear and tear, leading to a significant degradation in engine performance or even complete failure. Identifying a worn-out Zexel injection pump early can save you from more extensive damage and costly repairs. Understanding the symptoms and knowing where to look are key to effective diagnosis.

When attempting to identify worn-out components in a Zexel injection pump, the first step is always to meticulously inspect the overall fuel delivery system for any anomalies. Common indicators of potential wear often manifest as irregular fuel flow, a noticeable rough engine performance, or persistent starting issues. These are merely the initial red flags, prompting a deeper investigation. Within the pump itself, particular attention should be paid to the timing gear, plungers, and delivery valves, as these are components that are subjected to immense stress and precise movements, making them highly susceptible to wear over extended periods of operation.

Common Symptoms of a Worn Zexel Injection Pump

A failing Zexel injection pump can present a variety of symptoms, ranging from subtle changes in engine behaviour to complete operational failure. Recognising these signs is the first step towards accurate diagnosis:

• Difficulty Starting the Engine: This is one of the most common and frustrating symptoms. A worn pump may struggle to build sufficient fuel pressure, especially when the engine is cold, leading to prolonged cranking times or a complete failure to start. The issue might worsen as the engine cools down, only to improve slightly when warm.
• Rough Idling or Stalling: If your engine idles erratically, struggles to maintain a consistent RPM, or frequently stalls, it could indicate that the pump is not delivering fuel consistently or at the correct pressure. This often points to issues with the pump's internal components, such as worn plungers or delivery valves affecting fuel metering at low engine speeds.
• Loss of Engine Power: A significant drop in acceleration or overall engine power, particularly under load, is a strong indicator. This happens because the pump can no longer deliver the precise volume of fuel required for optimal combustion, leading to incomplete burning and reduced energy output. You might notice the vehicle struggling on inclines or when carrying heavy loads.
• Excessive Exhaust Smoke: The colour of the smoke from your exhaust can provide valuable clues:
  • Black Smoke: Often indicates unburnt fuel, suggesting over-fuelling or poor atomisation due to low injection pressure from worn plungers or nozzle issues.
  • White Smoke: Can indicate incomplete combustion, possibly due to incorrect injection timing (often related to timing gear wear) or air in the fuel system. It can also be unburnt fuel vapour, especially when cold.
  • Blue Smoke: Typically points to oil burning, but in severe cases of injection pump failure, it could be related to fuel contamination of the engine oil or extreme wear leading to poor combustion.
• Increased Fuel Consumption: While many factors can affect fuel economy, a sudden and unexplained increase in fuel consumption without changes in driving habits can point to a worn injection pump. Inefficient fuel delivery or incorrect timing means more fuel is consumed to achieve the same power output.
• Unusual Noises from the Pump: A healthy injection pump operates relatively quietly. Any new knocking, rattling, or whining noises emanating from the pump area could signal internal wear. This might be due to worn bearings, cam lobes, or excessive clearance in moving parts.
• Fuel Leaks: Visible fuel leaks around the pump body, lines, or seals are a clear sign of wear or damage. Leaks not only pose a fire risk but also lead to air entering the fuel system, which can cause starting issues and erratic engine performance.

Detailed Inspection of Key Components

Once you've observed the general symptoms, a more focused inspection of specific components within or directly affected by the Zexel injection pump is necessary.

The Timing Gear

The timing gear is paramount for synchronising the fuel injection with the engine's piston movement. Wear here can lead to incorrect injection timing, which has immediate and significant consequences for engine performance. Signs of wear on the timing gear include:

• Excessive Backlash: If the gear teeth are worn, there will be more play (backlash) than specified. This can be difficult to assess without specialist tools but can sometimes be felt as a slight hesitation or 'clunk' during engine start-up or sudden acceleration/deceleration.
• Visual Wear on Teeth: If accessible, inspect the gear teeth for pitting, scoring, or excessive wear patterns. Worn teeth will not mesh correctly, leading to timing inaccuracies.
• Timing Deviation: The most definitive sign is when the engine timing is checked with diagnostic equipment, and it consistently deviates from the manufacturer's specifications, even after attempting adjustments. Incorrect timing can lead to hard starting, reduced power, excessive smoke, and increased fuel consumption.

Plungers and Barrels

The plungers and their corresponding barrels (also known as elements) are the heart of the injection pump, responsible for pressurising the fuel. They operate with extremely tight tolerances. Wear in these components directly affects the pump's ability to build and maintain high fuel pressure.

• Reduced Fuel Pressure: As plungers and barrels wear, the clearance between them increases, allowing fuel to leak past rather than being fully pressurised. This leads to a drop in injection pressure, resulting in poor fuel atomisation and incomplete combustion. Symptoms include reduced power, black smoke, and hard starting.
• Inconsistent Fuel Delivery: Wear can also lead to inconsistent fuel delivery volume to each cylinder, causing rough idling and uneven engine running.
• Fuel Contamination: Dirty fuel or lack of proper lubrication accelerates wear on plungers and barrels. Microscopic particles in the fuel act as abrasives, slowly eroding the precision surfaces.

Delivery Valves

Delivery valves are small, precision components located at the outlet of each pumping element. They control the flow of pressurised fuel to the injectors and prevent fuel from dripping into the combustion chamber after injection, which could cause secondary combustion or 'after-dribble'.

• Leaking Delivery Valves: If a delivery valve is worn or damaged, it may not seal properly, leading to fuel leakage back into the pump's low-pressure side. This results in a loss of pressure at the injector, causing poor atomisation, reduced power, and possibly white smoke due to unburnt fuel.
• Sticking Delivery Valves: A delivery valve can also stick in an open or closed position due to wear or contamination. A stuck-open valve will cause continuous dripping, leading to excessive smoke and poor combustion. A stuck-closed valve will prevent fuel from reaching the injector.
• Rough Engine Operation: Malfunctioning delivery valves can cause uneven fuel delivery across cylinders, leading to a noticeable rough engine operation, especially at idle.

Comparative Table: Symptoms and Potential Worn Components

Understanding which symptoms relate to which worn components can help narrow down the diagnostic process:

Beyond the Core Components: Other Wear Points

While the timing gear, plungers, and delivery valves are critical, other parts of the Zexel injection pump can also wear out and contribute to problems:

• Governor Assembly: This regulates the engine's speed and fuel delivery. Wear in governor springs, weights, or linkages can lead to erratic engine speed, surging, or stalling.
• Camshaft and Tappets: These internal components control the movement of the plungers. Wear here can alter the timing and lift of the plungers, affecting fuel delivery.
• Feed Pump (Lift Pump): Many Zexel pumps incorporate a small feed pump to draw fuel from the tank. Wear in this pump can lead to insufficient fuel supply to the main injection elements, causing fuel starvation symptoms.
• Seals and O-rings: Over time, rubber seals can harden, crack, or shrink, leading to external fuel leaks or, more critically, air ingress into the fuel system. Air in the fuel can cause misfires, hard starting, and rough running.

Practical Steps for Diagnosis

1. Visual Inspection: Begin by thoroughly inspecting the exterior of the pump and surrounding fuel lines. Look for any signs of fuel leaks, damaged lines, or loose connections. Check for any physical damage to the pump casing.
2. Listen to the Engine: Pay close attention to the sound of the engine, especially at idle and during acceleration. Listen for any knocking, rattling, or uneven sounds that might originate from the pump area.
3. Check Fuel Filters: A clogged fuel filter can mimic many injection pump symptoms by restricting fuel flow. Always ensure your fuel filters are clean and replaced regularly as part of your maintenance schedule. Contaminated fuel is a primary cause of injection pump wear.
4. Observe Exhaust Smoke: As detailed above, the colour and volume of exhaust smoke are key diagnostic indicators. Observe it under different engine loads and temperatures.
5. Monitor Fuel Consumption: Keep a record of your fuel economy. A sudden, unexplained drop can be a significant indicator of pump inefficiency.
6. Professional Diagnostic Tools: While many of these checks can be done by a competent DIY mechanic, a definitive diagnosis often requires specialised tools. A diesel mechanic can perform pressure tests, fuel delivery volume tests, and timing checks that pinpoint internal pump issues accurately.

Frequently Asked Questions About Zexel Injection Pump Wear

How long does a Zexel injection pump typically last?

The lifespan of a Zexel injection pump can vary significantly, typically ranging from 150,000 to 300,000 miles (or 240,000 to 480,000 kilometres), depending on factors like fuel quality, maintenance regularity, and operating conditions. Using clean, high-quality diesel fuel and changing fuel filters according to manufacturer recommendations are crucial for extending its life.

Can I repair a worn Zexel injection pump myself?

Repairing a Zexel injection pump is a highly complex task that requires specialised tools, precise calibration equipment, and extensive knowledge of diesel fuel systems. It is generally not a DIY job. Internal components are manufactured to extremely tight tolerances, and incorrect assembly or calibration can lead to severe engine damage. It is strongly recommended to have a worn pump serviced or replaced by a qualified diesel injection specialist.

What causes injection pump wear?

The primary causes of injection pump wear include:

• Contaminated Fuel: Water, dirt, rust, or other particulates in the fuel act as abrasives, causing premature wear to the precision-machined internal components like plungers, barrels, and delivery valves.
• Lack of Lubrication: Modern diesel fuels, especially ultra-low sulphur diesel (ULSD), have reduced lubricity. While the pump is designed to be lubricated by the fuel itself, prolonged use of low-lubricity fuel or fuel system additives can exacerbate wear.
• Age and Mileage: Like any mechanical component, the pump experiences wear over time due to continuous operation, friction, and fatigue.
• Overheating: Excessive heat can degrade seals and affect the viscosity of the fuel, leading to improper lubrication and increased wear.

Are Zexel replacement parts readily available?

Zexel, being a well-established brand (now part of Bosch), generally has good availability of replacement parts through authorised dealers and aftermarket suppliers. However, specific parts for older or less common pump models might be harder to source. It's always advisable to use genuine or high-quality OEM-equivalent parts for critical components like injection pumps.

Is a worn Zexel pump always repairable, or does it need replacement?

Many worn Zexel injection pumps can be professionally rebuilt or reconditioned. This involves disassembling the pump, replacing worn components (such as plungers, barrels, delivery valves, seals, and bearings), and then meticulously calibrating it on a test bench. In some cases, if the main housing or core components are severely damaged (e.g., cracked), outright replacement with a new or factory-remanufactured unit might be the only viable option.

What's the difference between a Zexel and a Bosch injection pump?

Zexel was originally a Japanese company, a significant manufacturer of diesel injection systems. Bosch, a German company, is a global leader in automotive technology, including diesel injection. Bosch acquired Zexel's diesel systems division, so Zexel pumps are now part of the Bosch family of products. Functionally, they operate on similar principles, but their designs and specific components will differ depending on the model and application. Many vehicles use either Zexel or Bosch pumps, and both are known for their precision and reliability.

In conclusion, diagnosing a worn Zexel injection pump requires a keen eye for symptoms and a methodical approach to inspection. While the initial signs might be subtle, understanding the specific components prone to wear—such as the plungers, delivery valves, and the crucial timing gear—can significantly aid in pinpointing the problem. Early detection and professional intervention are essential to prevent further engine damage and ensure the longevity and reliable performance of your diesel vehicle. Always prioritise clean fuel and regular maintenance to protect this vital component.
