Zeiss Axioplan: Epifluorescence Microscopy Explained

The Zeiss Axioplan epifluorescent microscope stands as a cornerstone in the realm of advanced biological imaging. Renowned for its robust design and exceptional optical performance, this instrument facilitates detailed visualisation of fluorescently labelled specimens. At its heart lies the principle of epifluorescence, a technique that allows for the excitation and detection of fluorescence signals directly through the objective lens. This method offers significant advantages in terms of signal-to-noise ratio and ease of use, making it indispensable for researchers across various disciplines, from cell biology to neuroscience.

Understanding Epifluorescence Microscopy

Epifluorescence microscopy is a powerful technique that relies on the emission of light from a specimen that has been excited by specific wavelengths. In a typical setup, a light source, often a high-intensity lamp, directs light onto the specimen. However, in epifluorescence, this illumination passes through the objective lens and illuminates the sample from above. Crucially, a dichromatic mirror (also known as a beamsplitter) is positioned between the light source and the specimen. This mirror is designed to reflect the excitation light towards the specimen while allowing the emitted fluorescence from the specimen to pass through to the detector (usually an eyepiece or a camera). This clever arrangement ensures that the excitation and emission light paths are separated, minimising background noise and maximising the clarity of the fluorescent signal. The efficiency of this separation is paramount, and the quality of the dichromatic mirror and associated filters plays a vital role in the overall performance of the microscope.

The Zeiss Axioplan: A Closer Look

The Zeiss Axioplan, particularly its epifluorescent configuration, is a highly respected instrument known for its versatility and image quality. A key component of its epifluorescent capabilities is the integration of a high-intensity mercury vapour lamp. As depicted in Figure (A), this lamp serves as the primary excitation source. Mercury vapour lamps emit a broad spectrum of light, with characteristic strong emission lines at specific wavelengths. These lines are ideal for exciting a wide range of fluorophores, which are molecules that emit light when exposed to specific wavelengths of excitation light. The intensity and stability of the mercury vapour lamp are critical for obtaining bright and consistent fluorescence images, especially during long exposure times or when imaging dim samples.

The Role of Filter Sets

Complementing the mercury vapour lamp is a sophisticated system of filter sets, often referred to as excitation/emission cubes or dichroic mirrors. These filter sets are the gatekeepers of the epifluorescence system, meticulously controlling which wavelengths of light reach the specimen and which wavelengths are allowed to pass through to the detector. Each filter set is typically comprised of three essential components:

• Excitation Filter: This filter allows only the specific wavelengths of light that are required to excite a particular fluorophore to pass through to the specimen.
• Dichromatic Mirror (Beamsplitter): As mentioned earlier, this optical element reflects the excitation light towards the objective and specimen, and simultaneously transmits the longer wavelength emission light from the specimen towards the detector.
• Emission Filter (Barrier Filter): This filter is placed in the emission path and blocks any remaining excitation light, allowing only the emitted fluorescence light from the specimen to reach the observer or camera.

The precise design and alignment of these filters are crucial for achieving high contrast and specificity in fluorescence imaging. The Zeiss Axioplan system typically supports a wide array of interchangeable filter sets, allowing researchers to tailor the microscope's excitation and detection capabilities to match the spectral properties of various fluorophores. This modularity is a significant advantage, enabling the study of multiple fluorophores simultaneously (multiplex imaging) by switching between different filter sets. Figure (B) illustrates one such filter set, highlighting the integrated nature of these essential optical components.

Key Features and Advantages

The Zeiss Axioplan offers several key features that contribute to its enduring popularity in research laboratories:

• High-Quality Optics: Zeiss is renowned for its precision optics, and the Axioplan is no exception. The objective lenses and other optical components are designed to deliver excellent resolution, contrast, and brightness, crucial for discerning fine details in biological structures.
• Robust Construction: Built for demanding laboratory environments, the Axioplan boasts a sturdy and stable mechanical design, minimising vibrations that can degrade image quality. This stability is particularly important for long imaging sessions and for techniques requiring precise focus control.
• Versatility: The modular design of the Axioplan allows for a wide range of configurations, including brightfield, phase contrast, DIC (Differential Interference Contrast), and, of course, epifluorescence. This versatility makes it a multi-purpose instrument capable of addressing diverse imaging needs.
• Ergonomics: User comfort and efficiency are often considered in the design of high-end microscopes. The Axioplan typically features well-placed controls and a comfortable viewing position, reducing user fatigue during extended use.

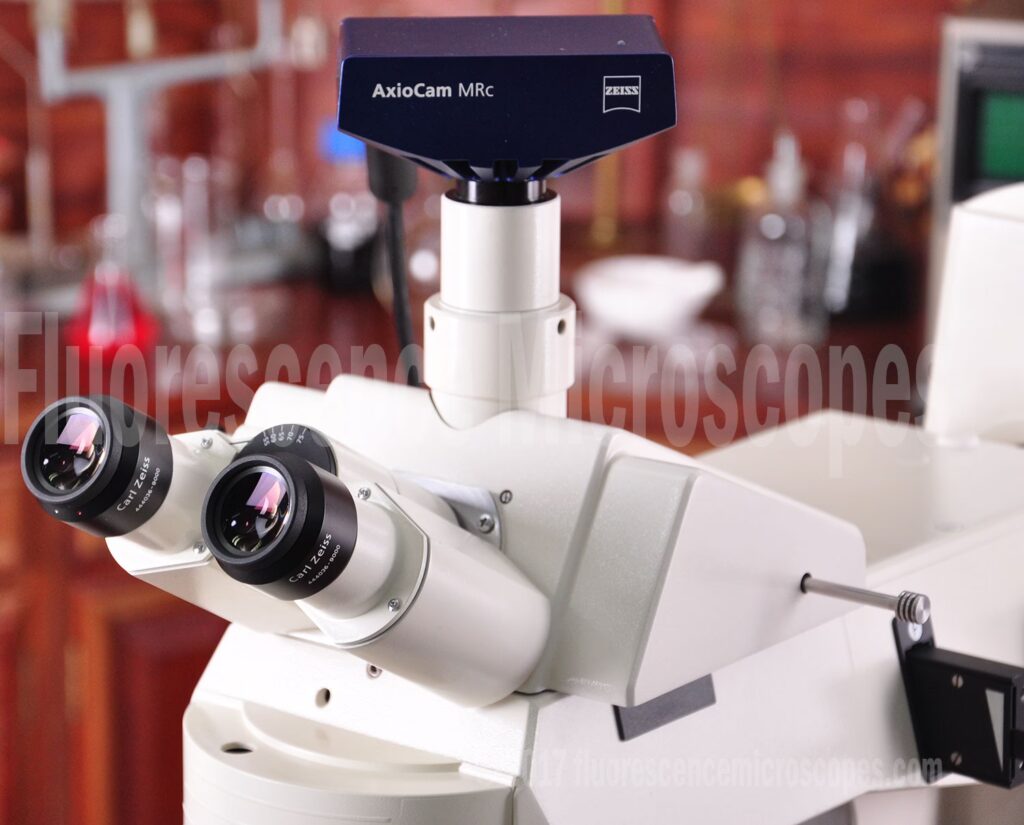

• Compatibility with Imaging Systems: The Axioplan is designed to integrate seamlessly with various digital cameras and imaging software, facilitating image acquisition, processing, and analysis.

Applications of the Zeiss Axioplan Epifluorescent Microscope

The ability to visualise fluorescently labelled molecules and structures makes the Zeiss Axioplan epifluorescent microscope an invaluable tool for a multitude of scientific applications. Some prominent examples include:

• Cell Biology: Visualising the localisation of proteins, organelles, and other cellular components within living or fixed cells. This can involve techniques like immunofluorescence, where antibodies tagged with fluorophores are used to detect specific proteins.
• Molecular Biology: Studying gene expression by visualising fluorescently labelled nucleic acids or proteins involved in transcription and translation.
• Neuroscience: Mapping neuronal connections, visualising calcium transients in active neurons, or tracking the movement of molecules within neurons.
• Developmental Biology: Observing the spatial and temporal patterns of gene and protein expression during embryonic development.
• Pathology: Diagnosing diseases by identifying specific cellular markers or pathogens that exhibit fluorescence.

Maintenance and Best Practices

To ensure optimal performance and longevity of a Zeiss Axioplan epifluorescent microscope, regular maintenance and adherence to best practices are essential. This includes:

• Lamp Management: Mercury vapour lamps have a finite lifespan and their intensity can degrade over time. It is important to monitor lamp usage and replace it according to the manufacturer's recommendations. Proper handling and warm-up/cool-down procedures are also crucial.
• Filter Cube Care: Filter cubes should be handled with care to avoid fingerprints or dust on the optical surfaces. They should be stored in a clean, dry environment when not in use. Regular cleaning of optical components with appropriate lens cleaning solutions and wipes is also recommended.
• Objective Care: Objectives are precision instruments. Avoid touching the lens surfaces with fingers. Use only specialised lens paper and cleaning solutions for cleaning. Immersion oil should be cleaned from objectives promptly after use.
• Alignment and Calibration: Periodic checks and adjustments of the microscope's optical alignment, especially for fluorescence, can ensure optimal image quality.
• Environmental Control: Keep the microscope in a clean, dust-free environment, away from excessive humidity or temperature fluctuations.

Frequently Asked Questions (FAQs)

What is the primary light source for epifluorescence on the Zeiss Axioplan?

The primary light source is typically a high-intensity mercury vapour lamp, known for its broad spectrum emission suitable for exciting a wide range of fluorophores.

What is the function of a filter set in epifluorescence microscopy?

A filter set, comprising an excitation filter, dichromatic mirror, and emission filter, precisely controls the wavelengths of light that excite the specimen and the wavelengths that are detected, thereby isolating the fluorescence signal from background light.

Can the Zeiss Axioplan be used for techniques other than epifluorescence?

Yes, the Zeiss Axioplan is a versatile microscope platform that can often be configured for other microscopy techniques such as brightfield, phase contrast, and DIC, depending on the specific model and accessories.

How important is the quality of the objective lens in epifluorescence microscopy?

The objective lens is critically important. It not only magnifies the specimen but also collects the emitted fluorescence. High-quality objectives with good transmission in the relevant spectral ranges and high numerical aperture (NA) are essential for bright and high-resolution fluorescence images.

What are the advantages of epifluorescence microscopy over transmitted light microscopy for certain applications?

Epifluorescence microscopy excels at visualising specific molecules or structures that have been labelled with fluorophores, allowing for high contrast and localisation studies. Transmitted light microscopy is generally better for viewing unstained, transparent specimens based on their refractive index differences.

In conclusion, the Zeiss Axioplan epifluorescent microscope, with its powerful mercury vapour lamp and precise filter sets, remains a highly capable instrument for researchers demanding detailed insights into biological systems. Its robust design, optical excellence, and versatility ensure its continued relevance in advancing scientific discovery through the power of fluorescence imaging.
