When Nissan introduced the ZD30 engine to its iconic Patrol line-up in 2000, it marked a significant departure from the inline-six diesels that enthusiasts had come to know and trust. This new 2.953-litre four-cylinder turbo-diesel was presented as a more modern, efficient alternative, boasting advanced features such as balance shafts, double overhead camshafts, and four valves per cylinder. On paper, its figures of 116kW at 3600rpm and 345Nm at 2000rpm seemed promising, even out-muscling the venerable 4.2-litre turbo-diesel six-cylinder that sold alongside it. However, the ZD30’s journey was far from smooth, becoming infamous for a raft of issues that plagued its early years. Central to its story, and indeed its struggles, was the evolution of its fuel delivery system, transitioning from a conventional setup to common-rail injection in a bid to overcome some of its inherent challenges.
The ZD30 Engine: A Bold, Yet Troubled, Step Forward
The ZD30 engine, specified for both the Patrol station wagons and the more utilitarian cab-chassis models, represented Nissan's attempt to modernise its diesel offerings. Despite its technological advancements and respectable power figures, the engine faced a formidable task: hauling a substantial 2.3-tonne Patrol wagon, often before even accounting for its generous 125-litre fuel tank, passengers, luggage, and heavy accessories like bullbars and winches. This considerable load, combined with what many suspected was an aggressive factory tune, set the stage for the problems that would soon emerge.
Early Challenges and Catastrophic Failures
Owners of early ZD30-powered Patrols frequently encountered what can only be described as catastrophic engine failure, often long before the engine should have shown any signs of significant wear. The most common manifestations involved pistons, specifically numbers three or four, developing either a hole in the piston crown or a crack through the top ring land. Such failures necessitated extensive and costly bottom-end rebuilds, quickly earning the ZD30 a dreaded reputation.
The automotive repair industry quickly began to diagnose potential culprits behind these widespread failures. Several theories gained traction, each pointing to critical design or operational flaws:
- Exhaust Gas Recirculation (EGR) Valve Issues: It was suggested that the EGR valve's operation could severely disrupt the fuel-air mixtures within individual cylinders. In extreme scenarios, this imbalance could create dangerous hot spots on the pistons and within the combustion chambers. Sustained high temperatures from these hot spots were believed to be a direct cause of the piston failures.
- Mass Air Flow (MAF) Sensor Contamination: Another theory implicated the Mass Air Flow (MAF) sensor. The engine's crankcase ventilation system, which vents gases into the inlet manifold, could potentially introduce oil fumes. These fumes could contaminate the MAF sensor, which is crucial for accurately measuring the air entering the engine. An erroneous signal from a contaminated MAF sensor would lead the Engine Control Unit (ECU) to miscalculate and supply an incorrect fuel-air mixture to the injectors. This, again, could elevate combustion chamber temperatures beyond safe operating limits, leading to further piston damage.
- Slow Engine Responses and Boost Spikes: The ZD30 also suffered from a perceived sluggishness in responding to commands from the engine’s computer. This often manifested as damaging boost spikes. The computer might detect an overboost situation, but the engine hardware was reportedly too slow to react and correct it. The result was a series of potentially damaging boost surges, also widely blamed for contributing to piston failures.
- Incorrect Oil Volume Specification: Perhaps one of the most fundamental and surprising issues was Nissan's initial specification of an incorrect oil volume for the engine. The published capacity was six litres, but owners began reporting instances of oil starvation even when the dipstick indicated a non-critically low level. After much investigation, Nissan revised the official oil capacity to 8.3 litres – a whopping 38% increase – and instructed dealers to modify and recalibrate dipsticks accordingly. This monumental oversight undoubtedly contributed to premature wear and failure in many engines.
The ZD30's Fuel System Evolution: Conventional vs. Common Rail
The fuel delivery system plays a vital role in any diesel engine's performance and longevity, and the ZD30 was no exception. Its history is marked by a significant transition in this area:
- Pre-2006: The Conventional Fuel Pump System: Up until 2006, the ZD30 engine utilised a conventional fuel pump system. In this setup, a mechanical or electronic injection pump is responsible for pressurising and distributing fuel directly to each cylinder's injector at the precise moment required for combustion. This system relies on mechanical timing and pressure generation, often through a distributor-type pump or in-line pumps, to deliver the fuel charge. While robust, these systems typically offer less precise control over injection timing and pressure compared to more modern designs. The text explicitly states this system was used to “distribute the fuel to each cylinder.”
- Post-2006: The Shift to Common-Rail Injection: A pivotal change occurred in 2006 when the ZD30 engine transitioned to common-rail injection. This was a significant technological upgrade. In a common-rail system, a high-pressure pump continuously supplies fuel to a single, shared 'rail' (accumulator) at extremely high pressure. From this common rail, electronically controlled injectors, known as solenoids or piezoelectric injectors, precisely meter and spray fuel directly into the combustion chambers. This electronic control allows for multiple, finely timed injection events per combustion cycle, offering greater precision over fuel delivery, atomisation, and ultimately, combustion. According to the provided information, this shift was intended to help with “some of the engine management issues that had been causing boost spikes and incorrect fuel-air mixtures.”
This transition to common-rail technology was a clear attempt by Nissan to address some of the underlying engine management problems that had plagued the earlier ZD30 units. The enhanced precision of common-rail injection could indeed offer better control over fuel delivery, potentially mitigating issues related to improper fuel-air mixtures and providing a more rapid response to engine control unit commands, which in turn might reduce the incidence of damaging boost spikes.

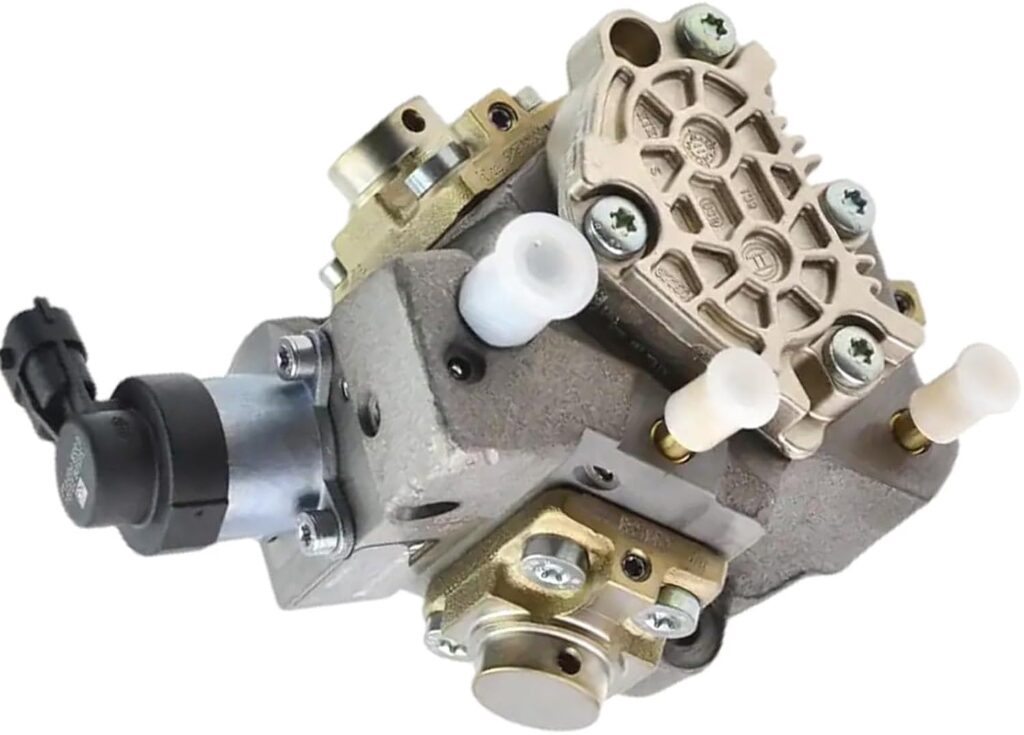

Where is the Injector Pump on a ZD30?
For owners or mechanics looking to locate the injector pump on a ZD30 engine, its position can vary slightly depending on the specific engine variant (DI for Direct Injection, which uses the conventional pump, or CRD for Common Rail Diesel). Generally, on the earlier direct injection (DI) models, the injection pump – which is often a rotary distributor type – is typically mounted on the side of the engine, driven by the timing chain or gears. For the later common-rail (CRD) models, the high-pressure fuel pump (which feeds the common rail) is also usually located on the side of the engine, often driven off the camshaft or timing belt/chain, while the common rail itself is a prominent pipe running along the top or side of the cylinder head, feeding the individual injectors.
It is always advisable to consult your vehicle's specific service manual or a reputable workshop for precise location and identification, as slight variations exist even within the ZD30 family. Knowing your specific engine variant, such as 'GUII ZD30DI Wgn', as highlighted in the provided text, is crucial for accurate diagnosis and repair.
The ZD30's Lasting Legacy and Reputation
Despite the introduction of common-rail injection and other attempts to rectify its flaws, the early damage to the ZD30's reputation was, for many, irreversible. This didn't deter Nissan from continuing to utilise the engine, however. It remarkably survived in production right up until the end of Y61 Patrol production in 2016. By this point, it was the sole engine option available for the Y61 in certain markets, largely serving to appease the dedicated diesel enthusiasts who found it difficult to transition to the petrol-only Y62 Patrol launched in 2013.
The ZD30's story is a compelling case study in automotive engineering and market perception. While it promised efficiency and modern performance, its early struggles, particularly those related to combustion issues and mechanical failures, overshadowed its technological advancements. The shift in its fuel system design was a critical evolutionary step, aimed at addressing some of these fundamental problems, yet it arrived too late for many to salvage the engine's initial standing.
ZD30 Engine Key Specifications and Common Issues Summary
Here's a summary of key details and common problems associated with the Nissan ZD30 engine:
| Feature/Issue | Detail |
|---|---|
| Engine Type | 2953cc, Four-cylinder turbo-diesel |
| Technology | Balance shafts, double overhead camshafts, four valves per cylinder |
| Power Output | 116kW (156hp) at 3600rpm |
| Torque Output | 345Nm at 2000rpm |
| Transmission Options | Five-speed manual or four-speed automatic |
| Typical Vehicle Weight | Approx. 2.3-tonne payload (Patrol wagon) |
| Fuel Tank Capacity | 125 litres (Patrol) |
| Common Failures | Piston failure (holes/cracks in pistons #3 or #4) |
| Suspected Causes of Failure | EGR valve issues, MAF sensor contamination, Boost spikes, Incorrect oil volume |
| Initial Oil Capacity | 6 litres (later revised to 8.3 litres) |
| Fuel System (Pre-2006) | Conventional fuel-pump system (Direct Injection) |
| Fuel System (Post-2006) | Common-rail injection (Common Rail Diesel) |
| Production End (Y61) | 2016 |
Frequently Asked Questions (FAQs) about the ZD30 Engine
Q: What were the main issues with the Nissan ZD30 engine?
A: The ZD30 engine was notorious for several issues, primarily catastrophic piston failures (often cylinders #3 or #4). Suspected causes included problems with the Exhaust Gas Recirculation (EGR) valve leading to hot spots, Mass Air Flow (MAF) sensor contamination causing incorrect fuel-air mixtures, damaging boost spikes due to slow engine responses, and a significant initial error in the specified engine oil volume (6 litres, later corrected to 8.3 litres), which led to oil starvation.
Q: Did the ZD30 engine's fuel pump change over time?
A: Yes, it did. Up until 2006, the ZD30 used a conventional fuel pump system. From 2006 onwards, Nissan switched the ZD30 to common-rail injection. This change was reportedly implemented to help address some of the engine management issues, such as boost spikes and incorrect fuel-air mixtures, that plagued the earlier models.
Q: Was the ZD30 engine ever considered reliable?
A: The early ZD30 engines gained a reputation for significant reliability issues, particularly regarding piston failures. While Nissan made revisions, including the switch to common-rail injection and correcting the oil capacity, the engine's initial reputation for 'grenading pistons' largely persisted. Later versions were generally considered more robust, but the damage to its standing was done.
Q: How much oil does a ZD30 engine take?
A: Initially, Nissan specified a 6-litre oil capacity for the ZD30 engine. However, this was later found to be incorrect and insufficient, leading to oil starvation issues. Nissan subsequently revised the official oil capacity to 8.3 litres. It is crucial for owners to ensure their ZD30 engines are filled to the correct 8.3-litre capacity and that the dipstick has been recalibrated or is the correct length for the revised capacity.
Q: Why did Nissan continue using the ZD30 if it had so many problems?
A: Despite its well-documented issues, Nissan continued to use the ZD30 engine until the very end of Y61 Patrol production in 2016. By that point, it was the only diesel engine available for the Y61. This continuation was largely to cater to the loyal base of hard-core diesel fans who preferred a diesel option over the petrol-only Y62 Patrol that had been launched in 2013, indicating a strong market demand for diesel power in the Patrol line-up.
