Yamaha YXZ1000R Oil Change: The UK Guide

Maintaining your Yamaha YXZ1000R is paramount for ensuring its longevity, optimal performance, and reliability, especially given the demanding environments these off-road machines often operate in. One of the most critical aspects of this maintenance is regular oil changes. Unlike conventional wet sump engines, the YXZ1000R features a dry sump lubrication system, which has a specific procedure for checking and filling oil that can sometimes seem a bit more involved. This detailed guide will walk you through the entire process, from gathering your tools to correctly refilling the oil, ensuring your YXZ1000R remains a formidable force on any terrain.

Understanding your YXZ1000R's dry sump system is the first step. In a dry sump setup, the engine oil is stored in a separate reservoir, or tank, rather than in the engine's oil pan. This design offers several advantages, including consistent oil supply during extreme manoeuvres, improved ground clearance, and better oil cooling. However, it also means the oil change procedure, particularly the refill and level check, differs slightly from what you might be accustomed to with a typical car or motorbike engine. By following these instructions diligently, you'll safeguard your engine and enhance your off-road adventures.

Why Regular Oil Changes Are Non-Negotiable

Engine oil is the lifeblood of your Yamaha YXZ1000R. It performs multiple vital functions:

• Lubrication: Reducing friction between moving parts, preventing wear and tear.
• Cooling: Dissipating heat generated by the engine's internal combustion.
• Cleaning: Suspending contaminants like dirt, metal particles, and combustion by-products, preventing them from forming sludge.
• Sealing: Helping piston rings seal against cylinder walls.
• Corrosion Protection: Preventing rust and corrosion on internal components.

Over time, engine oil degrades. It becomes contaminated with dirt and debris, its viscosity breaks down from heat and stress, and its additive package depletes. Continuing to run on old, degraded oil can lead to excessive engine wear, reduced performance, increased fuel consumption, and ultimately, costly engine damage. Regular oil changes, typically every 100 hours of operation or annually, whichever comes first, are the simplest and most effective way to protect your investment.

Essential Tools and Materials You'll Need

Before you begin, gather all necessary tools and materials. Having everything at hand will make the process smoother and more efficient. Do not attempt this job without the correct oil and filter.

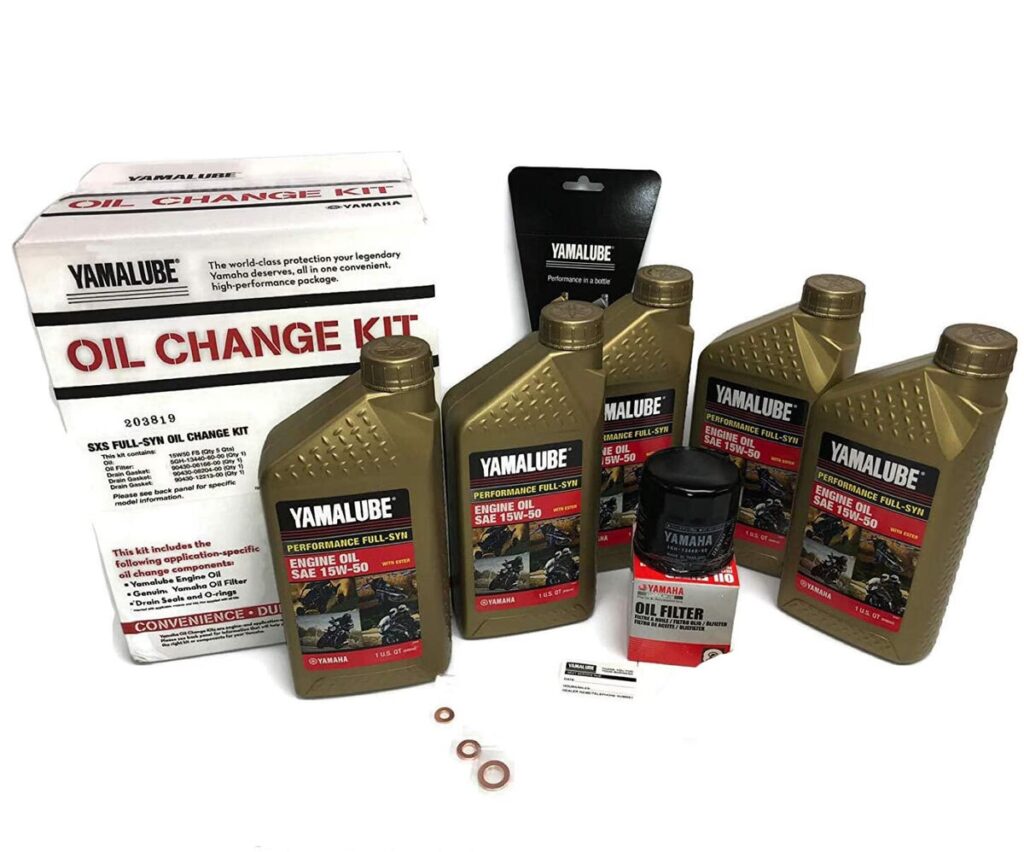

Choosing the Right Oil and Filter

For your Yamaha YXZ1000R, using the correct specification of oil is absolutely crucial. Yamaha recommends their own Yamalube 4T 10W-40, which is specifically formulated for their engines. If you choose an alternative, ensure it meets the following specifications:

• Viscosity: 10W-40 is generally recommended for most operating temperatures in the UK.
• API Service Classification: SG, SJ, SL, SM, or SN. These indicate the oil's quality and performance standards.
• JASO MA or MA2: This is vital for engines with a wet clutch, ensuring proper clutch operation and preventing slippage. While the YXZ1000R has a dry clutch, JASO MA/MA2 oils are still appropriate for the engine's lubrication needs and are common for powersports applications.

Always use a genuine Yamaha oil filter or a high-quality aftermarket equivalent. Cheap, low-quality filters can lead to inadequate filtration, potentially causing premature engine wear. The total oil capacity for the YXZ1000R, including a filter change, is approximately 3.8 litres (4.0 US quarts).

The Step-by-Step Oil Change Procedure

Follow these steps carefully to perform a thorough oil change on your YXZ1000R. Safety first!

Step 1: Preparation and Warming Up

Firstly, ensure your YXZ1000R is on a level surface. Gather all your tools and materials. It's best to change the oil when the engine is warm, as warm oil flows more easily, allowing for a more complete drain. However, be cautious as hot oil can cause burns.

To warm the oil and circulate it effectively for draining, begin by:

• Start the engine and let it idle for a few minutes.
• Once warmed, blip the throttle to 2000–3000 rpm three times. This helps to fully circulate the oil through the dry sump system and dislodge any contaminants.
• Shut the engine off immediately after the blips.

Step 2: Draining the Old Oil

Your YXZ1000R has two primary oil drain points: one for the engine sump and one for the dry sump oil tank. You'll need to drain both for a complete oil change.

1. Position your oil drain pan directly underneath the engine's oil pan drain plug. This is usually a 12mm or 17mm bolt located on the bottom of the engine.
2. Carefully remove the engine oil drain plug with your socket wrench. Be prepared for the oil to come out quickly. Allow all the oil to drain completely.
3. While the engine oil is draining, locate the oil tank drain plug. This is typically on the bottom of the external oil tank, often near the front or side of the engine bay. Place your drain pan underneath it.
4. Remove the oil tank drain plug and allow the oil from the tank to drain fully. This may take several minutes.

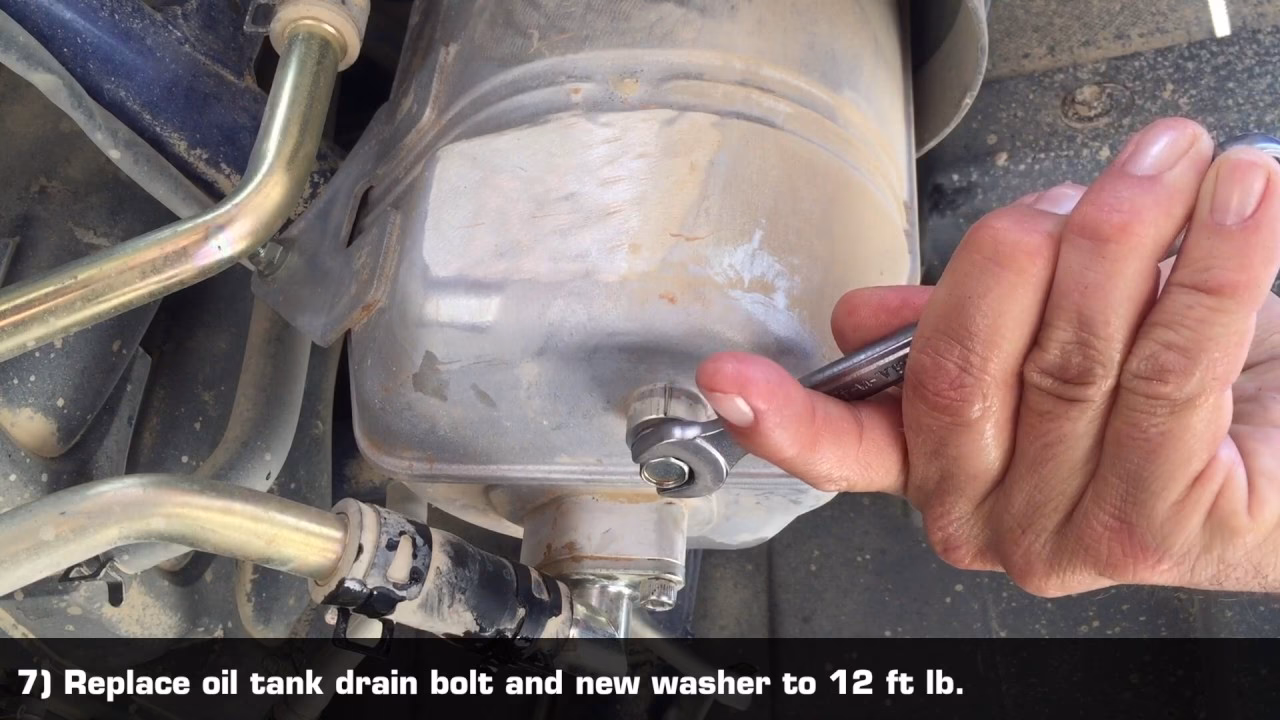

5. Once both sources have stopped dripping, clean the areas around the drain plugs and replace the old crush washers with new ones.
6. Reinstall both drain plugs, tightening them to the manufacturer's specified torque. Over-tightening can strip threads, while under-tightening can lead to leaks. Consult your owner's manual for precise torque specifications. For typical drain plugs, this is often around 20-30 Nm (15-22 ft-lb).

Step 3: Replacing the Oil Filter

The oil filter is crucial for trapping contaminants. Always replace it with every oil change.

1. Locate the oil filter. It's usually a canister-style filter situated on the side of the engine.
2. Place a rag or small pan underneath the filter to catch any drips.
3. Using your oil filter wrench, carefully loosen and remove the old oil filter. Be aware that some oil will spill from the filter as you remove it.
4. Clean the oil filter mounting surface on the engine, ensuring no old gasket material remains.
5. Take your new oil filter and apply a thin film of fresh engine oil to its rubber gasket. This helps ensure a good seal and makes future removal easier.
6. Screw on the new oil filter by hand until the gasket makes contact with the engine. Then, tighten it an additional 3/4 to 1 full turn. Do not overtighten, as this can damage the filter or the engine's mounting surface. Many filters specify tightening instructions directly on the canister.

Step 4: Refilling with Fresh Oil

This is where the dry sump system requires a specific procedure to ensure the correct oil level. Remember, the total capacity is approximately 3.8 litres with a filter change.

1. Locate the oil tank fill cap/dipstick, usually located on top of the oil tank. Remove it.
2. Using a clean funnel, carefully pour approximately 2.5-3.0 litres of fresh, specified oil into the oil tank. This is your initial fill.
3. Replace the fill cap/dipstick loosely for now.
4. Now, perform the crucial circulation step as described earlier:
• Start the engine again, and let it run for 30–45 seconds. This allows the oil to circulate throughout the engine and return to the tank, establishing the correct operating level.
5. Shut the engine off.
6. Now, the specific procedure for dry sump systems: Remove the dipstick from the oil tank. Carefully pour another 1.25 liters of fresh oil into the tank. This additional amount is critical for bringing the system to its full operating capacity after the initial circulation.
7. Once this additional oil has been added, replace the dipstick fully.
8. Start the engine again, and let it run for approximately 30–45 seconds. This final run ensures the newly added oil circulates properly and the level stabilises.
9. Shut the engine off.

Step 5: Final Checks and Disposal

After the engine has been shut off for a few minutes (to allow oil to settle), perform your final oil level check.

1. Remove the dipstick, wipe it clean, reinsert it fully, and then remove it again to check the level. The oil level should be between the minimum and maximum marks on the dipstick. If it's low, add small amounts of oil (e.g., 50-100ml at a time) until it reaches the correct level. Do not overfill.
2. Inspect both drain plugs and the oil filter for any signs of leaks. Tighten slightly if necessary, but be careful not to overtighten.
3. Start the engine one last time and check for any warning lights on the dashboard, especially the oil pressure light. If it stays on, shut off the engine immediately and investigate.
4. Finally, responsibly dispose of your used engine oil. Never pour it down drains or onto the ground. Most local recycling centres or automotive shops will accept used oil for proper disposal. Keep it in a sealed container, such as the empty new oil bottles.

Common Mistakes to Avoid

To ensure a successful oil change and prevent issues, be mindful of these common pitfalls:

• Not warming up the engine: Cold oil doesn't drain as thoroughly.
• Not replacing crush washers: Can lead to annoying and dangerous leaks.
• Over-tightening drain plugs or filter: Risks stripping threads or damaging the filter.
• Under-tightening drain plugs or filter: Leads to leaks.
• Using the wrong oil: Incorrect viscosity or specifications can damage the engine or clutch (if applicable).
• Not changing the filter: A clogged filter negates the benefits of new oil.
• Overfilling or underfilling: Both can cause serious engine damage. Always check the dipstick carefully after a full procedure.
• Ignoring the dry sump procedure: Forgetting the specific circulation and refill steps unique to the YXZ1000R's dry sump system will result in an incorrect oil level.

Frequently Asked Questions (FAQs)

Here are some common questions YXZ1000R owners have about oil changes:

How often should I change the oil in my YXZ1000R?

Yamaha typically recommends changing the oil and oil filter every 100 hours of operation or annually, whichever comes first. If you ride in extremely dusty, muddy, or harsh conditions, more frequent changes might be beneficial.

Can I use car oil in my YXZ1000R?

No, it is strongly advised against. Car oils often contain friction modifiers that can cause slippage in wet clutches (though the YXZ1000R has a dry clutch, it's still best to use dedicated powersports oil) and may not offer the same protection against high RPMs and temperatures common in UTV engines. Always use an oil that meets JASO MA or MA2 specifications, designed for powersports engines.

What if I accidentally overfill the oil?

Overfilling can be as detrimental as underfilling. Excess oil can cause aeration (foaming) due to the crankshaft whipping it, leading to a loss of lubrication and potential engine damage. If you overfill significantly, you should drain some oil until the level is correct. A small amount over the 'max' mark might not be critical, but if it's substantial, drain it.

What does "blip the throttle" mean?

To "blip the throttle" means to quickly and briefly press the accelerator pedal (or twist the throttle grip) to rapidly increase engine RPMs, then immediately release it. In the context of an oil change, it helps circulate the oil through the dry sump system and scavenge any remaining oil from the engine into the tank.

Why does the YXZ1000R have an oil tank separate from the engine?

The YXZ1000R uses a dry sump lubrication system. This means the main oil supply is held in a separate external tank, not in the engine's crankcase. Advantages include: consistent oil supply during aggressive riding (preventing oil starvation), lower engine profile (for better ground clearance), and better oil cooling due to the larger oil volume and external location. It requires a specific oil change and check procedure.

Conclusion

Performing an oil change on your Yamaha YXZ1000R is a fundamental maintenance task that, while slightly different due to its dry sump system, is well within the capabilities of a diligent owner. By following this comprehensive guide, using the correct materials, and paying close attention to the specific refill procedure, you'll ensure your YXZ1000R's engine remains healthy, powerful, and ready for countless hours of off-road excitement. Regular maintenance is the key to enjoying your machine for years to come. Don't defer this vital service – your Yamaha will thank you for it!
