Tektro HD-R310 Brake Pads: Finding The Right Fit

Replacing brake pads on your commuter bike is a crucial maintenance task, but identifying the correct pads can often feel like a puzzle, especially with generic markings like "R160 FM1.1" or "F160 FM1.1". If you own a 2019 Boardman URB8.9, it's highly likely you have Tektro HD-R310 hydraulic disc brakes. This article will guide you through confirming your brake model, understanding pad compatibility, and addressing the common question of whether EBC pads are suitable for your specific setup.

The markings you've found – "R160 FM1.1" and "F160 FM1.1" – refer to the rotor size (160mm) and the specific mounting standard (Flat Mount 1.1) for the caliper, not the caliper model itself. This is a common point of confusion. For a 2019 Boardman URB8.9, the Tektro HD-R310 is indeed the standard fitment, an entry-level hydraulic disc brake system designed for reliable commuting.

Identifying Your Tektro HD-R310 Brake Pads

Once you've confirmed your brake model as the Tektro HD-R310, the next step is to understand what type of pads it uses. Tektro, like many brake manufacturers, often designs its calipers to accept widely available pad shapes. For the HD-R310, the pads are typically interchangeable with a very common Shimano standard, specifically the B01S, B03S, or B05S resin/organic pad shape. These pads are characterised by their distinct rectangular shape with a single spring clip and a pin that secures them in the caliper. This compatibility is a huge advantage, as it opens up a vast array of replacement options from various manufacturers.

Understanding Brake Pad Compatibility Codes

When searching for replacement pads, you'll encounter various codes. Knowing the common equivalents will save you a lot of hassle:

• Tektro's own codes: Often TRP P20.11 or E10.11, though these can be less common to find in retail than the Shimano equivalents.
• Shimano equivalents: B01S, B03S, B05S. These are the most common and widely cross-referenced. The 'S' denotes organic/resin compound.
• Third-party manufacturers: Brands like EBC, SwissStop, Jagwire, Clarks, and others will list their pads as compatible with Shimano B01S/B03S/B05S or specifically mention Tektro HD-R310.

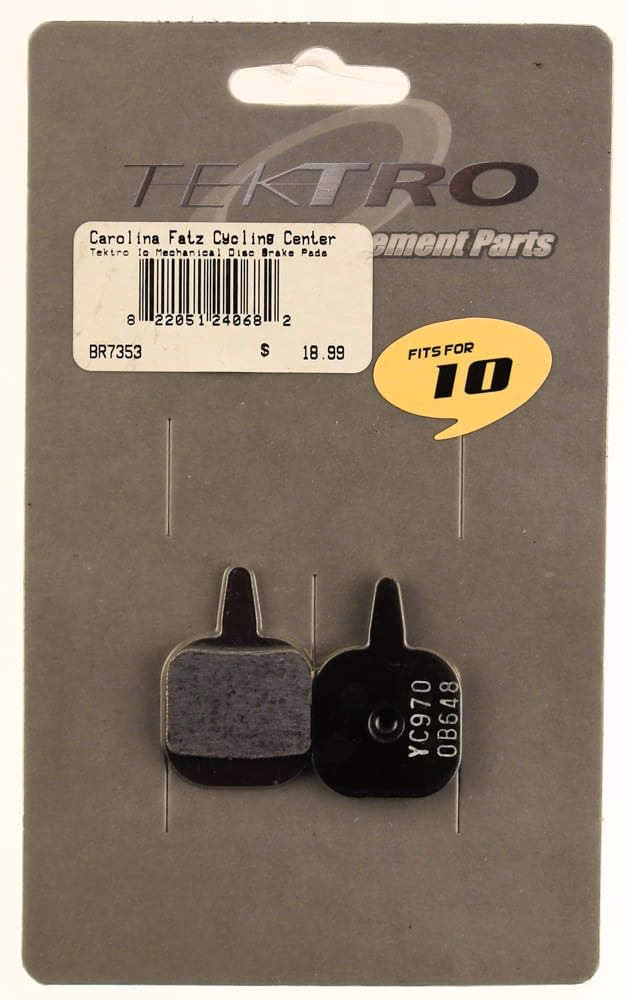

Are EBC Pads Too Big for Tektro HD-R310 Brakes?

This is a common concern, but let's clarify. EBC, a highly respected manufacturer of brake components, produces a comprehensive range of brake pads for bicycles. EBC does not make pads that are generically "too big" for a specific brake model. Instead, they manufacture pads designed to precise dimensions for particular calipers. If an EBC pad is listed as compatible with the Tektro HD-R310 (or its Shimano B01S/B03S/B05S equivalent), it will fit perfectly. The issue would only arise if you mistakenly tried to install an EBC pad designed for a completely different brake caliper.

To ensure you get the correct EBC pads, you need to look for their specific product that cross-references with the Shimano B01S/B03S/B05S or explicitly states compatibility with Tektro HD-R310. EBC's product catalogue, or reputable online retailers, will clearly indicate compatibility. For example, EBC often uses codes like 'Greenstuff', 'Redstuff', or 'Yellowstuff' for their automotive pads, but for bicycles, they will have specific part numbers that correspond to the caliper type. You are looking for a pad that matches the Shimano B01S/B03S/B05S shape.

EBC Pad Options for Tektro HD-R310

EBC typically offers different compounds for their bicycle brake pads, similar to other manufacturers. These compounds are designed for different riding conditions and preferences.

It's crucial to confirm the specific EBC part number that matches the B01S/B03S/B05S shape. Always double-check the product description and compatibility lists before purchasing.

Choosing the Right Pad Compound

Beyond compatibility, the material of your brake pads significantly impacts braking performance, noise, and longevity. There are generally two main types:

1. Organic (Resin) Pads

• Characteristics: Made from organic materials bonded with resin. They are softer, quieter, and offer good initial bite.
• Pros: Excellent initial bite, quiet operation (less squeal), less rotor wear.
• Cons: Wear faster, especially in wet or muddy conditions; can fade under prolonged heavy braking.
• Ideal for: Commuting, dry conditions, riders prioritising quiet operation and good initial feel. This is what your Tektro HD-R310 likely came with originally (B01S/B03S/B05S).

2. Metallic (Sintered) Pads

• Characteristics: Made from metallic particles pressed together under high pressure and heat. They are harder and more durable.
• Pros: Excellent performance in wet/muddy conditions, longer lifespan, better heat resistance and fade resistance for sustained braking.
• Cons: Can be noisy (squeal), less initial bite, more rotor wear.
• Ideal for: Wet weather commuting, heavier riders, or those seeking maximum durability and consistent performance in adverse conditions.

3. Semi-Metallic Pads

Some manufacturers also offer semi-metallic pads, which aim to strike a balance between organic and metallic, offering improved durability over organic pads with less noise than full metallic ones. EBC often excels in offering various compounds, so you might find a semi-metallic option that suits your commuting needs perfectly.

DIY Brake Pad Replacement Guide

Replacing your brake pads is a straightforward task you can easily do at home with a few basic tools. Always prioritise safety and cleanliness.

Tools You'll Need:

• Hex keys (usually 3mm or 4mm for the pad retention pin)
• Flathead screwdriver (for prying pads if stuck)
• Clean rags
• Rubbing alcohol or disc brake cleaner
• Gloves (optional, but recommended to keep oil off pads/rotors)
• Piston press tool or tyre lever (to push pistons back)

Step-by-Step Process:

1. Prepare Your Bike: Place your bike securely in a work stand or upside down. Shift your gears to the smallest cog to provide clearance for the wheel.
2. Remove the Wheel: Loosen your quick release or thru-axle and carefully remove the wheel. Avoid touching the brake rotor with your bare hands.
3. Remove Old Pads: Locate the pad retention pin (usually a small bolt or a split pin). Remove it using the appropriate hex key or pliers. Some Tektro calipers might have a spring clip instead of a pin. Once the pin is out, the old pads, along with their spring, should slide out downwards or be gently pried out with a flathead screwdriver. Note how the spring is oriented.
4. Clean the Caliper: With the pads removed, take this opportunity to clean inside the caliper. Spray a little disc brake cleaner or rubbing alcohol onto a clean rag and wipe away any grime, especially around the pistons. Do not spray directly into the caliper.
5. Reset the Pistons: This is a crucial step. The pistons will have moved out as the old pads wore down. You need to push them back into the caliper body to make space for the new, thicker pads. Use a dedicated piston press tool or a clean tyre lever. Gently and evenly push both pistons back until they are flush with the caliper body. Be careful not to damage the pistons or seals.
6. Insert New Pads: Place the new pads onto their spring (if separate) ensuring the correct orientation. Carefully slide the new pad assembly back into the caliper, making sure the spring sits correctly between the pads.
7. Re-insert Retention Pin: Push the retention pin back through the holes in the pads and caliper. If it's a bolt, tighten it gently. If it's a split pin, bend the ends to secure it.
8. Re-install Wheel: Carefully put the wheel back on the bike, ensuring the rotor slides cleanly between the new pads without forcing it. Tighten your quick release or thru-axle.
9. Bed-in New Pads: This is perhaps the most critical step for optimal performance and noise reduction. Find a safe, open area. Accelerate to a moderate speed (around 15-20 mph) and then brake firmly but without skidding, letting your speed drop to walking pace. Repeat this 15-20 times, alternating between front and rear brakes, allowing the brakes to cool slightly between efforts. You should feel the braking power increase over these repetitions. This process transfers pad material onto the rotor, creating an optimal braking surface.

Troubleshooting Common Brake Issues

Even with new pads, you might encounter issues. Here's how to address some common ones:

Squealing Brakes:

• Cause: Contamination (oil, grease), improper bedding-in, misaligned caliper, worn rotor, or vibration.
• Solution: Clean rotor and pads with disc brake cleaner (if pads are contaminated, they might need replacing). Re-bed the pads. Check caliper alignment. Ensure the rotor is not warped.

Spongy Lever Feel:

• Cause: Air in the hydraulic system.
• Solution: The system needs bleeding. This is a more advanced task that might require professional assistance if you're not comfortable with it.

Poor Braking Power:

• Cause: Pads not bedded in, contaminated pads/rotor, worn pads, or air in the system.
• Solution: Bed-in pads properly. Clean/replace contaminated components. Check pad wear. Bleed brakes if necessary.

Frequently Asked Questions (FAQs)

Q: How do I know my exact Tektro model if the markings are generic?

A: While the rotor markings are generic, the design of the caliper itself, combined with your bike's make and model (e.g., 2019 Boardman URB8.9), is usually a strong indicator. For the URB8.9, the Tektro HD-R310 is almost certainly what you have. You can also look for very small stamps on the caliper body or compare its shape to images online of common Tektro models.

Q: What's the difference between organic and metallic pads?

A: Organic pads are quieter, offer good initial bite, and are gentler on rotors but wear faster. Metallic pads are more durable, perform better in wet conditions, and resist fade, but can be noisier and wear rotors faster. Choose based on your riding conditions and preference.

Q: Can I mix pad types (e.g., organic front, metallic rear)?

A: While technically possible, it's generally not recommended. For consistent braking feel and performance, it's best to use the same compound on both front and rear brakes. Mixing can lead to different braking characteristics between the wheels.

Q: How often should I replace my brake pads?

A: This depends heavily on your riding style, terrain, weather conditions, and pad compound. Inspect your pads regularly (every few months or after heavy use). Replace them when the friction material is less than 0.5mm thick, or if you notice a significant drop in braking performance or increased noise.

Q: What is "bedding in" and why is it important?

A: Bedding in is the process of transferring a thin layer of pad material onto the brake rotor. This creates an optimal friction surface, significantly improving braking power, consistency, and reducing noise. Skipping this step can lead to poor braking performance and persistent squealing.

Q: Why are my brakes squealing after new pads?

A: Common reasons include improper bedding-in, contamination of the pads or rotor (even fingerprints can cause this), or the caliper being slightly misaligned. Ensure thorough bedding-in and keep surfaces clean. If it persists, re-aligning the caliper can help.

Q: Are EBC pads good quality?

A: Yes, EBC is a well-regarded brand with a strong reputation in both automotive and cycling brake components. They produce high-quality pads across various compounds, often offering superior performance and durability compared to generic options. Just ensure you select the correct pad shape for your specific caliper.

By understanding your Tektro HD-R310 brakes and their compatibility, you can confidently select and install the right replacement pads, whether they are EBC or another reputable brand. Enjoy the peace of mind that comes with knowing your Boardman URB8.9 is stopping safely and effectively.
