A healthy Yanmar diesel engine relies on the precise operation of its fuel injection system, and at the heart of this system lies the injector pump. This critical component is responsible for delivering meticulously metered and timed bursts of high-pressure fuel to the injectors, ensuring efficient combustion and optimal engine performance. When your Yanmar injector pump suffers from low output, the symptoms can range from a noticeable loss of power and rough running to complete engine failure. Understanding the intricate workings of this system and knowing how to diagnose common issues is paramount for any Yanmar owner or mechanic.
The journey of fuel within your Yanmar engine begins with the low-pressure feed pump, often called the lift pump, which draws fuel from the tank and supplies it to the injector pump. The injector pump then takes this fuel, pressurises it significantly, and distributes it to the individual injectors, along with a 'spill circuit' that returns excess fuel to the tank. Any disruption in this carefully orchestrated process, whether it's insufficient fuel supply to the injector pump or internal wear within the pump itself, can lead to frustrating low output conditions. Moreover, issues seemingly unrelated to the pump, such as incorrect governor adjustments or poor fuel timing, can cleverly mimic injector pump problems, making a systematic troubleshooting approach absolutely essential.
Understanding the Yanmar Fuel Injection System
Before diving into troubleshooting, it's beneficial to have a clear picture of how the Yanmar fuel system operates. Fuel is drawn from the tank through a primary filter, then moved by the lift pump to the secondary fuel filter, and finally to the injection pump. The injection pump houses precision-engineered components like plungers, barrels, and delivery valves, which work in conjunction with the engine's camshaft to achieve the precise timing and quantity of fuel delivery. The governor controls the engine speed by regulating the amount of fuel delivered by the pump, while the injectors atomise the high-pressure fuel into a fine mist for combustion.
A low output condition means that one or more cylinders are not receiving enough fuel, or the fuel is not being delivered at the correct pressure or timing. This can lead to misfires, reduced power, excessive smoke, and difficulty starting. It's crucial to approach diagnosis methodically, eliminating the simpler, more common issues before considering the more complex and costly internal pump repairs.
Common Causes of Low Injector Pump Output
Several factors can contribute to a Yanmar injector pump's low output. These can broadly be categorised into external supply issues and internal pump issues.
1. Air Leaks in the Fuel System
Air is the nemesis of any diesel fuel system. Even a tiny air leak can introduce air bubbles into the fuel lines, leading to fuel starvation at the injector pump. Air is compressible, unlike fuel, and its presence disrupts the precise hydraulic action within the pump. Common locations for air leaks include:
- Loose fuel line connections or clamps.
- Cracked or perished fuel hoses.
- Faulty seals on fuel filters or the fuel tank sender unit.
- A porous fuel line or a pinhole leak in the tank itself.
- Improperly bled fuel system after filter changes or maintenance.
Troubleshooting Air Leaks: Look for visible signs of weeping fuel around connections. If the lines are transparent, you might see air bubbles flowing through them. Bleeding the fuel system thoroughly is often the first step. If air persistently re-enters, systematically check each connection point, starting from the fuel tank and working towards the injector pump. Tighten all clamps and connections. Consider replacing old fuel lines as a preventative measure.
2. Fuel Restrictions
Just as air ingress can starve the pump, so can an insufficient supply of fuel. Restrictions limit the amount of fuel the lift pump can deliver to the injector pump, leading to low output. Common restrictions include:
- Clogged Fuel Filters: This is arguably the most common cause. Both primary and secondary filters can become blocked with dirt, rust, algae, or other contaminants, severely impeding fuel flow.
- Blocked Fuel Lines: Debris, kinks, or collapsed internal liners within hoses can restrict flow.
- Contaminated Fuel: Water, sludge, or excessive particulate matter in the fuel tank can overwhelm filters and directly block lines or pump components.
- Blocked Fuel Tank Pickup: The screen or filter at the bottom of the fuel tank can become clogged.
Troubleshooting Fuel Restrictions: Begin by checking and replacing all fuel filters. This is cheap, easy, and often resolves the issue. If the problem persists, disconnect fuel lines at various points (starting from the tank) and check for flow. A simple gravity test can sometimes indicate a blocked pickup. Ensure the fuel tank is clean and free of contaminants.
3. Weak or Faulty Lift Pump (Feed Pump)
The lift pump is responsible for supplying fuel to the injector pump under low pressure. If this pump is weak, has a worn diaphragm, or a faulty check valve, it won't be able to deliver enough fuel to the high-pressure pump, leading to low output despite a clear fuel supply. Some lift pumps also contain a small filter screen that can become clogged.
Troubleshooting Lift Pump: Check the output pressure and flow of the lift pump. This usually requires a pressure gauge. A healthy lift pump should maintain a consistent pressure within the manufacturer's specifications (typically a few PSI). If the pressure is low or erratic, or if you notice a significant drop in flow, the lift pump may need replacement. Also, inspect any screen filters within the lift pump itself.
4. Worn Internal Injector Pump Components
This is where things get more serious and usually indicates a need for professional attention or pump overhaul. Over time, the precision components within the injector pump can wear out, leading to a loss of pumping efficiency. These include:
- Plungers and Barrels: These are matched sets that create the high pressure. Wear allows fuel to leak past, reducing effective pressure and volume.
- Delivery Valves: These valves seal the high-pressure fuel line to the injector after each injection. Wear or sticking can cause pressure loss or improper fuel delivery.
- Camshaft Lobes and Rollers: Wear here can alter the timing and lift of the plungers, affecting fuel delivery.
- Governor Components: While often causing incorrect speed, severe wear can impact fuel quantity control.
Troubleshooting Worn Components: Diagnosing internal wear often requires specialised tools and expertise. A diesel injection specialist can test the pump on a test bench to determine its output volume and pressure at various RPMs. This is usually a last resort after ruling out all external factors.
5. Governor and Timing Misadjustments
These issues can mimic low injector pump output because they directly affect how the pump delivers fuel, even if the pump itself is mechanically sound.
- Governor Malfunction: The governor controls the engine's speed by adjusting the fuel rack on the injector pump. If the governor is sticking, misadjusted, or has worn linkages, it might not be allowing the pump to deliver the correct amount of fuel for the given load or throttle position. This can manifest as low power or inability to reach maximum RPM.
- Incorrect Fuel Timing: The timing of fuel injection is critical. If the injection pump is not correctly synchronised with the engine's camshaft (static timing), or if there's an issue with dynamic timing advance mechanisms, fuel will be injected too early or too late. This leads to inefficient combustion, reduced power, and can feel like low pump output.
Troubleshooting Governor and Timing:
- Governor: Check all governor linkages for freedom of movement and proper adjustment according to the Yanmar service manual. Ensure the throttle cable/linkage is fully actuating the governor lever.

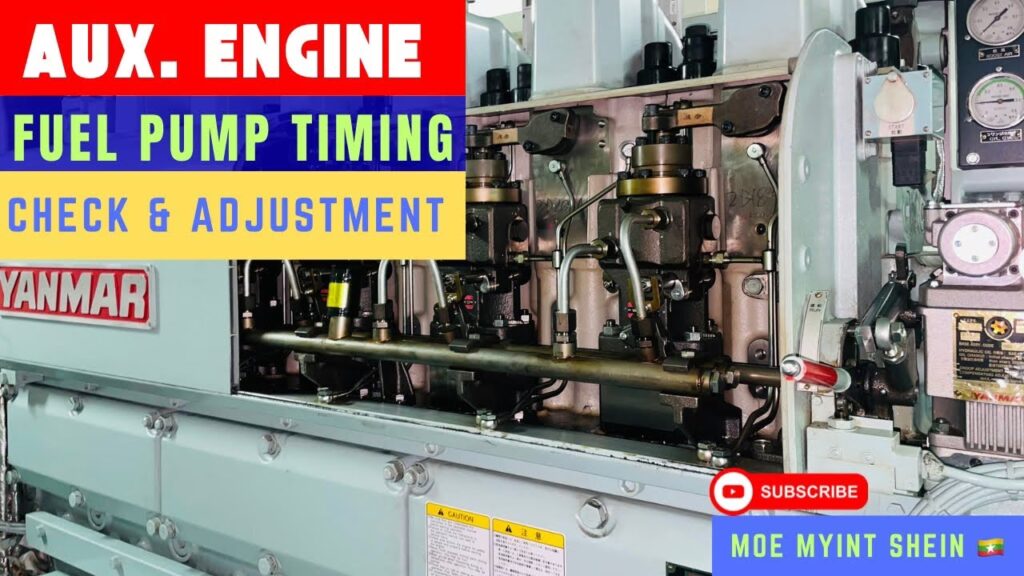

- Timing: Checking and adjusting static fuel timing is a fundamental procedure. This involves aligning marks on the engine flywheel and the injection pump. Dynamic timing issues are more complex and might indicate internal pump problems or worn timing gears. Always consult your Yanmar engine's specific service manual for precise timing procedures.
Systematic Troubleshooting Steps
When faced with low output, follow a logical, step-by-step approach to avoid unnecessary work or expense.
Step 1: Basic Checks & Fuel Supply Verification
- Check Fuel Level and Quality: Sounds obvious, but ensure there's enough clean fuel in the tank. Look for water or contaminants.
- Replace Fuel Filters: Always start here. Replace both primary and secondary filters. Ensure new filters are filled with clean fuel before installation.
- Bleed the Fuel System: After any filter change or opening of fuel lines, air will be introduced. Thoroughly bleed the entire system using the bleed screws, starting from the lift pump and working towards the injectors. Continue until only pure fuel emerges.
- Inspect Fuel Lines: Visually check all fuel lines from the tank to the injector pump for cracks, kinks, chafing, or signs of leaks. Replace any suspicious lines.
- Check Fuel Tank Pickup: If flow from the tank is poor, the pickup screen inside the tank might be clogged. This may require draining the tank to inspect.
Step 2: Lift Pump & External Component Checks
- Test Lift Pump Output: Disconnect the fuel line leading from the lift pump to the secondary filter/injector pump. Crank the engine (or manually operate the lift pump if it's mechanical) and observe the fuel flow. It should be a strong, consistent stream, not just drips. A pressure gauge can provide a more precise reading. Compare against Yanmar specifications.
- Inspect Governor Linkage: Ensure the throttle linkage is free, not binding, and fully moves the governor arm on the injection pump from idle to full throttle. Adjust if necessary.
Step 3: Timing & Injector Checks
- Check Fuel Injection Timing: Using the marks on the flywheel and injector pump, verify that the static injection timing is correct according to your Yanmar service manual. Incorrect timing can drastically affect power and efficiency.
- Injector Nozzle Condition (Indirectly): While not an injector pump issue directly, faulty injectors (clogged, sticking, leaking) can significantly reduce engine power and mimic pump problems. If fuel delivery *to* the injectors seems fine but engine performance is still poor, consider having the injectors tested by a specialist. They should have a good spray pattern and open at the correct pressure.
Step 4: Considering the Injector Pump Itself
If all the above external checks yield no improvement, the issue likely lies within the injector pump. At this point, it's often best to consult with a qualified diesel mechanic or an injection pump specialist. They have the expertise and the specialised test bench equipment to accurately diagnose internal wear, calibrate the pump, and rebuild it if necessary.
Preventative Maintenance for Your Yanmar Fuel System
Regular maintenance is key to preventing low output issues and extending the life of your Yanmar injector pump. Here are some vital practices:
- Use Clean Fuel: Always fill your tank with high-quality, clean diesel fuel. Be wary of fuel from questionable sources.
- Regular Filter Replacement: Adhere strictly to Yanmar's recommended service intervals for fuel filter replacement. In dusty or humid environments, or with older tanks, consider replacing them more frequently.
- Keep Tank Clean: Periodically inspect and clean your fuel tank to remove any accumulated sediment or water. Consider using a fuel additive that helps prevent algae growth and disperses water.
- Inspect Fuel Lines: Routinely check all fuel lines and connections for wear, cracking, or leaks. Address any issues promptly.
- Bleed System Correctly: Whenever fuel lines are opened, ensure the system is bled thoroughly to remove all air.
Comparative Table: Symptoms vs. Potential Causes
| Symptom | Likely Causes | Troubleshooting Steps |
|---|---|---|
| Engine Cranks but Won't Start / Hard Start | Severe Air Leak, Blocked Fuel Filter, No Fuel, Faulty Lift Pump | Bleed system, Replace filters, Check fuel level/flow, Test lift pump |
| Low Power / Lack of RPM | Clogged Fuel Filter, Weak Lift Pump, Air Leak, Incorrect Timing, Governor Issue, Worn Pump Components | Replace filters, Test lift pump, Check timing, Inspect governor, Advanced pump testing |
| Rough Running / Misfires | Air in Fuel, Contaminated Fuel, Incorrect Timing, Faulty Injector, Worn Pump Components | Bleed system, Check fuel quality, Verify timing, Test injectors, Advanced pump testing |
| Excessive Black Smoke | Rich Fuel Mixture (often poor combustion), Incorrect Timing, Clogged Air Filter (not pump issue, but related), Worn Injectors | Check timing, Test injectors, Clean/replace air filter |
| Excessive White/Blue Smoke | Water in Fuel, Incorrect Timing (white), Burning Oil (blue - not pump issue) | Drain water from fuel, Verify timing |
| Engine Dies Under Load | Severe Fuel Restriction, Weak Lift Pump, Air Leak | Check fuel flow, Replace filters, Test lift pump, Bleed system |
Frequently Asked Questions (FAQs)
Q: Can I use petrol in my Yanmar diesel engine by mistake?
A: Absolutely not! Using petrol (gasoline) in a diesel engine can cause severe, irreversible damage to the fuel pump and injectors due to lack of lubrication and incorrect combustion properties. If this happens, do NOT start the engine. Drain the tank, flush the fuel system, replace filters, and fill with diesel before attempting to start.
Q: How often should I change my Yanmar fuel filters?
A: Always refer to your specific Yanmar engine's owner's manual for recommended service intervals. However, as a general rule, it's wise to check and potentially replace fuel filters every 200-500 operating hours, or at least annually, especially if you suspect fuel contamination or operate in challenging conditions.
Q: What's the difference between static and dynamic timing?
A: Static timing refers to setting the injection pump's timing when the engine is stationary, typically by aligning marks on the flywheel and pump. Dynamic timing refers to the actual timing of injection while the engine is running, which can vary with RPM due to internal pump mechanisms or engine load. Most troubleshooting focuses on correct static timing, as dynamic issues often point to internal pump wear.
Q: Can a DIY mechanic replace an injector pump?
A: While mechanically possible for experienced DIYers, replacing an injector pump is a precision job. Proper installation requires careful attention to timing, torque settings, and bleeding the system. Calibrating or rebuilding an injector pump, however, requires specialised equipment and training, making it a task best left to a diesel injection specialist.
Q: My engine runs fine for a while, then loses power. What could it be?
A: This intermittent issue often points to a partial fuel restriction or an intermittent air leak. A partially clogged fuel filter might allow enough fuel at low demand but starve the engine under load. Similarly, an air leak might only become problematic when the system is under vacuum or when the engine is hot. Check filters, test the lift pump, and meticulously inspect all fuel lines for subtle leaks.
Diagnosing low output from a Yanmar injector pump requires patience and a methodical approach. By systematically checking the fuel supply, external components, and then considering the pump itself, you can pinpoint the problem and restore your engine's performance. Remember, clean fuel and regular maintenance are your best allies in keeping your Yanmar running reliably.
