Understanding Yanmar Injection Pumps: Operation and Care

The heart of any diesel engine lies in its ability to precisely manage fuel delivery, and for Yanmar engines, the injection pump plays this critical role. This intricate component is responsible for taking fuel from the tank, pressurising it to immense levels, and delivering it at the exact moment and quantity required for efficient combustion. Understanding how these sophisticated pumps operate, what their key components are, and how to identify common issues is crucial for maintaining the reliability and performance of your Yanmar-powered machinery.

How Yanmar Injection Pumps Work: The Principles of Precision Fuel Delivery

At its core, a Yanmar injection pump functions on the principle of volumetric displacement and high-pressure atomisation. The process begins with the fuel entering the pump, then it undergoes a series of transformations before being injected into the combustion chamber.

The journey starts at the Fuel Inlet, where clean diesel fuel is drawn into the pump from the vehicle's or machinery's fuel tank. This initial intake is typically handled by a lift pump (often integrated or separate) that ensures a steady supply of fuel to the injection pump itself. Once inside the main pump unit, the real work of pressurisation begins.

The primary objective of the injection pump is to elevate the fuel pressure significantly. Diesel engines rely on compression ignition, meaning the air in the cylinder is compressed to such a high temperature that when finely atomised fuel is injected, it ignites spontaneously. Without this precise high-pressure injection, combustion would be inefficient, leading to poor performance, excessive emissions, and potential engine damage.

Within the pump, a highly engineered plunger is the central element responsible for this pressurisation. As the plunger reciprocates within its barrel, it first draws in a metered amount of fuel. Then, as it moves through its compression stroke, it rapidly increases the fuel's pressure. This pressurised fuel is then directed towards the engine's cylinders through individual delivery valves. The timing of this delivery is absolutely critical and is meticulously controlled by other components within the pump, ensuring that fuel is injected only when the piston is in the correct position for optimal combustion.

Key Components of a Yanmar Injection Pump: An Inside Look

Yanmar injection pumps, while varying slightly by model, share a common architecture built around several crucial components that work in harmony to achieve precise fuel delivery.

Let's delve into these vital parts:

• Fuel Inlet: As mentioned, this is the initial gateway for the fuel. It's designed to accept fuel from the supply line, often incorporating a primary filter screen to prevent larger contaminants from entering the delicate pump mechanism. Maintaining a clean fuel supply to this inlet is paramount for the longevity of the entire system.
• Hydraulic Head: This is a sophisticated assembly, particularly in distribution-type pumps. It houses the single plunger and the single distribution shaft. The plunger's precise movement, often driven by a cam, is what generates the high pressure. The distribution shaft then ensures that this high-pressure fuel is directed sequentially to the correct cylinder's delivery valve at the appropriate time. This ingenious design allows a single pressurisation element to serve multiple cylinders, simplifying the pump's construction compared to individual pump elements per cylinder found in older inline pumps.
• Delivery Valves: For each individual cylinder, there is a dedicated delivery valve. These valves are critical for two main reasons: firstly, they open under the immense pressure generated by the plunger, allowing fuel to flow to the injector nozzle. Secondly, and equally important, they rapidly close after injection, creating a sharp pressure drop in the high-pressure line. This sharp cut-off prevents secondary injection or dribbling of fuel from the injector, which can lead to inefficient combustion, carbon build-up, and excessive smoke. Their integrity is vital for clean and efficient engine operation.
• Pump Housing: This robust casing encapsulates all the internal components, providing structural integrity and a sealed environment. Within the pump housing, you will find the camshafts. These camshafts are precisely machined shafts with lobes that interact with the plungers, dictating their movement and thus the timing and duration of fuel injection. The rotation of the camshaft is synchronised with the engine's crankshaft, ensuring that injection occurs at the correct engine cycle.
• Governor: The governor is another integral part housed within the pump. Its primary function is to regulate the engine speed by controlling the amount of fuel delivered by the pump. It responds to changes in engine load and operator input (e.g., accelerator pedal position) and adjusts the fuel quantity accordingly. This ensures the engine maintains a stable RPM under varying conditions and prevents over-speeding. Governors can be mechanical, hydraulic, or electronic, but their purpose remains the same: precise fuel metering for speed control.

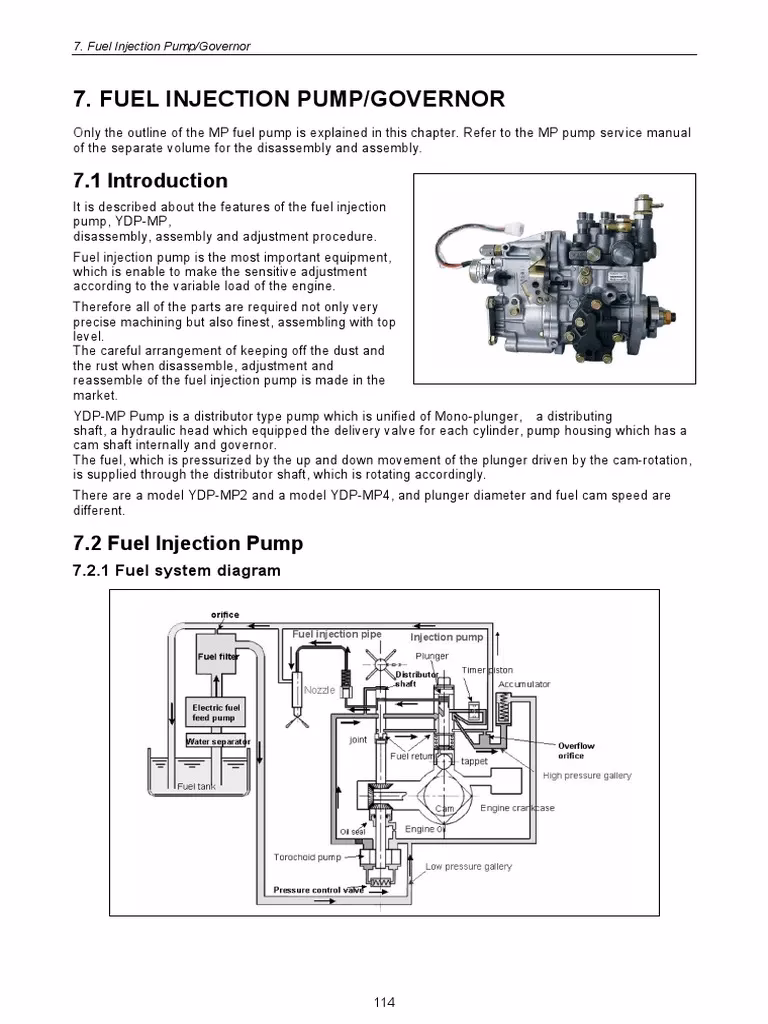

The Yanmar Distribution Type Fuel Injection Pump (YPD-MP): An Integrated Solution

The Yanmar Distribution Type Fuel Injection Pump, specifically the YPD-MP model, represents a highly integrated and efficient design for modern diesel engines. Its outline clearly defines its core structure: a hydraulic head, a pump housing, and a governor, all meticulously combined into a single, compact main unit.

This integration is a key feature. Instead of separate components, the YPD-MP design centralises several critical functions. The hydraulic head, equipped with a single plunger and a single distribution shaft, is responsible for both generating the high pressure and distributing it. This means one plunger effectively serves all cylinders of the engine by rotating the distribution shaft to align with the correct delivery valve for each cylinder in sequence. This design minimises moving parts compared to multi-plunger inline pumps, potentially leading to greater reliability and a more compact footprint.

The delivery valves, essential for precise fuel cut-off, are also housed within this hydraulic head, ensuring that each cylinder receives its precisely metered dose of fuel at the right moment. The pump housing not only encases these intricate parts but also integrates the camshafts that drive the plunger's motion and the governor mechanism that controls engine speed. This holistic approach to design means that the YPD-MP unit is a self-contained system for fuel injection control, simplifying installation and maintenance. The precision engineering of such a unit is paramount, as any wear or misalignment can significantly impact engine performance and fuel economy.

Common Problems with Yanmar Injection Pumps: Identifying Issues

Even with their robust design, Yanmar injection pumps, like any precision mechanical component, can develop issues over time. Identifying these problems early can prevent more significant engine damage and costly repairs.

One of the most frequently encountered problems with Yanmar injection pumps is fuel leakage. This is a serious concern for several reasons.

Causes of Fuel Leakage:

• Worn or Damaged Seals: The injection pump contains numerous seals and O-rings that prevent fuel from escaping. Over time, these seals can harden, crack, or wear down due to age, heat, and exposure to fuel additives. Once compromised, they allow fuel to seep out.
• Cracked Housing: While less common, the pump's housing, typically made of durable metal, can develop hairline cracks due to extreme vibration, impact, or thermal stress. These cracks can be microscopic at first but will eventually allow fuel to leak, especially under the high operating pressures.
• Loose Connections: The fuel lines connecting to and from the injection pump, as well as internal connections, are secured with fittings and clamps. If these connections become loose due to vibration or improper tightening during maintenance, fuel can leak from these points.

Consequences of Fuel Leakage:

Fuel leakage is not merely an inconvenience; it has direct and serious implications for engine performance and safety:

• Reduced Engine Performance: Leaking fuel means less fuel is reaching the combustion chambers. This can lead to a noticeable drop in power, rough idling, misfires, and difficulty starting the engine. The engine may struggle to reach its full RPM or may run erratically.
• Increased Fuel Consumption: Even a small leak can result in significant fuel loss over time, leading to higher operating costs.
• Environmental Impact: Leaking diesel fuel is an environmental pollutant and can contaminate the ground or water.
• Safety Hazard: Diesel fuel is flammable. A significant leak, especially in a hot engine bay, poses a serious fire risk. It can also create slippery surfaces, leading to slip-and-fall hazards for personnel.
• Contamination: Leaking fuel can spray onto other engine components, potentially damaging belts, hoses, or electrical wiring, and attracting dirt and grime.

Beyond obvious leakage, other symptoms might indicate a failing pump, such as excessive black or white smoke from the exhaust, difficult starting (especially when warm), significant loss of power, or uneven engine running. While these can be symptoms of various engine issues, a malfunctioning injection pump should always be considered in the diagnostic process.

Troubleshooting and Maintenance for Yanmar Injection Pumps

Given the critical role of the injection pump, proactive troubleshooting and regular maintenance are essential.

If you suspect fuel leakage:

1. Visual Inspection: Carefully inspect the entire pump body, fuel lines, and connections for any visible signs of wetness or dripping fuel. Pay close attention to the areas around seals, gaskets, and fittings. A strong smell of diesel is often the first indicator.
2. Engine Bay Cleanliness: A clean engine bay makes it easier to spot leaks. If you notice a leak, clean the area thoroughly and then run the engine to recheck for the source.
3. Check Connections: Ensure all fuel line connections are securely tightened. Be careful not to overtighten, which can strip threads or damage components.
4. Professional Diagnosis: If the leak source isn't immediately obvious, or if it appears to be from the pump housing itself, it is highly recommended to seek professional assistance. Disassembling an injection pump requires specialised tools, knowledge, and calibration equipment. Attempting DIY repairs on internal pump components can lead to irreversible damage and incorrect engine timing.

General Maintenance Tips:

• Use Clean Fuel: Contaminated fuel is a leading cause of injection pump and injector failure. Always use high-quality, clean diesel fuel and ensure your fuel storage tanks are free of water and sediment.
• Regular Fuel Filter Replacement: Fuel filters are your first line of defence against contaminants. Follow the manufacturer's recommended service intervals for replacing both primary and secondary fuel filters. A clogged filter can starve the pump of fuel, leading to cavitation and premature wear.
• Monitor Engine Performance: Pay attention to any changes in your engine's behaviour – difficulty starting, unusual smoke, power loss, or rough running. These can be early indicators of injection pump issues.
• Regular Inspections: Periodically inspect fuel lines and the pump exterior for any signs of wear, cracks, or minor leaks before they become major problems.
• Avoid Running on Low Fuel: Running your tank to empty can draw sediment from the bottom of the tank into the fuel system, potentially damaging the pump.

By adhering to these maintenance practices, you can significantly extend the lifespan of your Yanmar injection pump and ensure the continued reliable operation of your engine.

Frequently Asked Questions (FAQs)

Here are some common questions regarding Yanmar injection pumps:

Q1: What is the primary function of a Yanmar injection pump?

A1: The primary function is to draw fuel from the tank, pressurise it to extremely high levels, and deliver it precisely to the engine's combustion chambers at the correct time and in the correct quantity for efficient ignition and power generation.

Q2: What are the most critical components within a Yanmar injection pump?

A2: Key components include the Fuel Inlet, Hydraulic Head (with plunger and distribution shaft), Delivery Valves, Pump Housing (containing camshafts), and the Governor. Each plays a vital role in the pump's overall operation.

Q3: Why is fuel leakage a significant problem for these pumps?

A3: Fuel leakage is serious because it leads to reduced engine performance, increased fuel consumption, environmental contamination, and poses a significant safety hazard due to the flammability of diesel fuel. It can also indicate underlying damage to seals or the pump housing.

Q4: What makes the Yanmar YPD-MP pump unique?

A4: The YPD-MP is a distribution-type pump characterised by its highly integrated design. It features a single plunger and a single distribution shaft within its hydraulic head that serves all cylinders, making it a compact and efficient unit where the pump housing also integrates the camshafts and governor.

Q5: How often should I check my injection pump for issues?

A5: While there isn't a strict time interval for checking the pump itself, it's advisable to perform visual checks for leaks during routine engine inspections (e.g., oil changes). More importantly, always adhere to the manufacturer's recommendations for fuel filter replacement and use clean, high-quality fuel to prevent common issues that affect the pump's longevity.

Conclusion

The Yanmar injection pump is an exemplary piece of engineering, vital for the efficient and reliable operation of Yanmar diesel engines. Its precise control over fuel pressure and delivery is what allows these engines to perform robustly. Understanding its components, such as the hydraulic head and governor, and being aware of common problems like fuel leakage, empowers owners and technicians to maintain these critical systems effectively. Regular maintenance, particularly ensuring clean fuel and timely filter changes, is the best defence against costly repairs and ensures your Yanmar engine continues to deliver peak performance for years to come.
