Yanmar YPD-MP Fuel Injection Pump Explained

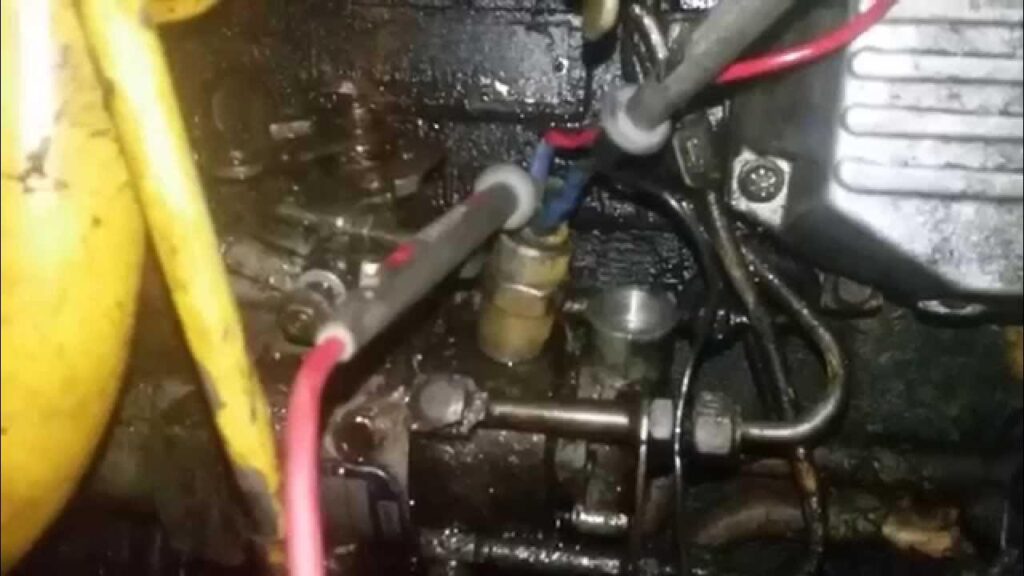

Understanding the Yanmar YPD-MP Fuel Injection Pump

The Yanmar YPD-MP series represents a sophisticated fuel injection pump system designed for direct injection diesel engines, specifically developed to meet increasingly stringent exhaust gas emission regulations. Unlike older systems that might use multiple plungers or complex rail designs, the YPD-MP employs a distribution type system. This means a single plunger, working in conjunction with a distribution shaft, precisely meters and delivers fuel to each cylinder. This design focuses on high precision and fine adjustment capabilities, crucial for optimising engine load and performance. The meticulous manufacturing and assembly processes ensure the longevity and reliability of these units, but also underscore the importance of cleanliness and care during any servicing or repair work.

Key Features and Design Principles

The core of the YPD-MP pump is its integrated design, combining the fuel injection components with a mechanical governor. This close coupling allows for rapid and accurate response to engine speed and load variations. Let's break down the primary sections:

2.1. Outline of MP Pump

The MP pump is a fuel distribution type, utilising a single plunger and a rotating distribution shaft to deliver fuel to each cylinder. This single plunger design is a hallmark of its efficiency and precision in managing fuel delivery across multiple cylinders. The pump's nameplate provides crucial identification, including the assembly code, ID code for production, serial numbers, and specific codes related to exhaust gas regulations, ensuring the correct unit is identified for servicing.

2.3. Outline of Fuel Injection Pump

The YPD-MP pump integrates several key sub-assemblies into a single, robust unit. This includes:

• Hydraulic Head: This houses the single plunger, the distribution shaft, and delivery valves for each cylinder.
• Pump Housing: Contains the camshaft, which drives both the plunger and the distribution shaft.
• Governor: A mechanical governor is integrated to regulate engine speed by adjusting fuel delivery based on load changes.

The operational cycle involves the camshaft driving the plunger up and down while simultaneously rotating the distribution shaft. This synchronised action ensures that fuel is delivered to the correct cylinder at the precise moment and in the correct quantity. One revolution of the camshaft typically completes multiple injection cycles, depending on the number of cylinders.

2.4. Construction of MP-Pump

The MP pump's construction can be broadly divided into its fuel injection and governor sections:

2.4.1. Fuel Injection Part

This part is responsible for the precise metering and delivery of fuel. Key components include:

• Barrel and Plunger: The heart of the metering system, where the plunger reciprocates within the barrel to control fuel volume.
• Distribution Shaft: Rotates to direct the pressurised fuel from the plunger to the correct cylinder's delivery valve.
• Delivery Valves: Control the flow of fuel to the injection lines and prevent backflow.
• Camshaft: Driven by the engine, it provides the mechanical motion for the plunger and distribution shaft.
• Tappets (Roller): Transmit the cam's motion to the plunger.
• F.O. Feed Pump: An integrated pump, typically a trochoid type, that supplies fuel from the tank to the injection pump.

2.4.2. Governor Part

The mechanical governor is essential for maintaining stable engine operation across varying loads and speeds. Its primary function is to automatically adjust the fuel delivery via the control rack. Key elements include:

• Governor Weights: Centrifugal force acting on these weights, driven by the camshaft, dictates the governor's response.
• Tension Lever and Governor Lever: These levers translate the movement of the governor weights into action.
• Control Rack: This rack, connected to the governor levers, directly alters the fuel metering within the hydraulic head.
• Springs (Governor, Excess Fuel, Torque, Angleich): These springs provide tension and counter-force, allowing for precise control of engine speed, starting fuel, and torque characteristics.

The governor's operation is a delicate balance of centrifugal forces and spring tensions, ensuring the engine operates efficiently and reliably. Specific springs like the angleich spring and torque spring are designed to enhance low-speed torque and prevent stalling under sudden load increases, respectively.

2.5. Function of Component: F.O. Feed Pump

The Fuel Oil (F.O.) feed pump is critical for ensuring a consistent supply of fuel to the injection pump. Driven by the fuel camshaft, it draws fuel from the tank, passing it through filters and water separators. While robust, its self-priming capability can be limited, often requiring a manual priming pump or solenoid pre-feed pump for initial startup. Regular replacement, often recommended around every 10,000 hours, is advised to maintain optimal fuel delivery pressure and volume, preventing premature wear or failure of the main injection pump.

2.6. Timer Mechanism

To optimise combustion, reduce noise, and minimise exhaust emissions across the engine's operating range, the fuel injection timing must be adjusted dynamically. The YPD-MP incorporates a timer mechanism that advances or retards injection timing based on engine speed, load, and temperature:

• Speed Timer: Adjusts timing based on engine RPM.
• Load Timer: Modifies timing according to engine load, often advancing timing at lower loads to prevent misfires and white smoke.
• Cold Start Timer (C.S.D.): Advances injection timing when the engine is cold to improve starting. This is typically managed by a thermo-element that senses coolant temperature.

The cold starting advancer, a key part of the C.S.D., uses a thermo-element to control a piston that either opens or closes a sub-port. When cold, the sub-port is closed, advancing the injection timing for easier starting.

Servicing and Adjustments: A Delicate Process

Maintenance of the YPD-MP pump demands meticulous attention to detail. The high-precision nature of its components means that even minor contamination can lead to significant issues. Always ensure a clean working environment when disassembling or reassembling.

3. Disassembly, Reassembly, and Inspection

The manual provides a detailed, step-by-step guide for dismantling and rebuilding the pump. This includes procedures for:

• Separating the pump and governor bodies.
• Disassembling the hydraulic head, including the plunger, barrel, and distribution shaft.
• Carefully removing and reassembling the governor weight assembly.
• Handling small components like springs, seals, and shims.

Reassembly requires careful attention to the correct orientation of parts, proper use of specified lubricants (like molybdenum disulfide), and adherence to tightening torques. For instance, reassembling the hydraulic head involves correctly positioning the plunger, control sleeve, and rack guide, ensuring smooth rack movement and proper backlash.

4. Adjustment of Fuel Injection Pump and Governor

Accurate adjustment is paramount for optimal engine performance and emissions compliance. Key adjustments include:

• Bottom Clearance Adjustment (Fuel Injection Timing): This is a critical step, often performed by adjusting shims under the barrel. The correct clearance ensures the injection timing is set accurately relative to the camshaft's position. The manual details specific clearance values based on camshaft classification.
• Governor Adjustments: These cover:
• No Load Max. Engine Speed: Setting the highest engine speed achievable without load.
• Fuel Limit Bolt: Adjusting the maximum fuel delivery at full load.
• Torque-Rise Point: Optimising fuel delivery to enhance torque at lower speeds.
• Reverse Angleich: Fine-tuning timing for specific engine characteristics.
• Starting Injection Amount: Ensuring adequate fuel for engine startup.
• Injection Stop: Verifying the engine can be shut down correctly.

The process often requires a specialised pump tester and associated tools, such as a bottom clearance gauge and dial indicators.

5. Fuel Injection Nozzle

While not strictly part of the pump assembly, the fuel injection nozzles are inextricably linked to the pump's performance. The manual covers:

• Functioning: How the nozzle atomises fuel for efficient combustion.
• Types: Hole type (direct injection) and pintle type (indirect injection).
• Disassembly and Inspection: Emphasising cleanliness and careful handling of nozzle components.
• Reassembly and Adjustment: Including setting the opening pressure, which is critical for proper spray pattern and atomisation.

6. Troubleshooting

The manual provides a comprehensive troubleshooting guide, linking symptoms to potential causes and remedies. Common issues include:

• Engine won't start: Can be due to no fuel, air in the system, or internal pump faults like worn plungers or seized delivery valves.
• Insufficient engine output: Often related to incorrect injection timing, clogged fuel filters, or worn internal components.
• Rough idling or stalling: May indicate issues with the governor, control rack, or uneven fuel delivery.
• Excessive smoke (black or white): Black smoke usually points to overly rich fuel mixture or incorrect timing (too advanced), while white smoke often suggests incomplete combustion due to retarded timing or insufficient fuel.

When troubleshooting, it's vital to check the entire fuel system and engine, not just the injection pump itself. Issues like fuel leaks, air ingress, or incorrect injection timing set on the engine side must be ruled out.

7. Tightening Torques

Adherence to specified tightening torques is crucial for sealing and component integrity. The manual lists torques for various bolts and nuts within both the pump and governor sections, ensuring correct assembly pressure.

8. Tools

Specialised tools are often required for accurate disassembly, reassembly, and adjustment, including nozzle testers, clearance gauges, and specific extractors.

Reinstallation Considerations (Based on User Input)

When reinstalling a Yanmar YPD-MP pump, the shims located between the pump and its mounting flange are critically important. These shims directly influence the injection timing. Yanmar often recommends a specific sealant, like "Screw Lock Super 203M" (similar to Loctite Blue 242), to be applied between the shims and not as a thick gasket. The governor splash lubrication means a minimal amount of sealant is needed on the flange. Maintaining the exact thickness of these shims is paramount for correct timing; therefore, using anything other than the specified shims or an inappropriate sealant can severely impact engine performance and emissions.

In summary, the Yanmar YPD-MP fuel injection pump is a high-precision component requiring careful handling, precise adjustments, and a thorough understanding of its intricate workings. Regular maintenance and adherence to the service manual's procedures are key to ensuring reliable engine operation.
