The Yamaha SR250 might not boast the largest engine capacity or the most blistering performance figures, yet it has carved out a legendary status among motorcyclists, particularly those with a penchant for classic style and reliable mechanics. Often described as a bike whose 'heart and performance has always outshone mere datasheets and specifications', the SR250 offers a charming and capable ride, especially suited for urban adventures or as a fantastic platform for customisation. But what truly makes this machine tick? Let's delve into the specifics of its powerplant and the crucial component that helps it breathe: the carburettor.
The Enduring Heart: Yamaha SR250 Engine
At the core of the Yamaha SR250 lies a robust, air-cooled, single-cylinder, four-stroke engine. This simple yet effective design is a testament to Yamaha's engineering prowess, providing a reliable and enjoyable riding experience. For many, its single-cylinder thumper characteristic is part of its undeniable appeal.
The engine typically features a 240.0 ccm (14.64 cubic inches) displacement, though it's commonly referred to as a '250'. It's equipped with two valves per cylinder and utilises an Overhead Cam (OHC) fuel control system. Power output for models like the 1980 Yamaha SR250 US. Custom was rated at 17.0 HP (12.4 kW) at 7500 RPM, capable of pushing the bike to a top speed of around 115.0 km/h (71.5 mph). Its compression ratio stands at 9.2:1, with a bore and stroke of 73.5 x 56.5 mm. The engine's air-cooled nature simplifies maintenance and contributes to its classic aesthetic, avoiding the complexities of liquid cooling systems.

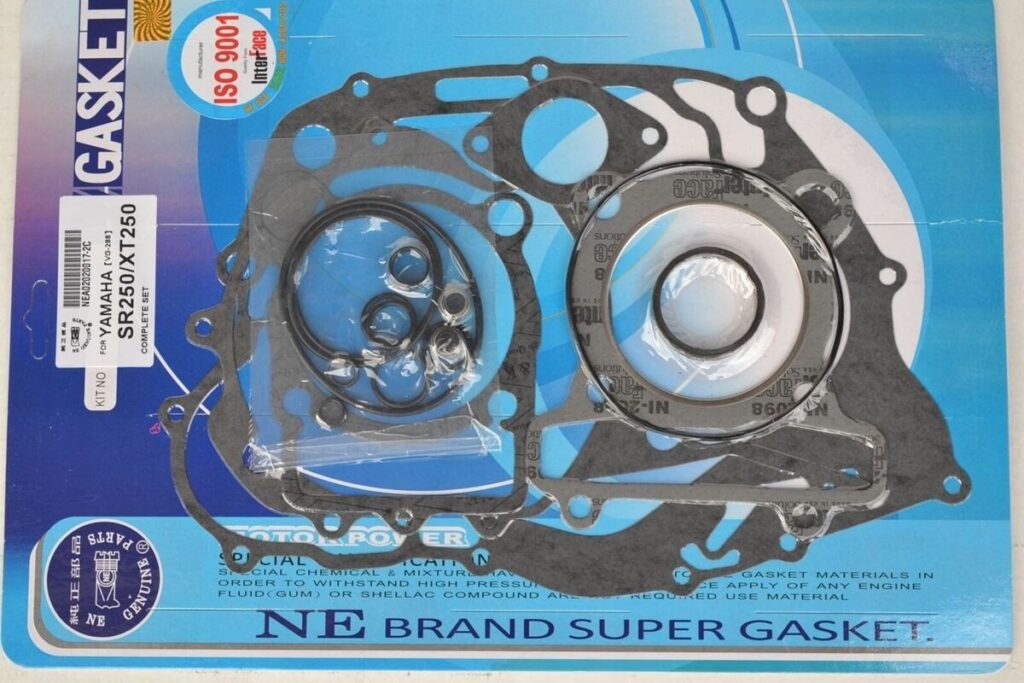

Interestingly, the SR250 shared a significant amount of its mechanical DNA with the Yamaha XT250 dirt bike. This shared lineage speaks volumes about the SR250's inherent toughness and versatility, making it a surprisingly capable machine for more than just tarmac, and explaining why it's a prime candidate for scrambler conversions. The engine's straightforward design ensures longevity and relatively easy maintenance, making it a favourite for those who prefer to tinker in their own garage.
The Breath of the Beast: Mikuni BS34 CV Carburettor
The lifeblood of the SR250's engine is its Mikuni BS34 CV (Constant Velocity) carburettor. This component is pivotal for ensuring clean and smooth engine running. Understanding its operation, maintenance, and potential issues is key to keeping your SR250 performing at its best. The Mikuni BS34 is renowned for its adaptability and versatility, allowing the SR250 to perform consistently across various conditions and setups with minimal jetting changes.
Common Carburettor Issues and Troubleshooting
While robust, carburettors can develop issues over time, often due to fuel contaminants, wear, or improper handling. Here are some common problems and their solutions:
Stubborn Screws and Jets
One of the most frustrating aspects of carburettor maintenance can be dealing with seized or damaged screws and jets. It is absolutely crucial to use the correct tools for the job. Japanese motorcycles, including the Yamaha SR250, often utilise JIS (Japanese Industry Standard) screws, which are slightly different from standard Philips screws. Using a Philips screwdriver on a JIS screw can easily strip the head, turning a simple task into a nightmare. Investing in a JIS screwdriver set or bit set is highly recommended.
When encountering stubborn fasteners, apply firm pressure into the screw head while turning to prevent the tool from camming out and damaging the soft brass or aluminium. If still stuck, a combination of heat (preferably from a heat gun) and penetrating oil (like WD40 or 5-56) can help break corrosive bonds. For truly recalcitrant screws or jets, an impact driver can be effective. In cases where the head is already compromised, try using a pair of strong poligrips. As a last resort, a rotary power tool with a disc cutter bit can be used to create a new, larger slot for a flat-head screwdriver, effectively converting the damaged screw.
Removing a Stuffed Pilot Jet
Pilot jets, being small and made of soft brass, are particularly prone to stripping. If a pilot jet is stuck and its head is damaged, a clever trick involves drilling a small hole into it. Then, find a Torx head driver that is slightly larger than the drilled hole and gently hammer it into the jet. The soft brass will take on the Torx shape, providing a much better grip. Apply heat to the carburettor body and penetrating oil to the jet, allowing several heat expansion cycles to loosen the bond. With a firm twist, the jet should then come out. This method destroys the jet, but it's a small price to pay to save the carburettor body.
Float Height Adjustment
Correct float height is essential for proper fuel metering. The service manual outlines a method for checking float height with the carburettor on the bike and the float bowl full of fuel. However, for a more conventional and precise measurement during a rebuild, the float height should be 23mm. This measurement is taken from the gasket surface to the highest point of the float, ensuring the float needle valve is seated and its internal compression spring is extended. Accurate float height prevents both fuel starvation and overflow issues.
Diaphragm Issues
The carburettor's diaphragm plays a critical role in smooth engine operation. Even the smallest pinhole can lead to significant running problems. Always inspect the diaphragm thoroughly by holding it up to a light source to check for any imperfections. While some might attempt temporary repairs with silicone, it's generally a less than optimal solution for such a crucial component. Original slide assemblies are available from Yamaha, though they can be pricey. A more economical and equally effective solution often involves replacing just the rubber diaphragm part with a new, all-rubber aftermarket component. These have been proven to perform just as well as, if not better than, the original parts in dyno tests.
Jetting Considerations
The stock jetting for the SR250 is remarkably consistent worldwide, a testament to the versatility of the Mikuni BS34 CV carb. However, modifications like exhaust upgrades or air filter changes might necessitate adjustments. Here's a simplified guide to typical jetting components:
Yamaha SR250 Carburettor Jetting Settings (Typical)
| Component | Stock Setting (Approx.) | Common Aftermarket/Tuned |
|---|---|---|
| Main Jet | #125 - #130 | #130 - #140 (for exhaust/filter mods) |
| Pilot Jet | #35 - #37.5 | #37.5 - #40 |
| Needle Clip Position | 3rd from top | 2nd or 4th from top (tuning specific) |
| Pilot Air Screw | 1.5 - 2.5 turns out | Adjust for highest idle RPM |
Always consult a detailed jetting guide or workshop manual if making changes, and consider dyno tuning for optimal performance with significant modifications.
The Yamaha SR250 Repair Manual: Your Essential Companion
For any owner of a Yamaha SR250, a dedicated repair or workshop manual is an indispensable tool. These manuals contain a wealth of information, from detailed exploded diagrams to step-by-step repair procedures for every component of the bike, including the engine and carburettor. They typically cover everything from routine service intervals and fluid capacities to complex engine rebuilds and electrical troubleshooting. Having a manual on hand ensures you have accurate specifications and procedures, preventing guesswork and potential damage. Many owners find these manuals invaluable for understanding the intricacies of their bike, making DIY maintenance and repairs much more manageable and rewarding.
The SR250's Enduring Appeal and Customisation Potential
Beyond its mechanical robustness, the Yamaha SR250 has become a darling of the custom motorcycle scene. Its straightforward design, lightweight chassis, and that reliable single-cylinder engine make it an ideal canvas for transformations into scramblers, trackers, or minimalist city bikes. Builders like Arpad Bozi of Mokka Cycles in Budapest exemplify this, creating stunning SR250 custom builds that seamlessly blend form and function. Their 1994 Yamaha SR250 scrambler, for instance, featured an elegantly custom-made subframe, subtle wiring, Mokka-designed handlebar switches and LED indicators, and a totally rebuilt and powder-coated engine – showcasing the immense potential of this humble machine.
The ability to strip down, rebuild, and re-imagine the SR250 is a significant part of its appeal. Its shared components with dirt bikes like the XT250 also mean that it has a rugged foundation, perfectly suited for the scrambler aesthetic. This blend of reliability, simplicity, and customisation potential ensures the Yamaha SR250 continues to capture the hearts of riders and builders alike, proving that sometimes, less truly is more.
Frequently Asked Questions about the Yamaha SR250
What kind of engine does a Yamaha SR250 have?
The Yamaha SR250 is equipped with an air-cooled, single-cylinder, four-stroke engine. It typically has a displacement of 240.0 ccm (often rounded up to 250cc) and features two valves per cylinder with an Overhead Cam (OHC) design.
What carburettor does the Yamaha SR250 use?
The Yamaha SR250 primarily uses a Mikuni BS34 CV (Constant Velocity) carburettor. This carburettor is known for its versatility and adaptability, contributing to the bike's smooth performance.
Is the Yamaha SR250 good for customisation?
Absolutely. The Yamaha SR250 is highly regarded as an excellent platform for customisation. Its simple design, robust single-cylinder engine, and shared parts with dirt bikes like the XT250 make it a popular choice for building scramblers, trackers, and minimalist urban bikes.
Who manufactured the Yamaha SR250?
The Yamaha SR250 was manufactured by Yamaha, a renowned Japanese multinational corporation known for producing motorcycles, marine products, and other motorised vehicles.
What are common issues with the SR250 carburettor?
Common issues with the SR250's Mikuni BS34 CV carburettor include seized or stripped screws and jets, incorrect float height leading to fuel delivery problems, and diaphragm damage (such as pinholes) which can cause erratic engine running. Proper tools and careful maintenance are key to preventing these issues.
