Yamaha PW80: A Classic Off-Roader

The Yamaha PW80 is a name synonymous with accessible, fun-filled off-road riding for a generation of young enthusiasts. Often the first taste of motorcycling for many, this diminutive machine punches well above its weight in terms of reliability and enjoyment. Its simple yet effective design has cemented its place as a beloved classic in the dirt bike world. For those looking to understand what makes this bike tick, or perhaps considering one for a budding rider, a closer look at its specifications and features is in order.

Engine and Performance: The Heart of the PW80

At the core of the Yamaha PW80 lies a reliable 80cc 2-stroke engine. This air-cooled powerplant is renowned for its simplicity and the peppy performance it delivers, making it ideal for learning and progression. The 2-stroke nature means it's relatively lightweight and offers a good power-to-weight ratio, crucial for off-road agility. The engine displacement is precisely 79.0 ccm (4.82 cubic inches), producing a healthy 4.7 HP (3.4 kW) at 4800 RPM. The torque figure stands at 6.3 Nm (0.6 kgf-m or 4.6 ft.lbs), providing enough grunt for tackling gentle trails and learning clutch control.

A key feature that makes the PW80 particularly user-friendly is its 3-speed gearbox with an automatic clutch. This innovation significantly simplifies the riding experience, allowing the rider to focus on throttle control, braking, and body positioning without the added complexity of manual clutch operation. This makes it an excellent stepping stone for riders transitioning from smaller, simpler machines or even pedal bikes.

Key Engine Specifications:

Chassis and Suspension: Built for Adventure

The PW80's chassis is designed with off-road riding in mind. Its lightweight construction contributes significantly to its ease of handling. The dry weight is a mere 57.0 kg (125.7 pounds), making it easy for younger riders to manoeuvre and pick up if dropped. The power-to-weight ratio is approximately 0.0823 HP/kg, which, while not astounding by adult standards, is more than adequate for its intended purpose.

Suspension duties are handled by a conventional telescopic fork at the front, offering 110 mm (4.3 inches) of travel to soak up bumps and ruts. At the rear, a Monocross suspension system provides 95 mm (3.7 inches) of travel, delivering a compliant ride over varied terrain. This setup is crucial for rider comfort and control when navigating trails.

Suspension and Wheel Travel:

Brakes and Wheels: Simple and Effective

The braking system on the PW80 is straightforward and effective for its performance level. Both the front and rear wheels are equipped with expanding brake (drum brake) systems. While not as powerful as disc brakes, drum brakes are generally simpler, more robust, and require less maintenance, fitting perfectly with the PW80's ethos of ease of use and reliability. The wheels are typically spoked, a common feature on dirt bikes that offers durability and a classic aesthetic.

Physical Dimensions: Rider-Friendly Proportions

The Yamaha PW80 is sized perfectly for its target audience. The seat height is a very manageable 635 mm (25.0 inches), allowing even smaller riders to comfortably place their feet on the ground when stopped. This is a significant confidence booster for beginners. The overall dimensions are also compact: an overall length of 1540 mm (60.6 inches), a width of 640 mm (25.2 inches), and an overall height of 880 mm (34.6 inches). The ground clearance is a respectable 185 mm (7.3 inches), providing ample space for suspension travel and clearing small obstacles.

Dimension Overview:

Maintenance and Reliability: A Key Selling Point

The Yamaha PW80 is celebrated for its durability and ease of maintenance. The simple 2-stroke engine design means fewer moving parts compared to a 4-stroke, often translating to easier servicing. Regular maintenance typically involves checking and cleaning the air filter, ensuring the correct fuel-oil mixture, keeping the chain properly lubricated and tensioned, and checking brake operation. Parts are generally readily available, and many common maintenance tasks can be performed by owners with basic mechanical knowledge.

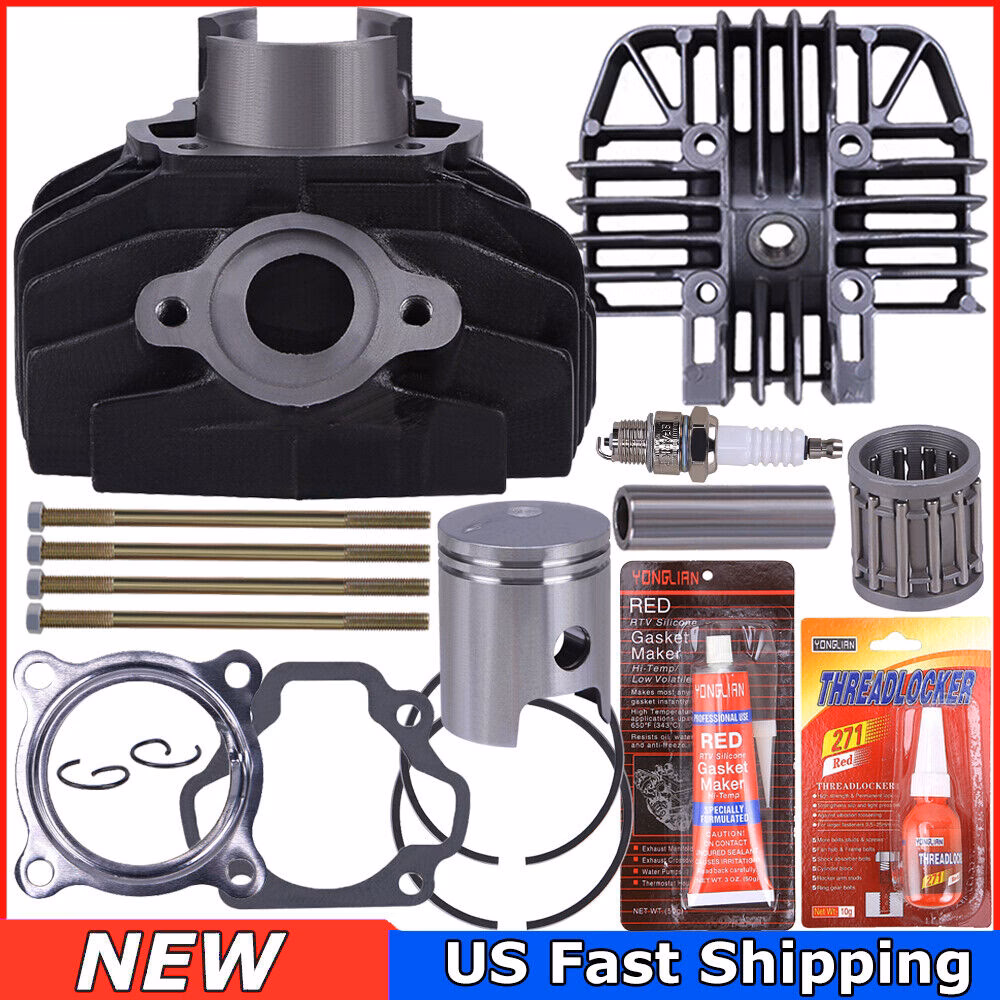

For those looking to keep their PW80 in top condition, sourcing quality maintenance parts like spark plugs, air filters, and chains is essential. Services like oil changes (for the gearbox) and general cleaning are also important. Finding a good service manual can be invaluable for understanding the intricacies of the bike and performing more involved maintenance tasks.

Riding Experience and Target Audience

The PW80 is fundamentally a beginner's dirt bike. Its approachable power delivery, automatic clutch, and low seat height make it an ideal platform for young riders to learn essential skills such as balance, throttle control, braking, and cornering. The overall riding experience is one of fun and confidence-building. It's designed for light trail riding, practising in a field, or simply enjoying the outdoors.

While the 2004 model listed here is a prime example, the PW80 has been produced for many years, with slight variations. Its enduring popularity speaks volumes about its success in catering to the entry-level market. When purchasing a used PW80, it's always wise to inspect it thoroughly, paying attention to the engine's sound, the condition of the suspension, and the general wear and tear.

Frequently Asked Questions (FAQs)

Q1: What type of engine does the Yamaha PW80 have?
The Yamaha PW80 is powered by a 79cc single-cylinder, two-stroke engine.

Q2: Does the Yamaha PW80 have a clutch?
Yes, it features a 3-speed gearbox with an automatic clutch, meaning riders do not need to operate a manual clutch lever.

Q3: Is the Yamaha PW80 good for beginners?
Absolutely. Its user-friendly features like the automatic clutch, low seat height, and manageable power make it an excellent choice for beginner riders.

Q4: What is the seat height of the Yamaha PW80?
The seat height is 635 mm (25.0 inches).

Q5: What is the dry weight of the Yamaha PW80?
The dry weight is 57.0 kg (125.7 pounds).

Conclusion: A Timeless Off-Roader

The Yamaha PW80, exemplified by the 2004 model, remains a highly regarded machine for introducing young riders to the world of off-road motorcycling. Its combination of a robust 80cc 2-stroke engine, an intuitive automatic clutch, and rider-friendly dimensions ensures a fun and confidence-building experience. Its legendary reliability and ease of maintenance further solidify its status as a classic. Whether for a child's first bike or a fun pit bike, the PW80 continues to deliver smiles on the trail.
