Yamaha YP250: Essential Parts Guide

Understanding the Anatomy of Your Yamaha YP250

The Yamaha YP250, often known as the Majesty or Grand Majesty depending on the market, is a sophisticated and reliable scooter designed for comfort and performance. To keep your YP250 running at its best, it's crucial to understand its various parts and their functions. This guide will delve into the essential components, from the rider's interface to the engine's core elements, providing clarity for maintenance and general knowledge. Whether you're a seasoned rider or new to the world of scooters, familiarising yourself with these parts is the first step towards ensuring a safe and enjoyable riding experience.

Core Components and Controls

Your interaction with the Yamaha YP250 primarily happens through its handlebar controls and dashboard. Understanding these is paramount for safe operation.

Handlebar Controls

The handlebars are the nerve centre of the scooter, housing the controls that manage speed, braking, and signalling.

• Throttle Grip: Located on the right handlebar, this is used to control the engine speed. Twisting it towards you increases acceleration, while releasing it reduces speed.
• Front Brake Lever: Also on the right handlebar, this lever operates the front braking system.
• Rear Brake Lever: Positioned on the left handlebar, this lever controls the rear braking system.
• Handlebar Switches:
  • Pass Switch: Flashes the high beam to alert other road users.
  • Dimmer Switch: Selects between high and low beam for the headlights.
  • Turn Signal Switch: Activates the left or right turn signals. Pushing it inwards cancels the signal.
  • Horn Switch: Sounds the horn to alert others.
  • Engine Stop Switch: A crucial safety feature, typically red, used to immediately shut off the engine in emergencies or when parking. It has 'ON' and 'OFF' positions, often marked with symbols like '□' (Stop) and '△' (Run).
  • Start Switch: Usually a button, this activates the starter motor to begin the engine.

Instrument and Indicator Panel

The dashboard provides vital information about the scooter's status.

• Speedometer: Displays the current riding speed.
• Tachometer: Shows the engine's revolutions per minute (RPM), helping you stay within the optimal power band.
• Fuel Gauge: Indicates the amount of fuel remaining in the tank. It's important to refuel before the needle reaches 'E' (Empty).
• Coolant Temperature Gauge: Monitors the engine's coolant temperature. If the needle enters the red zone, it indicates overheating, requiring the engine to be stopped and cooled.
• Multi-function Display: This often includes an odometer (total distance travelled), a trip meter (distance for a specific journey), a fuel trip meter (distance since the low fuel warning activated), a clock, and sometimes an outside temperature or voltage display.
• Indicator and Warning Lights: These alert the rider to various functions and potential issues. Key indicators include:
  • Turn Signal Indicators: Flashing arrows showing which direction signal is active.
  • High Beam Indicator: Usually a blue light, indicating the high beam is on.
  • Oil Change Indicator: A light that illuminates to remind you of scheduled oil changes.
  • ABS Warning Light: Alerts to a potential issue with the Anti-lock Braking System.

Key Mechanical Components

Beyond the controls, understanding the scooter's mechanical parts is essential for maintenance and troubleshooting.

Chassis and Bodywork

• Frame: The structural backbone of the scooter, to which all other components are attached.
• Suspension:
  • Front Fork: Absorbs shocks from the front wheel, providing a smoother ride.
  • Shock Absorbers: Located at the rear, these work with the swingarm to absorb road imperfections. The YP250 features adjustable shock absorber spring preload rings to tailor the suspension stiffness to rider weight and load.
• Wheels and Tires: Crucial for grip and stability. The YP250 uses tubeless tires. Regular checks of tire pressure and tread depth are vital.
• Brakes: The YP250 is typically equipped with disc brakes front and rear, often with an Anti-lock Braking System (ABS). Key brake components include brake levers, brake hoses, brake pads, and brake fluid reservoirs.
• Cowlings and Panels: These are the bodywork sections that protect internal components and contribute to the scooter's aerodynamics and aesthetics. They often require removal for maintenance access.
• Seats: Includes the rider seat and passenger seat. The rider seat often provides access to storage.
• Storage Compartments: Usually located under the rider seat and sometimes in the front fairing, providing space for helmets or other items.
• Centerstand and Sidestand: Used to keep the scooter upright when parked. The sidestand often incorporates a safety switch linked to the engine ignition.

Engine and Drivetrain

The heart of the YP250 lies within its engine and the system that transmits power to the rear wheel.

• Engine: The YP250 is powered by a 250cc engine, typically a four-stroke, liquid-cooled unit. Key engine components include:
  • Spark Plug: Ignites the fuel-air mixture.
  • Cylinder: Houses the piston.
  • Piston: Moves up and down within the cylinder, driven by combustion.
  • Crankshaft: Converts the piston's linear motion into rotational motion.
  • Valves: Control the flow of the fuel-air mixture into and exhaust gases out of the cylinder.
  • Carburetor/Fuel Injection System: Mixes fuel and air for combustion.
  • Air Filter: Cleans the air entering the engine. The YP250 also has a V-belt case air filter.
  • Exhaust System (Muffler): Contains a catalytic converter to reduce emissions.
  • Radiator: Part of the liquid cooling system, it dissipates heat from the engine coolant.
  • Coolant Reservoir: Holds excess coolant for the cooling system.

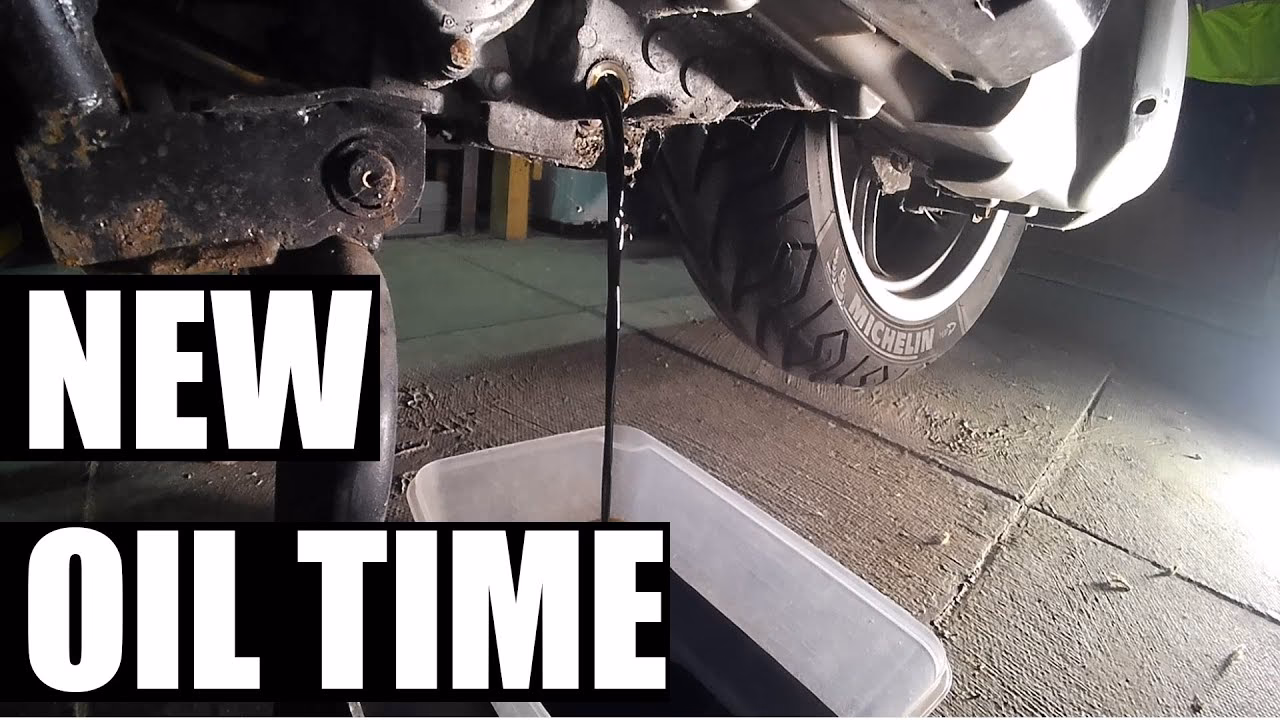

• Engine Oil: Lubricates the engine's moving parts. The engine oil level and condition are critical. Regular oil changes are necessary.
• Drivetrain:
  • V-belt: Transmits power from the engine to the rear wheel via a continuously variable transmission (CVT).
  • Final Transmission Oil: Lubricates the gears that transmit power to the rear wheel.

Electrical System

The electrical system powers the lights, ignition, and various electronic components.

• Battery: Provides electrical power, especially for starting the engine. The YP250 uses a sealed-type (MF) battery.
• Alternator/Generator: Generates electricity to charge the battery and power the scooter's systems while the engine is running.
• Fuses: Protect the electrical circuits from overloads. Various fuses protect specific systems like the ignition, lights, and ABS.
• Headlight, Taillight, Brake Light, Turn Signals: Essential for visibility and safety.
• Wiring Harness: Connects all the electrical components.
• Main Switch/Steering Lock: Controls the electrical systems and locks the steering when the scooter is parked.

Maintenance and Care Components

Regular maintenance ensures the longevity and reliability of your YP250.

• Owner's Tool Kit: Typically includes basic tools for minor adjustments and maintenance.
• Fuel Tank Cap: Seals the fuel tank.
• Engine Oil Filler Cap: Allows access for adding engine oil.
• Coolant Reservoir Cap: Seals the coolant reservoir.

Why Choose the Yamaha YP250A?

The Yamaha YP250A offers a compelling package for scooter enthusiasts. Its robust 250cc engine provides ample power for both city commuting and longer journeys, offering a balance of performance and fuel efficiency. Yamaha's renowned dependability means you can expect consistent performance and lower maintenance costs over time. The advanced features, such as the potential ABS system, enhance safety, while the comfortable ergonomics and practical storage solutions make it an ideal choice for daily use. Investing in a YP250A means investing in a quality machine backed by Yamaha's commitment to innovation and rider satisfaction. Remember, regular maintenance, as outlined in your owner's manual, is key to unlocking the full potential and lifespan of your scooter.

Frequently Asked Questions

Q1: What is the main purpose of the ABS warning light?
A1: The ABS warning light indicates a potential issue with the Anti-lock Braking System. If it illuminates while riding, the system may revert to conventional braking, so extra caution is advised.

Q2: How often should I check the engine oil?
A2: It is recommended to check the engine oil level before each ride and to change it according to the intervals specified in the periodic maintenance chart, or when the oil change indicator light comes on.

Q3: Can I adjust the shock absorber preload myself?
A3: Yes, the YP250 has adjustable shock absorber spring preload rings. You can adjust them using the spring preload adjusting tool included in the owner's toolkit to soften or harden the suspension.

Q4: What type of fuel should I use in my YP250A?
A4: The YP250A requires regular unleaded gasoline with a research octane number of 91 or higher. Using leaded gasoline will cause severe damage.

Q5: Where can I find the owner's tool kit?
A5: The owner's tool kit is typically located inside the rear storage compartment, often found under the rider's seat.
