Kodiak Brake Systems: A Comprehensive Guide

Understanding Kodiak Brake Systems

When it comes to the safety and performance of your vehicles, the braking system is paramount. Whether you're towing a boat or navigating challenging terrain on an ATV, reliable brakes are non-negotiable. This article delves into the specifics of Kodiak brake systems, covering their components, common issues, and maintenance tips for both boat trailers and ATVs. We'll explore the intricacies of hydraulic disc brake calipers, common problems encountered, and how to keep your Kodiak-equipped systems in optimal working order.

Kodiak Boat Trailer Disc Brakes: Safety on the Water's Edge

Kodiak is a recognised name in the marine industry, particularly for its high-quality boat trailer disc brake systems and kits. These systems are designed to provide robust and dependable stopping power, ensuring the safe transport of your vessel. The core of these systems often involves hydraulic disc brake calipers. These calipers work by using hydraulic fluid pressure to push brake pads against a rotor, slowing and stopping the trailer.

Components of a Kodiak Trailer Disc Brake System:

• Calipers: These house the brake pads and pistons. Kodiak offers various calipers designed for different axle capacities and often feature corrosion-resistant coatings to withstand harsh marine environments.
• Brake Pads: These friction materials are pressed against the rotor to create stopping power. Regular inspection and replacement are crucial.
• Rotors: The disc that the calipers clamp onto. Like calipers, rotors can be coated for corrosion resistance.
• Brake Lines: These carry the hydraulic fluid from the actuator to the calipers.
• Actuator: The device that initiates the braking process, often activated by the trailer's movement or a separate control.

Common Issues and Maintenance for Trailer Brakes:

One of the most critical aspects of trailer brake maintenance is ensuring they are functioning correctly. A common issue, as highlighted by an owner of a 2016 Yamaha Kodiak 700, is seized or ineffective rear brakes. In this instance, the lever was rusted in place, and despite efforts to free and adjust it, the brakes remained ineffective. This could be due to several factors:

• Corrosion: Exposure to water and salt can lead to rust on caliper components, brake lines, and even the rotor, impeding movement and friction.
• Glazed or Worn Pads: If the brake pads have been stuck in one position for a long time, they can become glazed, reducing their friction coefficient. Alternatively, they might simply be worn out.
• Sticking Caliper Pistons: The pistons within the caliper can become seized due to dirt, debris, or corrosion, preventing them from applying adequate pressure to the pads.

Preventative maintenance is key. Regularly flushing the brake fluid, inspecting pads and rotors for wear and damage, and lubricating pivot points on the caliper can significantly extend the life of your braking system. For trailers, it's also advisable to rinse the braking components with fresh water after use in saltwater to minimise corrosion.

Yamaha Kodiak ATVs: Engine Braking and Conventional Brakes

The Yamaha Kodiak range, particularly the popular 700 models, offers a different braking experience compared to trailers. While they also feature conventional braking systems, the question of all-wheel engine braking arises, especially concerning their automatic transmission and potential for using engine compression to slow down.

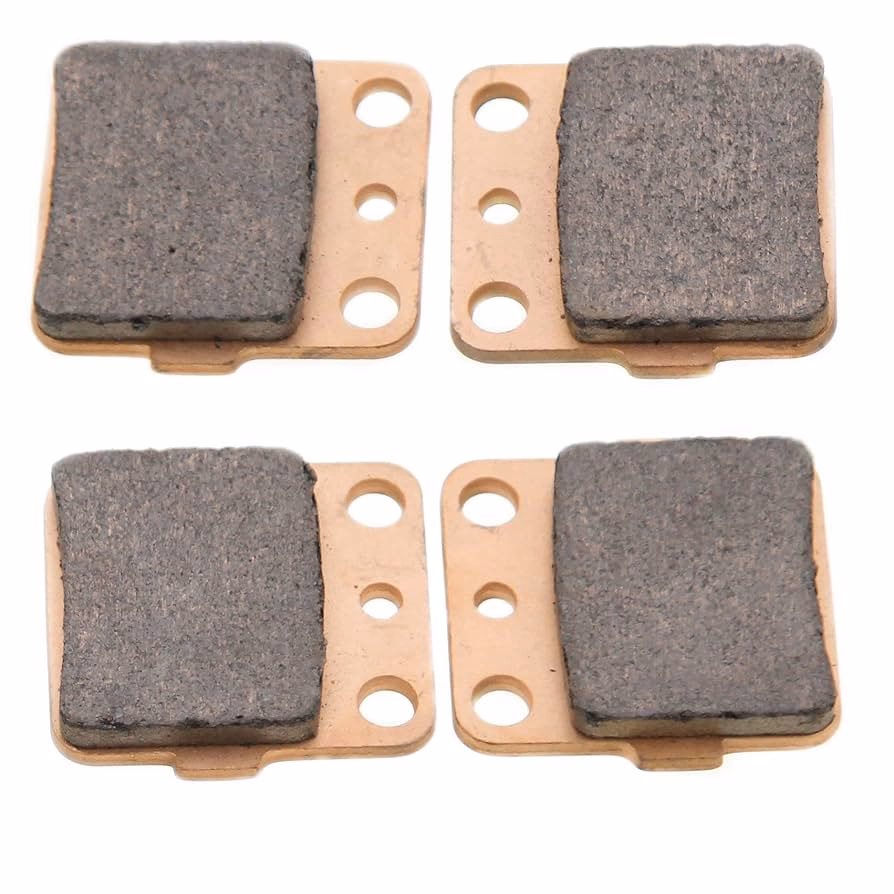

Yamaha Kodiak 700 Brake System:

The 2016 Yamaha Kodiak 700, as described by a user, features front disc brakes that function as expected. The issues encountered were with the rear brakes, suggesting a problem specific to that axle or its components. Yamaha Kodiak ATVs typically employ a combination of braking systems:

• Front Disc Brakes: These provide the primary stopping power and are generally very effective.
• Rear Drum or Disc Brakes: Depending on the specific model and year, the rear brakes can be either drum or disc systems. The user's description of small discs within the housing points towards a disc brake system at the rear as well.

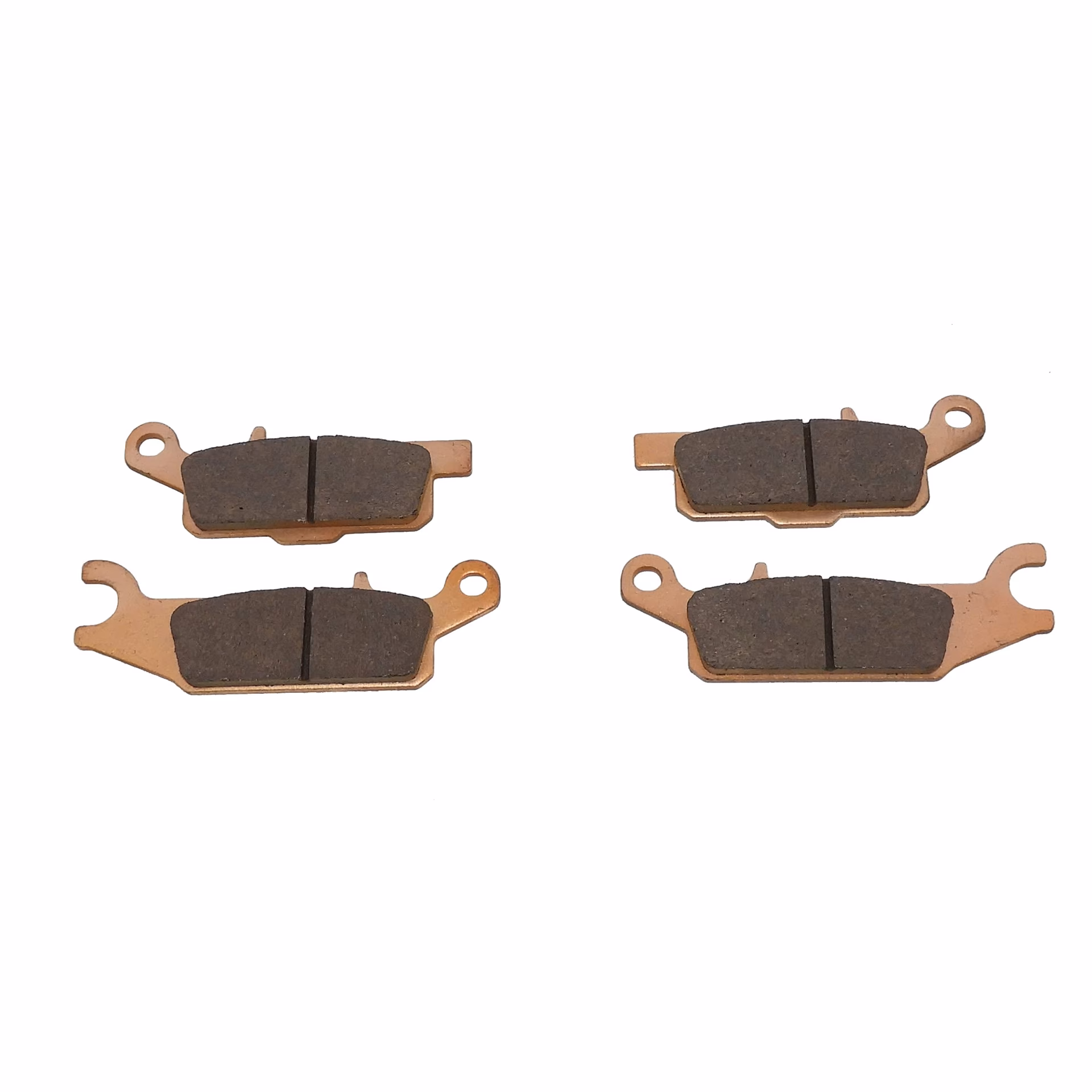

Understanding Engine Braking on ATVs:

While many ATVs with automatic transmissions do offer a degree of engine braking, it's not always as pronounced or as controllable as a manual transmission. The 2022 Yamaha Kodiak 700, like many utility ATVs, will utilise its continuously variable transmission (CVT) to provide some engine braking effect when the throttle is released. However, this is generally less aggressive than a dedicated engine braking system found on some other vehicles. The primary means of slowing down and stopping the Kodiak 700 will always be its conventional hydraulic brakes.

Troubleshooting Rear Brake Issues on a Kodiak ATV:

The scenario described by the 2016 Kodiak owner highlights a common problem: ineffective rear brakes. If your Kodiak's rear brakes are not engaging properly, consider these steps:

1. Inspect Brake Pads and Rotors: As suggested, the pads could be glazed or worn out. Remove the caliper and inspect the pads for thickness and the surface for any glazing. The rotor should also be checked for scoring or warping.
2. Check Caliper Functionality: Ensure the caliper pistons are moving freely. If they are seized, they will need to be cleaned or replaced. The user's mention of rust in the lever mechanism also indicates potential issues within the caliper assembly itself.
3. Examine Brake Cables/Lines: If the system is cable-actuated, check for binding or damage. For hydraulic systems, ensure there are no leaks and that the fluid is clean and at the correct level.
4. Bleed the Brakes: Air in the hydraulic lines can significantly reduce braking performance. Bleeding the system will remove air and ensure optimal hydraulic pressure transfer.

The job of addressing seized or worn rear brakes on an ATV can range from moderately difficult to challenging, depending on the extent of the corrosion and the accessibility of components. If you're not comfortable with mechanical work, it's always best to consult a qualified technician.

Table: Kodiak Brake System Components and Function

Frequently Asked Questions about Kodiak Brakes

Q1: Do all Kodiak boat trailers have disc brakes?

While disc brakes are a popular and highly effective option for boat trailers, not all Kodiak trailers may come standard with them. Many offer disc brake systems as an upgrade or as part of specific packages. It's essential to check the specifications of the particular trailer model you are interested in.

Q2: How often should I service my Kodiak trailer's disc brakes?

It's recommended to inspect your trailer's disc brake components at least annually, or more frequently if you frequently use your trailer in harsh conditions (e.g., saltwater, heavy-duty use). A thorough service might involve checking fluid levels, inspecting pads and rotors, and ensuring the calipers are functioning smoothly.

Q3: Can engine braking on a Yamaha Kodiak 700 replace regular brakes?

No, engine braking on a Yamaha Kodiak 700 provides supplemental slowing but is not a substitute for the conventional hydraulic braking system. The primary braking system is designed for safe and rapid stopping in all conditions, whereas engine braking is a gentler deceleration aid.

Q4: What does it mean if my Kodiak ATV's rear brake lever feels soft or ineffective?

A soft or ineffective rear brake lever on a Kodiak ATV typically indicates an issue within the hydraulic system. This could be due to air in the brake lines, low brake fluid, worn brake pads, or a problem with the caliper or master cylinder. It's crucial to address this promptly.

Q5: How can I prevent rust on my Kodiak trailer's brake components?

Regular rinsing of the brake components with fresh water after exposure to saltwater is the most effective preventative measure. Additionally, using trailers with corrosion-resistant coatings on their brake rotors and calipers can offer enhanced protection.

Conclusion

Maintaining the braking systems on both your Kodiak boat trailer and Yamaha Kodiak ATV is vital for safety and operational reliability. Understanding the components, recognising common issues like corrosion and wear, and performing regular maintenance will ensure your Kodiak-equipped vehicles stop when you need them to. Whether it's the robust hydraulic disc brakes on your trailer or the efficient system on your ATV, keeping them in top condition is a responsibility that shouldn't be overlooked. If you encounter persistent problems, seeking professional advice from a qualified mechanic is always the best course of action.
