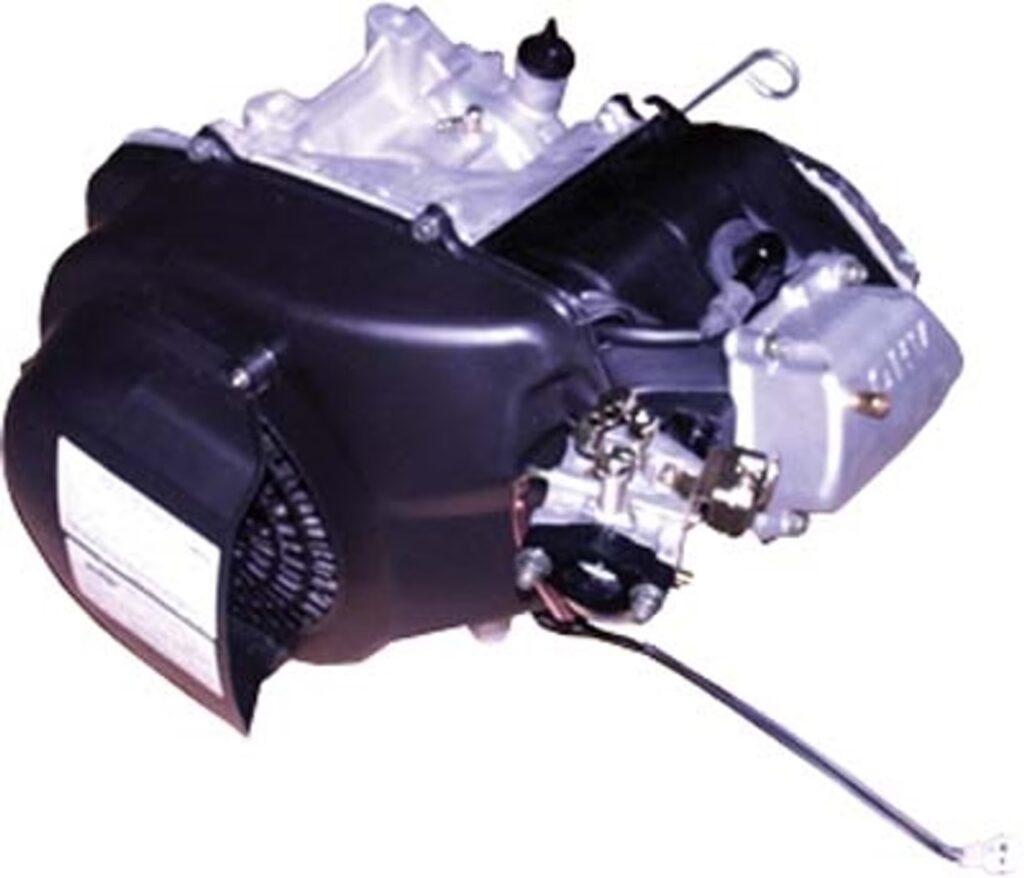

Stripping Down Your Golf Cart Engine

Embarking on the task of disassembling a golf cart engine might seem daunting, but with the right approach, tools, and a healthy dose of patience, it's a thoroughly achievable and incredibly rewarding endeavour for any keen mechanic or DIY enthusiast. Whether you're planning a full rebuild, diagnosing a mysterious knock, or simply replacing worn-out components, understanding the internal workings of your engine is the first step towards bringing your trusty golf cart back to its prime. This comprehensive guide will walk you through the process, ensuring you're well-equipped to tackle the intricate dance of nuts, bolts, and internal combustion.

Safety First: Non-Negotiable Preparations

Before any spanner touches metal, it's paramount to prioritise safety. Engine work involves fluids, electrical components, and heavy parts. Neglecting safety can lead to serious injury or damage. Always ensure you're working in a well-ventilated area, especially when dealing with fuel or cleaning solvents. Have a fire extinguisher nearby and wear appropriate personal protective equipment (PPE).

• Eye Protection: Safety glasses or goggles are essential to protect against flying debris, fluid splashes, and accidental contact with chemicals.
• Gloves: Protect your hands from grease, sharp edges, and chemicals. Nitrile gloves are excellent for fluid resistance, while tougher work gloves can protect against cuts.
• Stable Workspace: Ensure your golf cart is on a level, stable surface, ideally jacked up and supported by sturdy axle stands if you need to access the underside.
• Ventilation: When draining fluids or using cleaning agents, ensure adequate airflow.
• Battery Disconnection: Always disconnect the negative (black) battery terminal first, followed by the positive (red) terminal, to prevent accidental electrical shorts.

Essential Tools for the Job

Having the correct tools at hand will make the disassembly process smoother and prevent damage to components. While some specialized tools might be needed for specific engines, a standard set of automotive tools will get you most of the way.

Pre-Disassembly: The Essential Checklist

Before you start unbolting components, a few preparatory steps are critical to ensure a clean and efficient process, and to prevent spills or damage.

1. Drain All Fluids: This includes engine oil, fuel from the tank and carburettor (if applicable), and coolant if it's a liquid-cooled engine. Use appropriate drain pans and dispose of fluids responsibly at an authorised recycling centre.
2. Clean the Engine: A clean engine makes it easier to work on, helps identify components, and prevents dirt from entering critical areas during disassembly. Use an engine degreaser and a pressure washer or hose, ensuring no water enters the air intake or exhaust. Allow it to dry thoroughly.
3. Document Everything: This is perhaps the most important tip. Take numerous photos and videos at every stage of disassembly. Label all wires, hoses, and connectors. Place removed bolts and nuts into labelled bags or containers, ideally with the part they belong to. This meticulous documentation will be invaluable during reassembly.
4. Disconnect Battery: As mentioned in safety, disconnect both battery terminals.
5. Remove Engine from Cart (Optional but Recommended): While some minor work can be done with the engine in situ, for a full disassembly and rebuild, removing the engine from the golf cart chassis provides much better access and a more comfortable working environment. This usually involves disconnecting fuel lines, exhaust, throttle cables, electrical wires, and engine mounts.

Step-by-Step Engine Disassembly

The exact order might vary slightly depending on your specific golf cart make and model (e.g., Yamaha, Club Car, EZ-GO, and whether it's a 2-stroke or 4-stroke engine), but the general sequence remains consistent. We'll focus on a typical petrol 4-stroke engine.

1. Removing External Ancillaries

Start by systematically removing components attached to the outside of the engine. Keep track of all fasteners.

• Air Filter Assembly: Disconnect the air intake hose from the carburettor.
• Carburettor: Disconnect the fuel line, throttle cable, and choke cable (if present). Unbolt the carburettor from the intake manifold.
• Exhaust System: Unbolt the exhaust manifold from the cylinder head.
• Starter/Generator: Disconnect all electrical wires and unbolt the unit from the engine block.
• Ignition Coil & Spark Plug Lead: Disconnect the lead from the spark plug and unbolt the coil.
• Cooling Shrouds & Fan: Many golf cart engines are air-cooled and have shrouds and a fan for directing airflow. Carefully remove these to expose the cylinder fins.
• Flywheel: This often requires a special flywheel puller. Consult your service manual for the correct procedure. Note the position of any timing marks before removal.
• Fuel Pump (if external): Disconnect fuel lines and unbolt.

2. Cylinder Head Removal

The cylinder head houses the valves and combustion chamber.

• Valve Cover: Unbolt and carefully remove the valve cover. Be mindful of any gasket material.
• Rocker Arms/Pushrods (if overhead valve): If your engine uses pushrods, remove these after noting their specific locations. Keep them organised.
• Cylinder Head Bolts: These bolts are typically tightened in a specific sequence and loosened in the reverse sequence. Consult your service manual for the correct pattern. Loosen them in small increments to avoid warping the head. Once loose, remove all bolts.
• Remove Cylinder Head: Carefully lift the cylinder head off the engine block. It might be slightly stuck due to the head gasket. Use a plastic mallet to gently tap if needed. Do not pry with metal tools, as this can damage mating surfaces.
• Remove Head Gasket: Scrape off any old head gasket material from both the cylinder head and engine block surfaces. Be meticulous to avoid scratching the metal.

3. Cylinder, Piston, and Connecting Rod Disassembly

This is where you get into the heart of the engine's power generation.

• Cylinder Barrel (if separate): Some golf cart engines have a separate cylinder barrel that bolts to the crankcase. Unbolt and remove it, being careful not to damage the piston.
• Piston Pin Clip: Locate the small circlip on one side of the piston that retains the piston pin. Carefully remove it with needle-nose pliers or a pick.
• Piston Pin: Push or gently tap out the piston pin. This will separate the piston from the connecting rod.
• Connecting Rod Cap: Rotate the crankshaft to bring the connecting rod to the bottom of its stroke. Unbolt the connecting rod cap. Keep the cap with its corresponding connecting rod.
• Connecting Rod and Piston Assembly: Push the connecting rod and piston assembly up and out of the cylinder bore. Be careful not to damage the crankshaft journals. Keep the piston and rod together, and note which cylinder it came from if multi-cylinder.
• Piston Rings: Carefully remove the piston rings using a ring spreader or by hand. Note their orientation and position (top, second, oil control).

4. Crankcase Splitting (if necessary)

If you need to access the crankshaft, main bearings, or camshaft (if internal), you'll need to split the crankcase.

• Oil Pan/Sump: Remove the oil pan (if present) from the bottom of the engine.
• Crankcase Bolts: Locate and remove all bolts securing the two halves of the crankcase together. These are often numerous and can be hidden.
• Split the Cases: Carefully separate the crankcase halves. You may need to gently tap with a rubber mallet. Do not force them apart with screwdrivers, as this can damage the mating surfaces.
• Crankshaft and Camshaft: Once the cases are split, the crankshaft and camshaft (if present) can be lifted out. Note the position of any timing marks on the gears.

Inspection and Assessment: The Crucial Step

Once disassembled, take the time for thorough inspection of all components. This is why you took it apart!

• Cylinder Walls: Check for scoring, wear, or out-of-roundness. A ridge at the top indicates wear.
• Piston: Look for cracks, excessive wear, or signs of overheating. Check ring lands for wear.
• Piston Rings: Check for breakage, excessive gap, or carbon build-up.
• Connecting Rod: Inspect for bends, cracks, and wear in the bearing surfaces.
• Crankshaft: Check journals for scoring, pitting, or wear. Measure for straightness.
• Bearings: Inspect main and rod bearings for wear, scoring, or signs of spun bearings.
• Valves and Valve Seats: Check for pitting, burning, or carbon build-up. Ensure valves move freely in their guides.
• Gasket Surfaces: Ensure all mating surfaces are clean, flat, and free of scratches.

Common Reasons for Engine Disassembly

Understanding why you're disassembling the engine can guide your focus during inspection. Here are common issues:

Tips for Successful Disassembly and Future Reassembly

• Work Clean: Keep your workspace tidy. Dirt and debris are the enemies of engines.
• Bag and Tag: As mentioned, this is crucial. Label EVERYTHING.
• Use a Workbench: A sturdy, clean workbench makes the process much easier than working on the floor.
• Consult the Manual: Your golf cart's service manual is your bible. It contains torque specifications, specific disassembly sequences, and crucial diagrams. Do not skip this step.
• Take Breaks: If you get frustrated or tired, step away. Rushing leads to mistakes.
• Consider Professional Help: If you encounter something beyond your comfort level or expertise (e.g., machining services for cylinder boring, valve seat grinding), don't hesitate to consult a professional engine rebuilder.

Frequently Asked Questions (FAQs)

Q1: Do I need to remove the engine from the golf cart to disassemble it?

A1: For a full, comprehensive disassembly where you're splitting the crankcase or removing the piston/connecting rod assembly, it is highly recommended to remove the engine from the golf cart chassis. This provides much better access, allows you to work more comfortably, and reduces the risk of damaging other components of the cart. For minor tasks like valve cover removal or carburettor work, it might not be necessary.

Q2: What's the difference between disassembling a 2-stroke and a 4-stroke golf cart engine?

A2: The core principles are similar, but 2-stroke engines are generally simpler with fewer moving parts. They typically lack valves, camshafts, and an oil sump. Disassembly of a 2-stroke might involve removing fewer components from the cylinder head area and focusing more on the piston, connecting rod, and crankshaft assembly within the crankcase. Always consult the specific service manual for your engine type.

Q3: How do I know if my engine needs a full rebuild versus just a component replacement?

A3: A full rebuild is typically necessary if there's significant wear on multiple major components (cylinder walls, crankshaft journals, main bearings), or if the engine has suffered catastrophic failure (e.g., thrown a rod). If you're only seeing blue smoke, it might just be worn piston rings or valve seals. A thorough inspection after disassembly will tell you the extent of wear and what needs replacing. Compression tests and oil pressure checks before disassembly can also provide clues.

Q4: Can I reuse old gaskets and seals during reassembly?

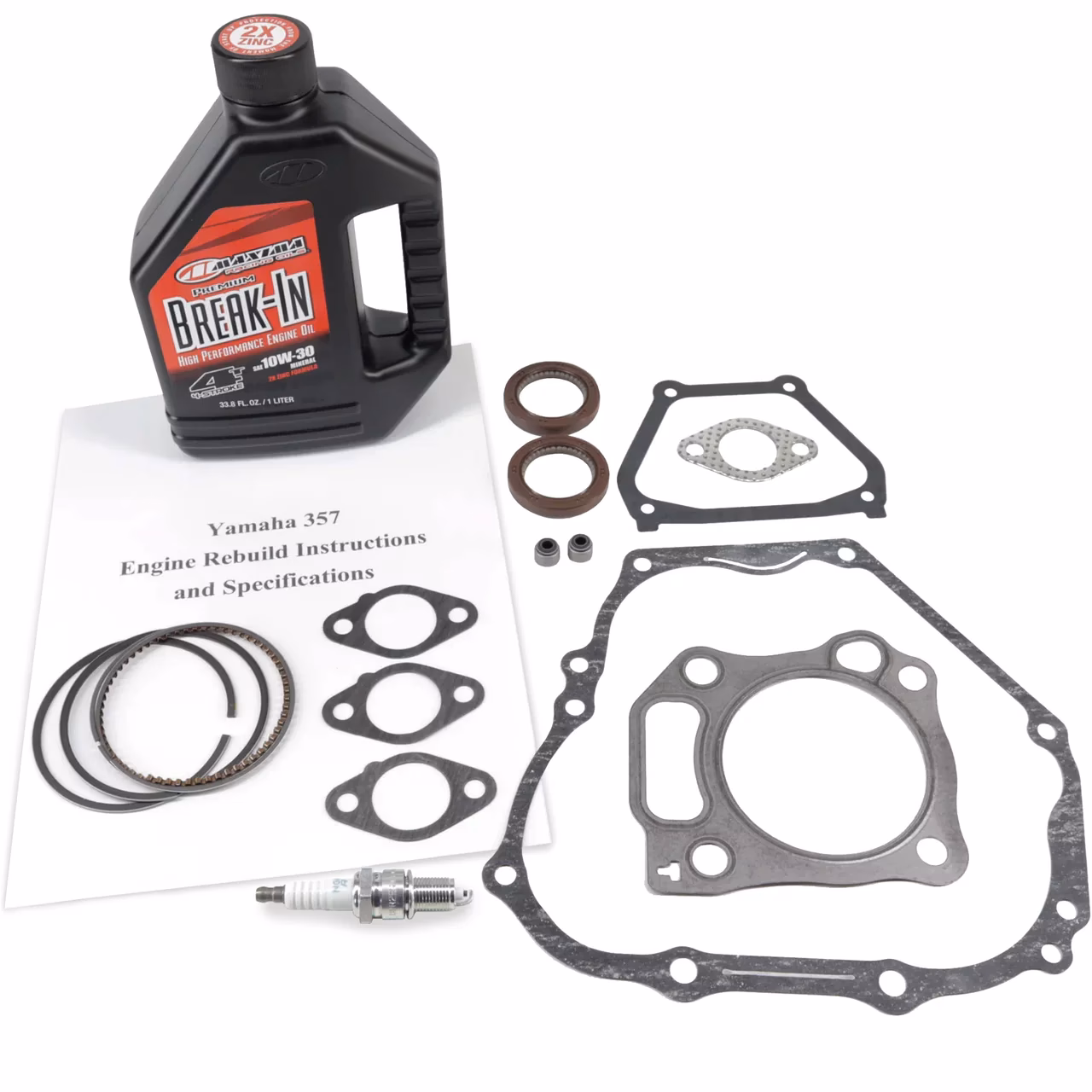

A4: Absolutely not. Gaskets and seals are designed to crush and conform once, creating a tight seal. Reusing them almost guarantees leaks and potential engine damage. Always replace all gaskets, O-rings, and seals with new ones during reassembly. This is a critical step for engine longevity.

Q5: What should I do if a bolt is stuck or seized?

A5: First, try applying penetrating oil and letting it soak for a while. Tapping the bolt head with a hammer can help break the corrosion bond. For very stubborn bolts, controlled heat (from a propane torch, applied carefully to the surrounding metal, not the bolt itself if it's in a critical area) can expand the metal and loosen the grip, but this should be done with extreme caution and only if you're experienced. Avoid excessive force, as this can break the bolt, making removal much harder.

Disassembling your golf cart engine is more than just taking things apart; it's an educational journey into the mechanics of internal combustion. By following these steps, prioritising safety, and maintaining meticulous organisation, you'll gain invaluable insight into your engine's condition and be well on your way to a successful repair or rebuild. Remember, every bolt removed is a step closer to understanding and mastering your golf cart's heart.
