Yamaha Outboard Oil: Your Definitive Guide

Understanding the precise oil requirements for your Yamaha outboard motor is not just about keeping the engine running; it's about safeguarding a significant investment and ensuring reliable performance on the water. Unlike a car engine, marine outboards operate under unique and often demanding conditions, including prolonged high-RPM use, exposure to saltwater environments, and varying temperatures. Getting the oil right – both in terms of quantity and type – is paramount to engine longevity and efficiency. This guide will walk you through the complexities of Yamaha outboard oil, helping you navigate the specifics to ensure your engine receives exactly what it needs.

It's important to state upfront that there isn't a single, universal answer to 'how much oil does a Yamaha outboard need?' The exact capacity varies significantly based on several critical factors, including the engine's horsepower, whether it's a 2-stroke or 4-stroke model, and its specific year of manufacture. Relying on general estimations can lead to either under-filling or over-filling, both of which can have detrimental consequences for your engine. Therefore, the information provided here serves as a comprehensive educational resource, guiding you towards the definitive answer for your particular model.

The Fundamental Difference: 2-Stroke vs. 4-Stroke Outboards

Before delving into capacities, it's crucial to understand the fundamental difference in lubrication systems between 2-stroke and 4-stroke Yamaha outboards, as this dictates how oil is used and measured.

2-Stroke Yamaha Outboards: Fuel-Mixed Lubrication

Traditionally, 2-stroke outboards do not have a separate crankcase oil reservoir in the same way a 4-stroke engine does. Instead, the engine's lubrication is achieved by mixing oil directly with the fuel. This oil-fuel mixture then lubricates the internal components as it passes through the engine and is ultimately combusted along with the fuel.

• Pre-mix Systems: Older or smaller 2-stroke engines often require the operator to manually mix the correct ratio of oil and petrol in a fuel tank before filling the boat. Common ratios include 50:1 (50 parts petrol to 1 part oil) or 100:1, though specific models might vary.
• Oil Injection Systems: Many modern 2-stroke Yamaha outboards feature an automatic oil injection system (e.g., Yamaha's Precision Blend or HPDI systems). These systems have a separate oil reservoir on the engine, which automatically meters and injects the correct amount of oil into the fuel stream or directly into the engine. While this eliminates manual mixing, you still need to regularly check and top up this dedicated oil reservoir. The capacity of this reservoir can range from 1 to 5 litres or more, depending on the engine's size. However, this is not 'engine oil' in the 4-stroke sense; it's oil for the lubrication system.

For 2-stroke engines, the 'how much oil' question primarily relates to the mixing ratio for pre-mix systems or the capacity of the oil injection reservoir and the type of 2-stroke oil (e.g., TC-W3 certified) to use.

4-Stroke Yamaha Outboards: Dedicated Engine Oil

4-stroke Yamaha outboards operate much like a car engine, utilising a dedicated crankcase for engine oil. This oil lubricates, cools, cleans, and protects the internal components, and it does not mix with the fuel. This is where the concept of 'oil capacity' as a specific volume (e.g., litres) becomes relevant.

The oil in a 4-stroke outboard needs to be periodically drained and replaced, along with the oil filter, as part of routine maintenance. The amount of oil required for a refill is what most people are referring to when they ask about oil capacity.

Finding the Definitive Oil Capacity for Your 4-Stroke Yamaha Outboard

Given the wide range of Yamaha 4-stroke outboard models, providing a single number is impossible. The most accurate and reliable source for your specific engine's oil capacity is always its Owner's Manual. This manual is an indispensable resource that contains all the critical specifications, including:

• Engine Oil Capacity: Typically listed in litres (L) or US quarts (qt). Often, two figures are provided: one for an oil change without filter replacement, and another, slightly higher figure, for an oil change with filter replacement.
• Recommended Oil Type and Viscosity: Such as Yamalube 4M or an equivalent FC-W certified oil, along with the appropriate SAE viscosity grade (e.g., 10W-30, 10W-40, 20W-40, 20W-50).
• Oil Filter Part Number: Essential for correct replacement.
• Oil Change Procedure: Step-by-step instructions.

If you don't have your physical owner's manual, you can often find a digital version on Yamaha's official marine website or a reputable marine parts website by entering your engine's model number or serial number.

General Estimated 4-Stroke Yamaha Outboard Oil Capacities (For Reference Only)

While your owner's manual is the ultimate authority, these general ranges can give you an idea of what to expect based on engine size. These figures are approximate and include oil filter replacement, which typically adds 0.1 to 0.5 litres to the capacity.

Crucial Note: Always check the dipstick during the oil filling process. Fill slowly and check frequently. The dipstick provides the definitive indication of the correct oil level, regardless of the stated capacity, as residual oil can remain in the engine after draining, or the boat's trim angle might affect readings. The goal is to fill to the 'full' mark on the dipstick, not necessarily to pour in a predetermined amount.

Choosing the Right Oil Type for Your Yamaha Outboard

Beyond quantity, the type of oil you use is equally critical. Yamaha engines are designed to operate with specific formulations that withstand the unique demands of the marine environment.

• FC-W Certification: For 4-stroke outboards, always use oil that is certified by the National Marine Manufacturers Association (NMMA) as FC-W (Four Cycle – Watercooled). This certification indicates that the oil has passed rigorous tests for corrosion protection, foaming resistance, and high-temperature stability, all of which are vital for marine engines. Automotive oils, even those with the correct Viscosity, lack these crucial marine-specific additives and should never be used in an outboard.
• Viscosity Grades: The owner's manual will specify the recommended SAE viscosity grade (e.g., 10W-30, 10W-40, 20W-40, 20W-50). The 'W' stands for 'winter' and indicates the oil's cold-start performance, while the second number indicates its viscosity at operating temperature. Your choice of viscosity might depend on the typical ambient temperatures in which you operate your boat. For example, colder climates might favour a 10W-30, while warmer climates might suggest a 20W-40 or 20W-50.
• Yamalube: Yamaha manufactures its own line of marine oils, Yamalube, which are formulated specifically for their engines. While using Yamalube is often recommended, any reputable brand of FC-W certified oil with the correct viscosity can be used as a suitable alternative.

The Importance of Regular Oil Changes and Checks

Knowing the capacity is only part of the equation; regular maintenance is the other. Oil degrades over time and with use due to heat, contamination from combustion by-products, and sheer stress. Dirty or degraded oil loses its ability to lubricate effectively, leading to increased friction, wear, and potential engine damage.

Consequences of Incorrect Oil Level

Both under-filling and overfilling can lead to serious engine issues:

• Under-filling: Insufficient oil leads to inadequate lubrication, increased friction, overheating, and accelerated wear on critical components like bearings, pistons, and camshafts. This can quickly result in catastrophic engine failure, such as a seized engine.
• Over-filling: While seemingly safer, over-filling is also detrimental. Excess oil can be churned and aerated by the crankshaft, leading to foaming. Foamy oil doesn't lubricate effectively. It can also create excessive pressure within the crankcase, potentially blowing out seals, causing oil leaks, and even damaging the catalytic converter in some models. Furthermore, over-filling can lead to increased oil consumption as excess oil is forced past piston rings.

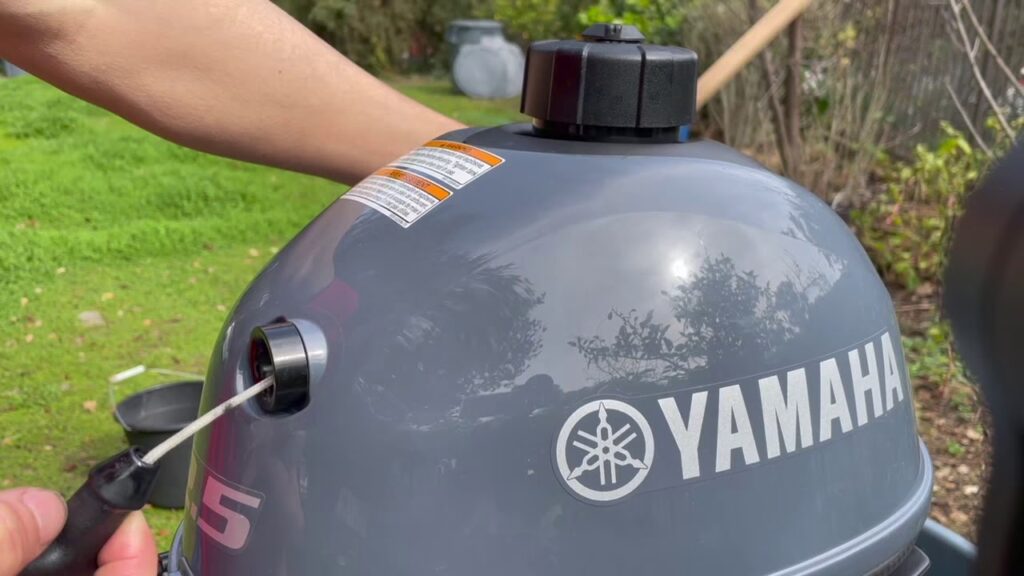

The Oil Change Process (Brief Overview)

While the owner's manual provides detailed steps, a typical 4-stroke Yamaha outboard oil change involves:

1. Warm the Engine: Run the engine for a few minutes to warm the oil, making it flow more easily.
2. Position the Boat: Ensure the engine is trimmed down to allow complete drainage.
3. Drain the Old Oil: Place a suitable container under the oil drain plug (usually located on the lower part of the engine block or oil pan). Remove the plug and allow all the old oil to drain completely.
4. Replace the Oil Filter: Remove the old oil filter and install a new, genuine Yamaha or equivalent FC-W certified filter. Apply a thin film of new oil to the rubber gasket of the new filter before screwing it on hand-tight.
5. Refill with New Oil: Using a funnel, slowly add the recommended type and approximate amount of new FC-W certified oil.
6. Check the Dipstick: After adding most of the oil, wait a few minutes for it to settle, then check the dipstick. Add small amounts of oil as needed until the level is between the 'low' and 'full' marks, ideally close to the 'full' mark.
7. Run the Engine and Re-check: Start the engine and run it for a few minutes to circulate the new oil. Check for any leaks around the filter and drain plug. Shut off the engine, wait a few minutes, and re-check the oil level on the dipstick. Top up if necessary.
8. Dispose of Old Oil: Properly dispose of the used oil at an authorised recycling centre.

Frequently Asked Questions (FAQs)

Q1: Can I use car oil in my Yamaha outboard?

A: Absolutely not. While some automotive oils might share a similar viscosity, they lack the specific additives crucial for marine engines. Marine oils, particularly those with the FC-W certification, are formulated to combat corrosion from saltwater exposure, withstand higher operating temperatures, and resist foaming in the harsh marine environment. Using car oil can lead to premature engine wear and failure, voiding your warranty.

Q2: How often should I check my outboard's oil level?

A: It's recommended to check the oil level before every outing, or at least weekly if you use your boat frequently. This quick check can prevent serious damage by identifying low oil levels or contamination early. Always check the oil level when the engine is cold and trimmed in the vertical position for an accurate reading.

Q3: What should I do if I accidentally overfill the oil?

A: If you've overfilled the oil, it's crucial to drain the excess immediately. Operating an engine with too much oil can lead to foaming, which reduces lubrication effectiveness, increases crankcase pressure, and can damage seals or even the catalytic converter. You can typically drain a small amount by loosening the drain plug carefully or by using an oil extractor pump through the dipstick tube.

Q4: Do 2-stroke Yamaha outboards have engine oil like 4-strokes?

A: No, not in the same way. Traditional 2-stroke outboards mix oil directly with fuel for lubrication (pre-mix). Newer 2-stroke outboards with oil injection systems have a separate oil reservoir, but this oil is still consumed during operation and does not remain in a crankcase like a 4-stroke engine. Therefore, you don't 'change' the oil in a 2-stroke crankcase; you either mix it with fuel or top up the injection tank.

Q5: What does FC-W certification mean, and why is it important?

A: FC-W stands for 'Four Cycle – Watercooled' and is a certification by the National Marine Manufacturers Association (NMMA). It signifies that the oil has met stringent performance standards for marine engines, including tests for corrosion protection (critical in saltwater environments), foaming resistance, shear stability, and high-temperature performance. This certification ensures the oil is robust enough to protect your outboard in its unique operating conditions.

Conclusion

The longevity and reliable performance of your Yamaha outboard motor hinge significantly on proper lubrication. While the question of 'how much oil' might seem straightforward, the answer is nuanced and model-specific. Always consult your Owner's Manual first and foremost for the precise oil capacity and recommended type. Adhering to the manufacturer's guidelines, using FC-W certified marine oil, and performing regular oil checks and changes are the cornerstones of effective marine engine maintenance. By taking these steps, you'll ensure your Yamaha outboard continues to deliver powerful, efficient, and trouble-free operation for many seasons to come, letting you focus on enjoying your time on the water.
