Yamaha 115 Outboard Oil Change Guide

Mastering Your Yamaha 115 Outboard Oil Change

Regular maintenance is the cornerstone of a long and healthy life for any marine engine. For owners of the popular Yamaha 115 4-stroke outboard, one of the most crucial and frequently performed tasks is the oil change. While it might seem daunting to some, changing the oil in your Yamaha 115 is a straightforward process that can save you money and provide a deeper understanding of your engine's well-being. This guide will walk you through everything you need to know, from what's typically in a Yamaha 115 oil change kit to the precise steps involved in draining, replacing the filter, and refilling with fresh oil.

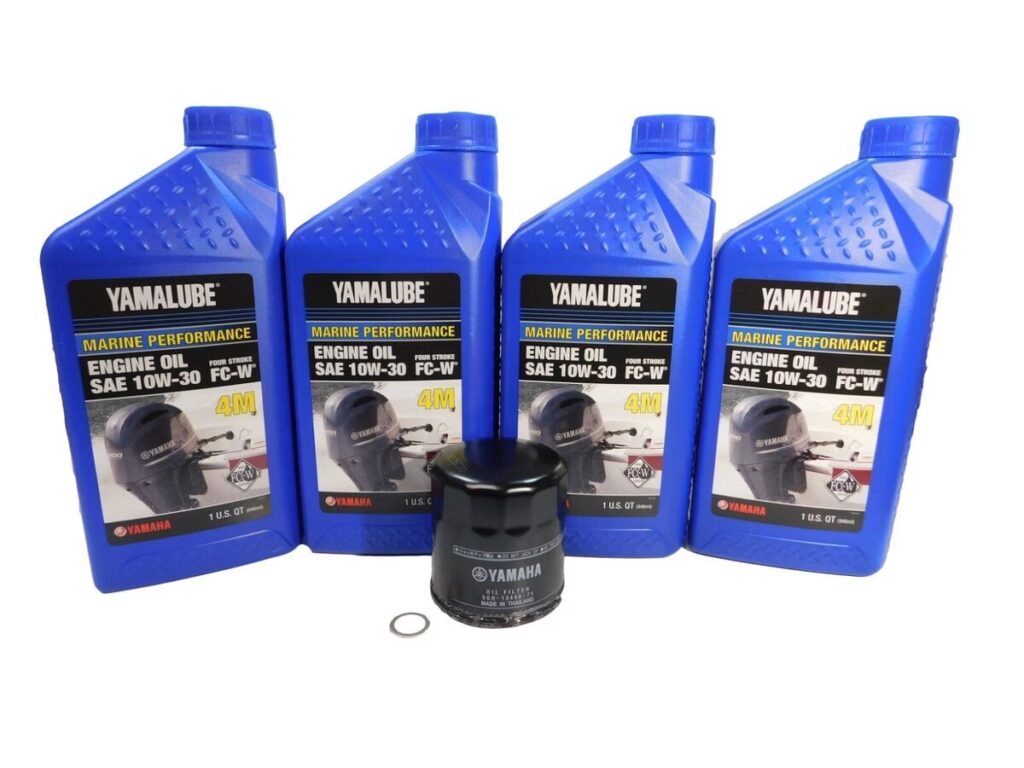

What's in a Yamaha 115 Oil Change Kit?

To simplify the process, many manufacturers, including Yamaha, offer dedicated oil change kits. A genuine Yamaha 115 oil change kit is designed to provide all the essential components for a complete service. Typically, you can expect a kit to contain:

• Yamalube 10W-30 FC-W Oil: This is Yamaha's proprietary marine engine oil, specifically formulated to meet the demanding conditions of outboard engines. The quantity will usually be sufficient for a full oil change, often around 4 quarts, though it's always wise to check your specific model's capacity.
• Oil Filter: A new, high-quality oil filter is vital. It traps contaminants and ensures clean oil circulates through your engine.
• Drain Plug Gasket: A new gasket is crucial for a secure, leak-free seal on your oil drain plug. Reusing an old gasket can lead to leaks.
• Instructions: Most kits come with detailed instructions, though consulting your owner's manual is always recommended for model-specific nuances.

While Yamaha branded kits are excellent, reputable aftermarket brands like Quicksilver also offer similar kits for Yamaha outboards. These kits are often a cost-effective alternative and typically include the same essential items.

Tools and Supplies You'll Need

Beyond the oil change kit, you'll need a few common tools and supplies to complete the job efficiently:

• Oil Filter Wrench: Essential for removing the old oil filter.
• Ratchet Wrench and Socket Set: For loosening and tightening the oil drain plug. The specific socket size will vary by model, but a common size is often required.
• Oil Catch Pan: A container with a capacity of at least 6 quarts to safely collect the old oil.
• Paper Towels or Rags: For wiping up spills and cleaning components.
• Nitrile Gloves: To protect your hands from oil and grime.
• Disposable Funnel: To aid in filling the engine with fresh oil.
• Oil Change Pad or Drop Cloth: To protect your workspace from any potential drips or spills.

Choosing the Right Oil for Your Yamaha 115

Selecting the correct oil viscosity and type is paramount for engine protection. For most Yamaha 115 4-stroke outboards, 10W-30 motor oil is the recommended grade. This viscosity offers a good balance of protection across a wide range of operating temperatures, ensuring easy starting in cooler conditions and adequate lubrication in warmer weather.

Yamaha specifically recommends their Yamalube 10W-30 4M Outboard Mineral FC-W Engine Oil. The 'FC-W' designation is critical; it signifies that the oil meets the stringent standards set by the International Lubricant Standardization and Approval Committee (ILSOC) for marine outboard engines. This ensures the oil has the necessary properties to withstand the unique challenges of a marine environment, such as high temperatures, water contamination, and extreme loads.

While 10W-30 is standard, some manuals might suggest 5W-30 for colder climates. Always consult your specific owner's manual to confirm the recommended oil type and viscosity for your particular Yamaha 115 model and operating conditions. Using the correct oil is not just about performance; it's about preventing premature engine wear.

How Often Should You Change the Oil?

The general recommendation for most Yamaha 115 4-stroke outboards is to change the oil and filter every 100 hours of operation or once a year, whichever comes first. However, if you frequently operate your boat in harsh conditions, such as in saltwater, in very hot weather, or under heavy load, more frequent oil changes may be beneficial. It's always best to err on the side of caution and consult your owner's manual for the most accurate service intervals.

Step-by-Step Oil Change Procedure

Performing an oil change on your Yamaha 115 is a task that most DIY enthusiasts can handle. Here's a detailed breakdown of the process:

1. Preparation:
   • Ensure the engine is at a normal operating temperature. Running the engine for a few minutes will warm the oil, making it flow more easily.
   • Position the outboard on a flat, stable surface. If possible, tilt the engine to a slight upward angle (around 45 degrees) to gain better access to the drain plug and to help control the oil flow.
   • Lay out your tools, new oil, filter, and other supplies. Place your oil catch pan beneath the engine's drain plug location.
   • Remove the engine cowl to access the oil fill cap and dipstick.
2. Draining the Old Oil:
   • Locate the oil drain plug. On many Yamaha 115 models, this is situated on the lower unit, near the propeller shaft, often on the rear or side of the engine block. Consult your owner's manual if you're unsure of its exact location.
   • Using the appropriate socket and ratchet, carefully loosen the drain plug a few turns. Be cautious not to strip the threads.
   • With the catch pan positioned correctly, fully remove the drain plug. Allow all the old oil to drain completely. This may take several minutes.
   • While the oil is draining, it's a good time to inspect the drain plug and its threads for any damage.
   • Some newer Yamaha models may have an integrated oil strainer near the drain plug. If yours does, refer to your owner's manual for instructions on how to remove and clean it during this step.
3. Replacing the Oil Filter:
   • Once the oil flow from the drain plug has slowed to a drip, you can proceed to the oil filter. The filter is typically located on the starboard (right) side of the engine block, often near the dipstick.
   • Place a rag or a smaller catch pan underneath the oil filter to catch any residual oil that will drip out during removal.
   • Using your oil filter wrench, turn the old filter counterclockwise to unscrew it.
   • Once removed, keep the old filter upright to minimise spillage and dispose of it properly.
   • Wipe the filter mounting surface on the engine clean with a rag, ensuring no old gasket material remains.
   • Take a small amount of new oil and lubricate the rubber gasket on the new oil filter. This helps create a good seal and makes future removal easier.
   • Carefully screw the new filter onto the mounting thread by hand, turning clockwise. Ensure it threads on smoothly and doesn't cross-thread.
   • Tighten the filter by hand until the gasket makes contact with the mounting surface, then give it an additional quarter to half a turn. Do not overtighten the filter, as this can damage it or make it difficult to remove later. Never use the filter wrench to tighten the filter.
4. Refilling with New Oil:
   • Before reinstalling the drain plug, remove and discard the old gasket. Place a new gasket onto the drain plug. Lubricate the gasket and plug threads lightly with new oil.
   • Thread the drain plug back into the engine block by hand to avoid cross-threading, then tighten it securely with your socket and ratchet. Consult your owner's manual for the correct torque specification if you have a torque wrench.
   • Locate the oil fill hole, typically near the dipstick. Insert the funnel.
   • Pour in the specified amount of new Yamalube 10W-30 4M oil. For most Yamaha 115 4-stroke models, the capacity is around 3.2 quarts with a filter change, though some sources indicate up to 4.55 quarts for specific years (e.g., 2007 model). Always verify with your owner's manual for the precise capacity.
   • Replace the oil fill cap securely.
5. Final Checks:
   • Allow the new oil a few minutes to settle in the crankcase.
   • Remove the dipstick, wipe it clean with a rag, reinsert it fully, and then remove it again.
   • Check the oil level on the dipstick. It should be between the 'low' and 'full' marks, ideally closer to 'full'. Add more oil sparingly if needed, rechecking after each addition. Do not overfill.
   • Start the engine and let it run for a few minutes. While it's running, carefully inspect the drain plug and oil filter area for any signs of leaks.
   • Once you're confident there are no leaks, shut off the engine. Reinstall the engine cowl.
   • Record the date and engine hours of the oil change in your maintenance log. It's also a good practice to write the date on the new oil filter with a permanent marker.

Oil Capacity and Drain Plug Location

Knowing the exact oil capacity and the location of the drain plug can save you time and prevent mistakes. While capacities can vary slightly between model years, a common capacity for a Yamaha 115 4-stroke with a filter change is around 3.2 to 4.5 quarts. For instance, the 2007 Yamaha F115 is often cited as taking approximately 4.55 quarts. Always refer to your owner's manual for the definitive oil capacity for your specific engine.

The oil drain plug is generally found on the lower unit, towards the bottom of the engine block, often near where the propeller attaches. On some models, it might be on the rear of the midsection. If you're having trouble locating it, your owner's manual is the best resource.

How Long Does a Yamaha F115 Oil Change Take?

For a first-time DIYer, setting aside about an hour for an oil change on a Yamaha F115 is a reasonable estimate. This allows ample time to gather your tools, perform each step carefully without rushing, and clean up afterwards. With practice, many owners find they can complete the task in 30 minutes or less. The relatively low time investment, combined with the cost savings, makes it a very worthwhile maintenance task to learn.

Frequently Asked Questions

Q1: Can I use any brand of 10W-30 oil in my Yamaha 115?

A: While you can use other brands, it's crucial that the oil meets the FC-W (Four-Cycle Water-Cooled) specifications for marine engines. Using automotive oil can lead to premature engine wear due to different additive packages.

Q2: Do I need to change the oil filter every time I change the oil?

A: Yes, it is highly recommended to replace the oil filter with every oil change to ensure optimal filtration of contaminants.

Q3: What happens if I overtighten the oil filter or drain plug?

A: Overtightening the oil filter can damage the filter or its housing, making it difficult to remove later. Overtightening the drain plug can strip the threads in the engine block, leading to costly repairs.

Q4: How can I tell if my Yamaha 115 needs an oil change?

A: Follow the recommended service interval (100 hours or annually). Visually, very dark, sludgy oil or oil with a burnt smell can also indicate it's time for a change. Regularly checking the oil level with the dipstick is also important.

Conclusion

Performing a regular oil change on your Yamaha 115 4-stroke outboard is a fundamental aspect of its maintenance. By understanding what's in a typical kit, using the correct oil and tools, and following the step-by-step process, you can ensure your engine remains reliable and performs at its best. This DIY task not only saves you money but also gives you peace of mind, knowing your Yamaha outboard is well-cared for, ready for your next adventure on the water.
