The Yamaha XT500, a name that resonates with adventurers, classic motorcycle enthusiasts, and off-road legends alike, is more than just a motorbike; it's a testament to robust engineering and timeless design. Introduced in the mid-1970s, this iconic machine quickly earned a reputation for its reliability, simplicity, and remarkable capability, conquering everything from rally stages to daily commutes. But what exactly are the constituent parts that came together to create such a revered vehicle? Let's embark on a detailed exploration of the XT500's core components, understanding how each element contributed to its legendary status.
The Heart of the Beast: The Engine

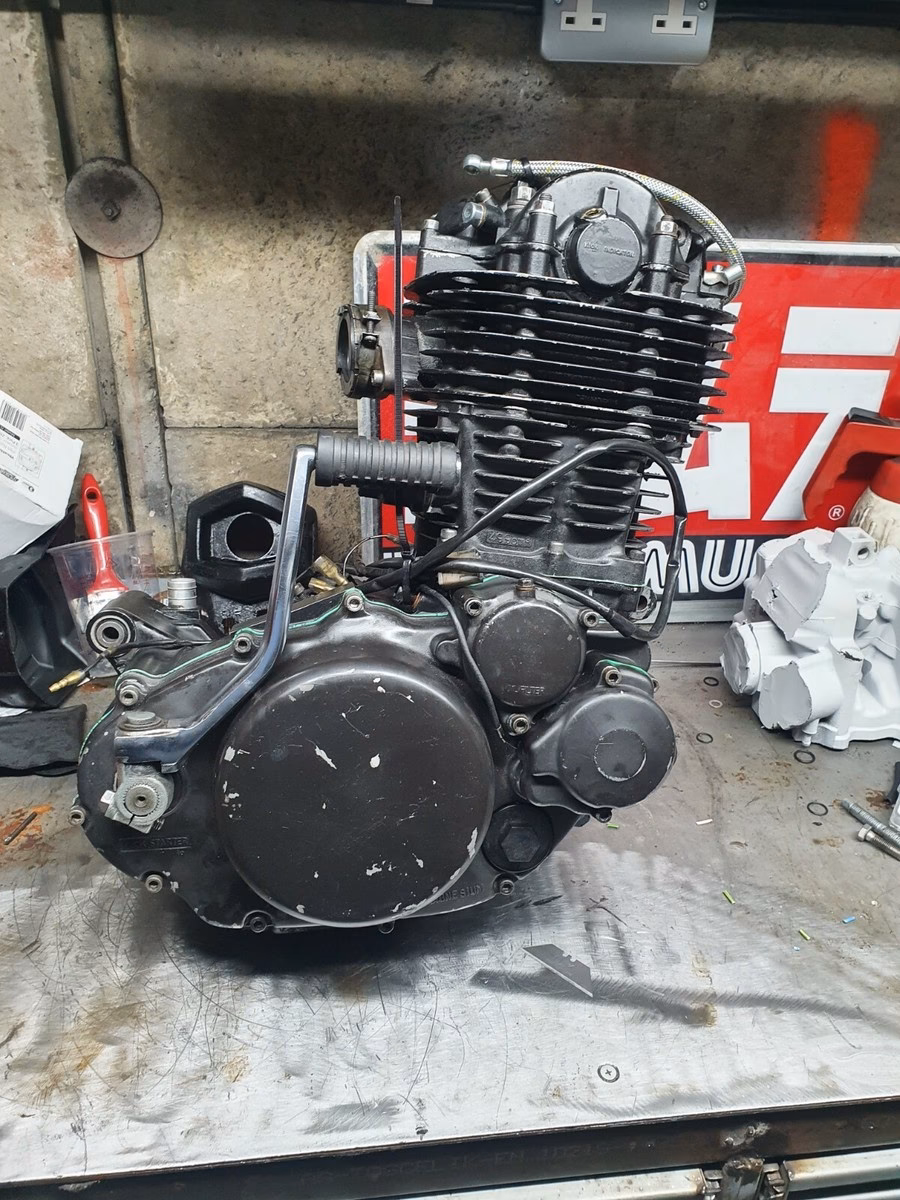

At the very core of the XT500's identity lies its formidable single-cylinder engine. This four-stroke, air-cooled, SOHC (Single Overhead Camshaft) unit was a marvel of straightforward engineering for its time. With a displacement of 499cc, it delivered a distinctive thumping power that was both tractable for off-road excursions and surprisingly capable on the tarmac. Its design prioritised reliability and ease of maintenance, eschewing complex multi-cylinder configurations for a simpler, more robust approach. The large bore and relatively long stroke contributed to its impressive torque delivery, making it ideal for climbing steep inclines or pulling away cleanly from a standstill. Fueling was handled by a single Mikuni carburettor, a reliable and easily adjustable component that provided consistent performance. Starting the XT500 was a ritual in itself, often requiring a precise kick-start technique, a characteristic that endeared it to purists and added to its mechanical charm. The wet sump lubrication system ensured efficient oil circulation, contributing to the engine's long lifespan, even under demanding conditions. This engine wasn't just a power unit; it was the very soul of the XT500, defining its character and capabilities.
The Backbone: Chassis and Frame
Supporting the powerful engine and the rider was the XT500's robust steel double-cradle frame. This type of frame design, common in off-road motorcycles of the era, provided exceptional strength and rigidity, crucial for handling the stresses of rough terrain. The frame's architecture was designed to cradle the engine securely, contributing to the bike's overall stability and handling characteristics. Its simplicity also meant fewer potential points of failure and easier access for maintenance. The geometry of the frame, including rake and trail, was carefully calibrated to offer a balance between straight-line stability and agile manoeuvrability, making it competent both on and off the beaten path. This sturdy backbone ensured that the XT500 could withstand the rigours of rally racing, endure countless miles of touring, and comfortably tackle challenging trails, all while maintaining its structural integrity.
Taming the Terrain: Suspension and Wheels
To navigate varied landscapes, the XT500 was equipped with a suspension system designed for practicality and durability. Up front, it featured conventional telescopic forks, providing a reasonable amount of travel to absorb bumps and undulations. While not as sophisticated as modern upside-down forks, these units were incredibly robust and relatively simple to service. At the rear, a pair of twin shock absorbers, often with adjustable preload, managed the rear wheel's movement. This twin-shock setup, typical of the era, offered a predictable and comfortable ride, even when loaded with luggage or tackling demanding off-road sections. The wheels themselves were spoked, a classic choice for dual-sport motorcycles due to their inherent strength and ability to flex slightly under impact, reducing the chance of catastrophic failure on rough ground. Typically, a 21-inch front wheel provided better obstacle clearance and stability over uneven surfaces, while an 18-inch rear wheel offered a good balance of traction and durability. These components worked in harmony to provide the XT500 with its renowned ability to soak up the terrain and maintain composure.
Bringing It to a Halt: Braking System
In an age before the widespread adoption of disc brakes, the XT500 relied on reliable drum brakes both front and rear. While perhaps not offering the sheer stopping power or fade resistance of modern disc setups, the drum brakes on the XT500 were perfectly adequate for its performance envelope and intended use. They were known for their simplicity, durability, and effectiveness in dry conditions. Their enclosed design also offered some protection against mud and water, a distinct advantage in off-road environments. Riders learned to anticipate their braking distances and modulate the levers effectively. The maintenance of drum brakes, involving occasional shoe replacement and cable adjustment, was straightforward, aligning with the XT500's overall philosophy of uncomplicated mechanics. For many, the feel of drum brakes is part of the classic riding experience, requiring a different touch but proving reliable when properly maintained.
Fueling the Adventure: Fuel and Exhaust Systems
The XT500's fuel system was elegantly simple, centred around its sturdy steel fuel tank. Depending on the year and specific model, tank capacities typically ranged from around 8.8 to 11 litres, offering a decent range for extended rides. Fuel was gravity-fed to the aforementioned Mikuni carburettor, which precisely mixed air and fuel for combustion. A petcock (fuel tap) allowed the rider to control fuel flow, with reserve settings providing peace of mind on longer journeys. The exhaust system consisted of a straightforward header pipe leading into a single muffler. This design was not only efficient for scavenging exhaust gases but also contributed to the bike's characteristic thumping exhaust note. The exhaust was generally routed high to avoid damage from obstacles when riding off-road, a practical consideration for a machine designed for adventure.
Sparking Life: Electrical System
The XT500's electrical system was as minimal and robust as the rest of the bike. Early models typically ran on a 6-volt system, later transitioning to a more common 12-volt setup. The heart of the ignition system was a CDI (Capacitor Discharge Ignition) unit, providing a reliable spark to the single spark plug. Lighting included a headlight, taillight, and indicators, all designed for basic functionality and durability. The electrical components were generally well-protected, reflecting the bike's intended use in potentially harsh environments. The simplicity of the wiring harness meant fewer points of failure and easier fault diagnosis, a boon for owners performing their own maintenance or repairs in remote locations. There were no complex electronic control units or intricate sensor networks; just fundamental electrical components designed for longevity.
Rider's Command Centre: Controls and Ergonomics
The rider's interaction with the XT500 was direct and mechanical. Wide handlebars provided excellent leverage for steering, especially off-road, and housed the essential levers for clutch and front brake. The throttle, often a simple cable-operated twist-grip, offered direct control over the engine's output. Footpegs were robust, sometimes serrated for better grip in muddy conditions, and positioned to offer a comfortable and commanding riding posture. The seat, typically a long, relatively flat unit, allowed for easy rider movement, whether shifting weight for cornering or standing up over bumps. Instrumentation was minimal, usually consisting of a speedometer and odometer, sometimes with indicator lights for neutral, high beam, and turn signals. This minimalist approach kept the rider focused on the road or trail ahead, free from unnecessary distractions.
The Finishing Touches: Bodywork and Styling
The XT500's bodywork was both functional and iconic. The steel fuel tank, often painted in distinctive Yamaha colours, was durable and aesthetically pleasing. Fenders, front and rear, were designed to offer adequate splash protection while maintaining the bike's lean profile. Side panels often covered the airbox and battery, protecting them from the elements. The overall styling was purposeful and uncluttered, exuding a classic dual-sport aesthetic that has remained popular for decades. Every element of the bodywork contributed to the XT500's rugged and timeless appeal, proving that less can indeed be more.
Comparison: XT500 Components vs. Modern Dual-Sport Philosophy
To truly appreciate the XT500's component philosophy, it's insightful to briefly compare it with a modern dual-sport motorcycle. The XT500 embodies the essence of simplicity, robustness, and mechanical transparency, a stark contrast to the technological sophistication prevalent today.
| Component Aspect | Yamaha XT500 (1970s-80s) | Modern Dual-Sport (e.g., Yamaha Tenere 700) |
|---|---|---|
| Engine | Single-cylinder, air-cooled, SOHC, carburetted, kick-start only (early) | Parallel-twin, liquid-cooled, DOHC, fuel-injected, electric start |
| Frame | Steel double-cradle | Steel backbone or semi-double cradle, often lighter alloys |
| Front Suspension | Conventional telescopic forks | Upside-down (USD) forks, often fully adjustable |
| Rear Suspension | Twin shock absorbers | Monoshock (single rear shock) with linkage, fully adjustable |
| Brakes | Front and rear drum brakes | Front and rear disc brakes, often with ABS |
| Electrical System | Minimalist, 6V/12V, CDI, basic lighting | 12V, ECU controlled, LED lighting, digital dash, rider aids (traction control, ABS) |
| Starting | Kick-start (primary) | Electric start (primary) |
As evident from the table, the XT500's components represent a philosophy of mechanical purity and straightforward functionality. While modern bikes offer enhanced performance, safety, and comfort through advanced technology, the XT500's enduring appeal often lies precisely in its lack of complexity, making it easier to maintain and more connected to the riding experience.
Frequently Asked Questions About XT500 Components
Q: Are XT500 engine components reliable?
A: Absolutely. The XT500's single-cylinder engine is renowned for its reliability and durability, provided it receives regular maintenance, including oil changes and valve adjustments. Its simple design means fewer things can go wrong.
Q: What kind of brakes does an XT500 have, and are they effective?
A: The XT500 features drum brakes both front and rear. While they require a different approach compared to modern disc brakes, they are effective when properly maintained and adjusted. They offer good feel and are robust for off-road use.
Q: Is it difficult to find replacement parts for XT500 components?
A: While not as readily available as parts for new models, many components for the XT500 are still available, either as genuine Yamaha spares (though increasingly rare), aftermarket reproductions, or used parts from specialist suppliers and enthusiasts. The global following ensures a decent supply chain for most critical parts.
Q: Can the XT500's suspension be upgraded?
A: Yes, many XT500 owners choose to upgrade the suspension for improved performance, especially for more aggressive off-road riding. This can involve fitting progressive fork springs, modern cartridge inserts, or replacing the rear twin shocks with higher-performance aftermarket units.
Q: What are the common wear items for XT500 components?
A: Like any motorcycle, common wear items include tyres, brake shoes, chain and sprockets, spark plug, and air filter. Engine-wise, valve clearances need regular checking, and the kick-start mechanism can require attention if not used correctly. The exhaust can also rust over time.
Conclusion
The Yamaha XT500's enduring legacy is a direct result of its carefully chosen and robust components. From its thumping, reliable single-cylinder engine to its sturdy steel frame, simple yet effective suspension, and dependable drum brakes, every part was designed with a clear purpose: to create a versatile, durable, and maintainable machine capable of tackling any adventure. It's a motorcycle that celebrates mechanical transparency and rider involvement, demonstrating that true capability often stems from intelligent simplicity rather than excessive complexity. Understanding these core components not only deepens our appreciation for this classic but also highlights why the XT500 remains a cherished icon in the world of motorcycling, a true testament to engineering excellence from an era defined by reliability and rugged charm.
