Shimano M785 Lever: Caliper Compatibility Guide

There's little more frustrating for a cycling enthusiast than a set of squealing, ineffective brakes. It's not just an annoyance; it's a significant safety concern. When you've put time and effort into diagnosing the issue, like identifying that stubborn oily residue and suspecting a caliper micro-leak, you want clear solutions that don't break the bank or compromise your ride quality. You've got a solid foundation with your Shimano M785 XT levers, and the good news is, you absolutely do not need to replace them. This guide will walk you through the compatibility of Shimano XT and SLX level calipers with your M785 levers, address the common issues of contamination and leaks, and help you get back to quiet, confident braking.

Understanding Shimano Hydraulic Brake Systems

Shimano has done an excellent job of standardising their hydraulic disc brake components, making many parts cross-compatible across different series. This is a huge benefit for riders looking to upgrade, replace worn parts, or simply mix and match based on performance and budget. The key to this compatibility lies in a few fundamental design choices:

Firstly, all Shimano hydraulic disc brakes use mineral oil as their brake fluid. Unlike DOT fluid, which is hygroscopic (absorbs water) and corrosive, mineral oil is stable, non-corrosive, and won't damage paint. This common fluid type means that any Shimano lever can, in theory, push mineral oil through any Shimano caliper, provided the volumes and pressures are within reasonable operating parameters.

Secondly, the hose fittings are generally standard across the range. Whether you're connecting a high-end XTR caliper or a more budget-friendly Deore, the olive and barb system, along with the threaded hose connection at the caliper, remains consistent. This simplifies installation and ensures a secure, leak-free connection.

Finally, the piston design and master cylinder ratios are designed to work harmoniously across their component tiers. While there might be subtle differences in lever feel or modulation between, say, an XT and a Saint setup, the fundamental hydraulic principles allow for broad compatibility. This means your M785 lever, a well-regarded and robust piece of kit, is far from obsolete.

The M785 Lever: A Closer Look

The Shimano Deore XT BR-M785 lever, part of the M785 group set, was a highly successful and widely praised component for good reason. It offered excellent ergonomic design, reliable performance, and a good balance of power and modulation, making it a favourite among trail riders and cross-country racers alike. Features like Servo Wave Action, which increases the pad travel at the start of the lever pull for quicker engagement, combined with a progressive power delivery, made it a benchmark for its time.

Many riders, like yourself, appreciate the feel and performance of their M785 levers and see no reason to replace them. This is a smart approach. Upgrading or replacing just the caliper is often a more cost-effective and environmentally friendly solution than buying an entire new brake system. Your M785 levers are robust and, assuming the lever body itself isn't leaking or suffering from internal issues, they have plenty of life left in them to power a new caliper.

Caliper Compatibility: Your XT and SLX Options

Given your M785 levers, you have a wealth of compatible caliper options from Shimano's current and recent XT and SLX ranges. The key is to decide between a 2-piston (2-pot) or 4-piston (4-pot) caliper, which largely depends on your riding style and desired braking power.

2-Piston Calipers (XC/Trail Focus)

These are the direct successors to the caliper that would have originally paired with your M785 lever. They offer excellent power for cross-country and general trail riding, with good modulation and a lighter weight profile.

Shimano BR-M8000 (XT): This is the most logical and direct replacement. The M8000 caliper was designed to pair with the M8000 lever, which is the direct successor to your M785. The hydraulic ratios are very similar, meaning you'll likely experience a very familiar lever feel and power delivery. It's a lightweight, high-performance 2-piston caliper that uses standard G02A/J02A (resin) or G04S/J04C (metallic) pads. It's an excellent choice if you want to maintain the original XT performance.

Shimano BR-M7000 (SLX): The SLX M7000 caliper is essentially a slightly less refined, but equally compatible and robust, version of the M8000. It offers nearly identical braking performance at a more attractive price point. It also uses the same pad types as the M8000. For a cost-effective solution that doesn't compromise on reliability, the M7000 SLX caliper is a fantastic option.

Shimano BR-M6100 (Deore): While you specified XT or SLX, it's worth noting that the current Deore M6100 2-piston caliper is also fully compatible. It provides reliable braking and is an even more budget-friendly option, often appearing quite similar in design to the higher-tier models. If you’re looking to save a few quid and still get solid performance, don't overlook the Deore.

4-Piston Calipers (Trail/Enduro/DH Focus)

If you're looking for more outright stopping power, especially for aggressive trail riding, enduro, or if you're a heavier rider, a 4-piston caliper is an excellent upgrade. Your M785 lever will absolutely work with these, providing a powerful and controlled braking experience.

Shimano BR-M8120 (XT): This is Shimano's current XT 4-piston trail/enduro caliper. It offers significantly more power than a 2-piston caliper, with excellent heat management thanks to its four ceramic pistons. It uses D03S (resin) or D02S (metallic) pads. Pairing this with your M785 lever will give you a potent braking setup, perfect for steep descents and demanding trails.

Shimano BR-M7120 (SLX): The SLX M7120 4-piston caliper is the more budget-friendly counterpart to the M8120 XT. It offers nearly identical power and heat management capabilities, using the same D03S/D02S pads. For riders wanting 4-piston performance without the XT price tag, the M7120 is an outstanding choice and fully compatible with your M785 lever.

Here's a quick comparison table to help you decide:

Troubleshooting Squealing Brakes and Oily Residue: The Contamination Conundrum

Your description of oily black stuff on your front brakes and persistent squealing strongly points to contamination. This is a common and frustrating issue, and your suspicion of a micro-leak in the caliper is highly plausible. Here's why:

The Leak Scenario

A micro-leak, even a tiny one, allows minute amounts of brake fluid (mineral oil) to escape the caliper. This oil then gets onto your brake pads and rotor. Once brake pads absorb oil, their friction material is compromised. They can no longer generate the necessary friction against the rotor efficiently, leading to reduced stopping power and, crucially, that horrendous squealing noise. The black oily residue you're seeing is likely a mix of the escaping mineral oil, brake dust, and possibly degraded pad material. Cleaning the discs and pads with water or even brake cleaner will only offer temporary relief, if any, because the pads themselves are saturated, and the leak continues to re-contaminate the system.

Why Cleaning Alone Won't Work

You've tried cleaning with water and Muc-Off brake cleaner, and the problem persists. This is exactly what you'd expect with a caliper leak. The brake pads are porous, designed to absorb heat and provide friction. Once they've absorbed oil, it's virtually impossible to fully clean them. The oil is deep within the pad material. Similarly, while you can clean the rotor surface, if the pads are still oily, they will immediately re-contaminate the rotor the moment you apply the brakes. This is why replacing the caliper is the correct path, as it addresses the root cause of the contamination.

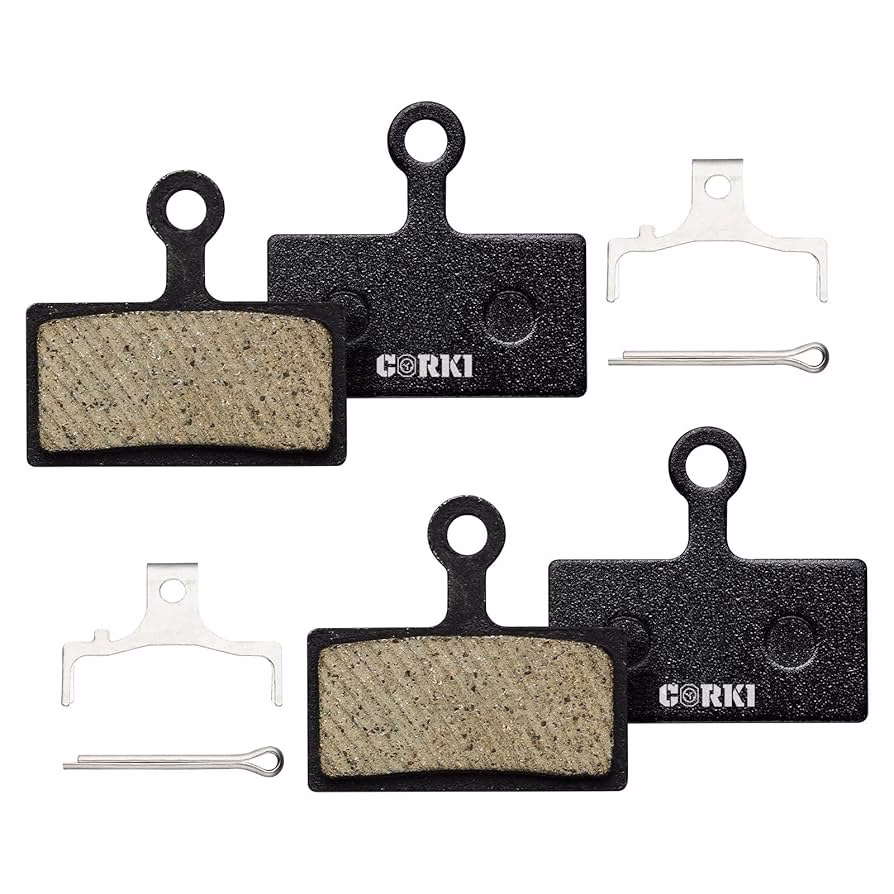

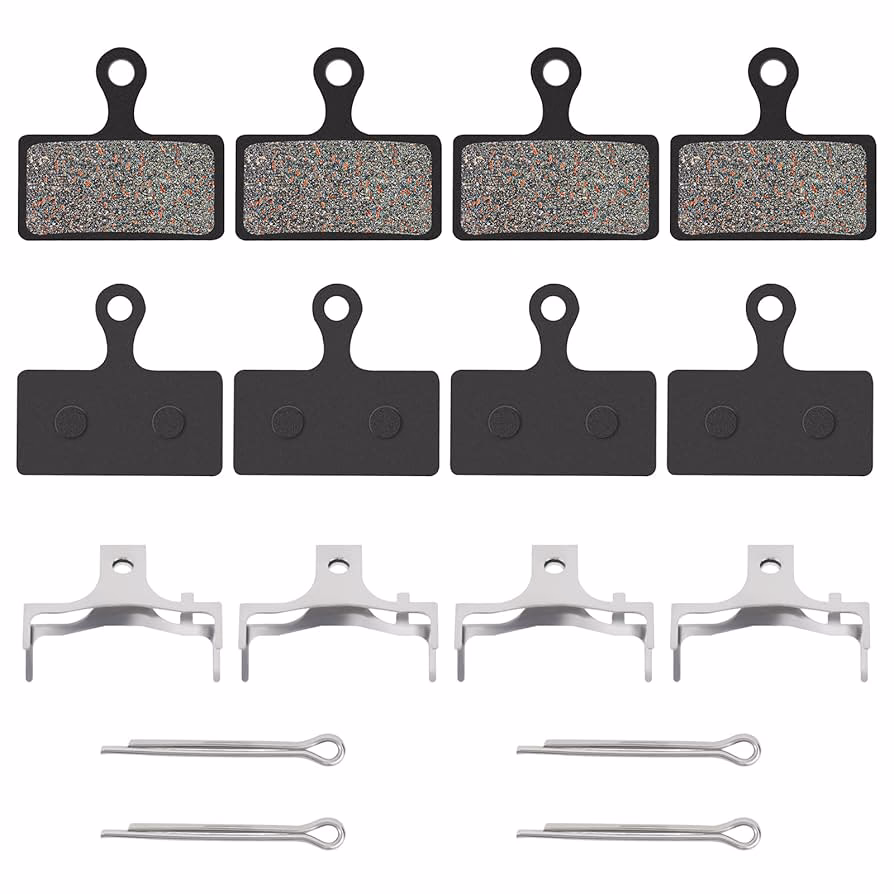

The Need for New Pads and Rotors

When you replace the caliper, it is absolutely critical to also replace your brake pads and, very likely, your rotors. Even if your discs aren't excessively worn, if they have been subjected to significant oil contamination, it's incredibly difficult to get them truly clean enough to prevent new pads from becoming contaminated. Micro-pores in the rotor surface can trap oil, and even a trace amount can ruin new pads. Given your discs are also likely due for replacement due to wear, this is the perfect opportunity to start fresh with a completely clean braking surface and new, uncontaminated pads.

Disc Rotor Considerations

As you're contemplating replacing your discs due to wear, understanding your options is important:

• Rotor Material and Design: Shimano offers various rotor designs, including their Ice-Tech rotors (e.g., RT86, RT99) which feature a layered steel-aluminium-steel construction for improved heat dissipation. This is particularly beneficial if you're upgrading to a 4-piston caliper or ride in demanding conditions. Standard steel rotors (e.g., RT66, RT56) are also perfectly adequate for general trail riding.
• Rotor Size: Ensure you replace your current rotors with the same size (e.g., 180mm, 160mm) unless you plan to change your caliper adapter mounts. Consistency in size ensures your existing adapters work seamlessly.
• Mounting Standard: Rotors come in two main mounting standards: 6-bolt and Center Lock. Ensure your new rotors match your wheel hubs.
• Wear Indicators: Shimano rotors typically have a minimum thickness stamped on them (e.g., 1.5mm for most MTB rotors). If your current rotors are below this, they absolutely need replacing.

Installation Tips and Best Practices

Once you have your new caliper, pads, and potentially rotors, proper installation is key to silent, powerful braking:

• Cleanliness is Paramount: Before touching any new components, thoroughly clean your hands. Avoid touching the braking surface of the new pads or rotors with bare skin, as even finger oils can cause contamination. Use rubbing alcohol or dedicated brake cleaner on the new rotor surface before installation.
• Correct Hose Connection: Ensure the brake hose is cut to the correct length (if necessary) and the olive and barb are installed correctly for a leak-free seal. Tighten the hose fitting to the caliper to Shimano's specified torque.
• Proper Bleeding: After installing the new caliper, you will need to bleed the brake system. This removes any air that entered the system during the caliper replacement and ensures a firm, consistent lever feel. Shimano's one-way bleeding funnel system makes this relatively straightforward for a DIY mechanic, but if you're unsure, a local bike shop (LBS) can do it quickly. Air in the system is another common cause of poor braking performance and spongy levers.
• Caliper Alignment: After installation, align the caliper so the pads are centred over the rotor and do not rub. This usually involves loosening the caliper bolts slightly, squeezing the brake lever firmly, and then tightening the bolts while holding the lever.
• Bedding In New Pads and Rotors: This is a crucial step that many neglect. New pads and rotors need to be 'bedded in' to achieve their full performance. This involves a series of moderate to hard stops from increasing speeds, without coming to a complete stop, to gradually transfer pad material to the rotor surface and condition the pads. Do this in a safe, open area. Skipping this step can lead to poor initial performance and noise.

Frequently Asked Questions

Q: Do I need to replace my M785 levers when replacing the caliper?

A: Absolutely not. As discussed, your M785 levers are excellent components and are fully compatible with current Shimano XT and SLX calipers, both 2-piston and 4-piston designs. Replacing just the caliper is a cost-effective and sensible solution.

Q: Can I mix and match different Shimano caliper series (e.g., an XT lever with an SLX caliper)?

A: Yes, generally. Shimano's hydraulic brake components are largely cross-compatible due to their use of mineral oil and standard hose fittings. An XT lever will work perfectly fine with an SLX, Deore, or even Saint/Zee caliper. The primary differences you might notice are in the overall power delivery and modulation characteristics, which are often subtle.

Q: What about mineral oil? Do I need a specific type?

A: All Shimano hydraulic brakes use Shimano's proprietary mineral oil. While other brands produce 'mineral oil' brake fluid, it's always safest and recommended to use genuine Shimano mineral oil to ensure compatibility with seals and internal components, preserving the longevity of your brake system.

Q: How do I know if my discs are truly worn and need replacing, beyond just contamination?

A: Check the minimum thickness. Most Shimano MTB rotors have a minimum thickness of 1.5mm stamped on them. Use a set of callipers to measure your rotor's thickness. If it's at or below this limit, it's structurally compromised and must be replaced. Additionally, look for deep grooves, warping, or discolouration (blueing from overheating) which also indicate it's time for a new rotor.

Q: Is it difficult to replace a caliper and bleed brakes myself?

A: Replacing the caliper itself is relatively straightforward, usually involving two bolts and connecting the hose. However, bleeding the brakes can be a bit more involved and requires specific tools (a bleed kit with funnel, mineral oil). While it's a common DIY task for many home mechanics, if you're uncomfortable with the process or lack the tools, taking it to your LBS is a wise choice. They can perform the installation and bleed quickly and correctly, ensuring optimal performance and safety.

In conclusion, your Shimano M785 levers are still a capable foundation for a high-performing brake system. The squealing and oily residue strongly indicate a caliper micro-leak and subsequent contamination of your pads and rotors. By replacing the faulty caliper with a compatible XT or SLX model, installing fresh pads, and ideally new rotors, and performing a thorough bleeding process, you'll eliminate the noise, restore full stopping power, and enjoy many more miles of quiet, confident riding. Don't hesitate to invest in these key components; your safety and enjoyment on the trails depend on it.
